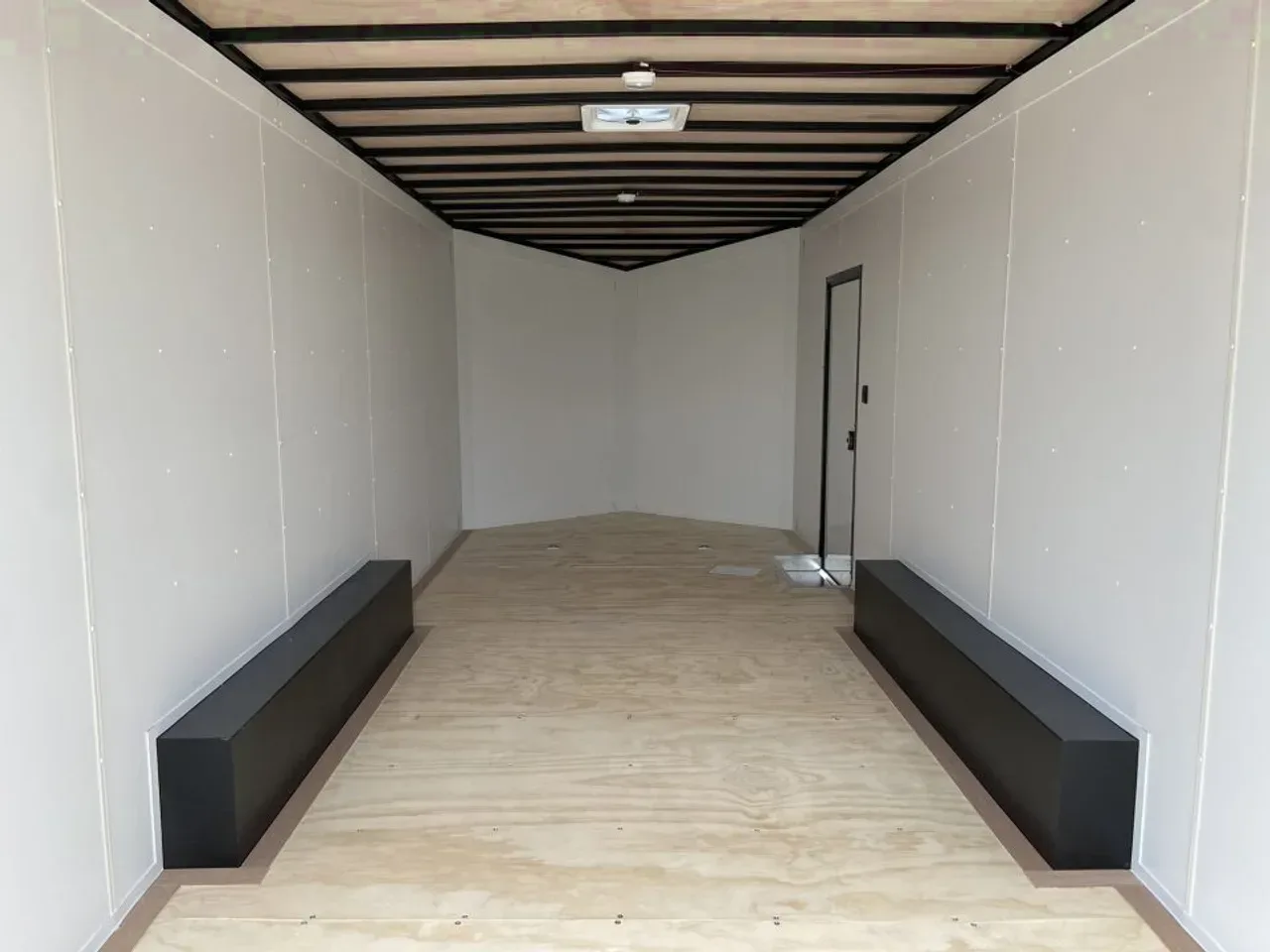

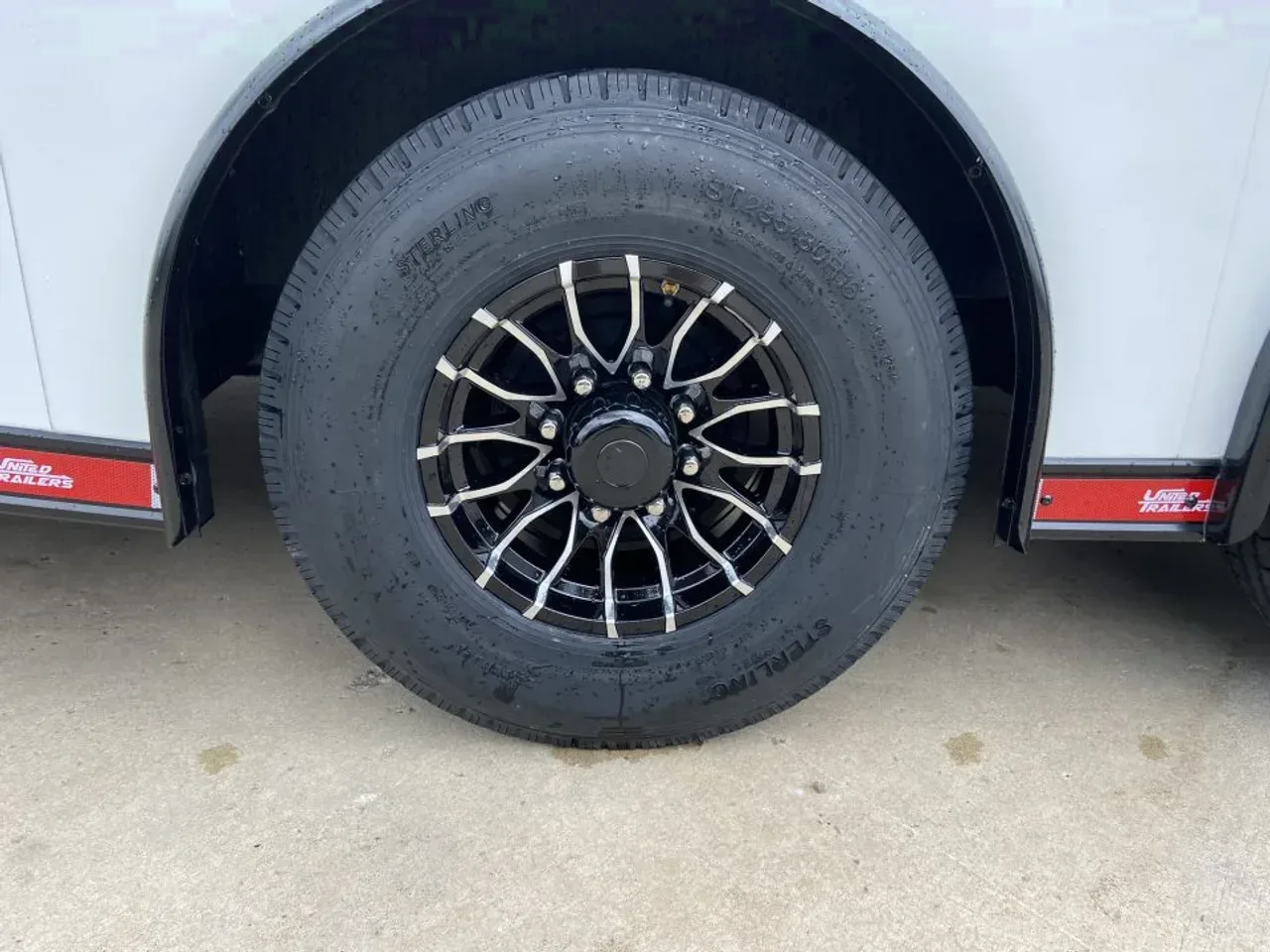

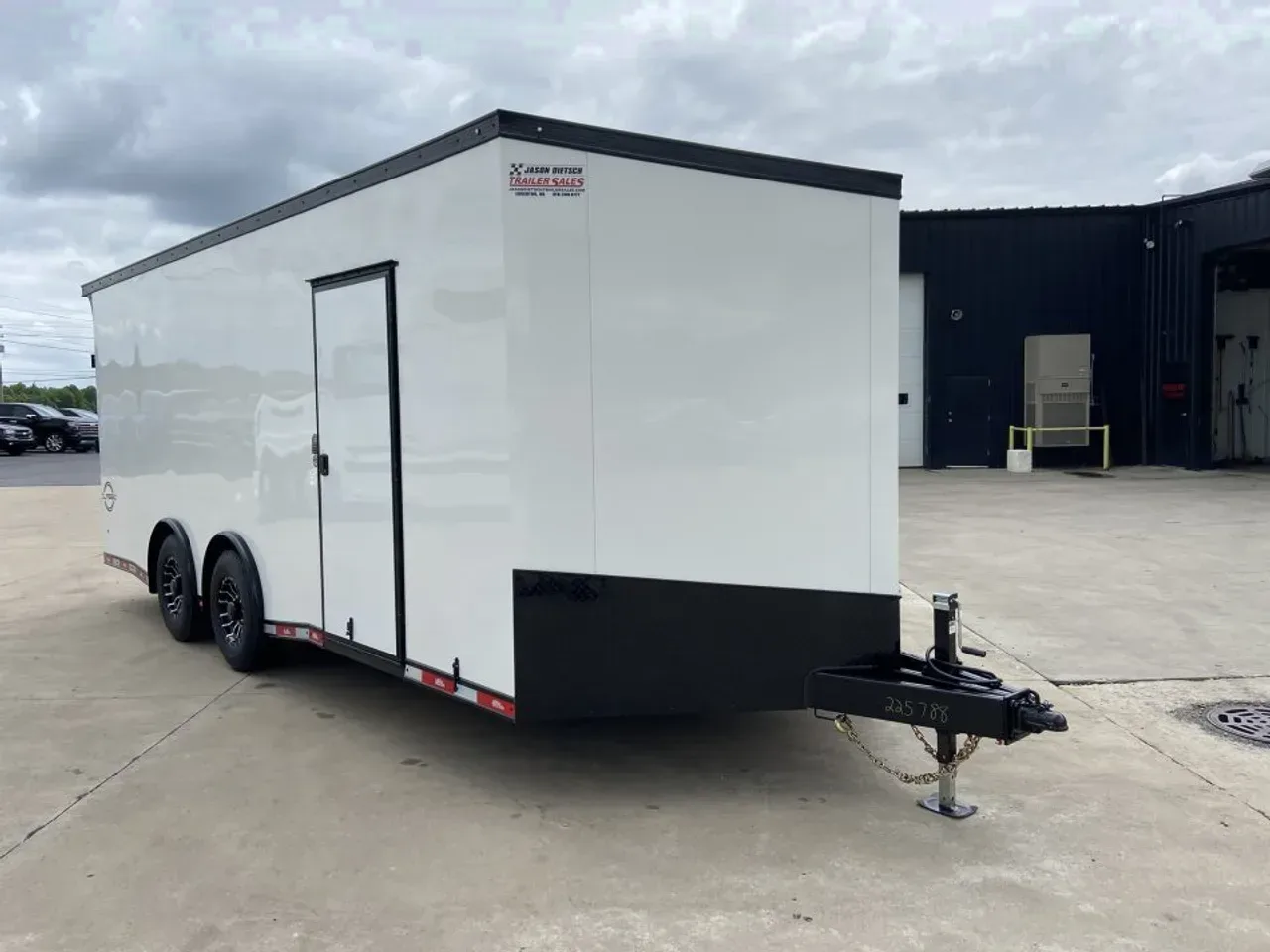

United CLAV 8.5x23 Enclosed Trailer Height: * Standard - 7ft. interior height Axles: * 10 inch Spread Tandem Axles * 5200# Elec Brake Axle (6" drop) #9A-22 1 /2 deg up - changed to 8 bolt hub Tires: * ST235/80 R 16 LRE Westlake on Black and Silver Liger Alum Wheel Hitch: * 7-Way Molded Plug * Breakaway kit w/charger * Coupler - 2 5/16 bolt on (20,000#) * Jack - 7000# Drop Leg, Removable * Safety Chain * Tongue - 1 foot ext with third member 11-gauge Frame: * 3" inch x 48" inch ceiling strap * 36in. V-Nose w/ Slant * Beavertail * Corner Posts - 2" wide corner posts * Crossmembers -16in o.c. * D-Rings Heavy Duty Qty (4) * 6" inch I Beam Frame - double beam * Roof Tubes -16" inch O.C. * Wall - 16in On Center Sidewall Posts Vents: * Vent - Roof Vent (non-power) Interior: * Floor -3/4in Plywood Floor * Box off sidewalls to reduce dust * D-Rings -(4) Heavy Duty-BOLT IN * Smooth .080 Aluminum -in Step well * Wall -3/8" with white vinyl 12 Volt Electrical: * Lights -12 volt Dome Lights * Lights-LED tail light surface mount * Switch -12 volt wall Exterior: * -Slant Nose- * .030 Smooth Aluminum * 4" Truck Body Style Exterior Trim * ATP--Angled Cut * Exterior -Top and Bottom trim * Flare -23" Single wheel flare * Rear Cast Corners * Roof -Aluminum Seamless * Roof-Hide roof with lauan * Taped Exterior Metal Door: * 2" inch corner posts * Beavertail, Ramp Door, and Flap w/ Spring * Door-Hold back-Aluminum heavy duty where applicable * RV Door -400 Series -32" x 72" (3' from front) **Dimensions:** 8.5' x 23' (102" x 276")
