Height:

• Final Interior Height 8ft

Axles:

• Axle Quantity -Tandem Axle
• 7000# Electric Brake Axle #13 A-Standard

Tires:

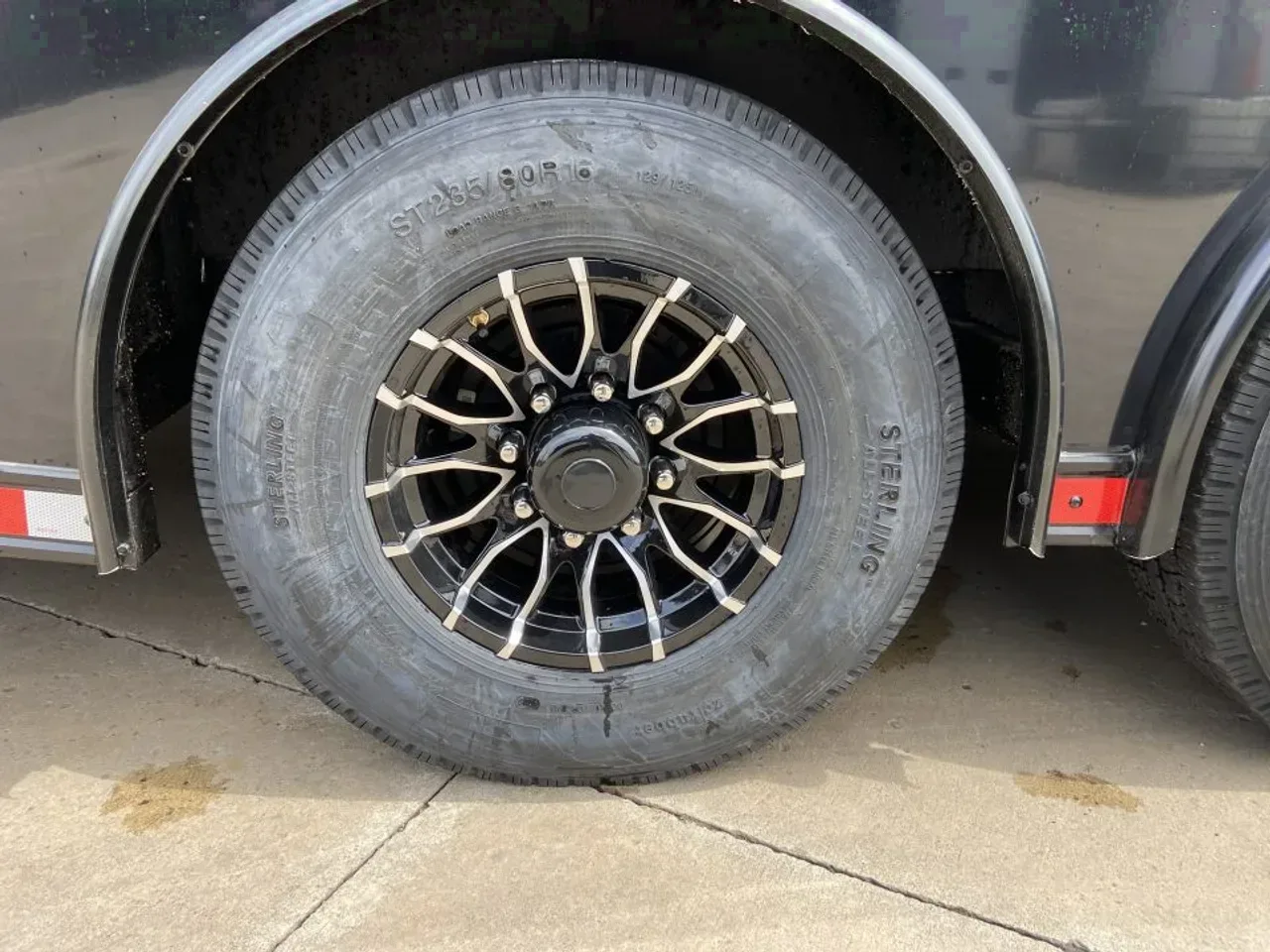

• ST235/80 R 16 G Sterling on Black and Silver Eagle Alum Wheel

Hitch:

• 7-Way Molded Plug
• Breakaway kit w/charger
• Safety Chain
• Coupler - 2 5/16 bolt on (20,000)#
• Jack -Electric
• 1' Extended Tongue w/ 3rd Member (11 gauge)

Frame:

• 8" inch I Beam Frame - double beam
• Spare Tire Well( Recessed)
• Battery Box - Recessed (16in. X 10in. X 12in. deep)
• Beavertail, Ramp Door, Spring & Flap - 6' Beavertail
• Std. 2" Corner Posts
• Crossmembers - 16in o.c.
• Roof Bows -16in On Center
• Wall - 16in On Center Sidewall Posts
• Skid Roller• 4 1/2" - Mount on Rear

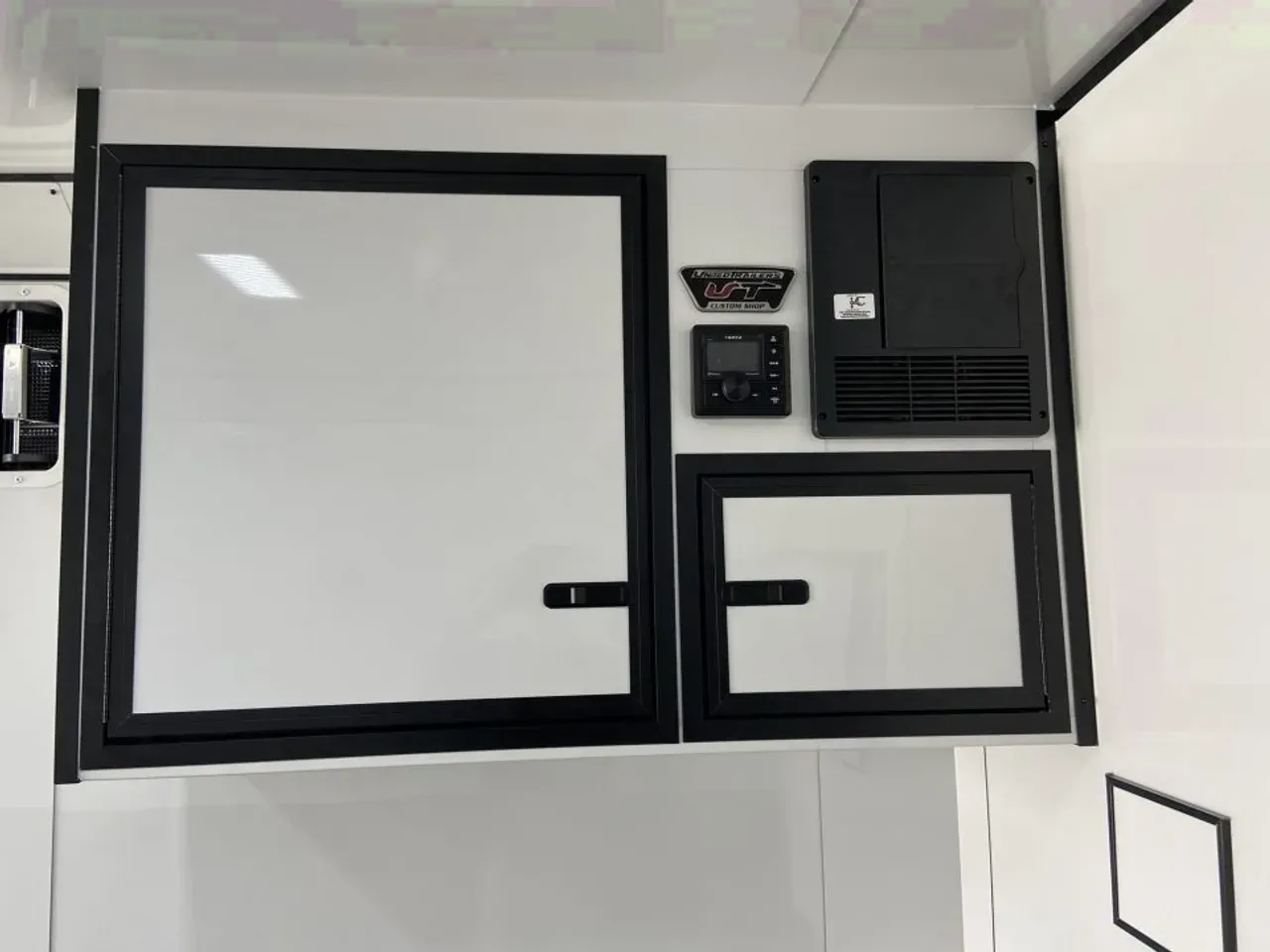

Cabinets:

• Color of Cabinet: White Cabinet

Electrical:

• Motorbase Plug -50Amp
• Panel Box -50 Amp Panel Box w/ Converter All-in-One
• Recept-110V GFI Exterior
• Recept-110V Interior Duplex

Vents:

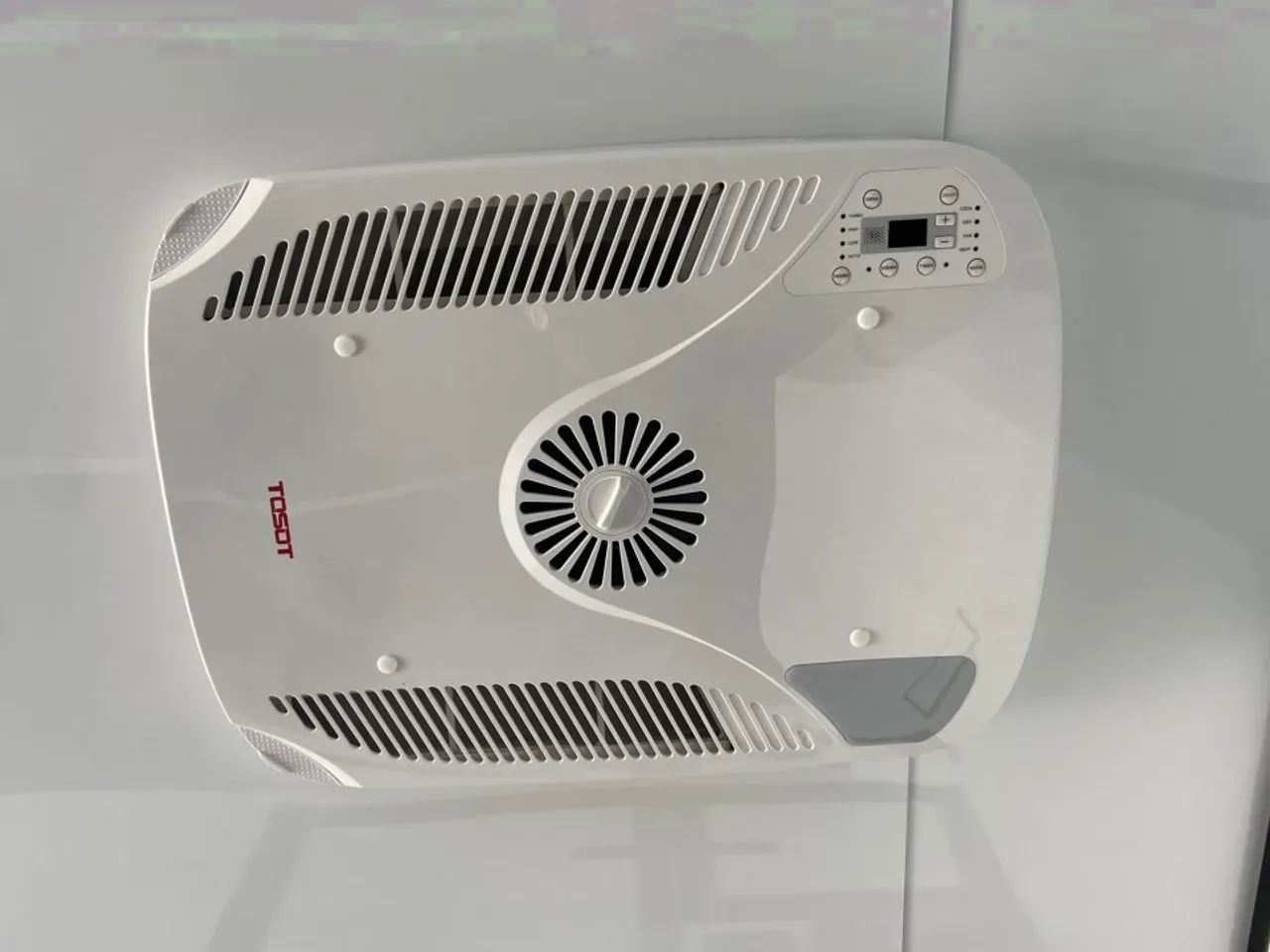

• Roof Vent {Braced & Wired for A/C)

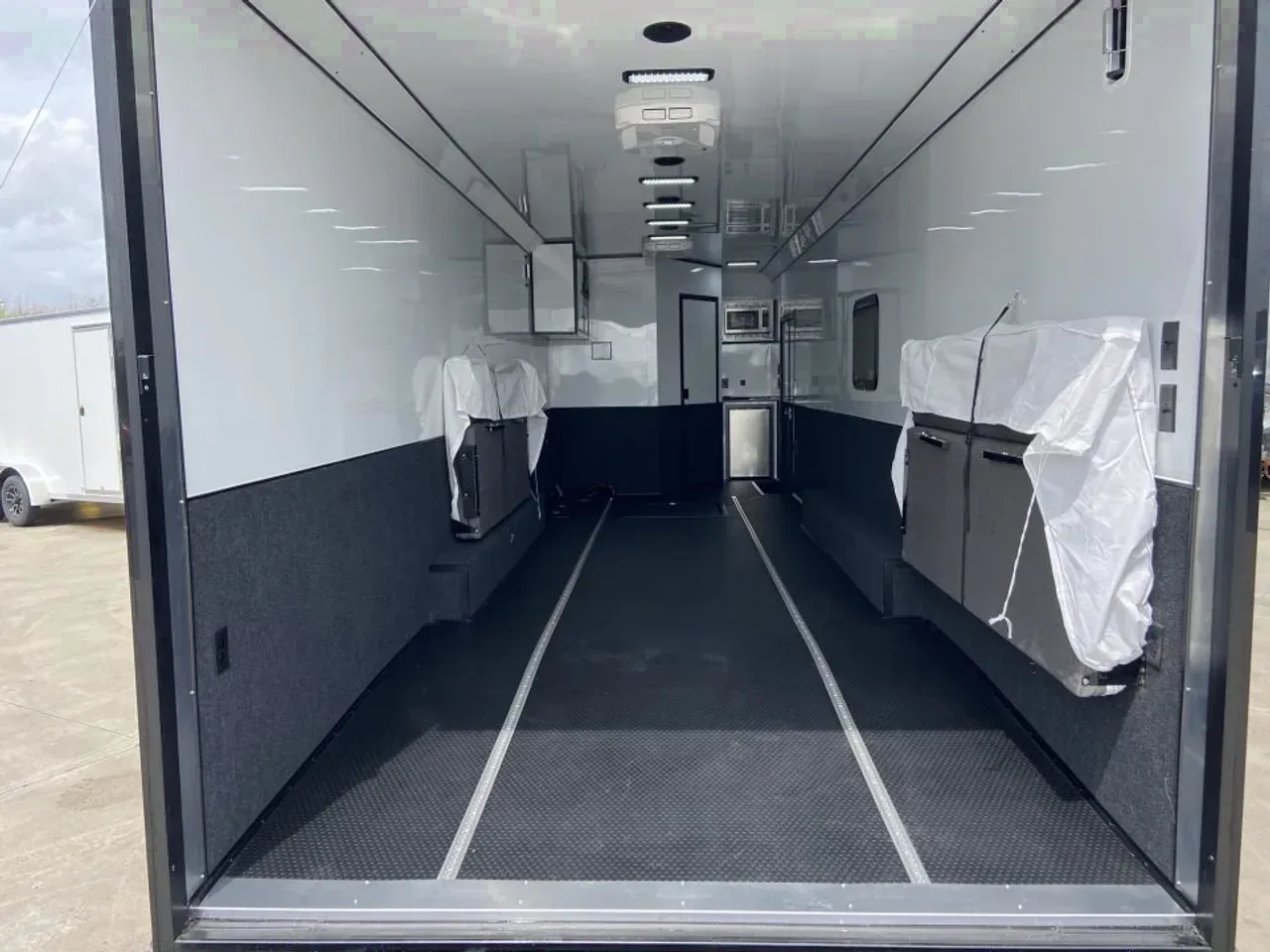

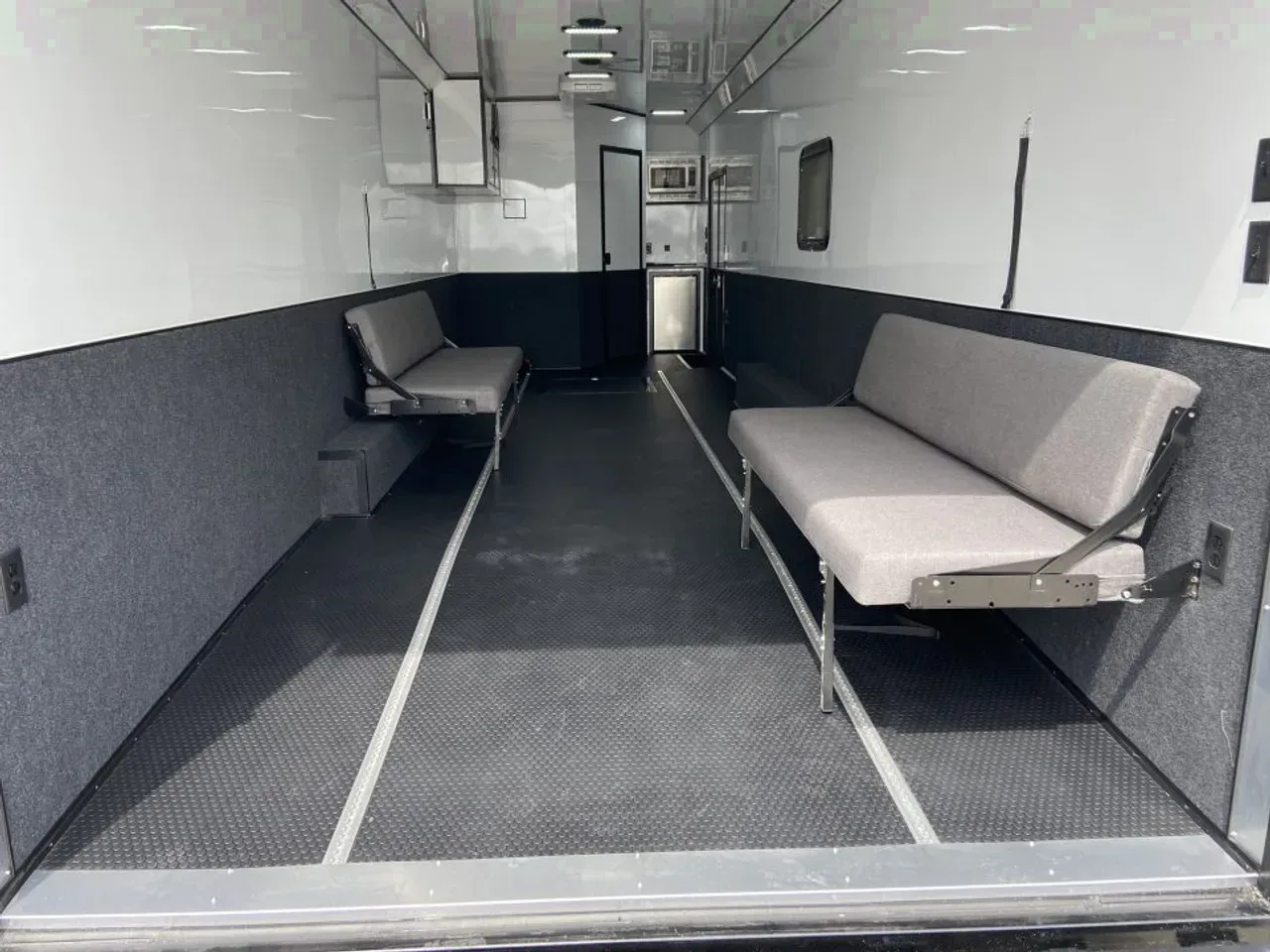

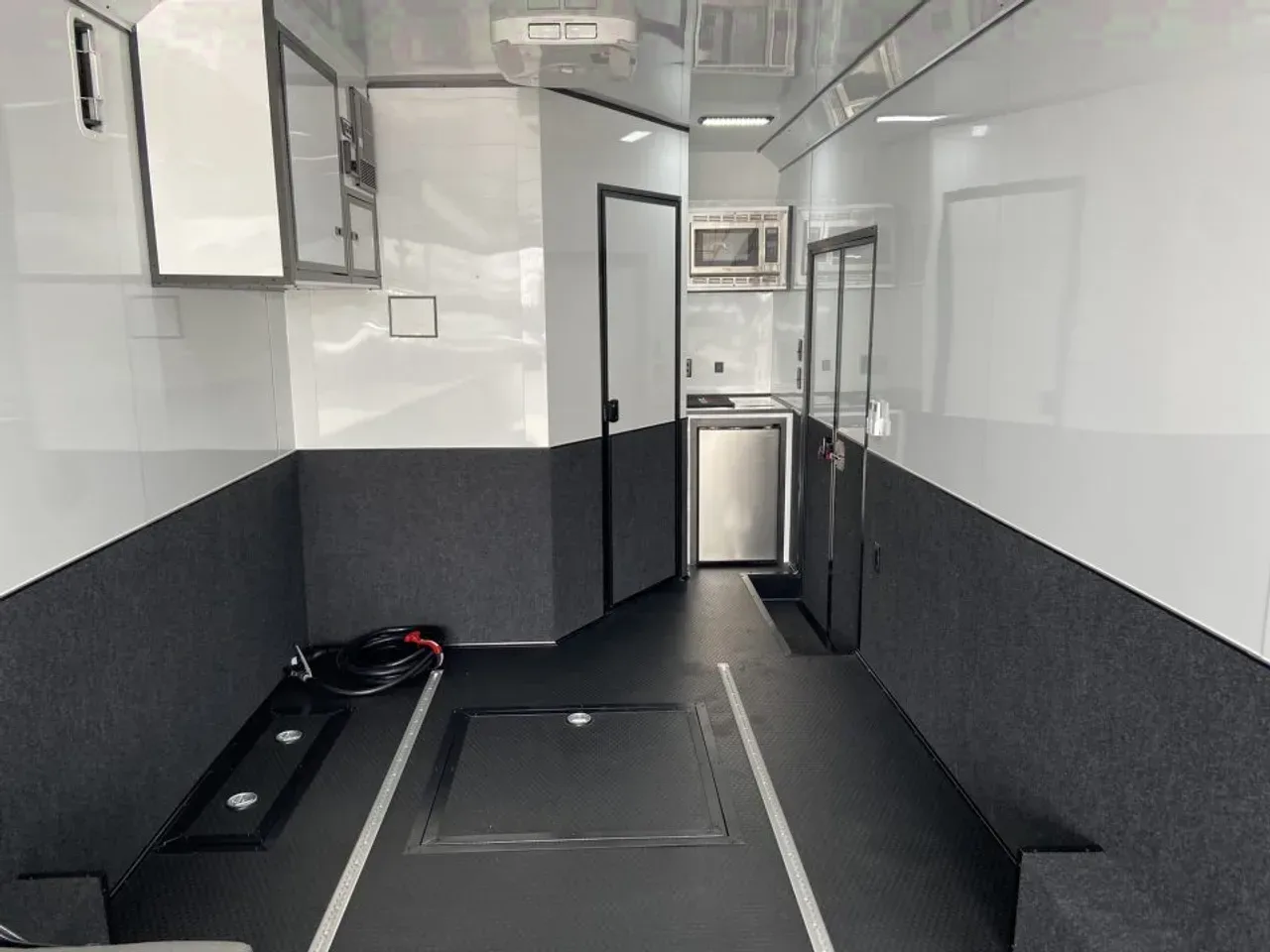

Interior:

• Tie Downs -Heavy Duty D-Rings (Bolt-In)
• Floor Covering-Raised Small Coin Black
• Wall -Carpeting (marine grade) on wall 36" tall -Black
• White Cove Trim
• Floor - 3/4in Plywood Floor
• STD. Wall - White Aluminum interior walls over 3/8in plywood wall liner
• J Rail for Cove Trim
• Insulated White Aluminum Ceiling

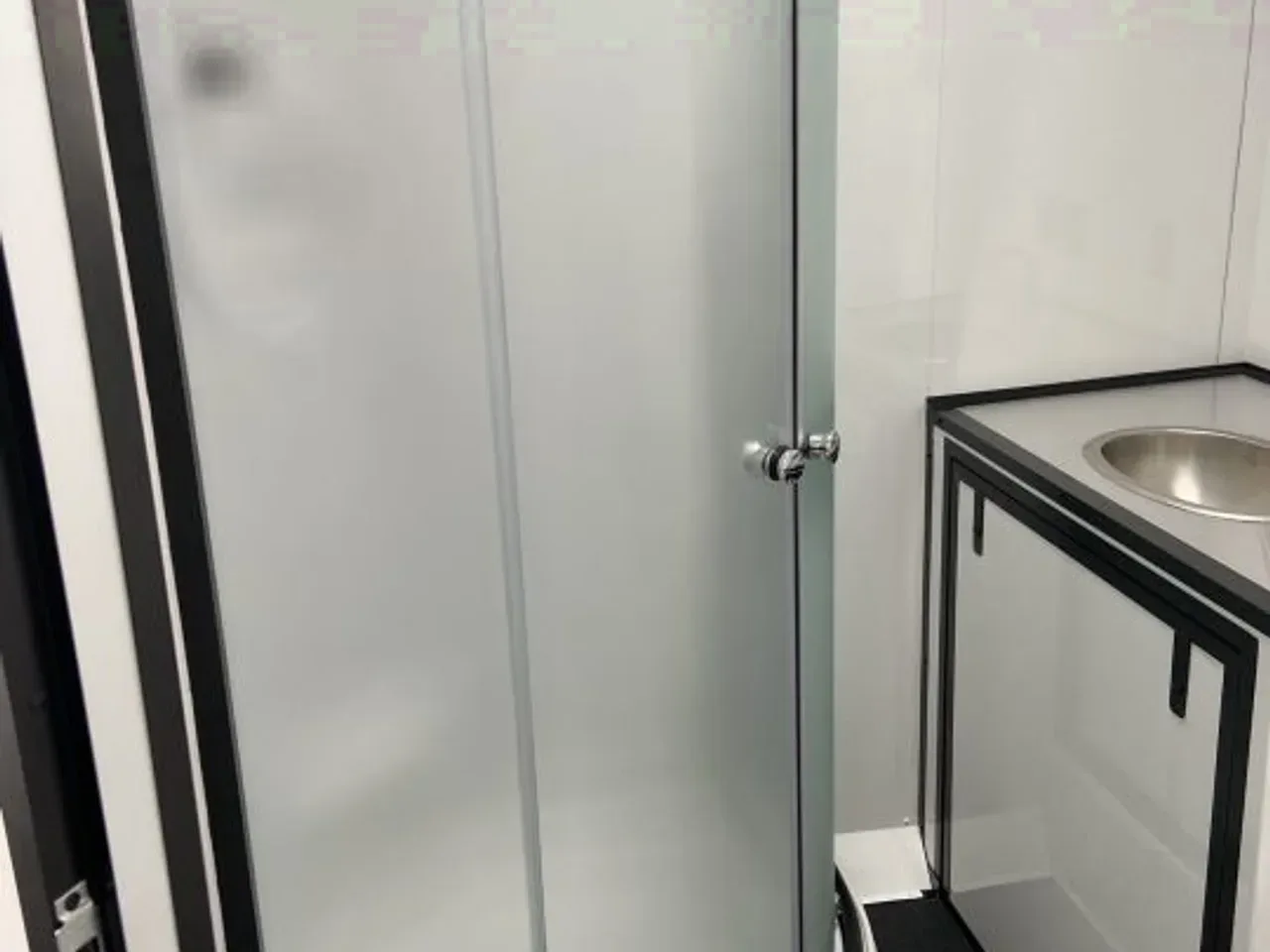

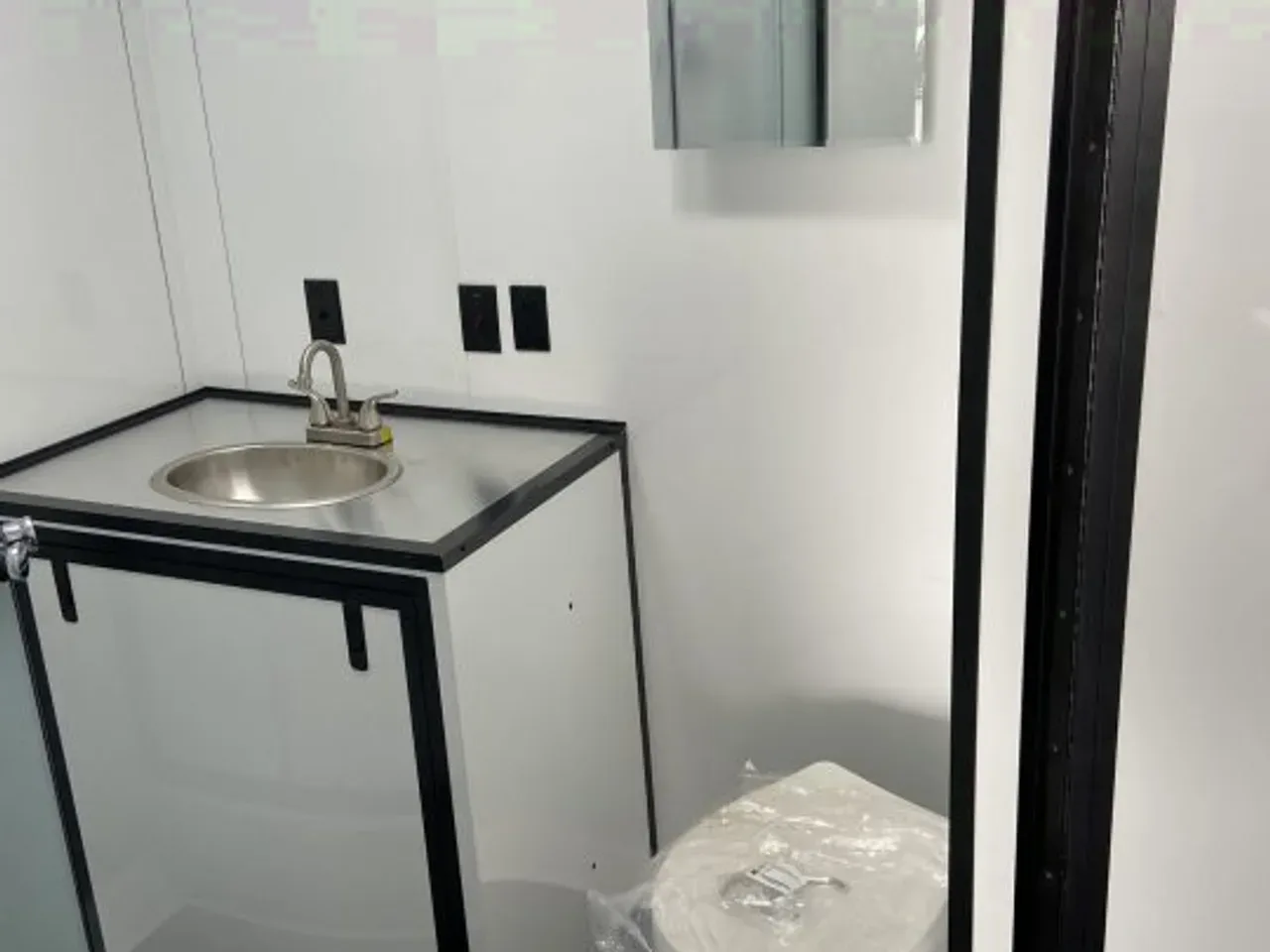

• Bathroom Package

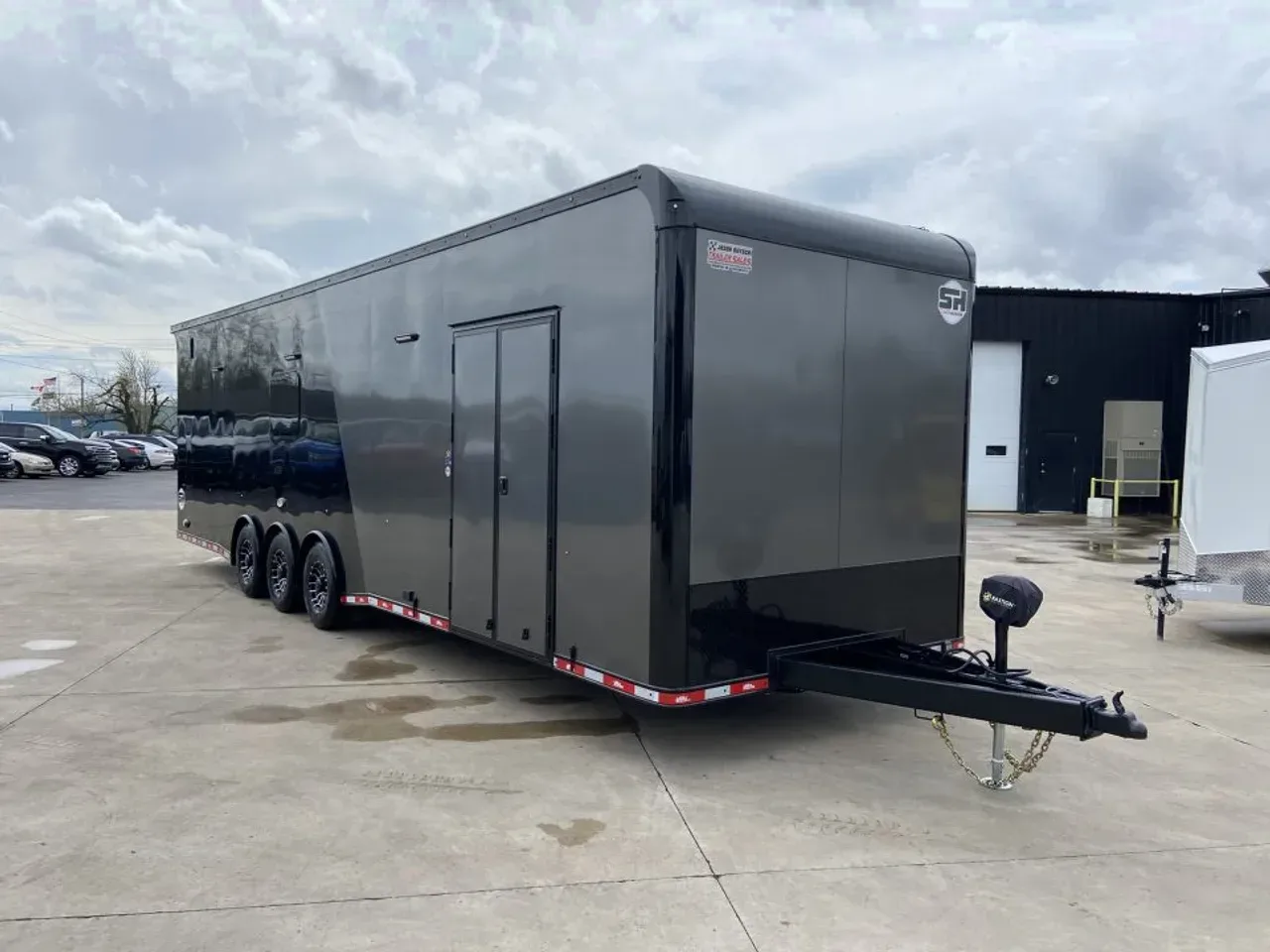

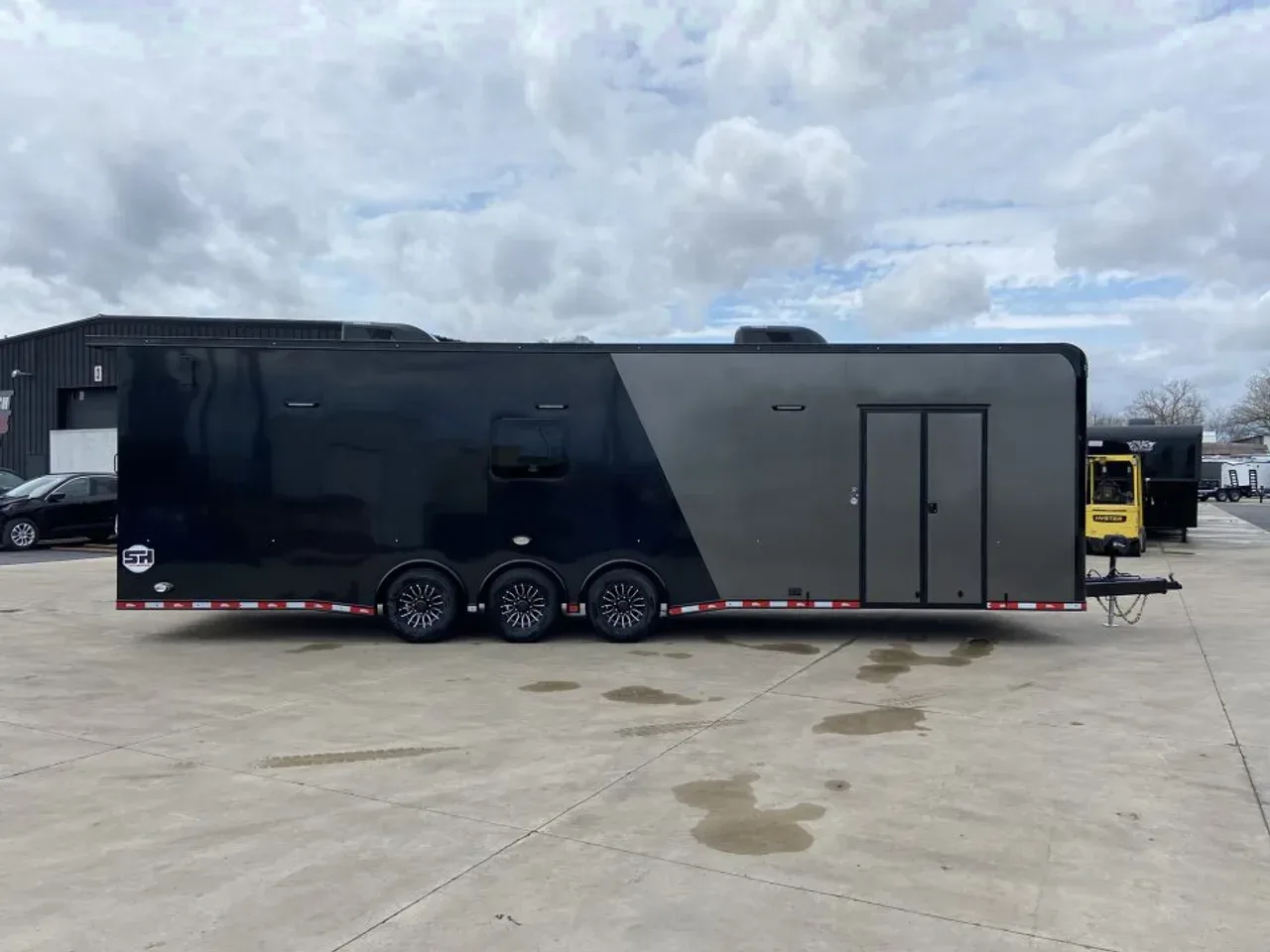

Exterior:

• 4in. Bottom Molding
• ATP Stoneguard
• Bright Aluminum - Front Corners
• Bright Aluminum - Front Wrap
• Conspicuity Tape
• End Cap - front corners and rear corners
• License plate bracket raise 12"
• Recessed Top Aluminum Extrusion
• Roof - One Piece Aluminum
• Taped Exterior Metal
• Roof- Lauan down center of roof only
• Cast Corners - Polished {USH)
• Bright Aluminum Rear Hoop
• Exterior Trim Mill
• white
• Flare - 23in Single Wheel Flares

Door:

• Door Hold Back Aluminum Heavy Duty
• License plate bracket holder raise
• 12" Steel Step well
• Ramp Flap-1' Aluminum
• STD. Recessed Camlocks (Rear door)
• RV Door - 48 X 78" Blank Double USH STD
• Generator Door -400 Series 36" x 30"

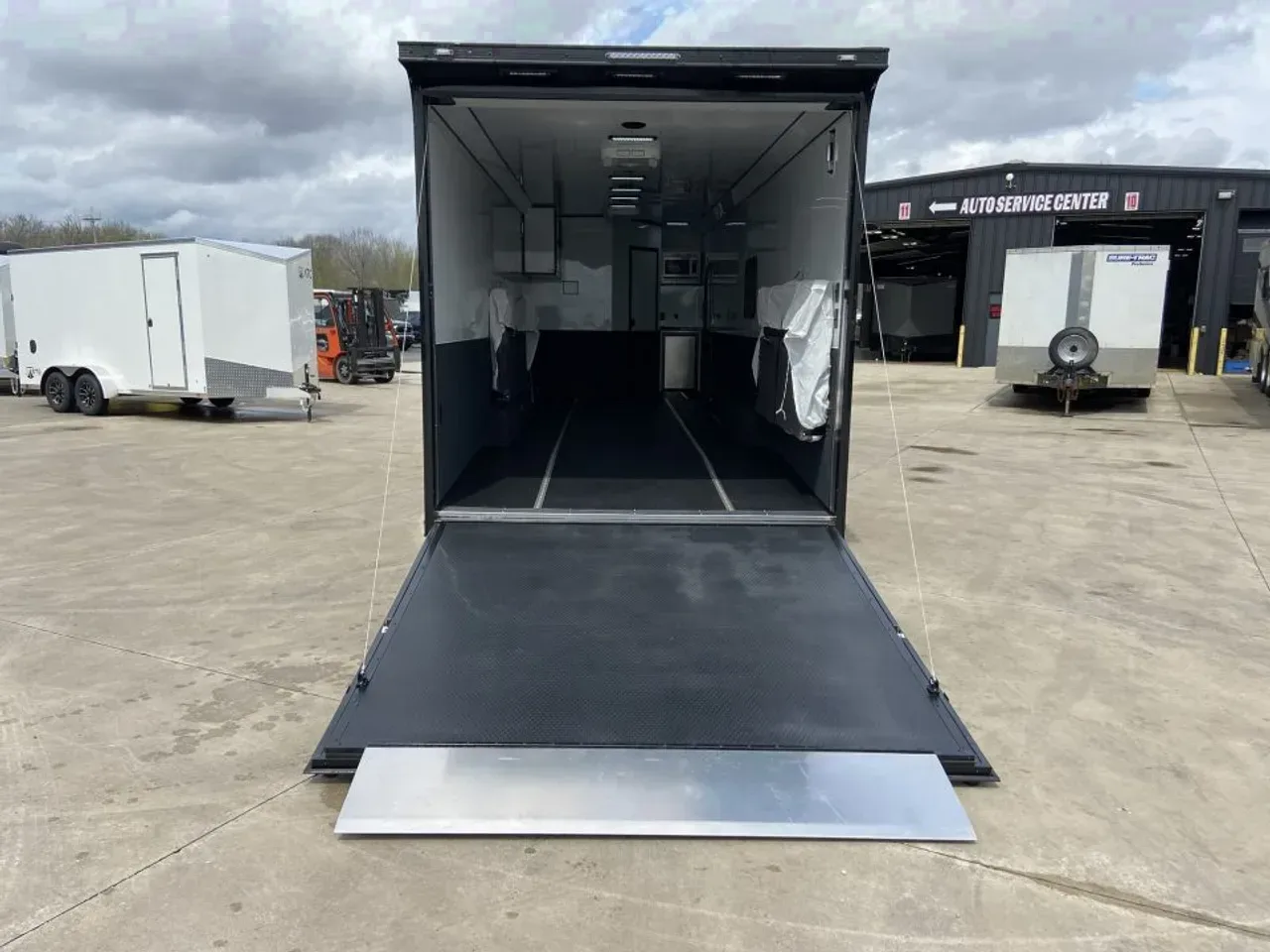

• Ramp door with 6' Beavertail w/ Flap
• Std. Alum -Grab handle For Ramp Door
• Rear Ramp Door -Heavier Ramp Door Double Spring

12 Volt Electrical:

• Battery Charger - Solar - (12V-20Watt Trickle Charger Battery Maintainer)
• Carbon Monoxide Detector Battery Operated
• Diode for 14" Angled Scene Light
• Exterior Light - 14" Angled Scene Light- (Nova)
• Exterior Light -LED Recessed Clearance Lights
• Interior Light -14" LED Hux Utility Light

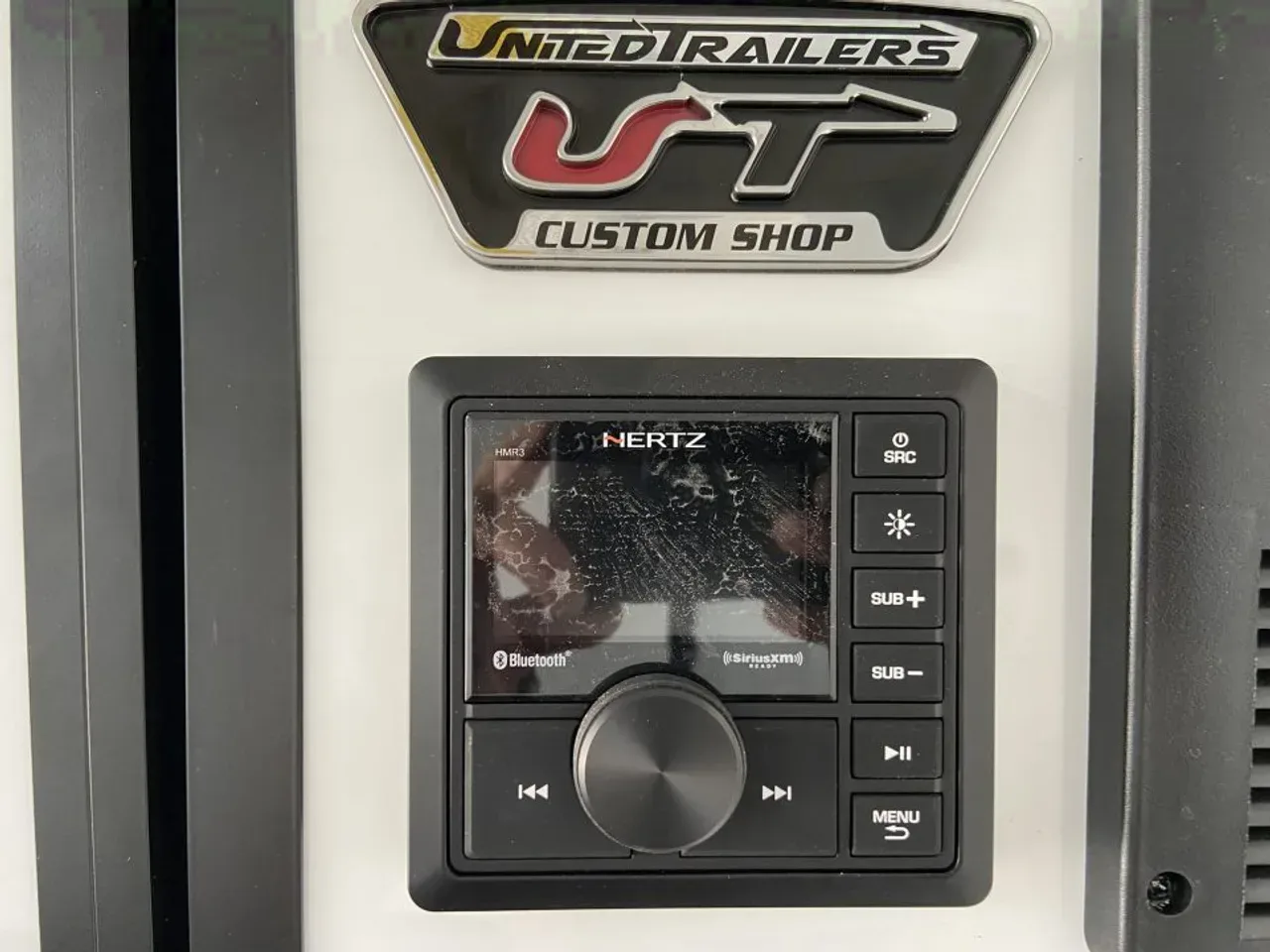

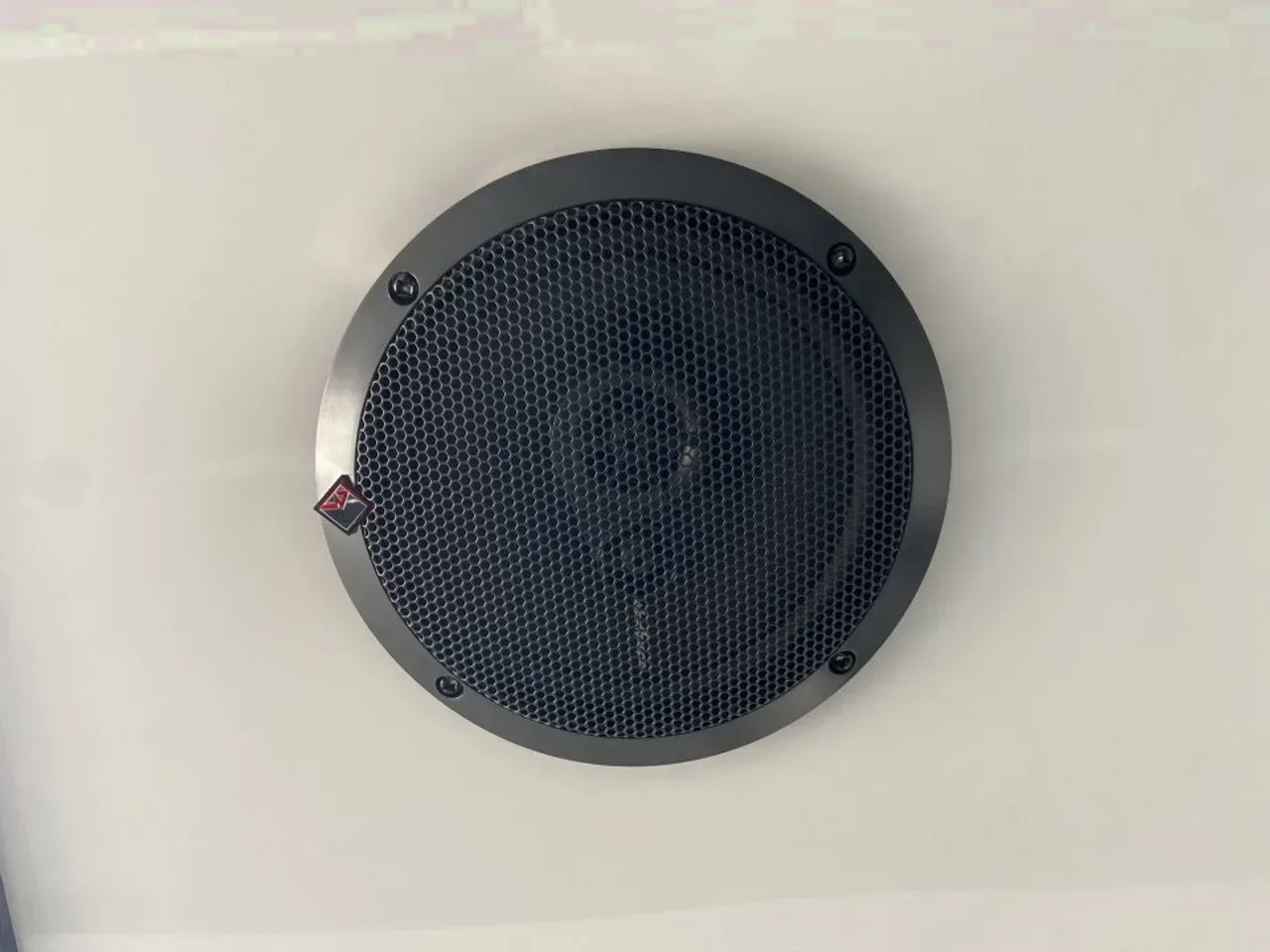

• Stereo -w/ 4 Speakers -AM/FM/Bluetooth
• Switch -110V 3-way (for 12V Component)
• Switch -110V Style Single (For 12V Component)
• Switch -110V Style Single (IPO Standard 12V Switch)
• Tail lights angle mounted on ramp door
• 12V Recept -USB Charging Port w/ Wall Plate
• Exterior Light - LED Back Up (Docking) Light
• Exterior Light - LED Mid Ship Turn Signal (Amber)
• Battery - 12V Deep Cycle w/ Box
• LED Clearance & Tail Lights For Entire Unit
• STD Exterior Light - LED Surface Mount Tail w/ Chrome Ring

**Dimensions:** 4' x 6.5' (48" x 78")
