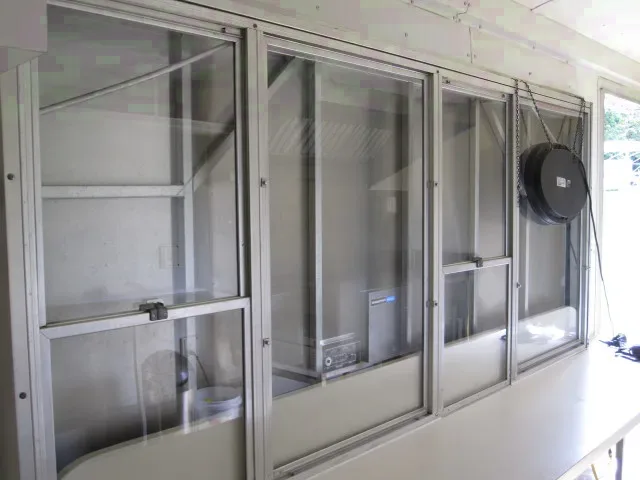

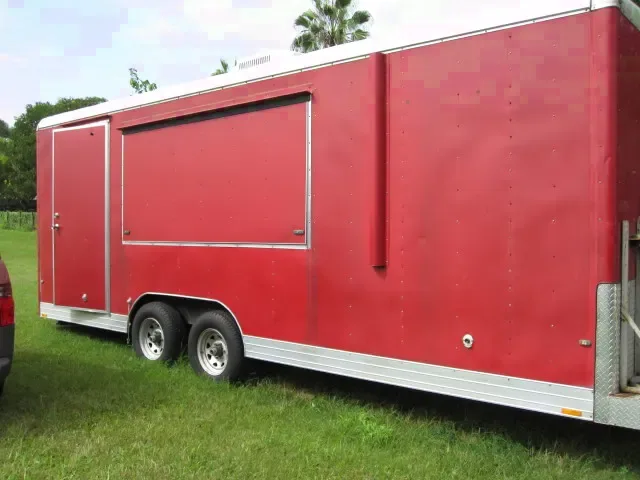

8’wide 24’ long Wells Cargo Concession/Catering Trailer Pair of heavy duty drop down rear corner post stabilizer jacks Custom fabricated steel tread plate propane platform for 100lb. propane cylinder Custom fabricated 100lb propane mounting brackets 4 100lb propane tank and regulator Extended three piece ‘A’ frame ( tongue ) 2 5/16” top mount coupler with replaceable locking dog assembly D.O.T. compliant 5/16” safety chains with Clevis safety slip hook and latch 4”x2” rectangular steel tube main rails Two 3500lb, 10 degree up Torflex axles with 10”x2.25” electric brakes, E/Z lube, and 5 on 4.5 hubs and drums with Wells Cargo weather resistant wiring pkg. Four ST175/80R13 load range ‘C’ radial tires mounted on a bolt electro deposition coated silver spoke wheel Chassis fully under coated with CPC ( Corrosion Preventative Compound ) 8 ’inside height, Reinforce roof bows/sidewall and install 8”commercial hood and exhaust fan 32”wide pre-framed entry door with screen, right hand hinge with flush lock and integrated dead bolt. Aluminum exterior with white smooth fiberglass interior One type ‘B’, curbside 2 section TEMPERED GLASS CONCESSION WINDOW with screens ( 45” high x 96” ), comes with two stationary windows and two slider windows for serving customers. Windows are removable and can be replaced with screens ( included ) One-lift awning with swing out rods to secure curbside awning in upright position One piece vinyl linoleum flooring over standard plywood floor ¾” exterior grade plywood floor, exterior surface under coated, interior surface painted gray ¼” white vinyl plywood interior sidewall liner Ceiling fully insulated Sidewalls fully insulated Full width ceiling lined with ¼” white vinyl covered plywood contoured to roof radius Interior overhead storage tray along the curbside wall above the concession window, color: white Under counter 50 amp, 120/240v 16 circuit service panel with 50 amp main breaker, 25’ shoreline power cord and through floor cable hatch to run your power cord outside Six-20 amp, 120v duplex wall receptacles 3-4’ double bulb fluorescent light fixtures with diffuser covers Interior wall switch for 120v electric 120v,15,000 BTU roof mounted air conditioner Fully enclosed separate stainless steel hand sink and faucet with divider to separate the hand sink from the compartment sink Removable laminated counter top to place over the compartment sink. Heavy duty on demand water pump with on/off wall switch 25 gallon fresh water tank located under the sink 6 gallon electric hot water heater located under the sink External water hook up to easily fill your water tank Two-27 gallon waste water holding tanks ( total capacity 54 gallons ) Located under the trailer lower and away from fresh water tank per regulatory requirements A dumb valve for easy waste removal aluminum bonded vertically 14”x 14” screened translucent roof vent with crank S.A.E. color coded 12v electrical system, D.O.T. required exterior light package D.O.T. ‘A’ frame mounted 22 amp hour UI series battery, break away switch, aluminum mounting bracket, cover, battery “charge” indicator and diode isolation Seven way trailer and connector THIS CONCESSION INCLUDES THE FOLLOWING: Lincoln conveyor pizza oven produces 150-160 eight inch pie's in an hour, Oven can cook up to a 16 inch pie! · NSF APPROVED 8 ” commercial hood system with grease extracting exhaust fan · NSF APPROVED 19 cu.ft. commercial stainless steel stand up refrigerator manufactured by True, model T-19 NSF APPROVED 19 cu.ft. commercial stainless steel stand up Freezer manufactured by True, NSF APPROVED 2 door beverage cooler stand up refrigerator manufactured by True NSF APPROVED 48” commercial stainless steel equipment stand with an adjustable underneath shelf for additional prep space to the left of the cooking line · Soap dispenser · Paper towel rack · ABC fire extinguisher · 8 ” long sstainless steel backsplash behind the cooking equipment· Run LP service for cooking equipment
