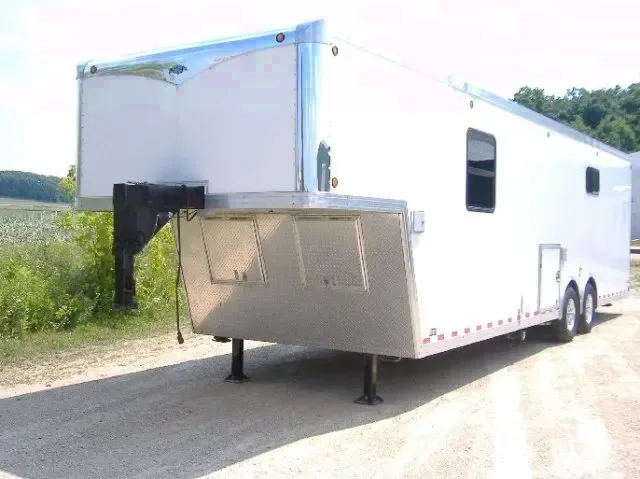

STORM CYCLONE 36’- GOOSENECK SERIES • 36’ Overall Length w/ 6’ Box & 2’ Tongue • Wide Body (102” Interior - 106” Exterior) • Extra Interior Height (7’-6” Interior) • Garage Area 16’ x 8’ (36” cabinets on either side of door, open area 13’ x 8’) • 6” Steel Tube Main Frame • 2” Steel Tube Studs @ 16” o.c. (Walls & Roof Cross members) • Uni-Body Construction • (2) 6000# Dexter E-Z Lube Axles w/ Electric Brakes • 2-5/16” Gooseneck Coupler w/ Breakaway Kit • 16” Aluminum Wheels w/ Goodyear ST 235/ 80R 16 Tires & Matching Spare • Aluminum Fender Flares • Trademark “V” w/ 3rd Roll on Front • Radius Chrome Front Posts w/ Caps • ATP Front Gravel Guard, Step- well & Ramp • 4” Aluminum Molding Top, Bottom & Rear Post • White Gel– Coat, One Piece Side Panels (No Exterior Surface Fasteners) • Aluminum Insulated Roof • 0.030 White Aluminum Interior Walls (Insulated) • 1/4” White Vinyl Ceiling (Insulated) • Recessed Lock Spring Assist Ramp w/ 24” Transition Flap • Sealed Marker Lights all Around w/ Fender Turn Signals • (4) LED Tail Lights w/ (2) Back-Up Lights • D.O.T. Reflective Tape • (2) Front Hydraulic Jacks w/ Battery • (2) Rear Scissor Jacks • 32” RV Side Door w/ Step, Handle, Screen and Recessed Lock • 30x30” and (2) 15x30” Windows • 17x17” Roof Hatch • 12x12” Power Roof Vent in Bath • 32x32” Generator Access Door • 24x24” Under- neck Access Doors • Bath pkg Includes Toilet, Sink, Outside Shower, Water Heater Prep, Black, Gray, and Fresh Water Tanks w/ 12V Pump and Monitor Panel • Kitchen pkg Includes Microware, Refrigerator (Dual Fuel) in 24x24”Cabinet, Sink Cabinet 24x24” w/ Drop Leaf, and 12x30” Upper Cabinets • 32x48” Removable Table • Dual 30# LP Tanks w/ Ducted Furnace • Dual 13,500 BTU A/C Units w/ Heat Strip and 12V Thermostat • 6500 Watt Guardian “Quite Pack” Generator w/ 15 gal Fuel Tank and Remote Panel • 50 amp Service Panel w/ 12V Converter and 25’ Life Line • (6) 12V 24” Twin Tube Light Fixtures w/ Switch • 110V Ceiling Fixtures Wired w/ Switch • 12V Under-neck Lights • (15) 110V Outlets Thru-out Interior
