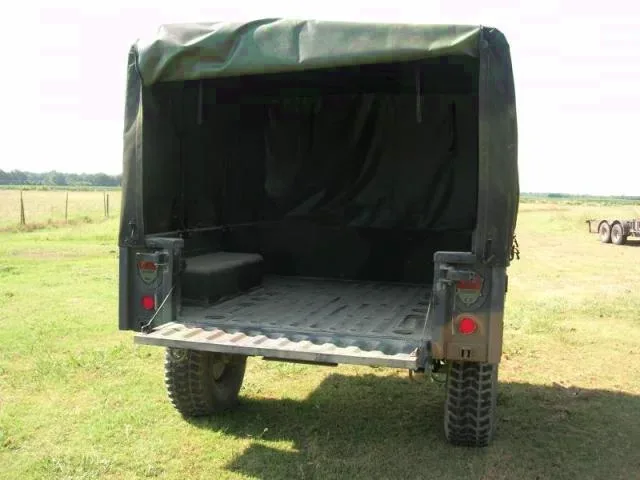

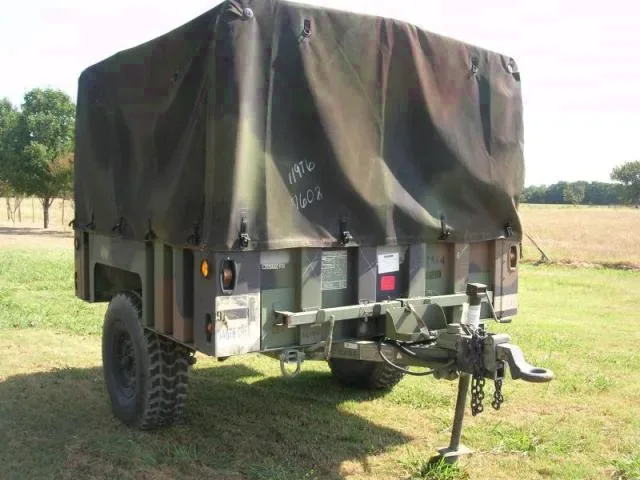

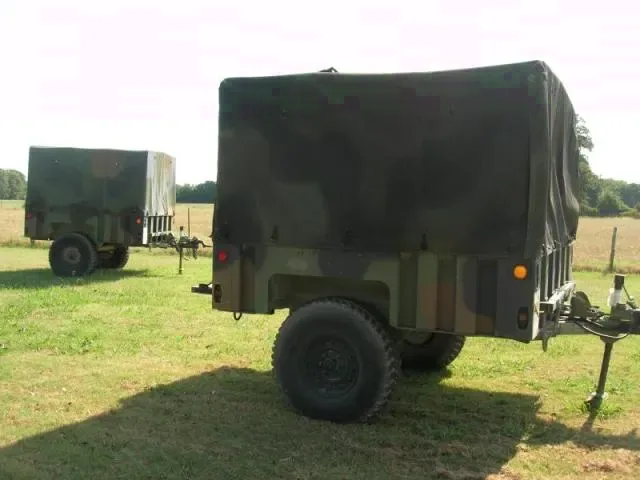

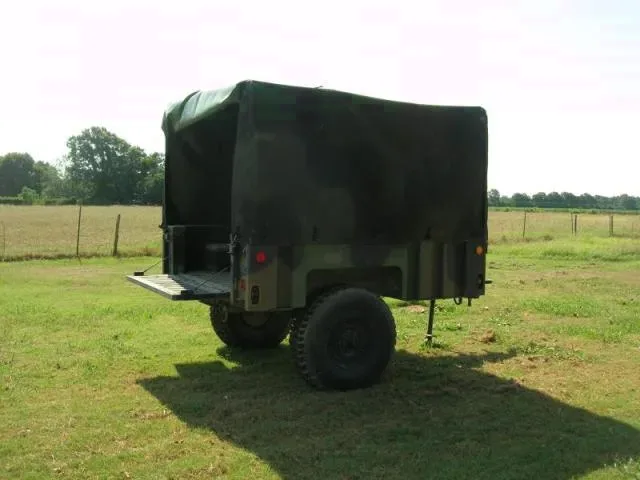

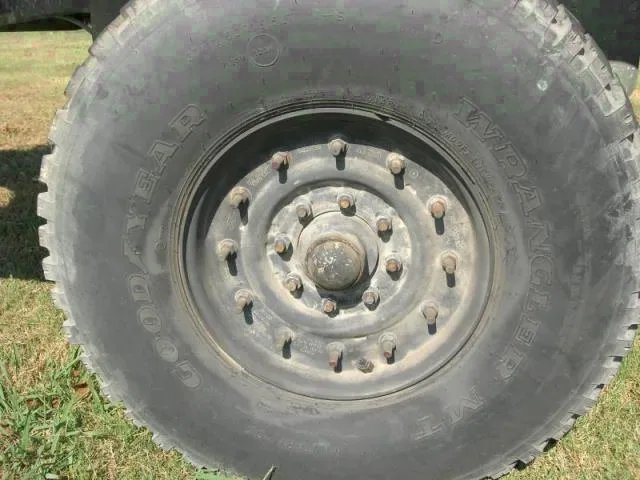

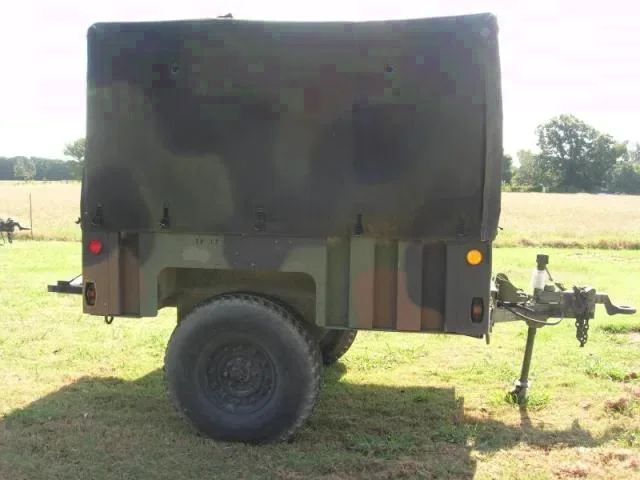

***THIS TRAILER IS SOLD***THIS TRAILER IS SOLD*** Light Tactical Trailer (LTT) M1101 & M1102 Description M1102 Light Tactical Trailer (LTT-L). Photo: Silver Eagle Manufacturing Co M1102 Light Tactical Trailer (LTT-L). Photo: Silver Eagle Manufacturing Co. The Light Tactical Trailer M1101 or M1102 is a single axle, two wheel trailer designed to be towed by a HMMWV towing vehicle. The high ground clearance trailer consists of a cargo box mounted on the Light Tactical Trailer Chassis. The nomenclature and NSNs are: •Trailer, Cargo: 2-Wheel, Light M1101 (NSN 2330-01-387-5443) •Trailer, Cargo: 2-Wheel, Heavy M1102 (NSN 2330-01-387-5426) M1101 Light Tactical Trailer (LTT) dataplate M1101 Light Tactical Trailer (LTT) dataplate. The M1101 and M1102 trailers have the same tires, wheels, and track width as the High Mobility Multipurpose Wheeled Vehicle (HMMWV). A hand-brake lever and cable assembly located on each side of the trailer activate a service brake at each wheel. Control of each service brake is independent. In addition to handbrake-activated service brakes, the trailers are equipped with an inertia-actuated hydraulic brake system (surge brakes). The trailer suspension consists of one shock absorber on each end of the axle. Two stabilizers, stored in the front and installed in the rear, provide stability during loading or unloading cargo while the trailer is not coupled to a towing vehicle. A rear tail gate drops down to assist loading. The only difference between the M1101 and the M1102 trailers is the model information and payload capacity stated on the dataplate. Light Tactical Trailer (LTT) M1101 & M1102 Characteristics Maximum Vehicle Weight M1101: 3400 lb (1542 kg) M1102: 4200 lb (1905 kg) Curb Weight 1460 lb ( 662 kg) Maximum Payload Capacity M1101: 1940 lb (880 kg) M1102: 2740 lb (1243 kg) Hull Unitized body construction using aircraft grade aluminum and chromoly steel Overall Length 132 inches (335cm) Overall Width 85.6 inches (217 cm) Overall Height 52.5 inches (133 cm) Overall Height w/Soft Top Kit 99.5 inches (253 cm) Track Width 72.5 inches (184 cm) Drawbar Length 93.2 inches (237 cm) (from axle center to eye center) Drawbar Eye Height 29.5 inches (75 cm) Deck Height 34.5 inches (88 cm) Ground Clearance (Laden) 16 inches (41 cm) Suspension Type Fully independent progressive rate trailing arm suspension Axle Tubular steel Spring Media Progressive rate torselastic rubber chords Shock Absorbers Telescopic, direct acting, one per wheel, HMMWV compatible Wheels 16.5 X 8.25, two piece steel, HMMWV compatible, 8 on 6.5 inch bolt pattern Tires 37X12.50R16.5 Goodyear Wrangler M/T, with 30-mile runflat inserts, HMMWV compatible Brakes 12 inch x 2 inch free backing hydraulic surge brakes with automatic breakaway actuation. Independent lever-operated left and right side mechanical parking brakes. Electrical System 24 Volt DC sealed lighting system with blackout convoy lights, 12 pin connector plug mates with HMMWV This is an aircraft aluminum body (light weight), chrome molly steel frame, run flat wheels, built in surge brakes. Roomy, rugged, high clearance, all making it ideal for BUG OUT, or just camping SELL IN US ONLY (trailer not intended to leave US) NO TITLE, BILL OF SALE ONLY
