Description
Must sell.See below for detailed information along with equipment list.

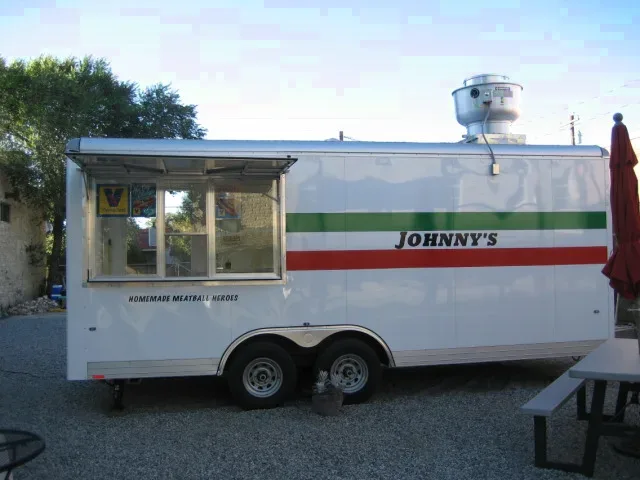

WELLS CARGO 20’ X 8’ Concession Trailer
MODEL--------CEW202W
COLOR---------WHITE
1 EA 20' Concession Trailer Wide Body
1 EA Base Model - CEW202W - 98 1/4" Body Width
1 PR Scissor Type Rear Stabilizer Jacks - 5000lb Capacity
1 EA Platform for Propane Tank Assembly--CENTER ON A-FRAME
1 EA Standard Three Piece 'A' Frame Included
1 EA EXTEND A-FRAME 1-FOOT
1 EA 2 5/16" Top Mount Coupler with Replaceable Locking Dog Assembly
2 EA D.O.T. Compliant 5/16" Safety Chain with Clevis Safety Slip Hook and Latch
1 EA 6" x 2" Rectangular Steel Tube Main rails
2 EA 5000lb, 102"W, 10 Degree Up Torflex Axle with 12" x 2" Electric
Brakes, E/Z Lube, and 6 on 5.5 Hubs and Drums with Wells Cargo Weather Resistant
Wiring Package
4 EA ST225/75R15 Load Range 'D' Radial Tire Mounted on a 6 Bolt Electro Deposition
Coated Silver Spoke Wheel
1 EA Chassis Fully Undercoated with CPC (Corrosion Preventative Compound)
20 LF 7'6" Inside Height, 84 3/4" Vertical Posts Located on 16" Centers
1 EA INSTALL 3EA SECTIONS OF 3" "C" CHANNEL IN CURBSIDE WALL &
INSTALLREINFORCED ROOF BOWS FOR CUSTOMER FURNISEHD 96"L HOOD..HOOD WILL BE
INSTALLED ON CURBSIDE WALL STARTING AT FRONT WALL

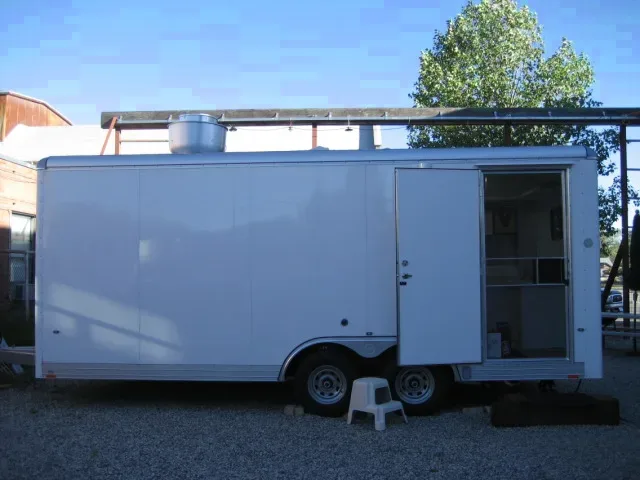

1 EA Pre-Framed Entry Door with Screen, Left-Hand Hinge with Flush Lock & Integrated
Dead Bolt. Aluminum Exterior with White Smooth Fiberglass Interior--INSTALL ON
ROADSIDE WALL STARTING AT REAR CORNER - Door Opening: 36"W x 80"H
1 EA Type A - Vertical Sliding Service Window with Tempered Glass - Contains 2
Stationary Windows with Screens and 1 Vertical Slider Window with Screen. (Welding
R.O. 45"H x 77 5/8"W)--INSTALL ON CURBSIDE WALL STARTING AT REAR CORNER-INSIDE
COUNTER HEIGHT 30" OFF FLOOR
2 EA 30" x 15" Radius Tinted Glass Horizontal Slider Window--CENTER 1EA ON
FRONT WALL AND CENTER 1EA ON REAR WALL--INSTALL TOP EDGE OF WINDOW STARTING
16" BELOW TOP RAIL
1 EA Lift-Up Curbside Awning - Includes Swing-Out Awning Rods BUILD TO MATCH SERVING
WINDOW
20 LF 3/4" Exterior Grade Plywood Floor, Exterior Surface Undercoated, Interior
Surface Painted Gray
20 LF One-Piece Vinyl Linoleum over Standard Plywood Floor. Note: Linoleum is a
Decorative Item. If Transporting Heavy Items, Protection Should be Used Under Item
to Prevent Damage to Linoleum.
20 LF 1/4" White Embossed FRP Covered Lauan Interior Sidewall Liner
20 LF 1" Fiberglass Sidewall Insulation, R5 Value
20 LF 1" Ceiling Insulation
20 LF Full Width Ceiling Lined with White Kemlite Covered 1/4" Plywood Contoured to
Roof Radius (Includes Lining End Caps)
11 FT ??" Long x 12" Deep Overhead Plastic Storage Trays--INSTALL L-SHAPED TO
MATCH BASE CABINET
1 EA 76 1/2" Long x 8" Wide Hinged Exterior Fiberglass Counter with Radius
Corners

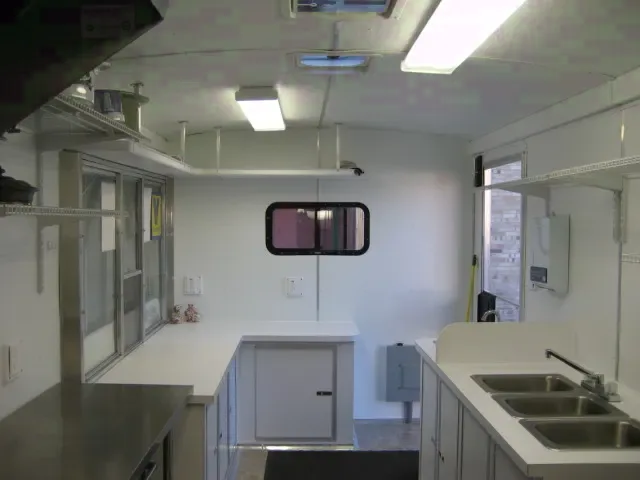

10 FT 30"H x 24"D Base Cabinet with Laminated Front & Top, One Shelf and
Positive Latches on Doors--INSTALL ON CURBSIDE WALL STARTING AT REAR WALL AND
EXTEND TO FRONT END OF SERVING WINDOW--INSTALL ON REAR WALL STARTING AT CURBSIDE
CABINET AND EXTEND ACCROSS REAR WALL AND STOPPING AT A POINT 3FT OFF INSIDE OF
ROADSIDE WALL***SEE DRAWING***
3 EA 4Ft Double Fluorescent Light Fixture with Diffuser Cover and Cold Weather 0 Degree
Ballast (Tubes Not Included)****SEE DRAWING****
2 EA Interior Wall Switch for 120 Volt Electric--1 FOR INTERIOR LIGHTS AND 1 FOR FAN--LOCATE
ON ROADSIDE WALL JUST FORWARD OF SIDE DOOR
6 EA 20 Amp, 120 Volt Duplex Wall Receptacle***SEE DRAWING***
1 EA 100 Amp, 120V/240 Volt 16 Circuit Service Panel with 100 Amp Main Breaker with
Raceway through Floor for Shoreline--INSTALL ON REAR WALL AT ROADSIDE CORNER--INSTALL
LOW ON WALL***BELOW COUNTER HEIGHT***
1 EA 14" x 14" Screened Power Roof Vent with 120 Volt Fan***NOTE: FRAME
OPENING WITH STEEL FOR POSSIBLE FUTURE INSTALLATION OF A/C***SEE DRAWING***
1 EA Exterior 20 Amp, 120 Volt GFI Duplex Receptacle (Weather Proof) Flush Mounted-INSTALL
ON ROADSIDE WALL JUST FORWARD OF SIDE DOOR AND LOW AS POSSIBLE
2 EA 20 Amp, GFI 120 Volt Duplex Wall Receptacle***SEE DRAWING***
1 EA 4 Compartment Stainless Steel Sink Assembly - Straight Configuration - Includes 25
Gallon Fresh & 34 Gallon Gray Water Holding Tanks and 6 Gallon Electric Water
Heater-(STANDARD WELLS CARGO SINKS)-INSTALL ON ROADSIDE WALL STARTING AT FRONT END
OF SIDE DOOR AND EXTEND SINK CABINET TO FRONT END OF WHEELBOX..INSTALL VERTICAL
DIVIDER BETWEEN 3 SINKS AND HAND SINK
20 LF .030 Prefinished White Smooth Exterior Aluminum Installed Vertically BONDED to
Vertical Posts
20 LF **** Exterior Aluminum BONDED to Vertical Posts ****
1 EA 14" x 14" Translucent Roof Vent, Frame, and Stub Wire for Air Conditioner
1 EA INSTALL DEALER FURNISHED 96"L HOOD/FAN..INSTALLATION INCLUDES SEPARATE SWITCH
FOR FAN..INSTALL HOOD ON CURBSIDE STARTING AT FRONT WALL..INSTALL SWITCH FOR FAN ON
CURBSIDE JUST TO REAR OF HOOD AND 42" OFF FLOOR***SEE DRAWING***
1 EA S.A.E. Color Coded 12 Volt Electrical System, D.O.T. Required Exterior Lighting
Package
D.O.T. 'A' Frame Mounted 22 Amp Hour UI Series Battery, Breakaway Switch, Aluminum
Mounting Bracket, Cover, Battery "Charge" Indicator, and Diode Isolation.
Battery Acid Included
Seven Way Trailer End Connector
Double 40 LB Propane Bottles with Auto Changeover Regulator and Mounting Bracket
===================================================================================

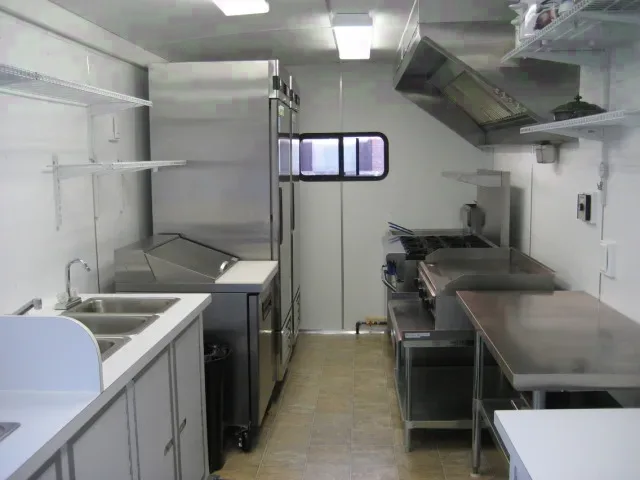

EQUIPMENT LIST
ALL EQUIPMENT NSF

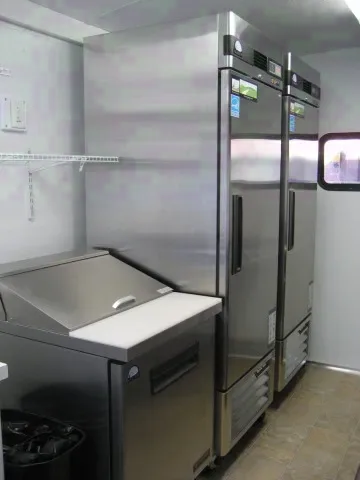

BLUE AIR SINGLE DOOR FREEZER
BLUE AIR SINGLE DOOR REFRIGERATOR
BLUE AIR 27” SANDWICH PREP TABLE
37” GRIDDLE TABLE TOP -WITH 36 X 30 EQUIPMENT STAND (PROPANE)
ROYAL 36” -A SIX BURNER STOVE WITH OVEN (PROPANE)
ROYAL FRYER- DOUBLE BASKET 50LB (PROPANE)
===============================================================================
Concession Hood- CS30
Hood Motor #U85H-high speed direct drive centrifugal up-blast exhaust fan with speed control (single phase only) disconnect switch and 15-3/4” wheel.
Model 48a17011039-1 phs – 115v - -13 FLA- 60 Hz – ODP (Open Drip Proof)
