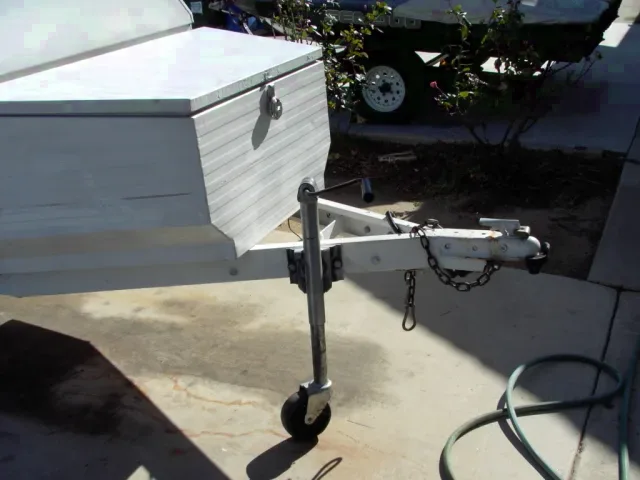

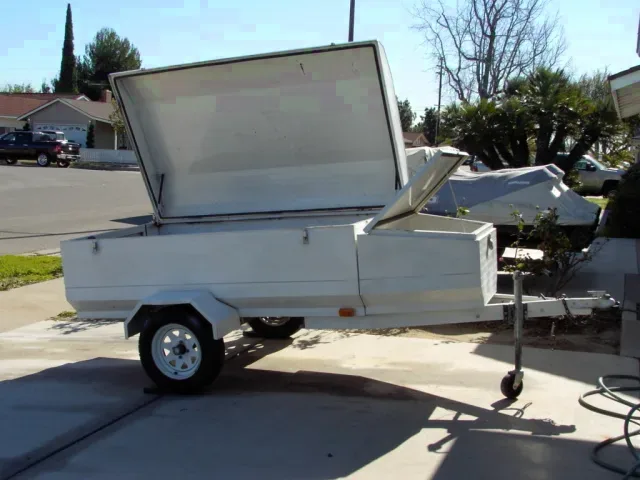

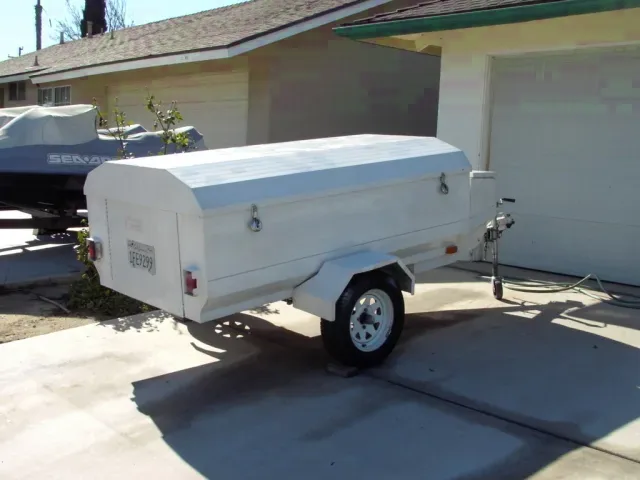

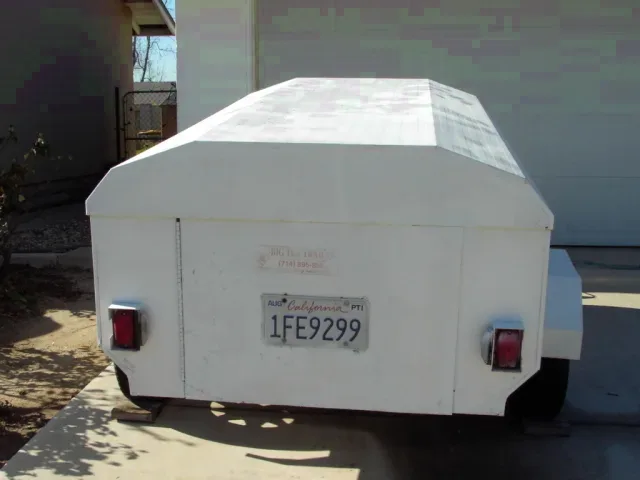

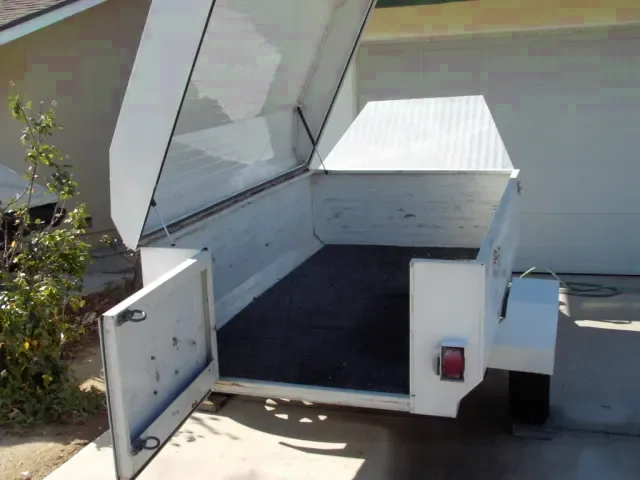

General Description * Commercial made * General purpose single axel hinged top trailer with a ¾ ton load capacity * Rear door for moving heavy loads * Utility box for trailer items. Tires, Load Rating & Towing Info * Tires: Goodride H 500T 13 )13” Trailer Tire) * Condition: New – About 4 months old * Towing miles on tires: About 1200 miles * Load Rating: 1047 lbs. each (from the side of tire) * Trailer weight: 450 lbs * Calculation for load Rating: 1047 x 2 (two tires) – trailer weight 2094 – 450 = 1644 lbs. Maximum load rating based on tire loading * Load Rating: Use 1500 lbs or ¾ ton (2000 lbs = 1 Ton) * Note: Most of my loads weighed between 500 and 800 lbs and occasionally I carried a load of 1200 lbs. * Safety Factor at 1500 lbs = 9.6% or about 10% * Safety Factor at 1200 lbs = 37% * Safety Factor at 1000 lbs = 64.4% or about 64% * Safety Factor at 800 lbs = 105.5% or about 106% * Safety Factor at 500 lbs = 228.8% or about 229% * To tow the trailer lever, the ball height should be approximately 19” from the ground. * Everybody who has towed this trailer likes the way it tows and hoe you can see over the top of the trailer in the rear view mirror. * Safety chain with two hooks. Physical Size * Length, Width & Height: 144” long x 72” wide x 48” tall or 12 ft long x 6 ft wide x 4 ft tall * Box: 7 ft long x 4-1/2 ft wide x 1.8 ft (22”) tall. * With top down an additional 8” in height is available for a total of 30” or 2.5 ft. * Utility box: 51 x 30 x 27 (trapezoidal shape) x 14” high * Top: Opens to the curb side. Has two stainless steel hasps, and a rubber seal around edges – does not leak in the rain. Locks * Top: Two stainless steel Federal 1000s, keyed alike. * Utility box: One stainless steel Federal style (not keyed the same) * Rear Door: Uses a lever lock system – (no keys) * For towing: Fulton lock for hitch ball lock (keyed) * For Storage: Fulton 2: ball lock (keyed) * For Storage: Chain long enough to go around the trailer, through each wheel and the handle of the retractable wheel and through the skid on the tow bar. You cannot move, steal the wheels or get into the trailer with the chain attached. * Two sets of keys for above. Electrical * Wired with a Wesbar 4 pin connector * Has: Tail Lights Running Lights Brake Lights R & L Turn Signals * Adapter 4 Pin to GM 7 Pin * One Unused Connector * ½ Unused Connector Inventory * Trailer * Spare Tire * 5 Locks (see locks) * Chain * 4-Way lug wrench * Adapter: 4 pin to GM 7 Pin * One unused connector * ½ unused connector * 2 sets of keys
