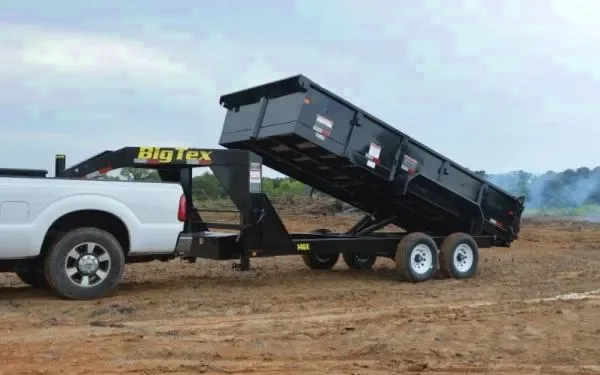

OVERVIEW Big Tex Heavy Duty Tandem Dump 14' x 83" Big Tex 14GX Heavy Duty Extra Wide Dump Structural Details: 8'' x 3'' Tube Frame 3'' Channel Bed Crossmembers Tubing Top Rail 10'' I-Beam Neck 10 Ga. Floor 24'', 12 Ga. Sides w/Formed Channel Supports Extra Wide for Increased Payload Capacity 3-Way Combo Gate Diamond Plate Fenders 3 Year Structural Warranty Where the Rubber Meets the Road: Premium Dexter EZ Lube Cambered 7,000# Axles NEV-R-ADJUST Electric Brakes On All Four Hubs ST 235/80 R16 Radial Tires Complete Break-A-Way System w/Charge Line More Standard Features: Crank Style Tarp and Tarp Shroud Fully Self Contained Electric/Hydraulic Scissor Lift (For Even Lifting) Power Up/Power Down Hoist 45 Degree Dump Angle Recessed Lockable Pump & Battery Box Mounted in Front of Bed Interstate Battery 110V / 5A Onboard Battery Charger w/ Overcharge Protection 3 Position Adj. Cast Coupler or Pintle Ring Protected Wiring All Grommet Mount Sealed LED Lighting and Reflective Conspicuity Tape 4-5/8'' D-Rings Inside Bed Side Stake Pockets On Each Upright J-Hooks for Tie Downs Spare Tire Mount Safety Chains Attached w/Cold Rolled Eyelets Automotive Grade Highly Decorative and Protective Finish Optional Add-Ons: 3' or 4' Solid Sheet Metal Sides Solar Charger Wireless Dump Remote 24'' Expanded Metal or Smooth Steel "Modular" Side Extensions Jack Upgrade (From 7k to 12k) 7' Slide in Ramps STANDARD EQUIPMENT Round Adjustable Pin 2-5/16" Gooseneck Coupler (25K) Dual 12,000# Drop Leg (Side Wind) Lockable Pump & Battery Box Mounted Between Jacks 24" Tall, 12 Gauge Sides w/Formed Channel Supports 10 Gauge Steel Floor and Sides Fully Formed Tarp shroud on Front Crank Style Roll Tarp - Standard Equipped Tarp Rod Included to Secure Tarp on Rear J-Hooks on Sides & Rear for Tarp Control Stakepockets Along Sides Self Contained Electric/Hydraulic Scissor Hoist Power Up/Power Down Hydraulic Pump 12V Interstate Deep Cycle Battery 110V On-Board Battery Charger (5 Amp) Dexter Brand Axles Cambered Axles w/EZ Lube Hubs Nev-R_Adjust Electric Brakes on All Hubs Grommet Mount Sealed Lighting L.E.D. Lighting Package Sealed, Modular Wiring Harness Complete Break-A-Way System Zip Breakaway Cable Diamond Plate Fenders 2" square Tubing Top Rail on Dump Bed Combo Gate (Barn Doors & Spreader Gate) (4) 1/2" D-Rings Inside Bed to Secure Equipment Spare Tire Mount Radial Tires OPTIONAL EQUIPMENT Category Description AXLES Drop Axles (Lowers Deck Height to 24" from Ground) BODY 24" Expanded Metal Side Extensions BODY 3 Solid Sheet Metal Sides BODY 4 Solid Sheet Metal Sides BODY Removable Deck on the Neck- Bolt On (8 W x 6 L) BODY Upgrade Floor to 7-Gauge Steel JACK Dual 2-Speed Landing Gear JACKS Dual Elec/Hyd 12,000# Jacks by Stillwell POWER 5 Watt Solar Charger POWER Wireless Remote RAMPS 6.5 Slide In Ramp Package TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E) TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G) TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G)
