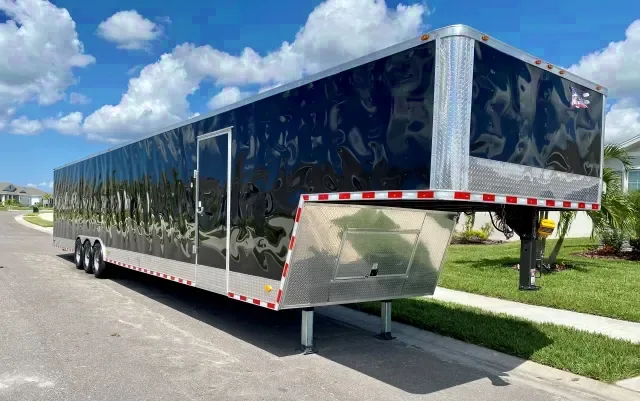

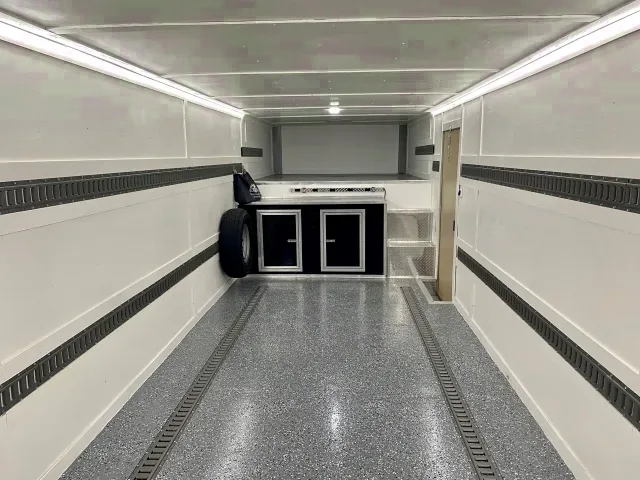

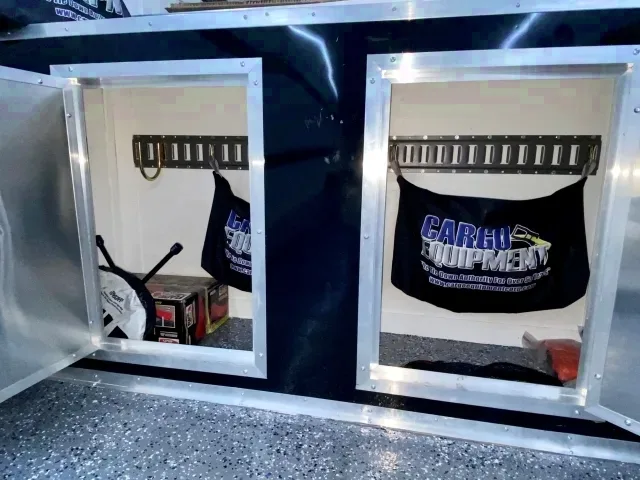

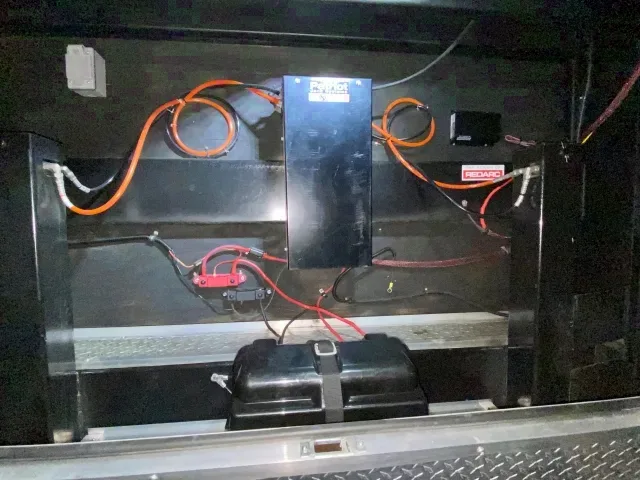

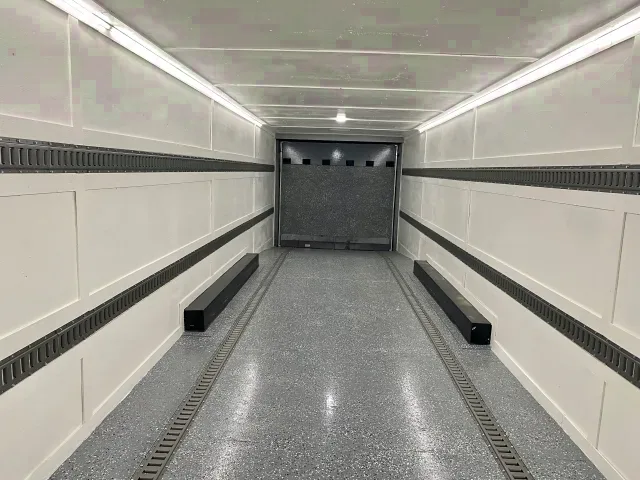

***THIS TRAILER HAS BEEN SOLD*** 8.5 x 48 Enclosed Gooseneck Car Hauler Cargo Trailer • 40’ box space + 8’ upper deck • 3x 7K Dexter torsion axles, all wheel electric brakes • 36” RV side door w/ keyed access & bar lock • ATP-Diamond plate step-up • Hydraulic Landing Gear with Battery • ATP-Diamond plate cover with door & keyed access • Built-in cabinets and ATP-Diamond plate steps to the upper deck • 3/8” plywood walls • 3/4" plywood floor • 81” interior height • Heavy Duty rear spring assisted ramp door with camlocks & 16” transition flap • 2 LED dome lights with wall switch • 2 non-powered roof vents • 16” OC side walls, floor, & ceiling cross members • Heavy Duty 10” I-beam main frame • 1x1.5” square tubing walls and roof bows • Galvalume roof with complete Luan Ceiling Liner • Heavy Duty aluminum fender flares • 2 5/16” Bulldog Gooseneck coupler • 7-way “Bargman” plug with battery back-up & Safety Switch • Exterior LED Lighting package • 16” radial tires • Spare Tire & Wheel • Bogie Wheels • .030 Black sheet metal skin Upgraded Floor & Walls: • Floor E-track countersunk 1/4” (near flat surface) o Metal or wood screws (appropriately) every 4” [steel framing 16” OC] o E-Track 1/8” steel mounting brackets under carriage every 3’ • Walls (lower deck) dual-level E-Track left & right sides o Metal or wood screws (appropriately) every 4” [steel framing 16” OC] • Walls (upper deck) single 5’ E-track left and right sides o Metal or wood screws (appropriately) every 4” [steel framing 16” OC] • Walls & Floors sprayed with Zinsser Bulls Eye 1-2-3 mold & mildew resistant primer • Walls sprayed, Sherwin-Williams Everlast; a water-beading extreme all-weather enamel • Floors painted with Rust-Oleum’s Rock Solid Polycuramine Garage Floor Paint – Dark Gray • Floors top-coated with Rust-Oleum’s Rock Solid Polycuramine Clear Coat with anti-skid Upgraded Undercarriage: • Electric wiring has been loomed • Rubberized undercoating Upgraded Battery Charging: • Installed 25-amp battery charger (ready for roof-mounted solar panel installation) o Redarc In-Vehicle BCDC Battery Charger – Dual Input – DC to DC – 12V/24V – 25-amp o 4-gauge Red/Black cables with winch connectors (Trailer to Truck) o 40-Amp MIDI Fuse Kit for Redarc In-Vehicle 25-amp BCDC Battery Charger o Red/Black Power Distribution Blocks *4-ga cable/fuses/connectors from Truck to Trailer will be removed and provided for new owner’s use *10-ga wire from the 7-way is disconnected; not required with Redarc Upgraded Electrical: • Interior Lighting o Upgraded electrical backbone to 12-ga with metal crimp beads and heat shrink o Light switch, Marine-grade 25-amp toggle o 20 meters [4x 5m] of 12V 48W High-Output Flexible Ribbon LED Strip Lights with 600xSMD2835; 5500K (10m on each side) o V-shaped Aluminum Channels for LED Strip Lights *Interior lights powered directly from trailer battery; Redarc via truck or solar charges battery • Ship-to-Shore (generator or building with a standard extension cord) o Surface-mounted Leviton 15A 125V Power Inlet, outdoor-rated o Legrand Plugmold Tough Power Strip, diamond-plated aluminum, 10-outlet, 15A, circuit breaker • Installed high output Back-Up Lights • Upgraded lower front and rear marker lights (reflector with LEDs) Upgraded Brake Electrical: • Upgraded brakes to 10-ga (trailer OEM installed smaller 14-ga) o Brakes now parallel per Dexter Axle o Wires crimped with metal beads and heat shrink o Brake assembly magnet wires connected by heat-shrink blade connectors to allow easy disassembly and repair Cargo Equipment: 3 qty E-Track Strap Storage Bag, 16”x26”, 50-lb capacity 4 qty 2” x 12’ Green Auto Hauling Wheel Rachet Straps with E-Track Fitting, Idler, & 3-Rubber Cleats 6 qty 2” x 12’ Yellow Sliding E-Track Rachet Strap 8 qty 2” x 20’ Blue Sliding E-Track Rachet Strap 14 qty Heavy Duty E-Track Tie Down with Round Ring 28 qty Wood Beam Sockets 2 qty 4.5” E-Track J-Hook 2 qty Round Tube Steel Load Bar, 89-105”, with 2”x4” Rubber Pads Tires & Equipment: 7 qty Upgraded: Goodyear Endurance ST235/80R16, Load E (Purchased June 2021) 1 qty Rack’em Spare Tire Carrier for E-Track 2 qty Rapid Jack by Andersen 1 qty 12-ton Hydraulic Bottle Jack 1 qty Cross-member lug wrench Additional Items: Coupler Locks by Ft Knox with 2 Pucks (cylinders can be swapped) 3 qty Master puck locks (common key) for doors 2 qty Trailer Gap Transition Flaps, 42” sections, 1/8” 2 qty Maxxair II Vent Covers * Spare SQ2 #10 panel screws (Black) * Spare SQ2 #10 panel screws (Silver) * Spare screws for E-track **Many more pictures available
