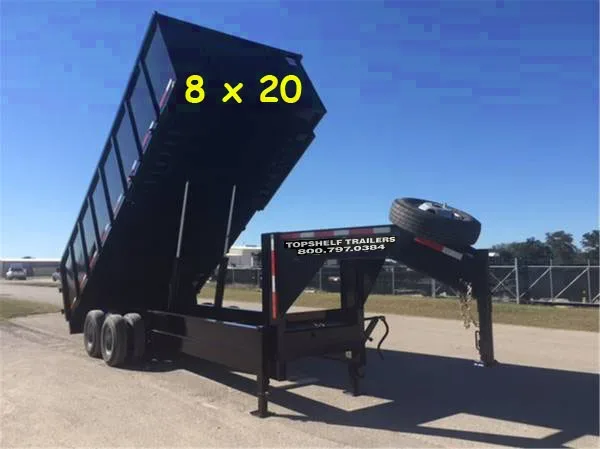

8’x20’ dump trailer, 26k gvwr with 4’ sides, 10ply tires, 10ply spare, 3/16” flooring, 12k axles, and ramps! Specifications: G.V.W.R.: 26,000 lbs Empty Trailer Weight: 8,500lbs (16’ trailer with no additional options) Net Payload Capacity: 17,500lbs (16’ trailer with no additional options) Axles: Dual tandem 12,000 lb 8 lug (electric brakes on both axles) Suspension: Heavy Duty Slipper Spring Suspension Brakes: All wheel electric brakes (12” x 5” brake shoe) Tires: New ST235/80R16 LRE 10ply radials (3,520lbs ea) Wheels: 16” x 6” eight hole white or silver (based on stock) Main Frame: 12” I-beam Tongue: 12” I-beam Tilt Frame: 3” x 2” x 3/16” wall rectangular tubing Cross Members: 3” channel Bed Flooring: 3/16” thick sheet steel Bed Siding: 1/8” thick sheet steel Tie Downs: Stake pockets Deck width: 95” (inside clearance) Deck Length :20’ Deck Height: Approximately 34” Side Wall Height: 48” standard Rear Doors: Double swing doors (open like barn doors) Battery: Dual group 27 deep cycle marine Charging System: Onboard 110v charger and tester (also charges off truck while being towed) Pump: Electric over hydraulic (1.7 gpm) - power up / gravity down Controller: 10’ corded remote control Toolbox: Front locking tool box - contains battery and pump Hydraulics: Dual 4” x 48” hydraulic cylinder (15,000 lb/ea max rated capacity) Coupler: Adjustable height 2 5/16” gooseneck ball Safety Chains: Two heavy duty safety chains Jack: Dual 12,000 lb drop leg jacks Lighting: All flush mount or recessed lifetime LED stop / turn / clearance lighting Wiring: U.S. made sealed modular wiring harness Safety Equipment: DOT required emergency break-a-way kit and conspicuity tape Finish: Fully primed and painted with 2 coats of automotive grade acrylic enamel Additional Options (extra cost): 16” 10ply mounted spare tire and wheel 16” 14ply mounted spare tire and wheel 17.5” 16ply mounted spare tire and wheel Upgrade from 10ply to 14ply tires Upgrade from 10ply to 16ply tires Dual hydraulic jacks upgrade Dual 2 speed 25,000pound landing gear jack upgrade Electric over hydraulic 12K disc brake upgrade 60” reinforced sides add 72” reinforced sides add 84” reinforced sides add 96” reinforced sides add Barn door and spreader combo gate (48” tall only) Deluxe manual roll up tarping system Electric Tarping System Lodar ® long range two function wireless remote 5amp solar charging panel White, red, blue, orange or green paint Chrome wheel upgrade King pin adapter for gooseneck hitch Texas Made. Texas Tough. TEXAS PRIDE. ™ We make and sell a wide variety of lowboy equipment trailers, deckover equipment trailers, hydraulic dump trailers, and roll off trailers and dumpsters. We can custom make a trailer to your spec’s in a very short time period, usually within 7 to 10 days. Please call us with any of your trailer needs. We have almost 20 years experience in building trailers. Shop around and you’ll find we have one of the best trailers out there for the money. Whether you look at Big Tex Trailers, PJ Trailers, Kaufman Trailers, Texas Bragg Trailers, Texas Made Trailers, Kearney Trailers, Load Trail Trailers, Top Hat Trailers, or any other brand, you wont find a better dump trailer value than TEXAS PRIDE TRAILERS!
