1 / 10Description
Standard Features
Features for “FDXS40GN16K”
Length: 40‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 8,335 lbs.
Load Capacity: 9,581 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint
**Dimensions:** 8.5' x 40' (102" x 480")
Location
Clarksville, TN, 37043

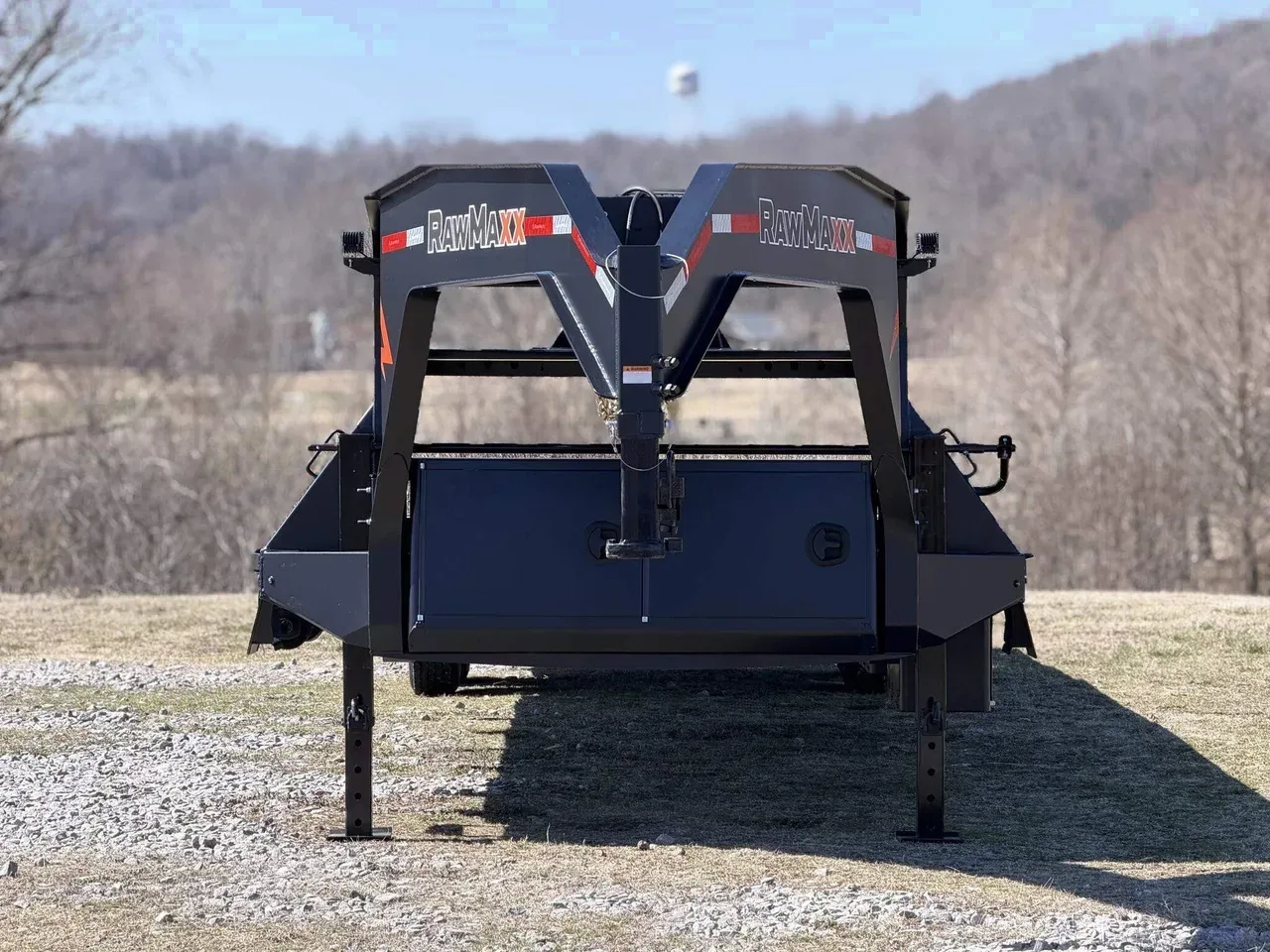

135050 - 2027 RawMaxx FDX 35+5 16K GN Flatbed Trailer
FDX 35+5 16K GN
Specifications
| Stock # | ITM-519443 |
| VIN | ***********135050 |
| Year | 2027 |
| Make | RawMaxx |
| Model | FDX 35+5 16K GN |
| Condition | New |
| Size (ft) | 8.5' x 40' |
| Size (in) | 102" x 480" |
| Color | Midnight Black |
| Axles | 2 |
| Hitch | Gooseneck |
| Serial # | 3EVGF4021V1135050 |
NHTSA VIN Decode
| Make | RAWMAXX |
| Manufacturer Name | RAWMAXX S.A. DE C.V. |
| Model | Rawmaxx |
| Model Year | 2027 |
| Plant City | CUAUHTEMOC |
| Vehicle Type | TRAILER |
| Plant State | CHIHUAHUA |
| Body Class | Trailer |
| Trailer Type Connection | Gooseneck |
| Trailer Body Type | Flatbed or Platform Trailer |
