OVERVIEW

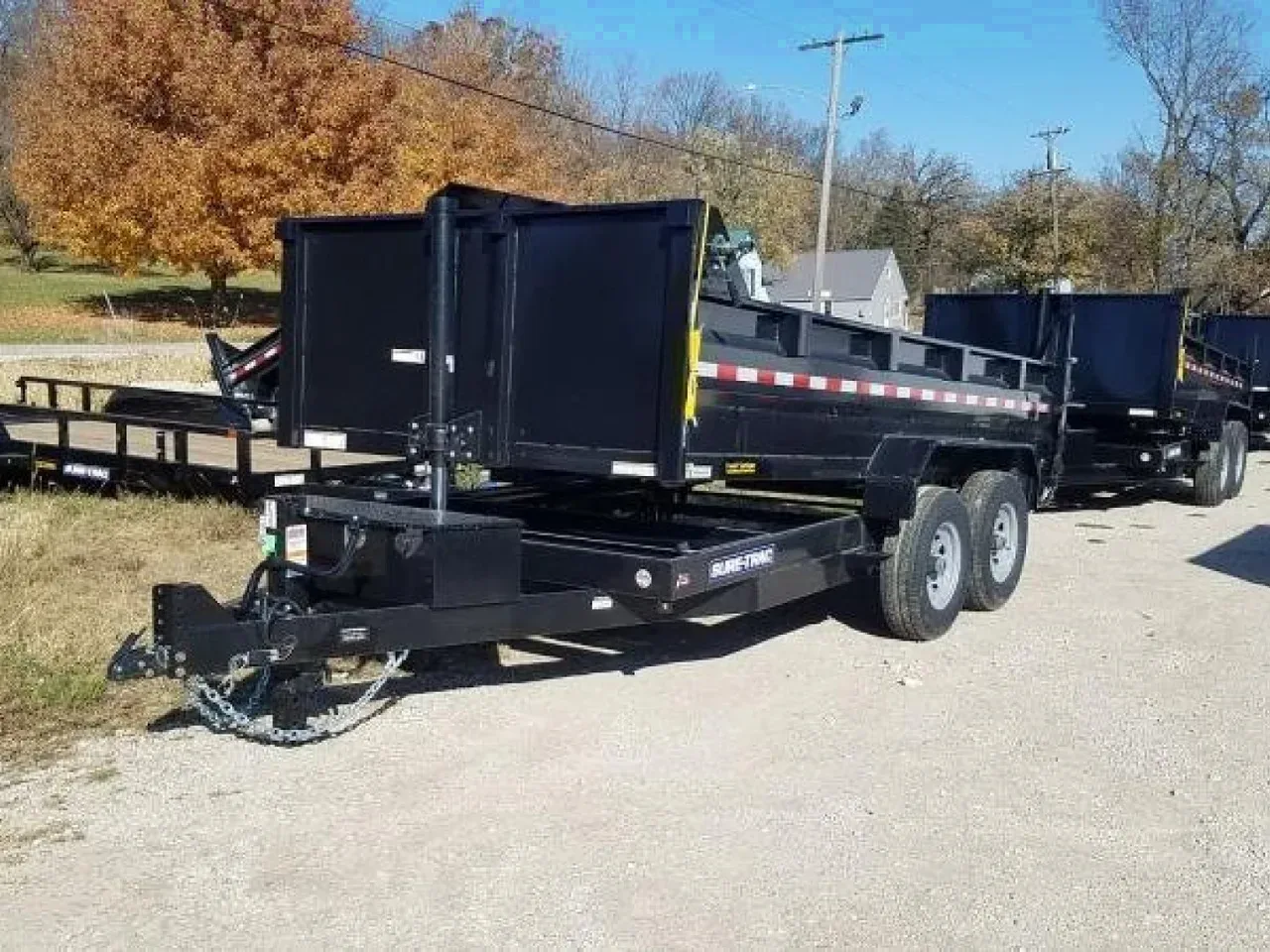

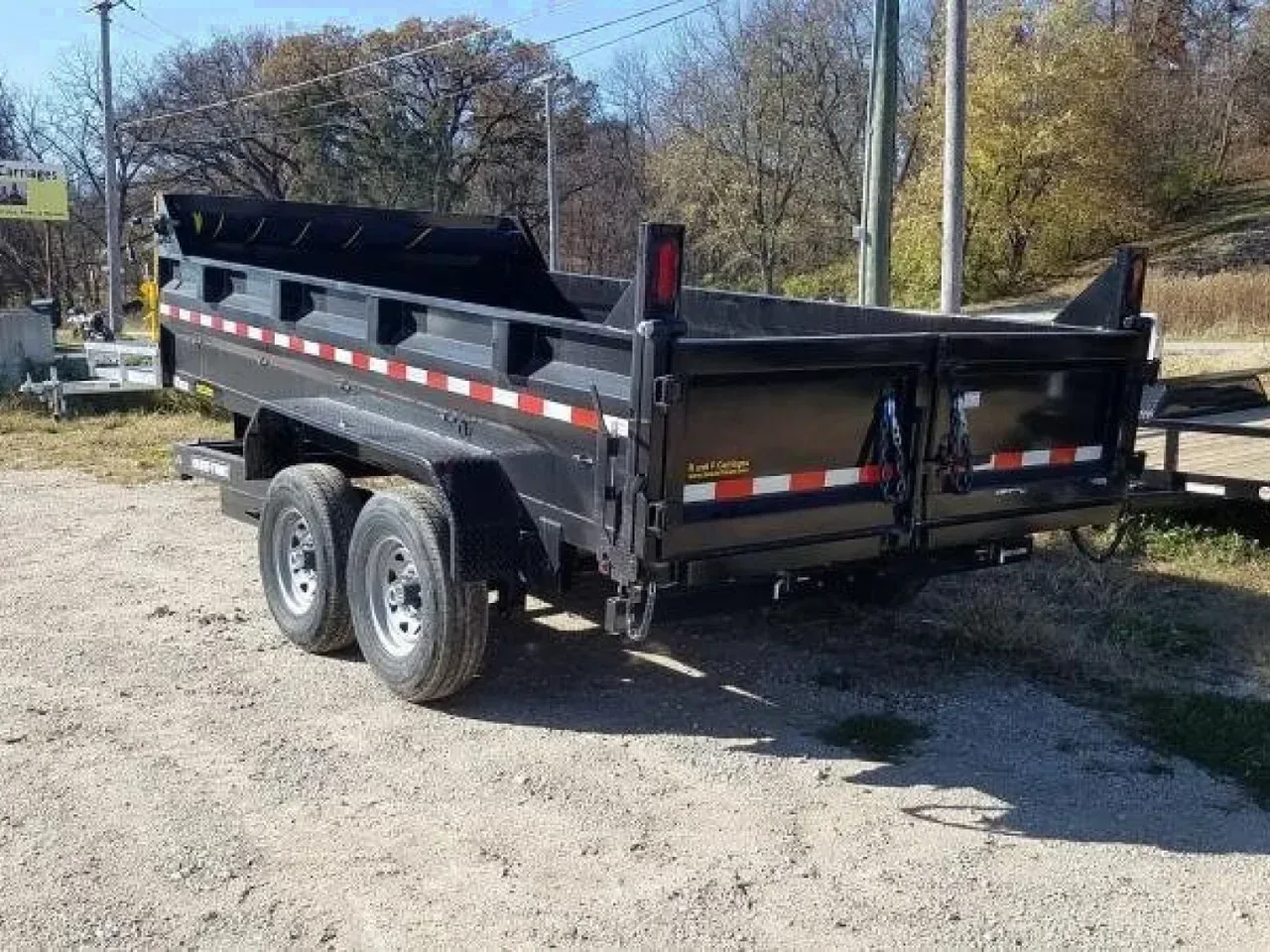

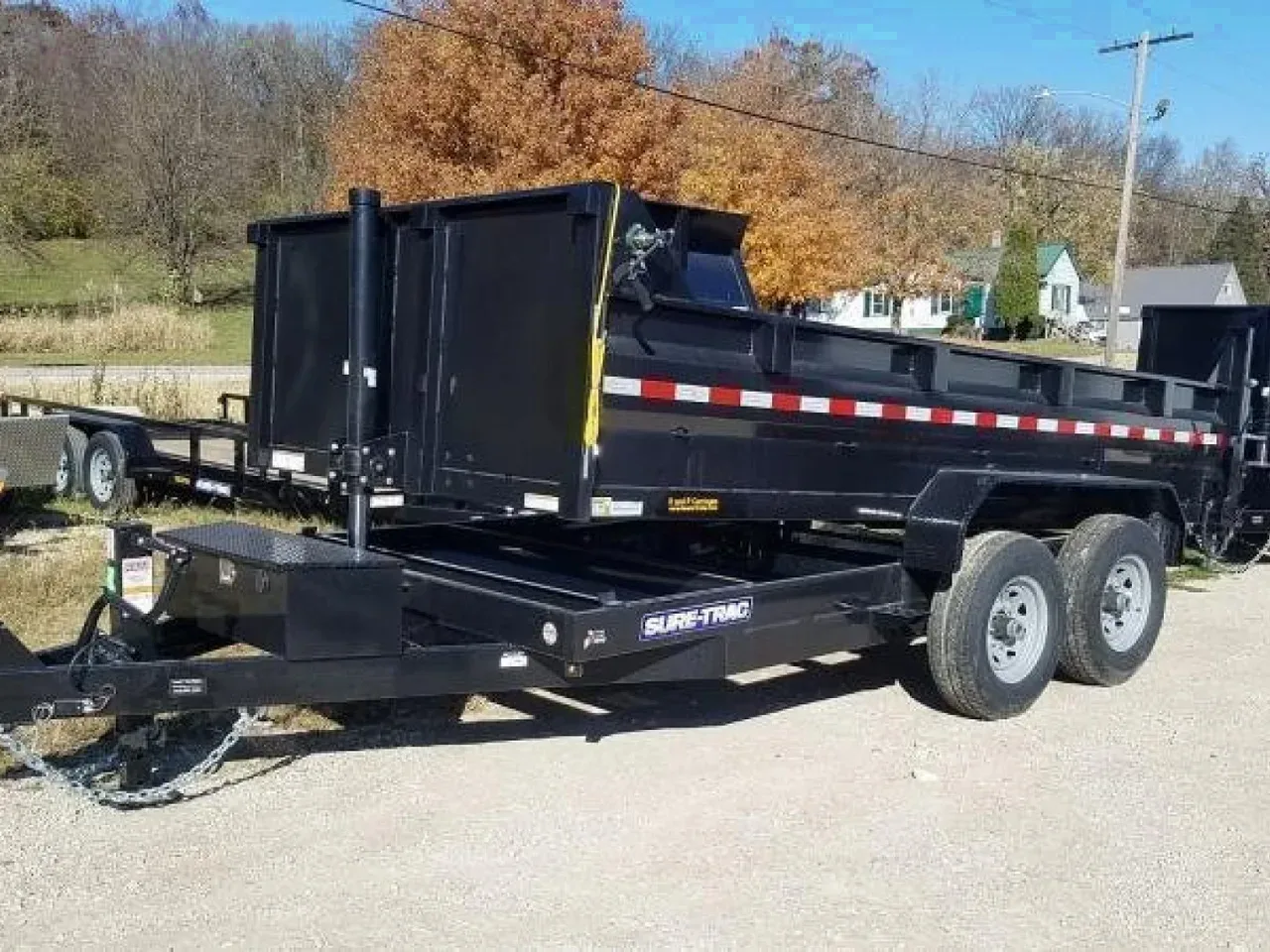

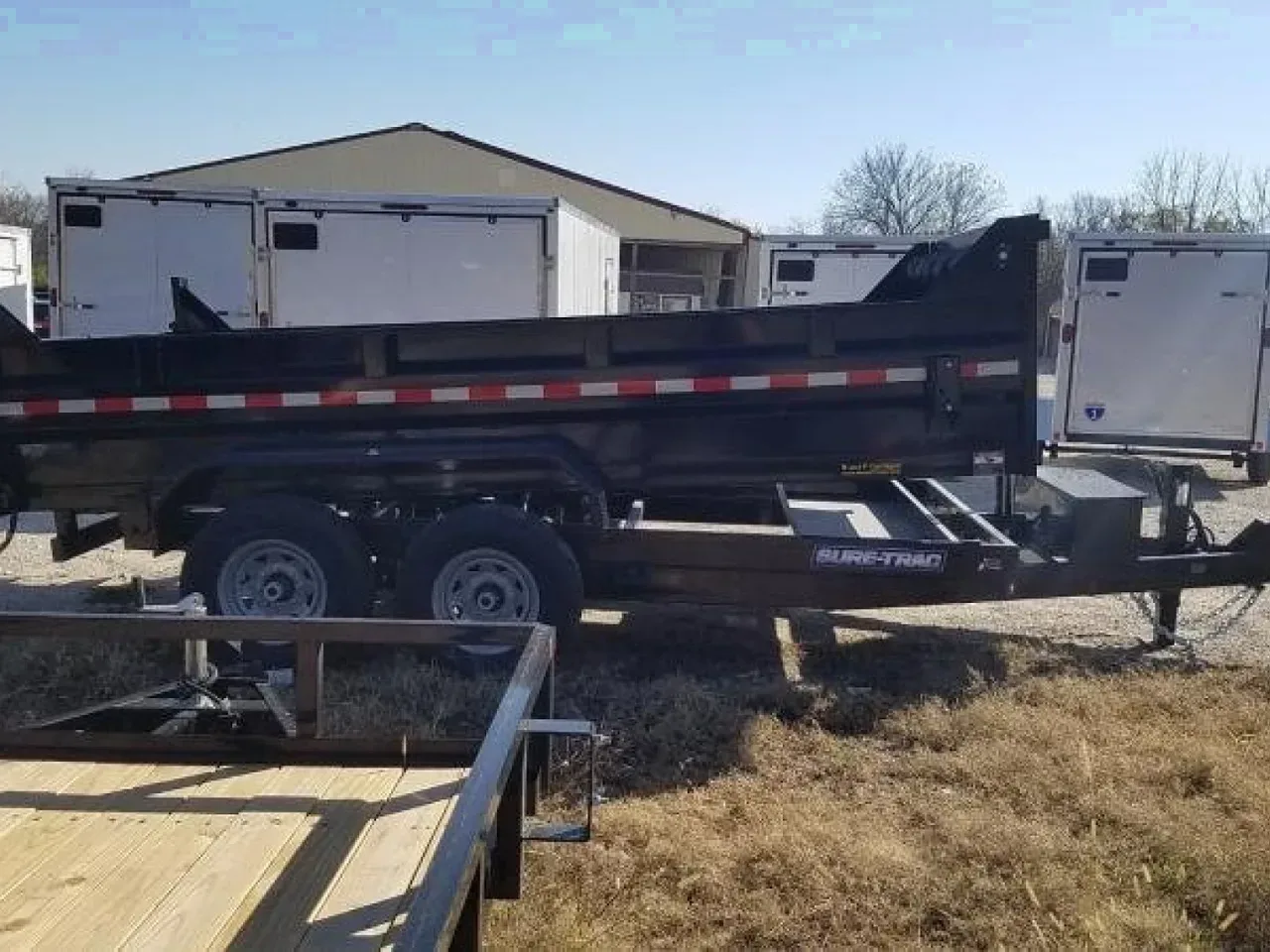

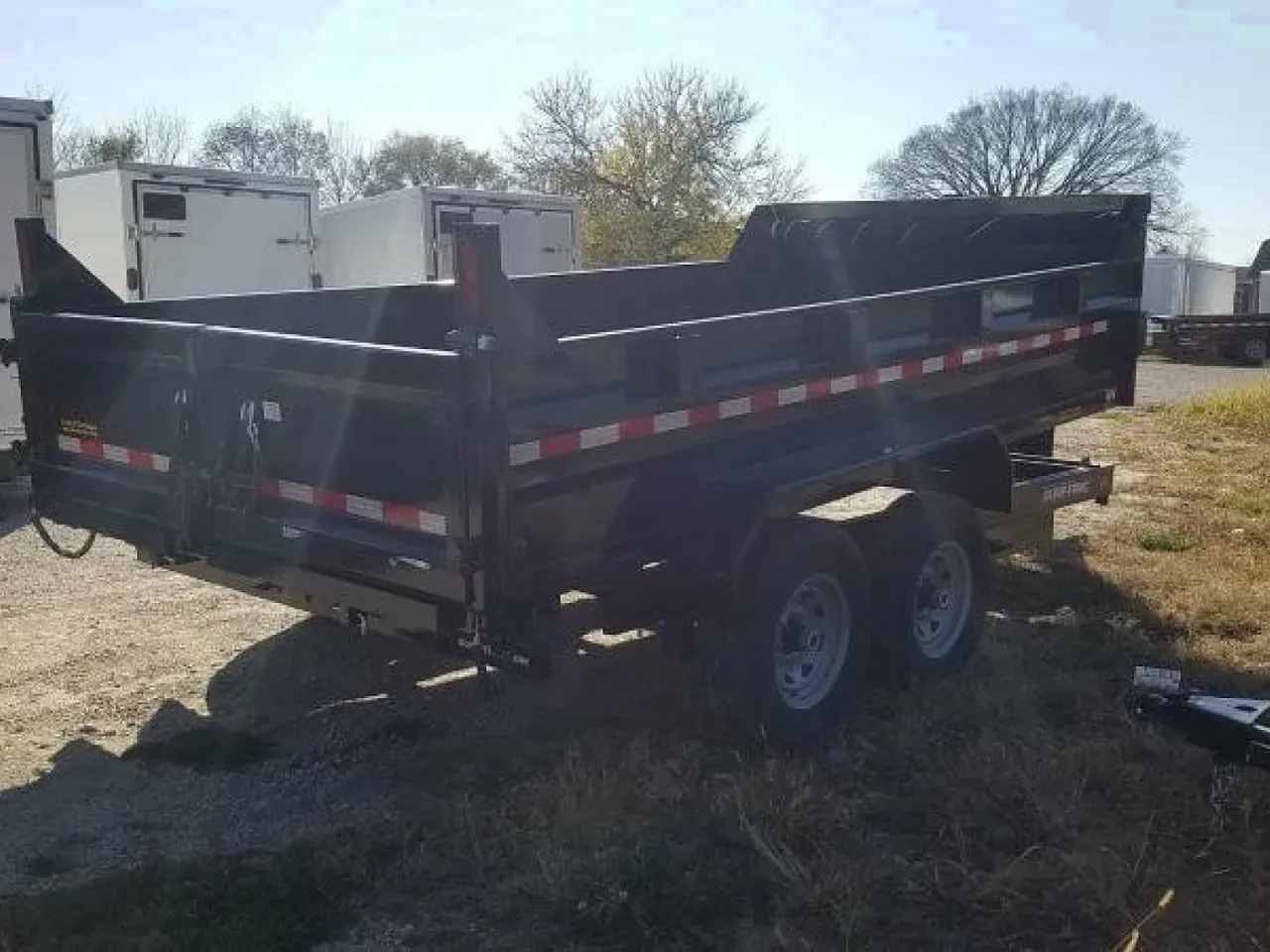

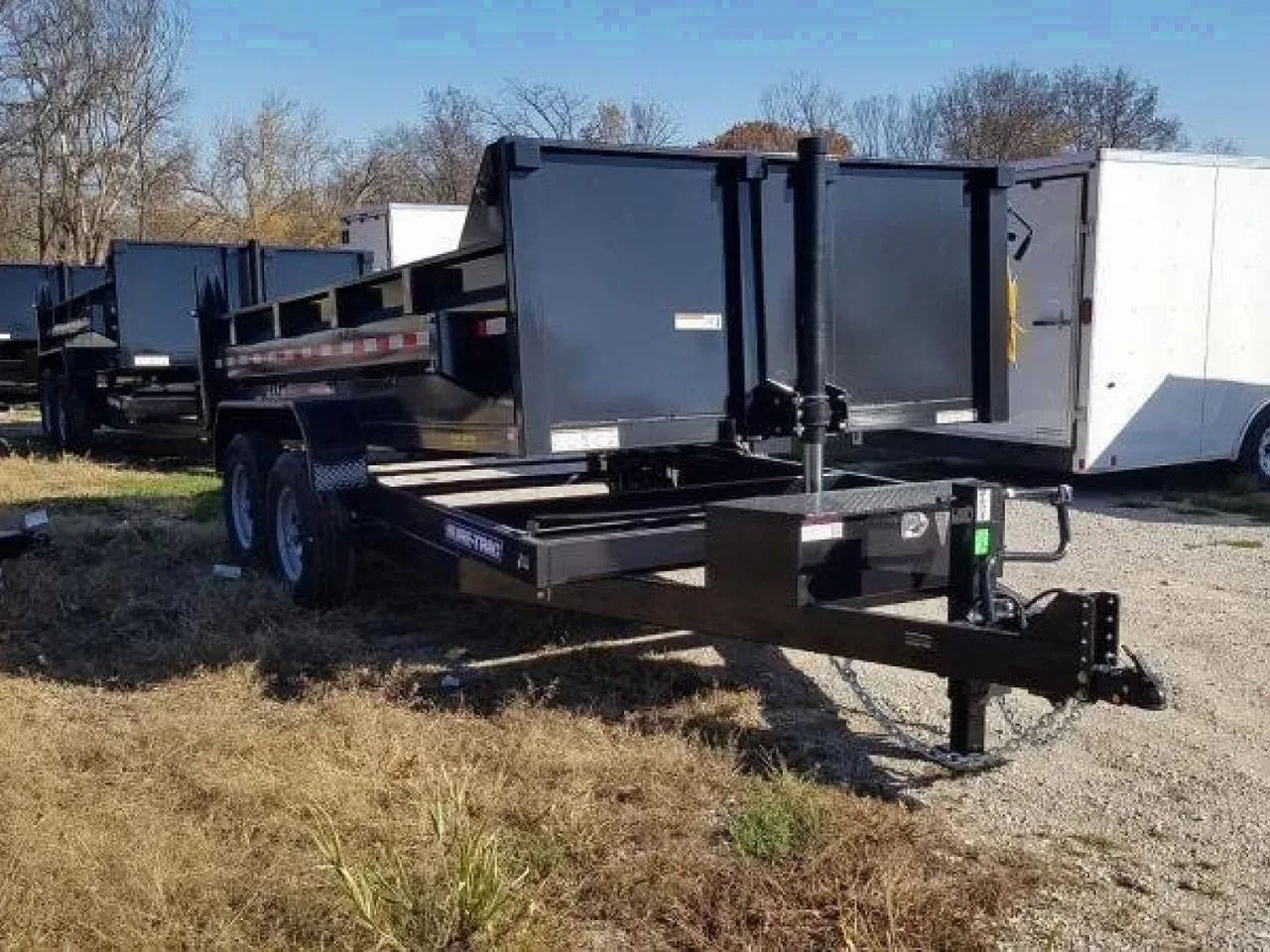

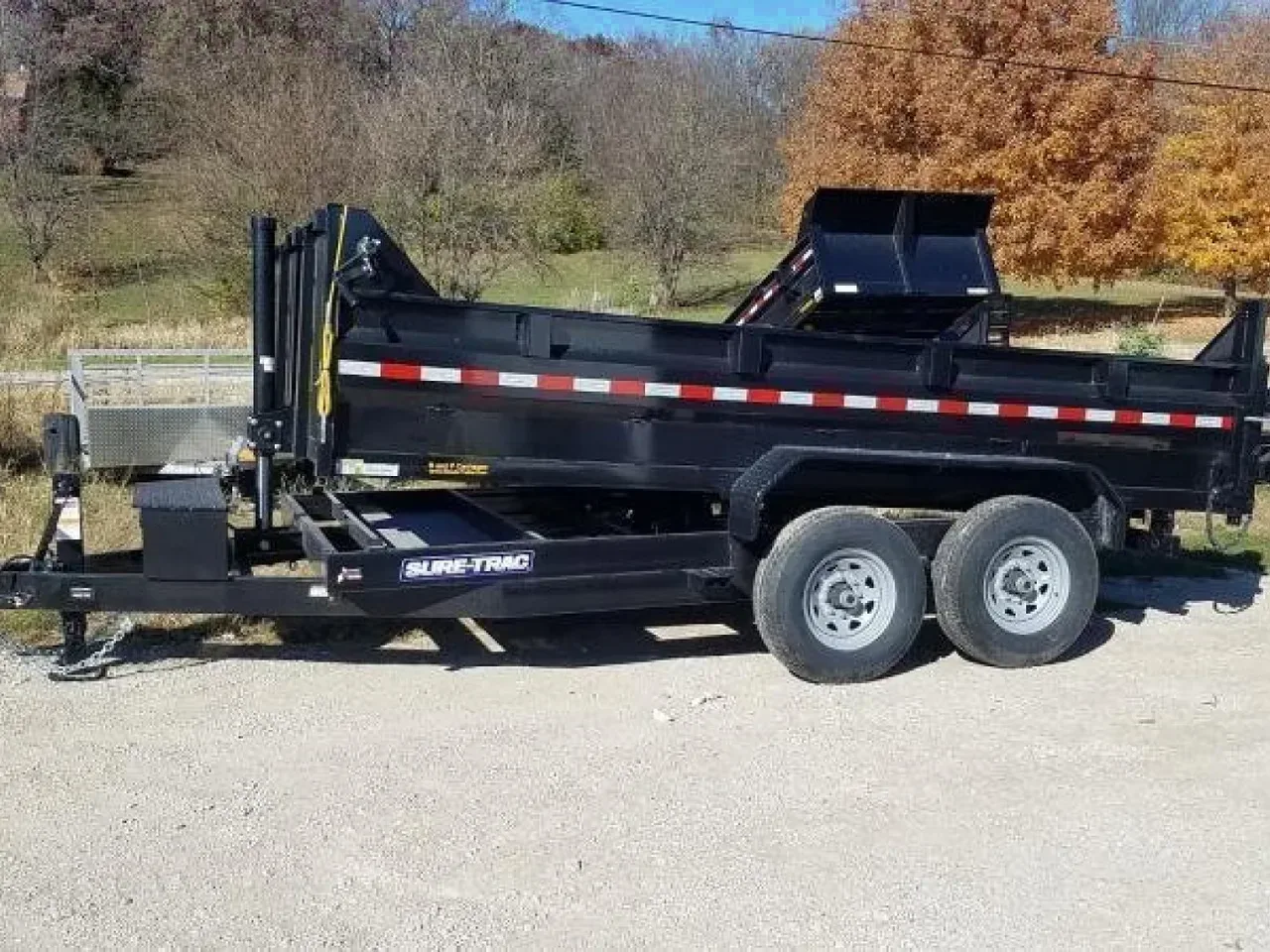

The Sure-Trac HD Low Profile Dump Trailer is designed for the professional. The low deck height ensures easy loading and unloading of equipment while maintaining ground clearance when fully engaging the dump mechanism. Smart features like underbody ramp and tool storage save you time, while a heavy-duty tube frame and c-channel cross members provide for superior payload capacity. Available in three different hoist options: Dual Ram, Scissor, and Telescopic lift.

Standard Features:

Power Up/Gravity Down

45 Degree Dump Angle

Deep Cycle Marine Grade Battery

(5) D-Ring Tie-Downs

7-Way RV Style Electrical Plug

Welded Tubular Steel Main Frame

Ramps (Stored Underneath Bed)

Iron Phosphate Wash Steel Prep

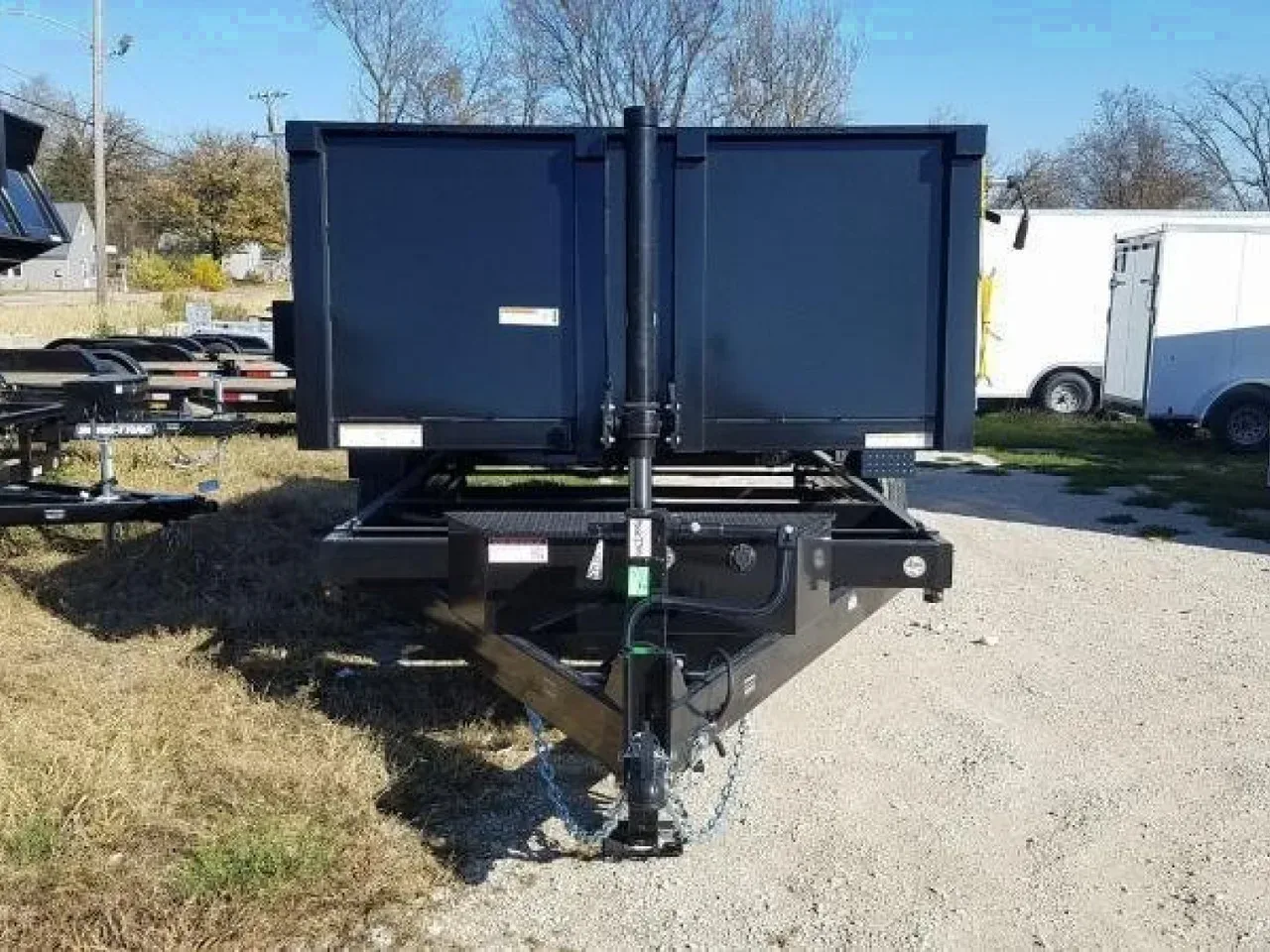

2-5/16" A-Frame Coupler

Side Steps

Spare Tire Mount

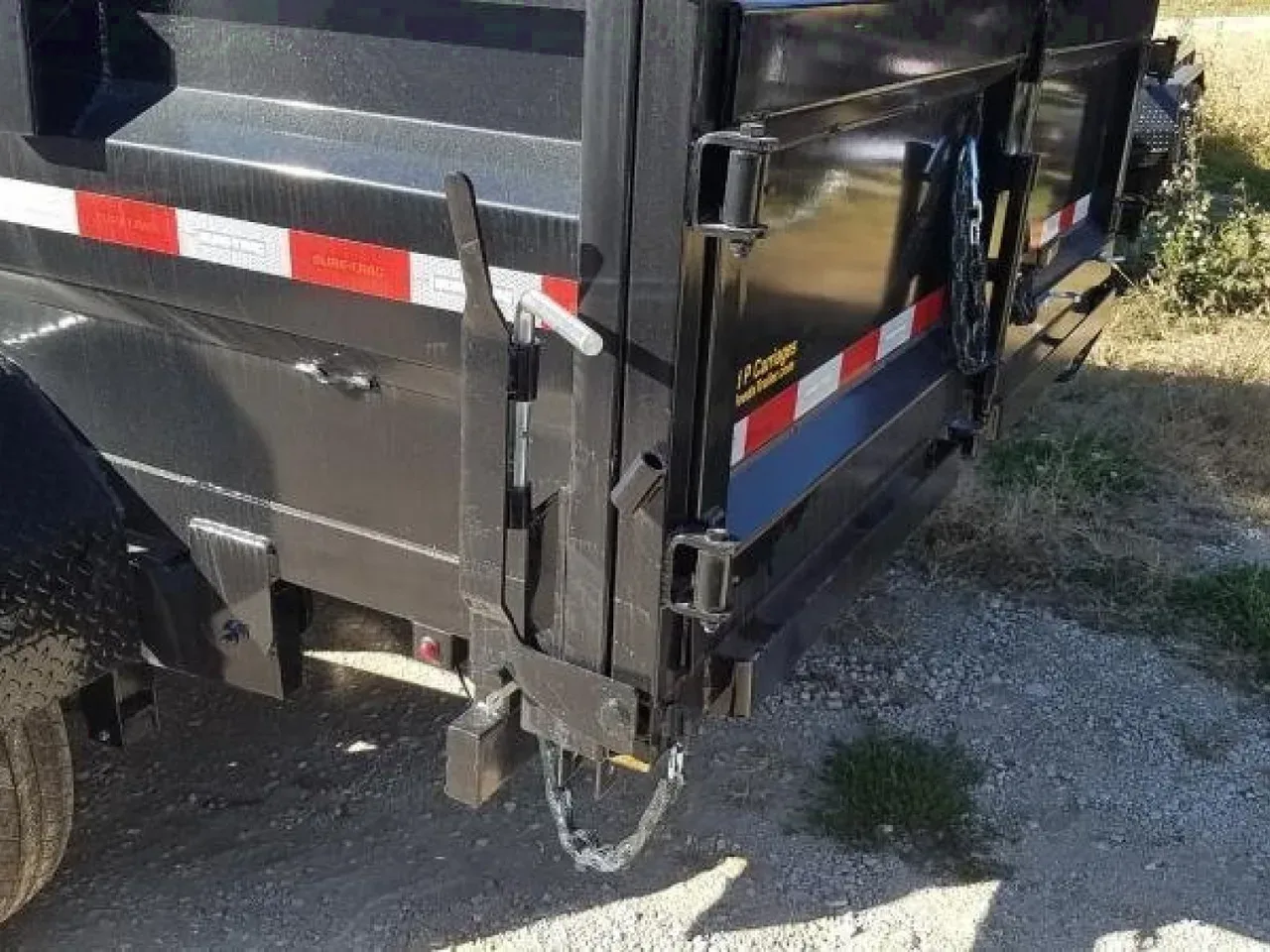

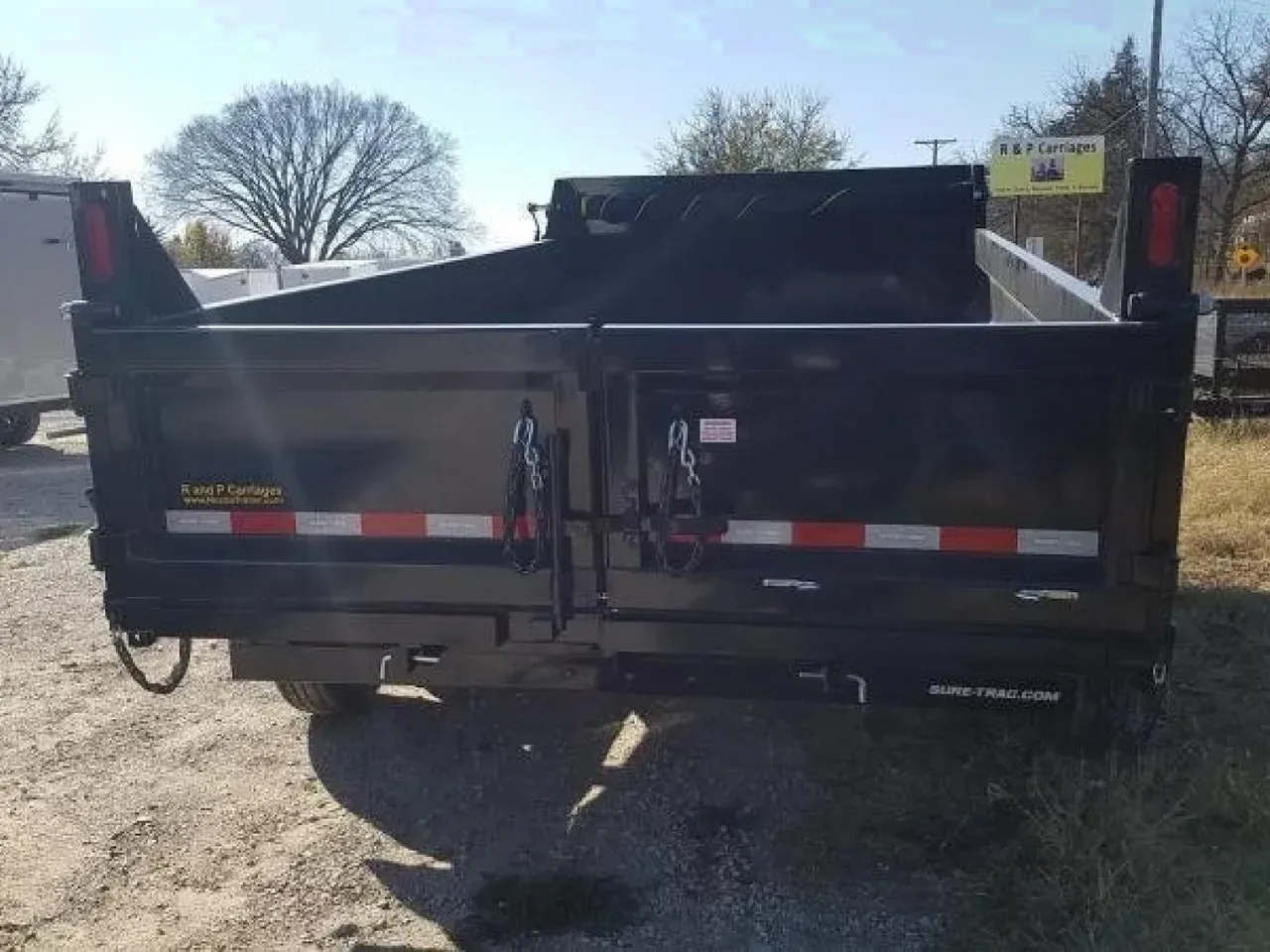

Combo Barn Door Spreader Gate

EZ Lube Hubs

Powder Coat Finish

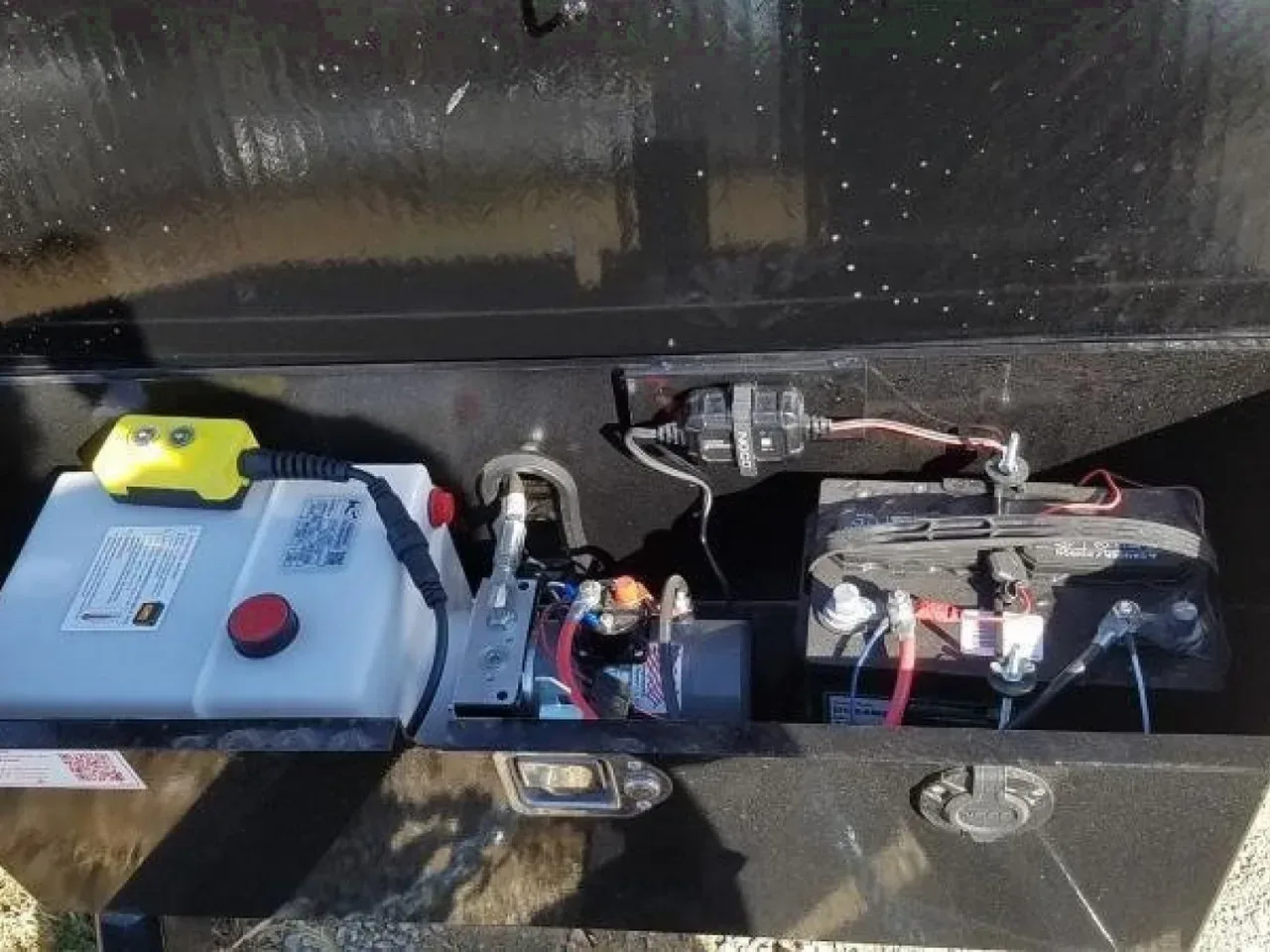

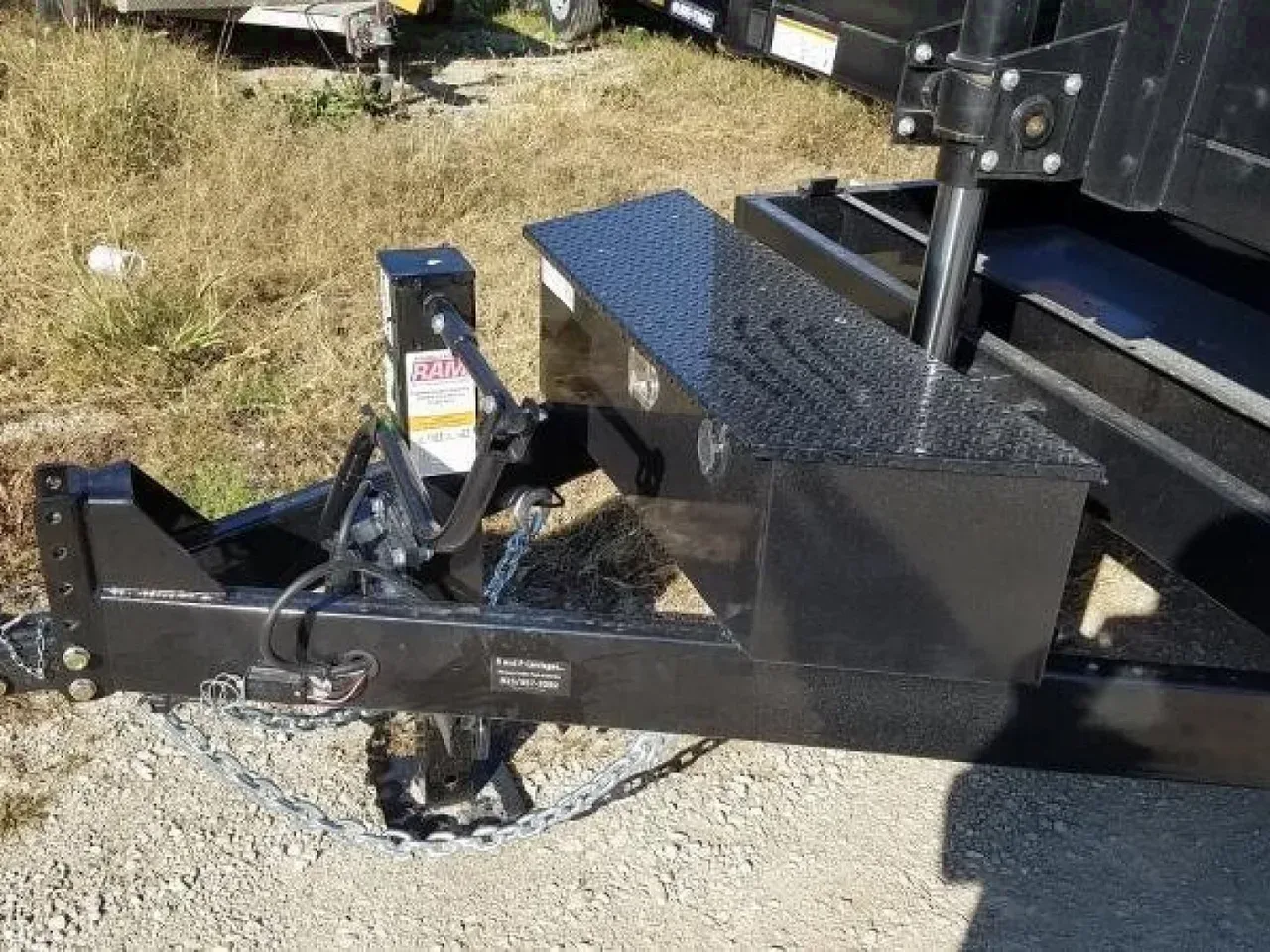

Tongue Mounted HD Control Box with Key Lock

Integrated Side Body Stiffening System

Rubber Mounted LED Sealed Lights

All-Wheel Brakes

Straight Axles

Underbody Secure Tool Storage

Protected Brake Wiring

Integrated Tarp Mounts

EverLink - High Performance Wiring Harness

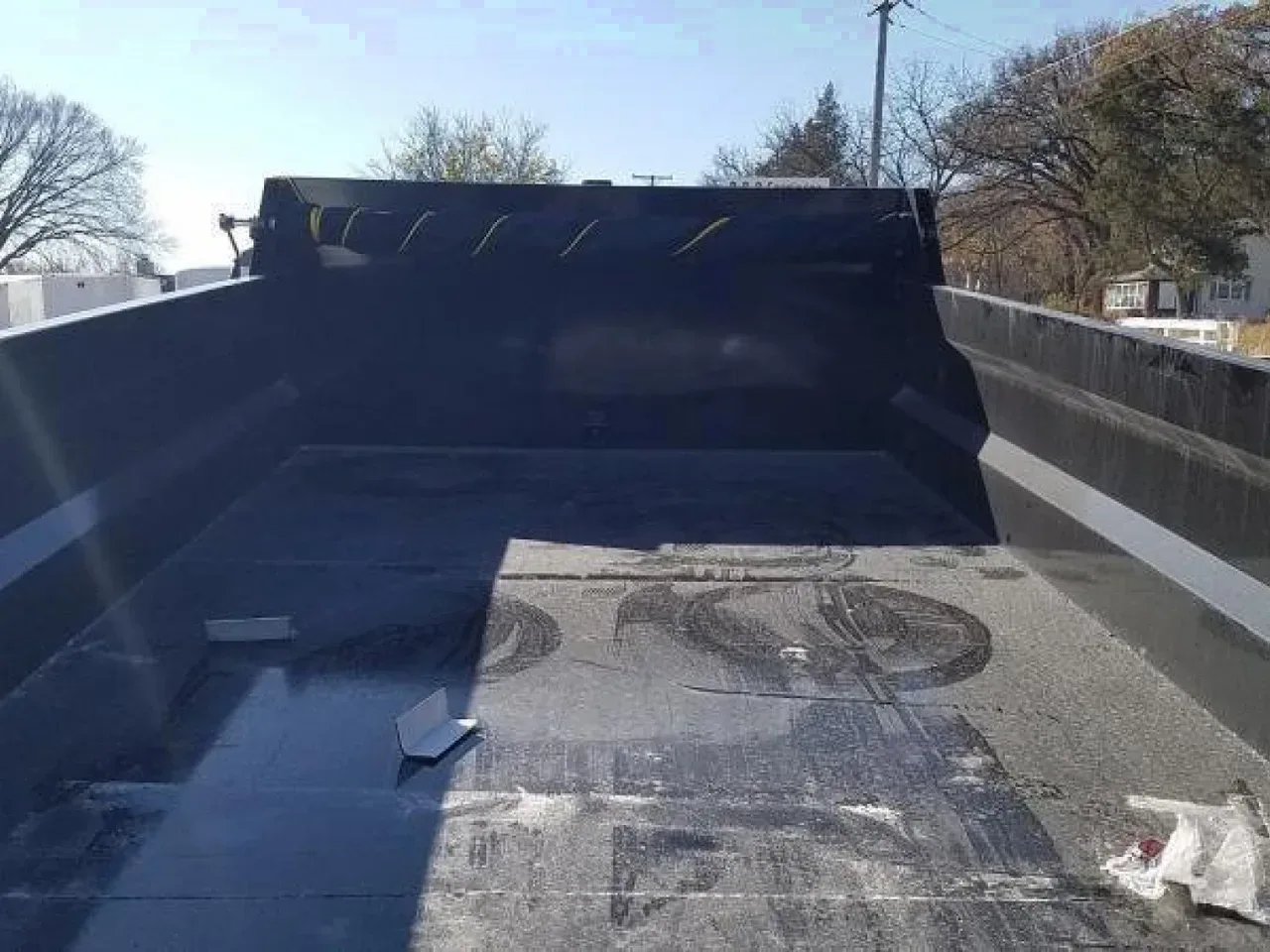

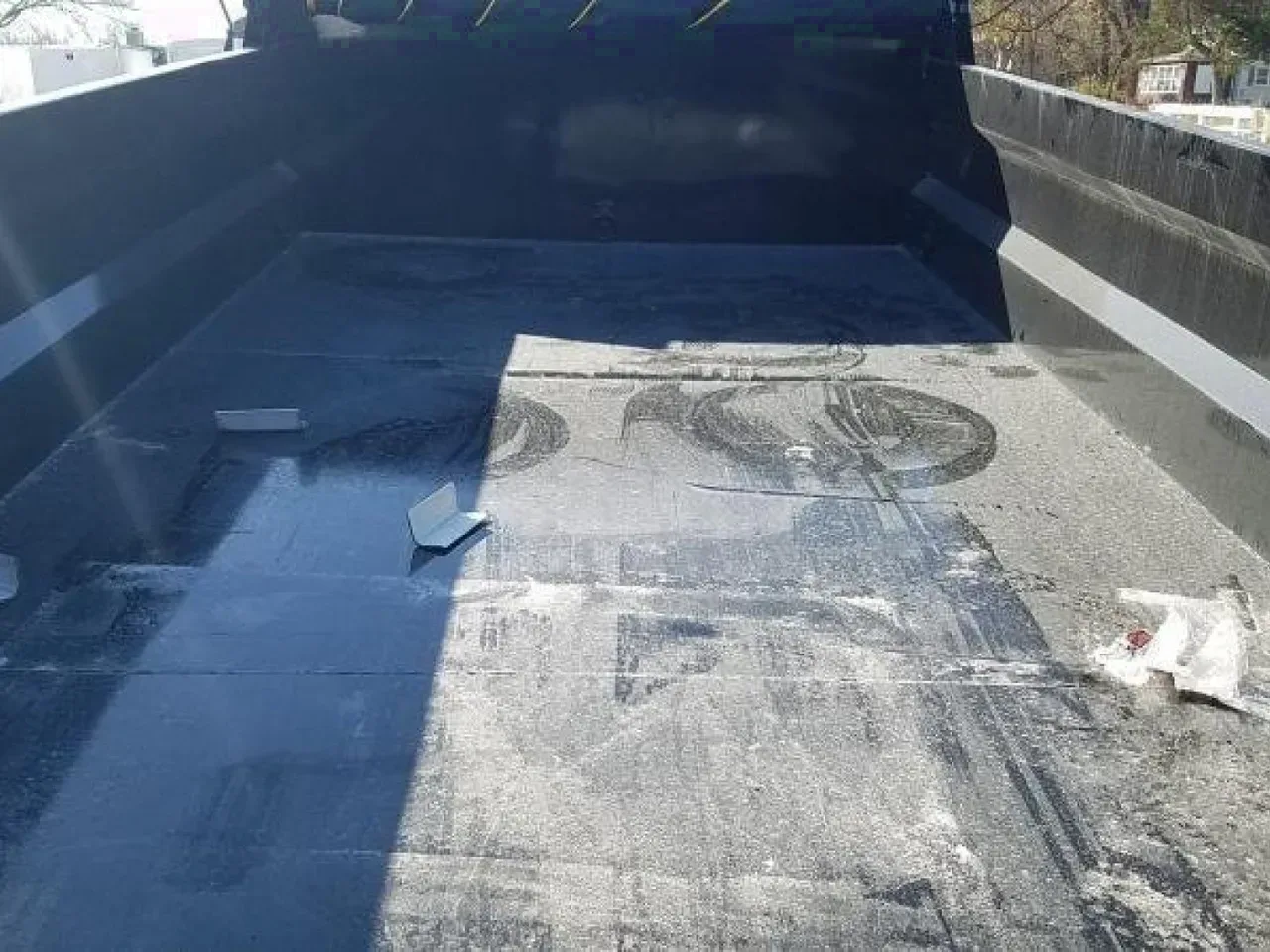

10 Gaugue Floor

2K, Zinc Plated Coupler Mounted Jack

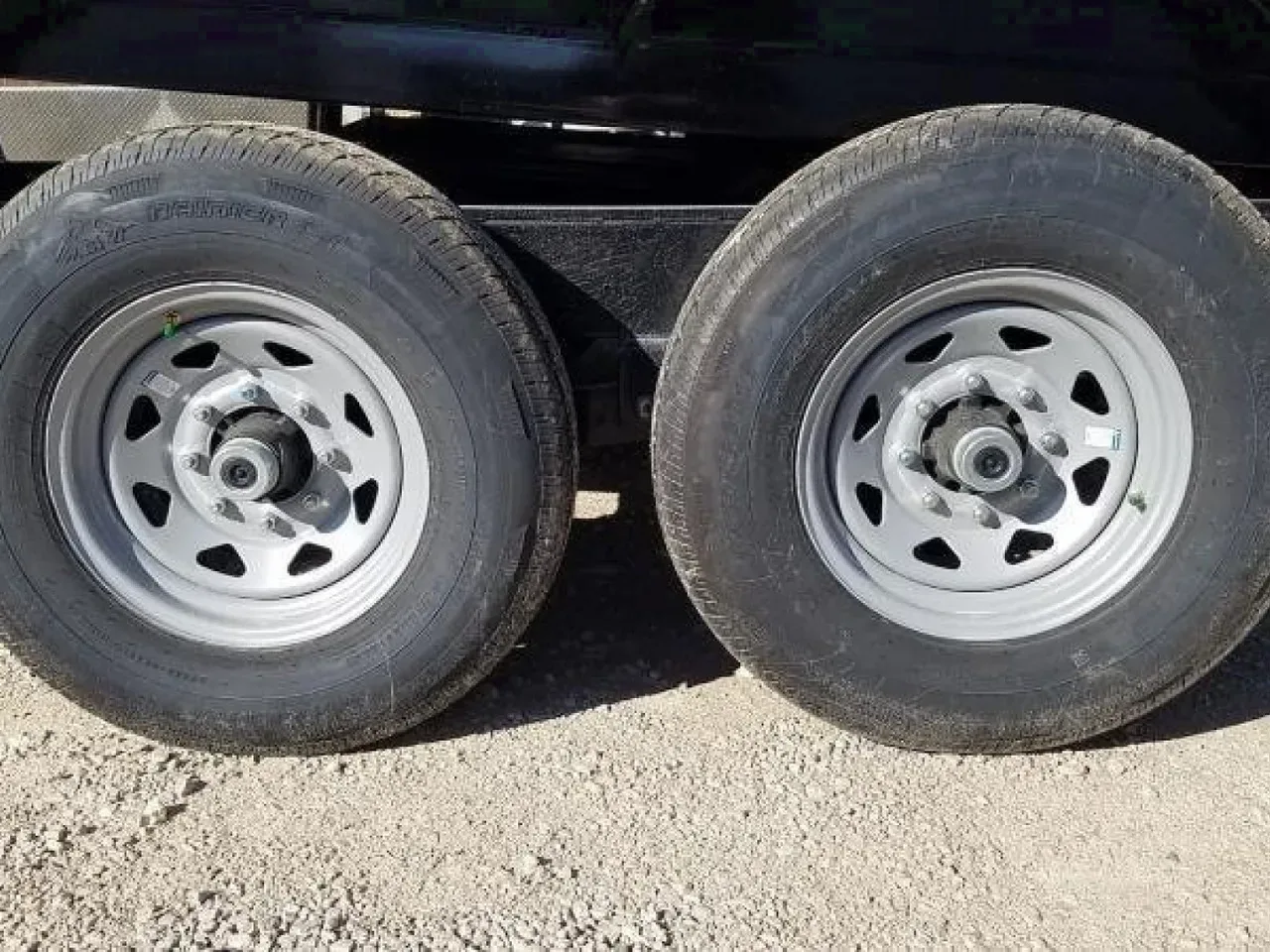

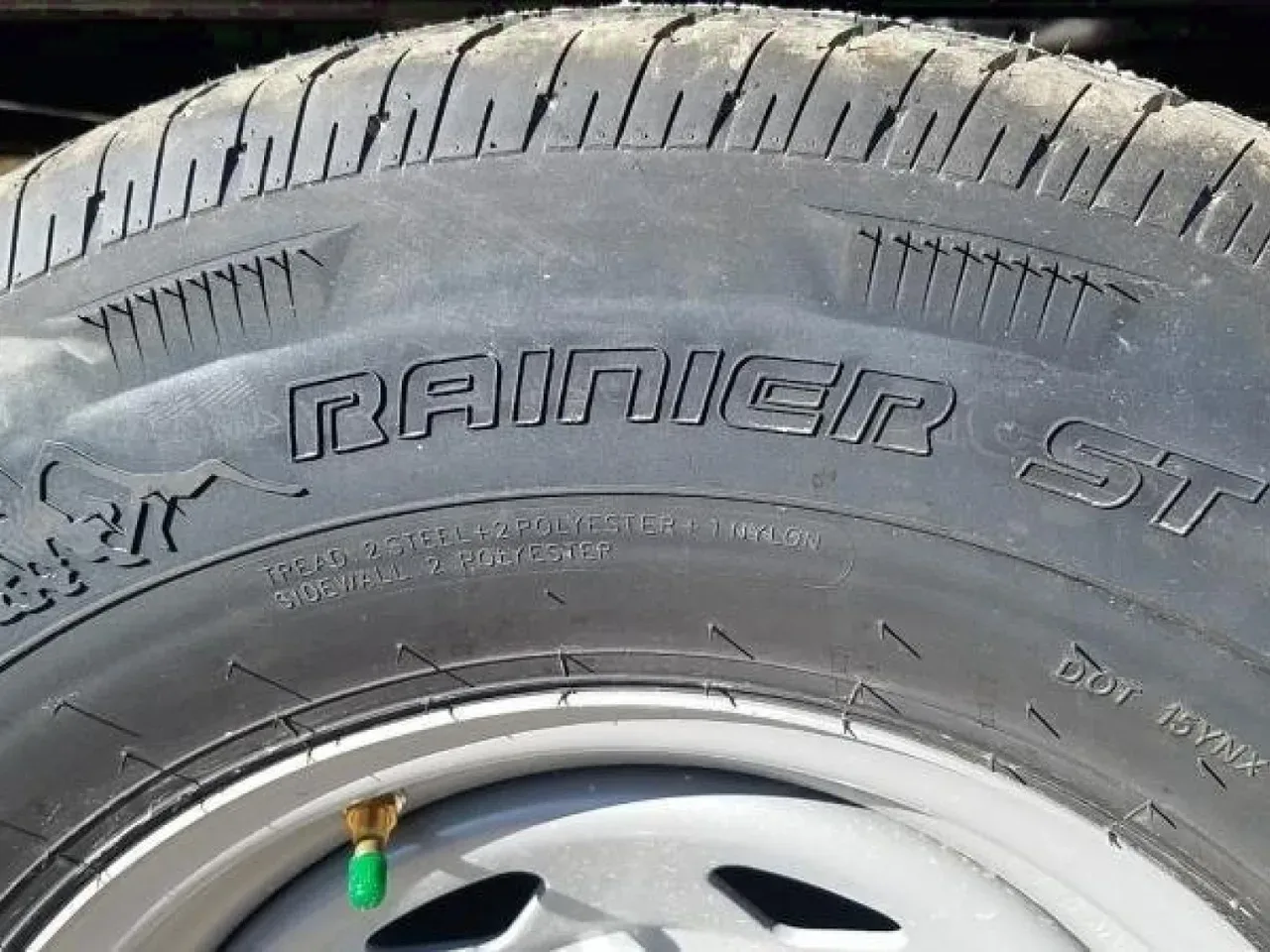

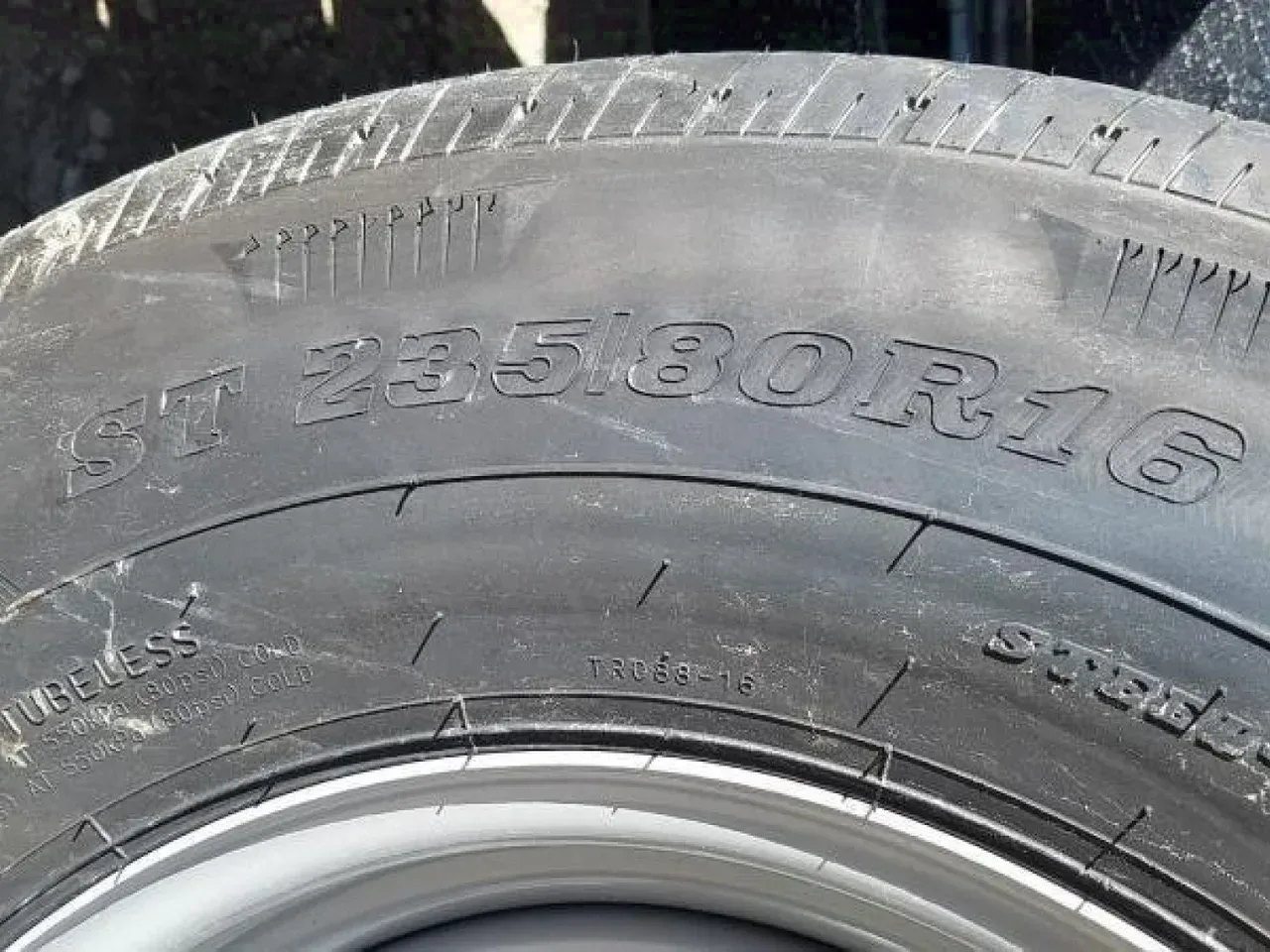

16" Radial Tires (235 80R16 LRE) 6K And 7K axles

Specs:

overall length 222" / 18.5'

overall width 102" / 8.5'

bed length 168" (inside) / 14'

bed width 82" (inside) / 6.8'

bed height 24" (inside) / 2'

deck height 29"

coupler height: adjustable 19"-27"

coupler size: adjustable 2-5/16"

electrical plug 7 round

trailer weight 3880#

payload 10,120#

GVWR 14,000#

**Dimensions:** 6.8' x 14' (82" x 168")
