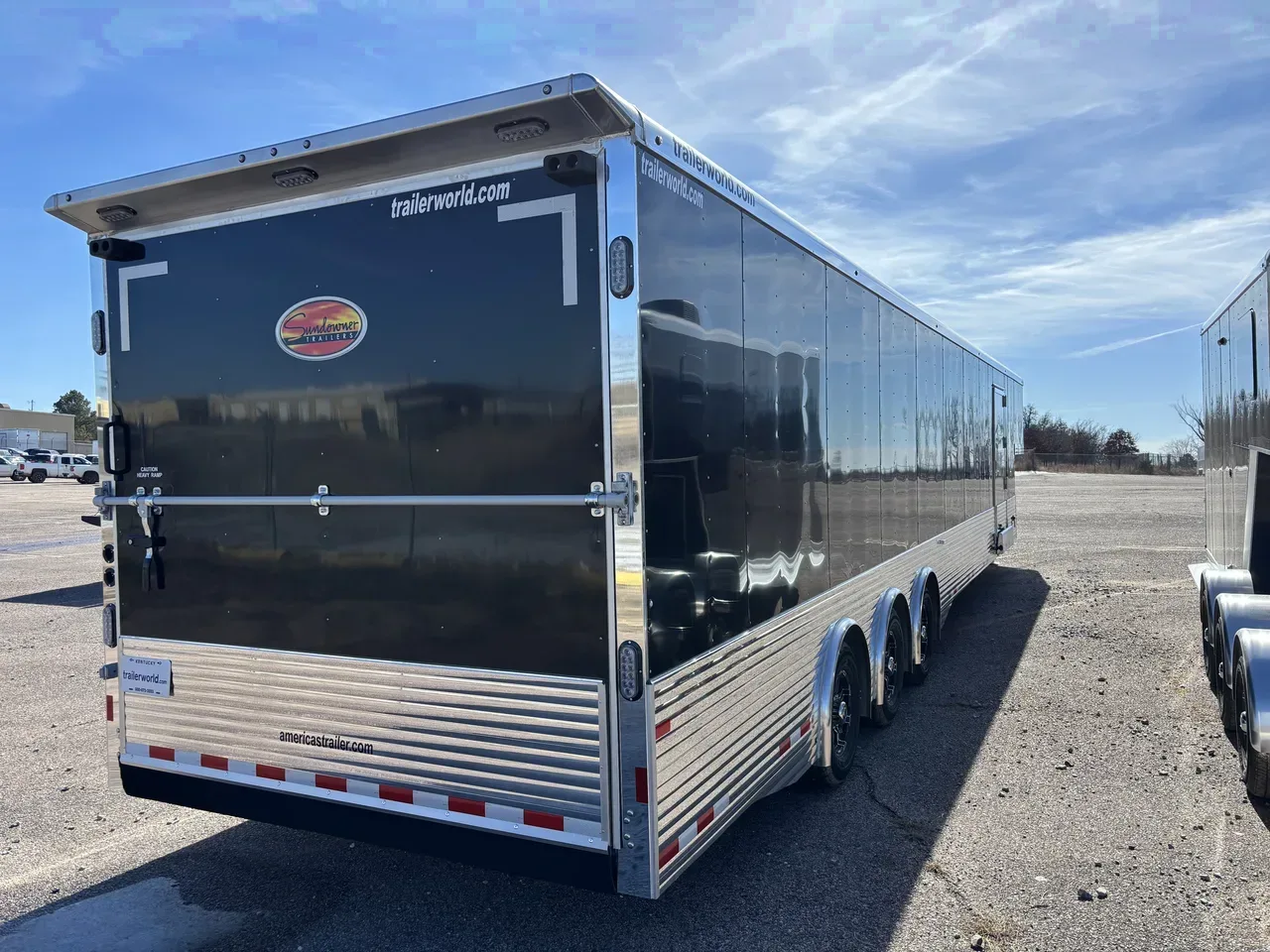

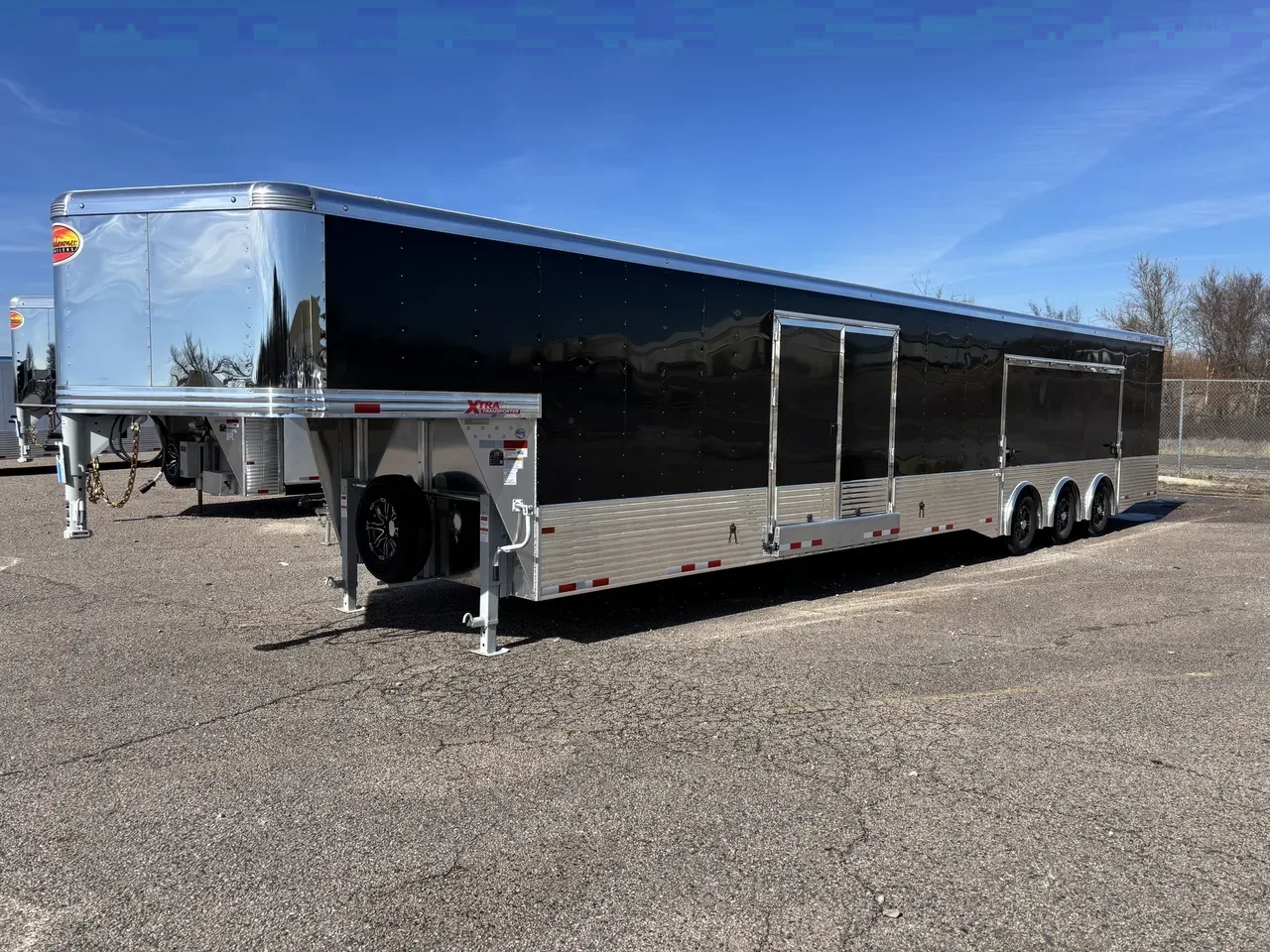

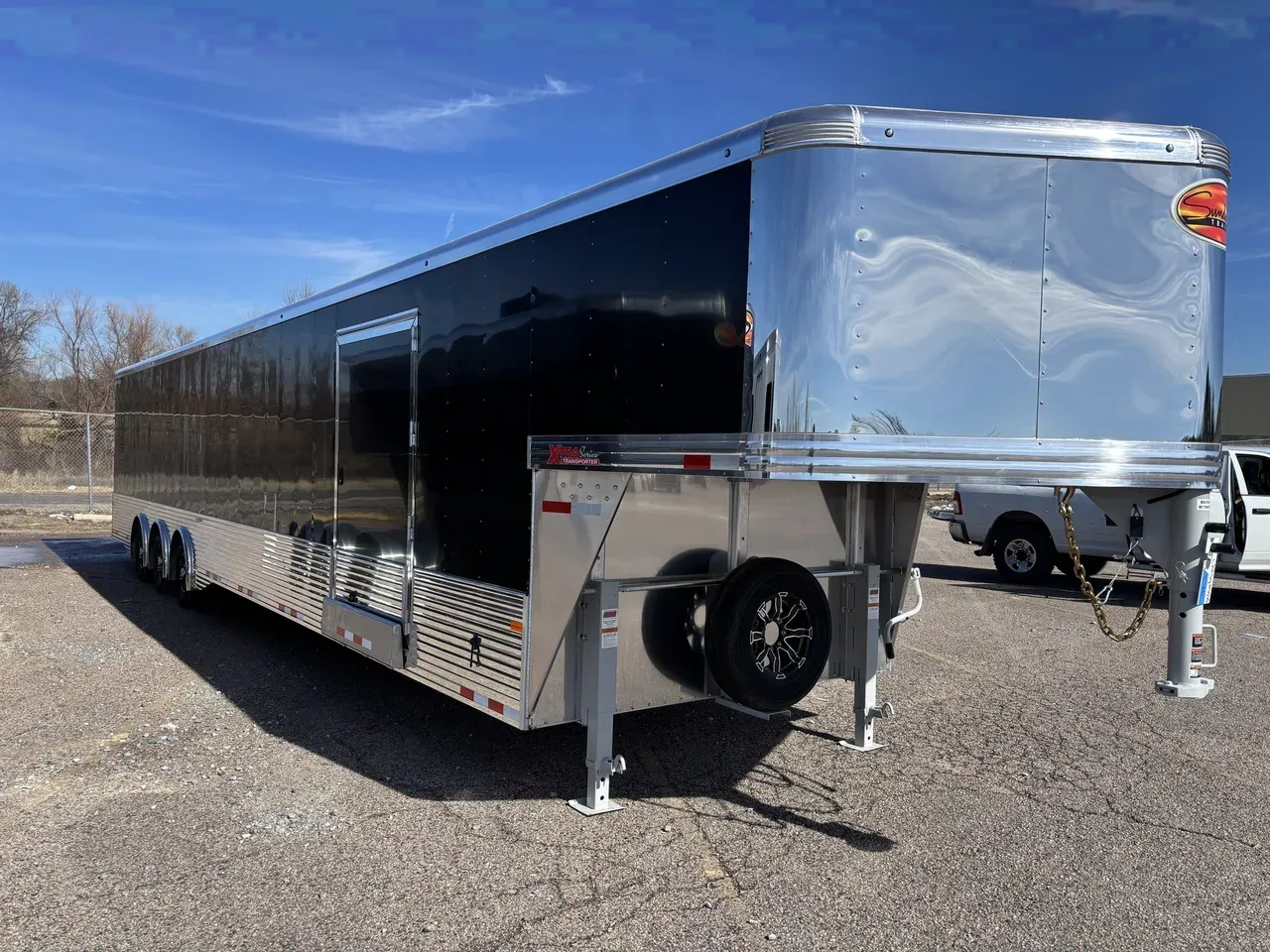

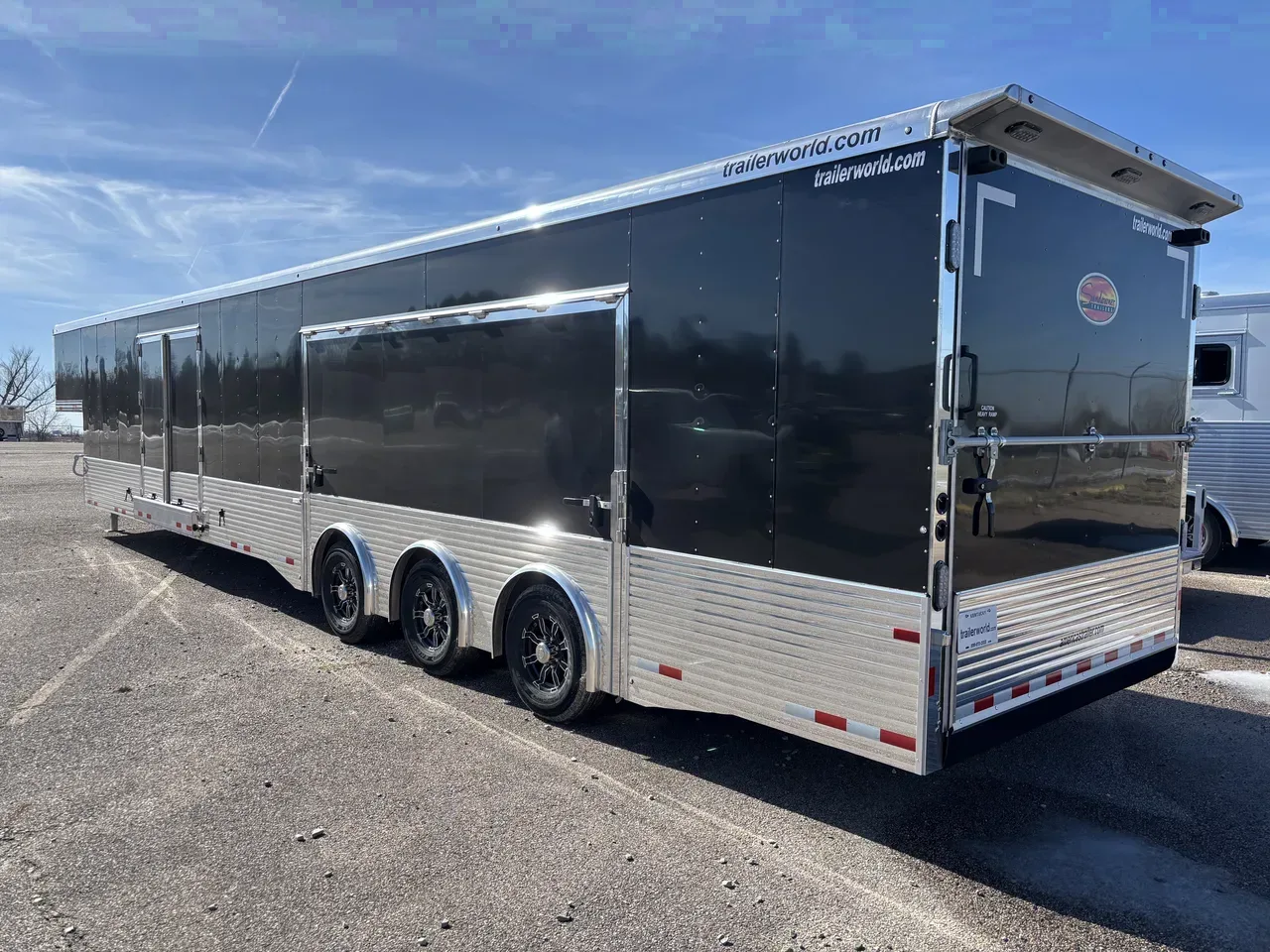

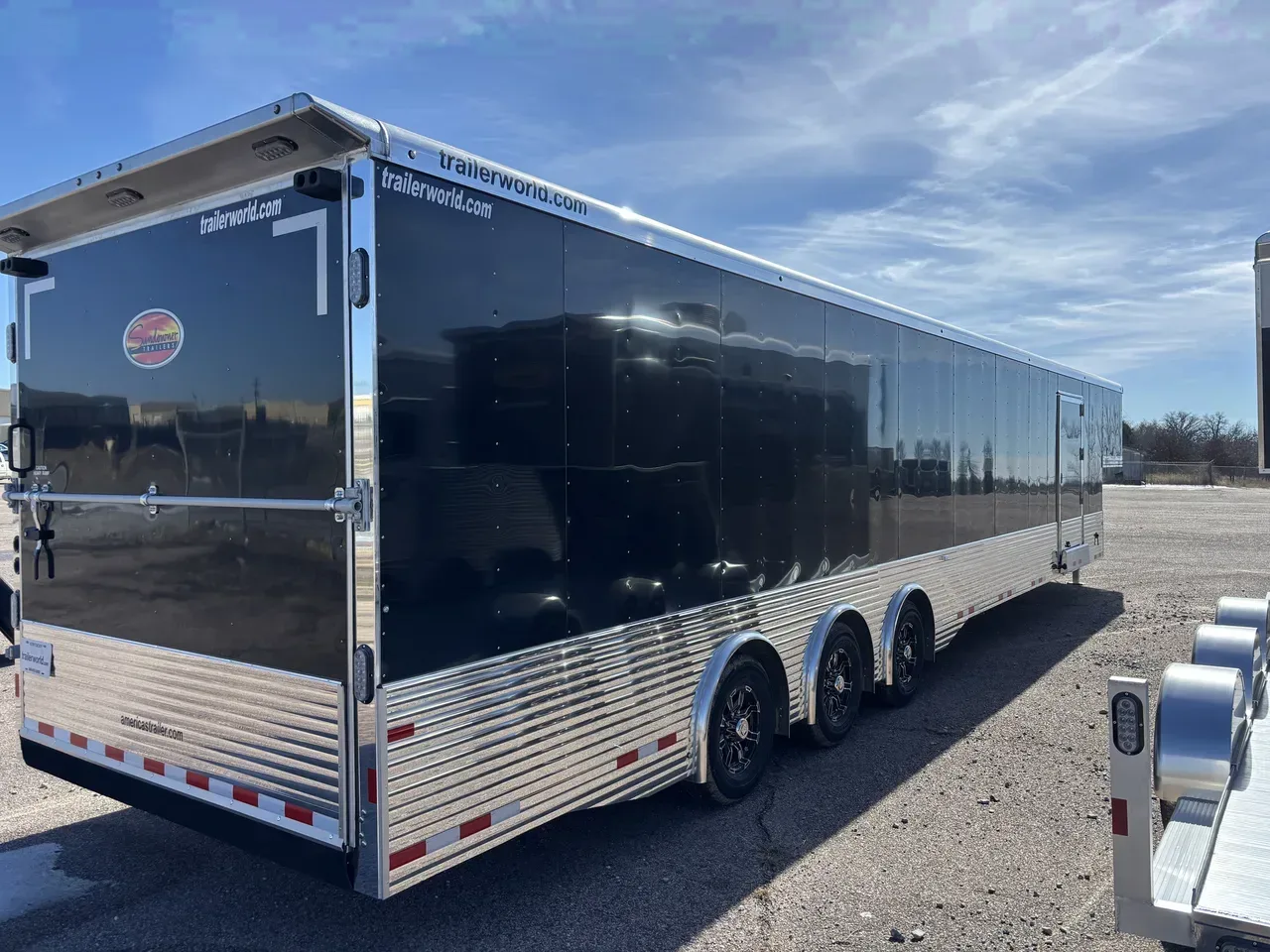

This is an example of a custom Sundowner trailer. You can order one just like it or modify it to fit your needs.

XTRA SERIES 48' OVERALL Gooseneck

This Trailer has 3 x 7000# Torsion Axles

Options:

MOVE STANDARD SIDE ACCESS DOOR TO 54" FROM BREAST PLATE, ON CURB SIDE.

BLACK LATCH w/DEADBOLT ILO STD. BLACK LATCH w/BUTTERFLY LATCH & LOCKING HASP.

ADD 6" TO HEIGHT (7' 6" TALL)

EXTRA ROOF BOWS: ROOF BOWS ON 16" CENTERS.

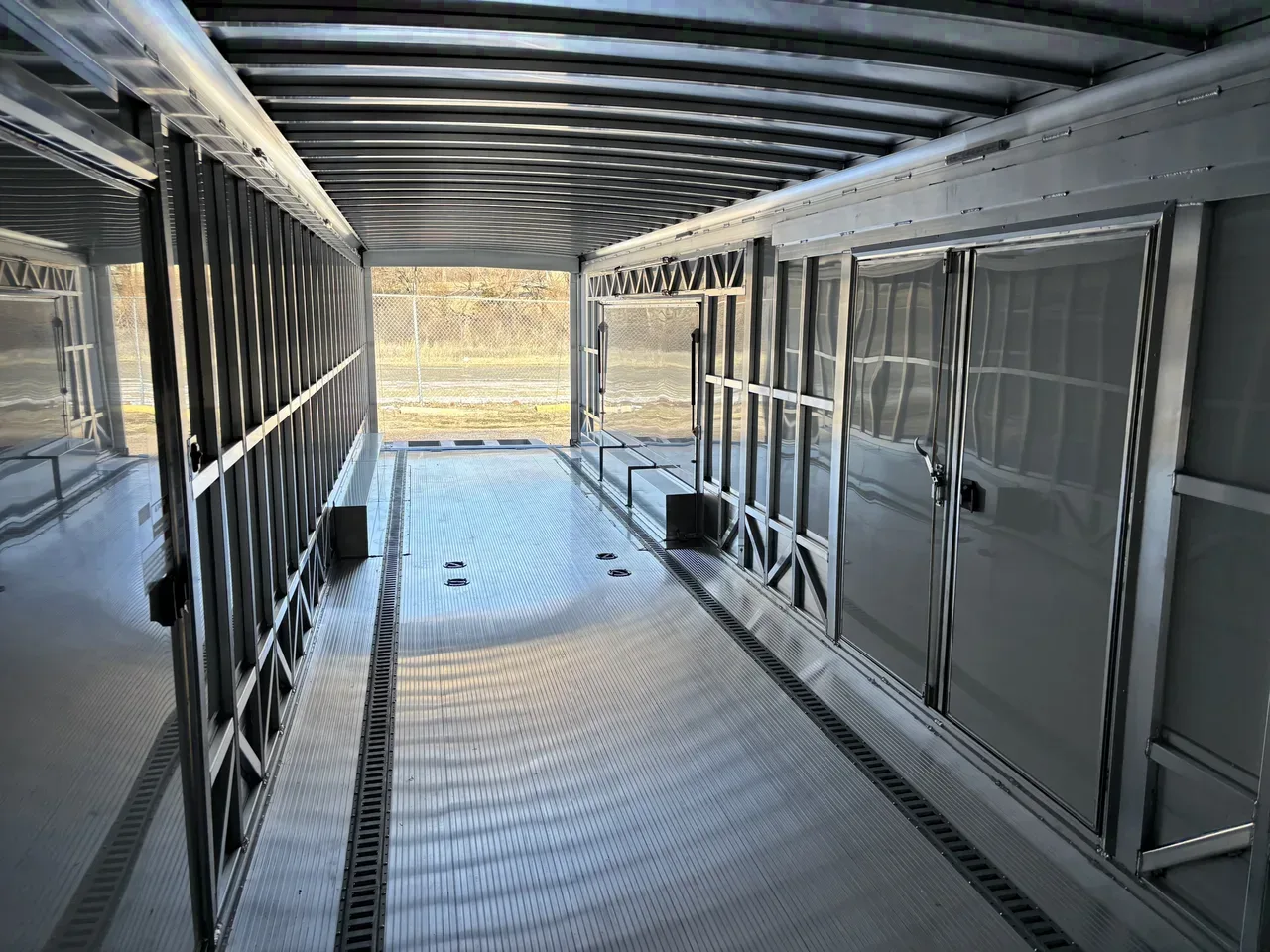

(2) 36" SIDE ACCESS DOORS ON STREET SIDE, 100" FROM BREAST PLATE. LATCH IN CENTER.

UPGRADE TO HEAVY DUTY WELD ON HINGES

HEAVY DUTY RECESSED FLOOR TIES: (2) 12" FROM REAR, 40" APART. (2) 19' FROM REAR, 40" APART. (2) 20' 6" FROM REAR, 40" APART. (2) 72" FROM BREAST PLATE, 40" APART.

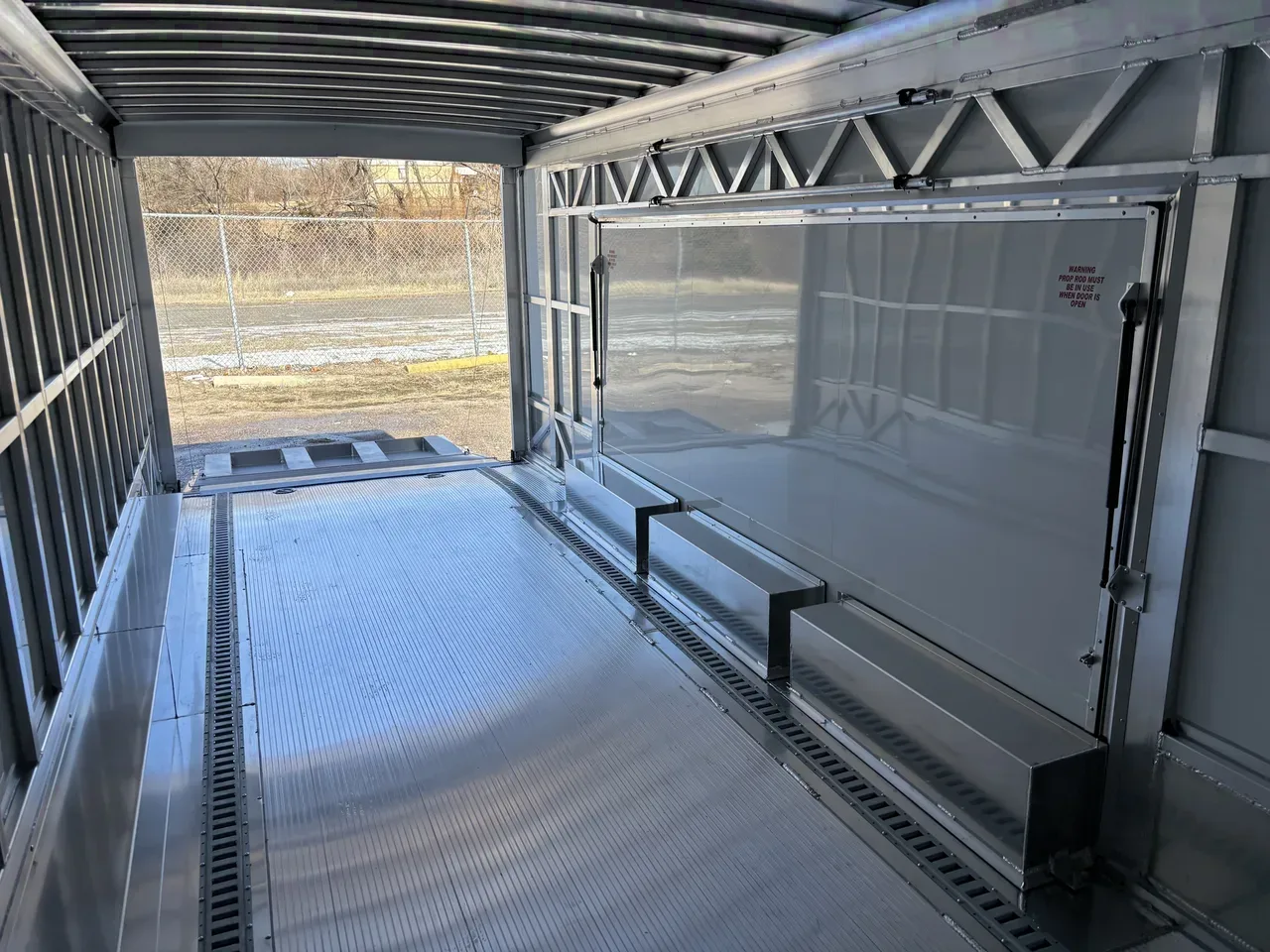

PREMIER SIDE ACCESS DOOR (67-5/16" OPENING) W/ REMOVABLE FENDER - TRIPLE AXLE

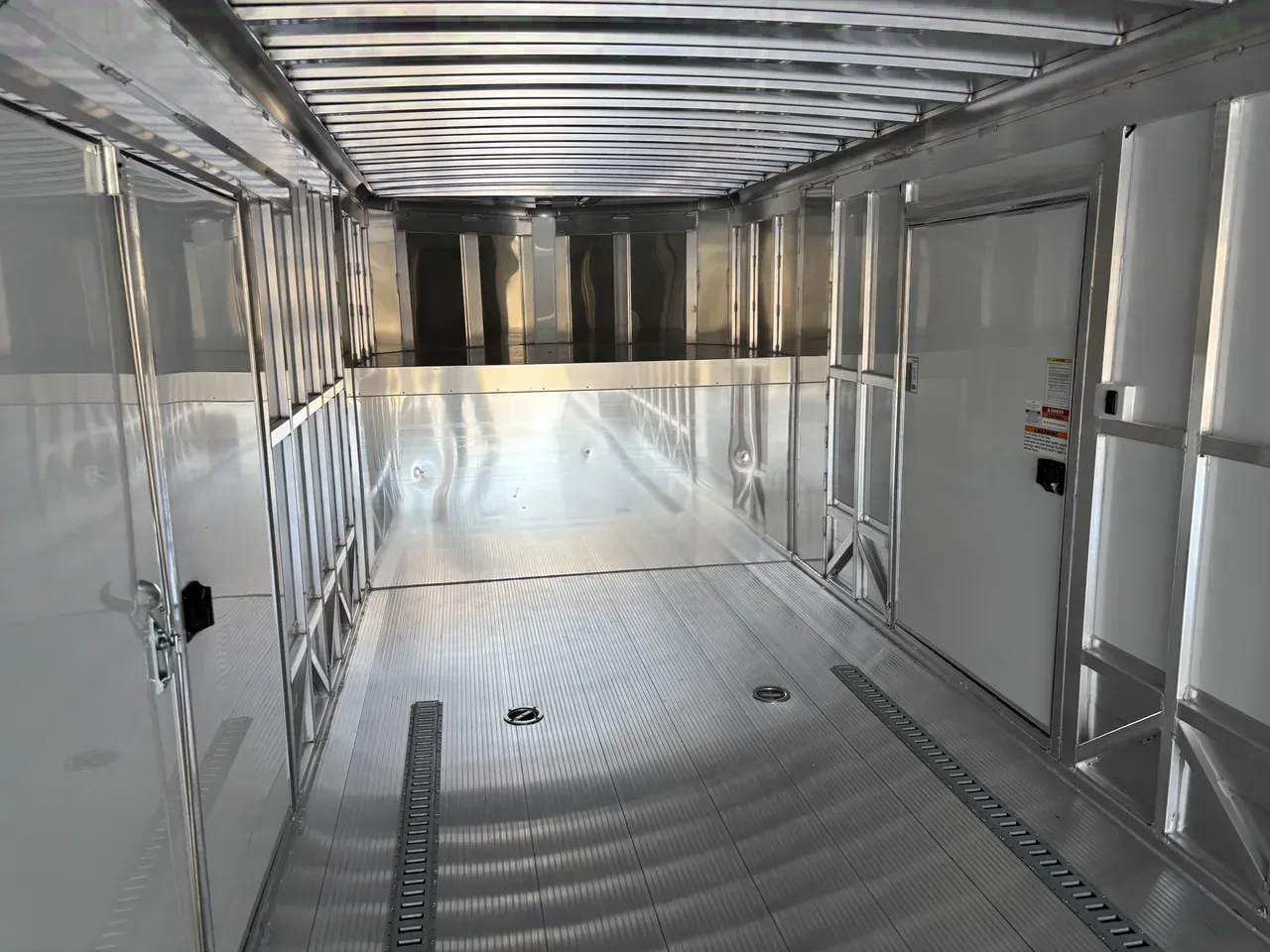

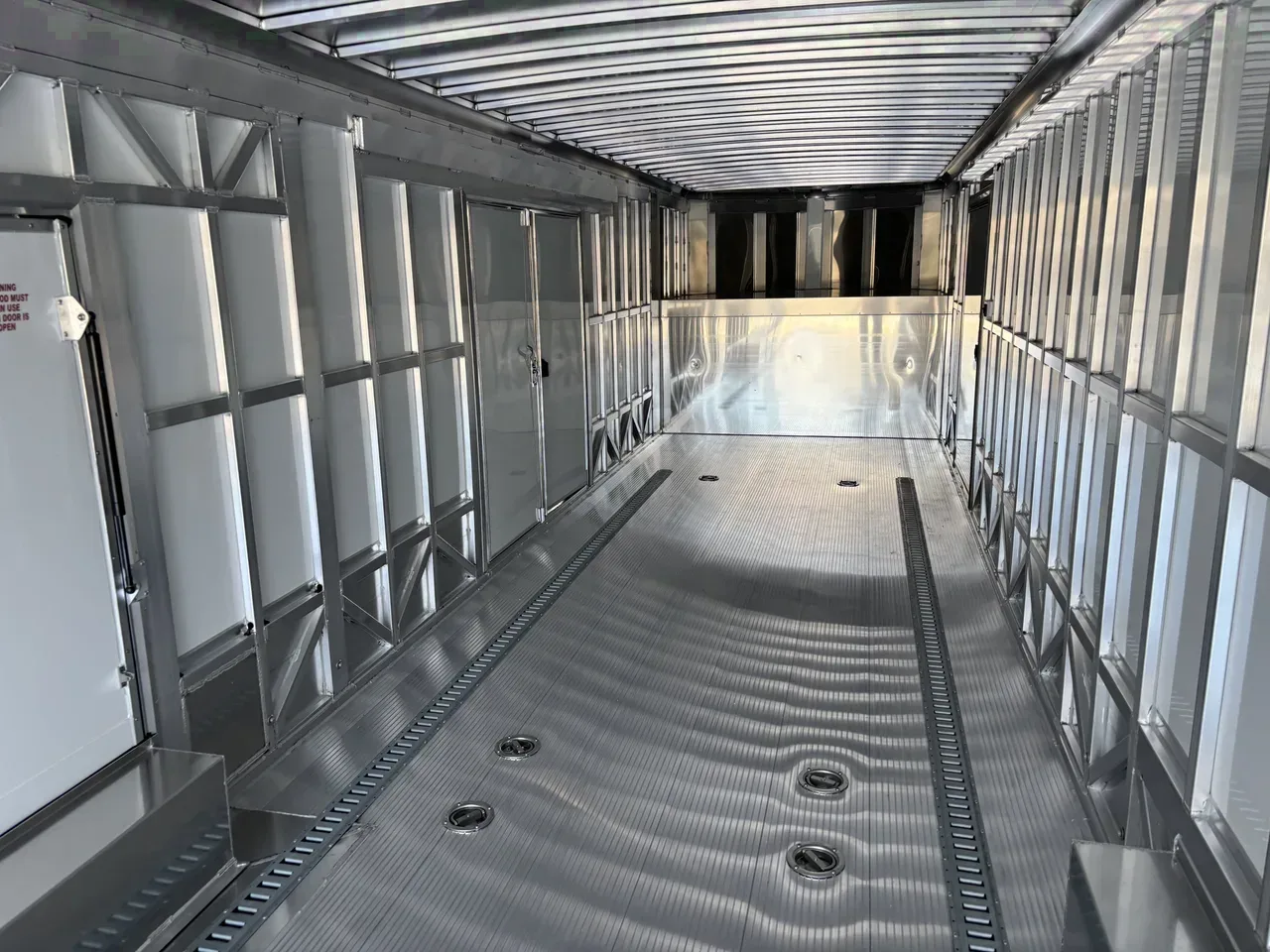

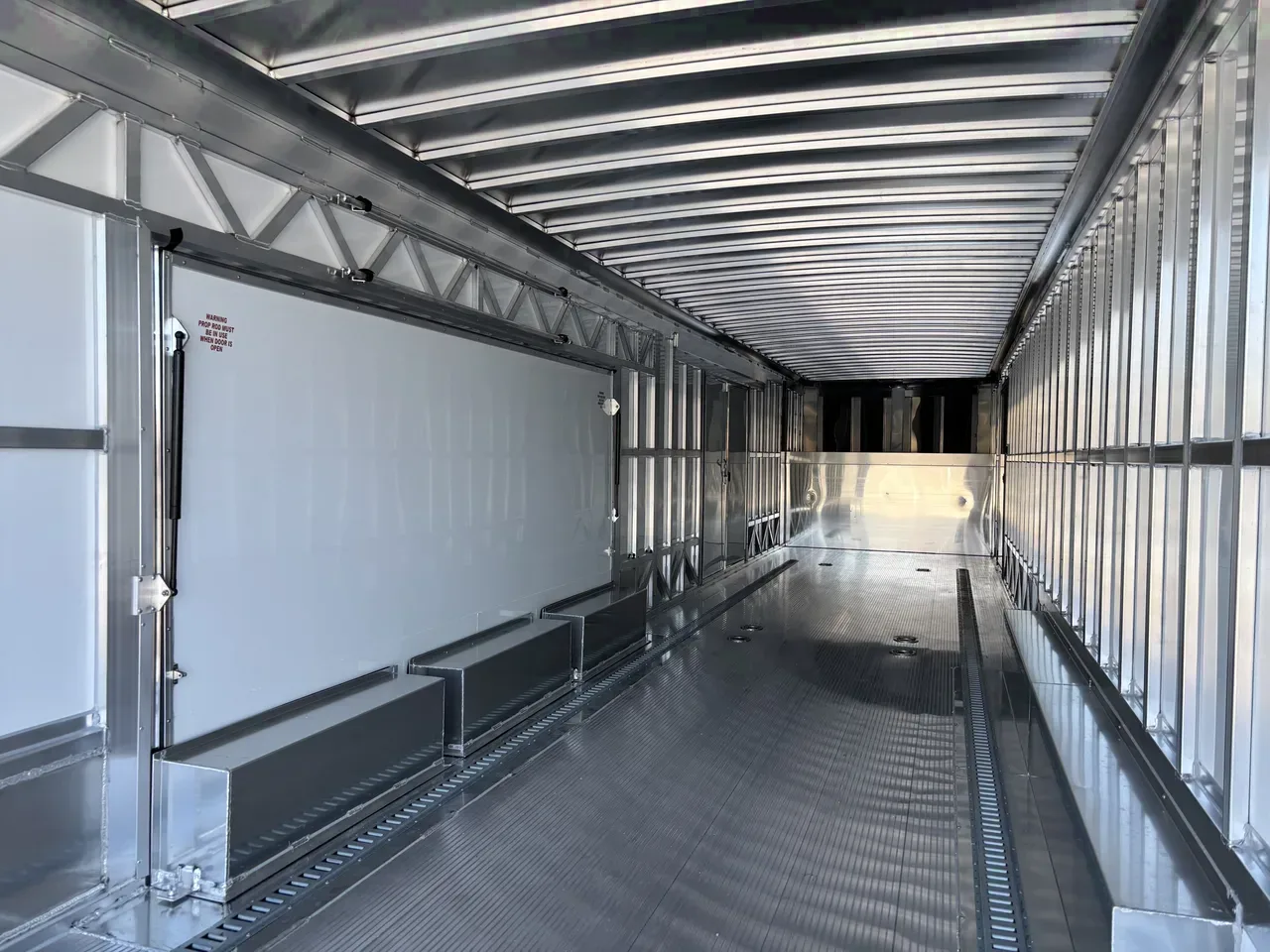

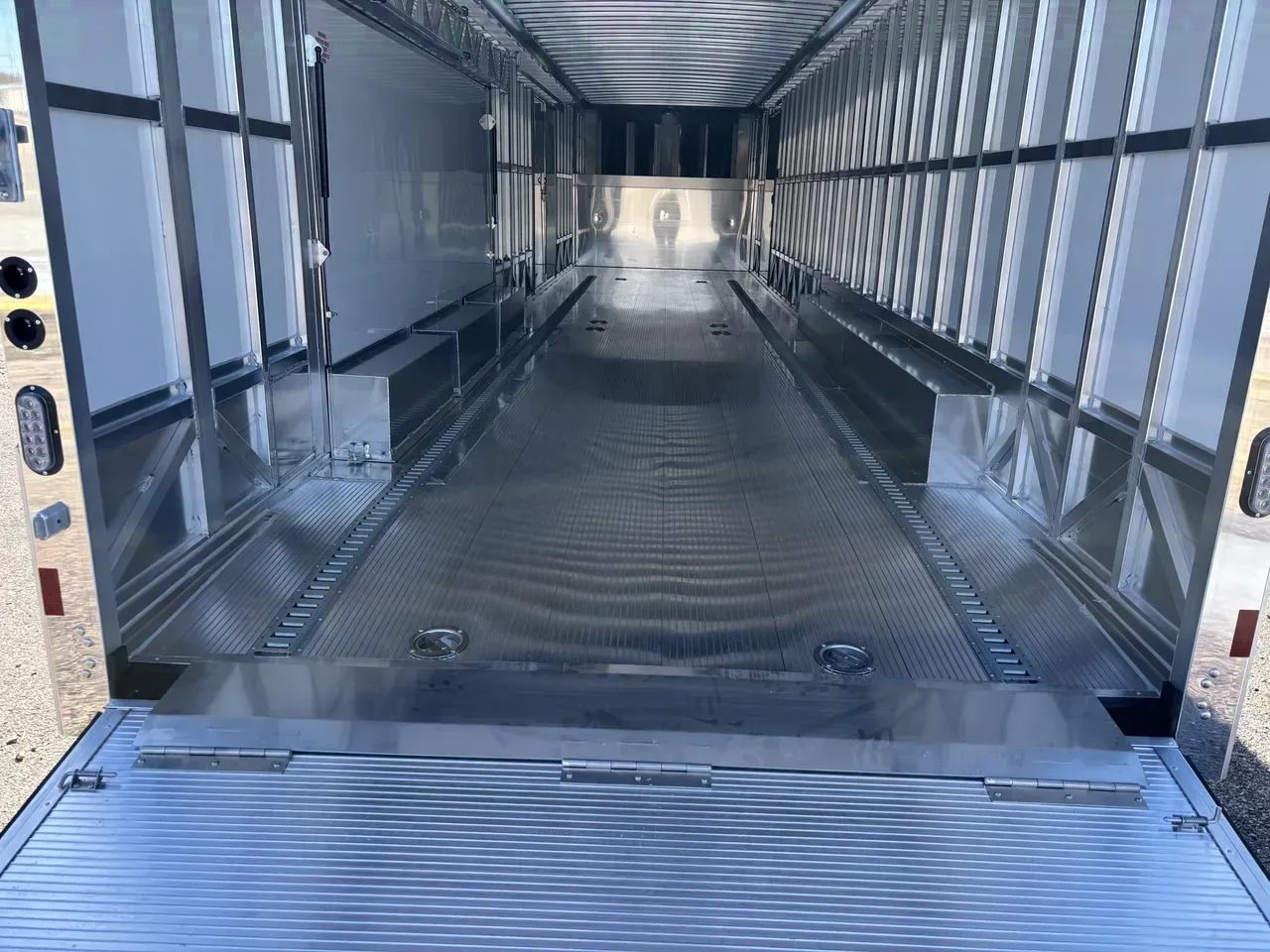

E-TRACK INSTALLED: (2) 39' STRIPS IN FLOOR, 70" APART, CENTER TO CENTER.

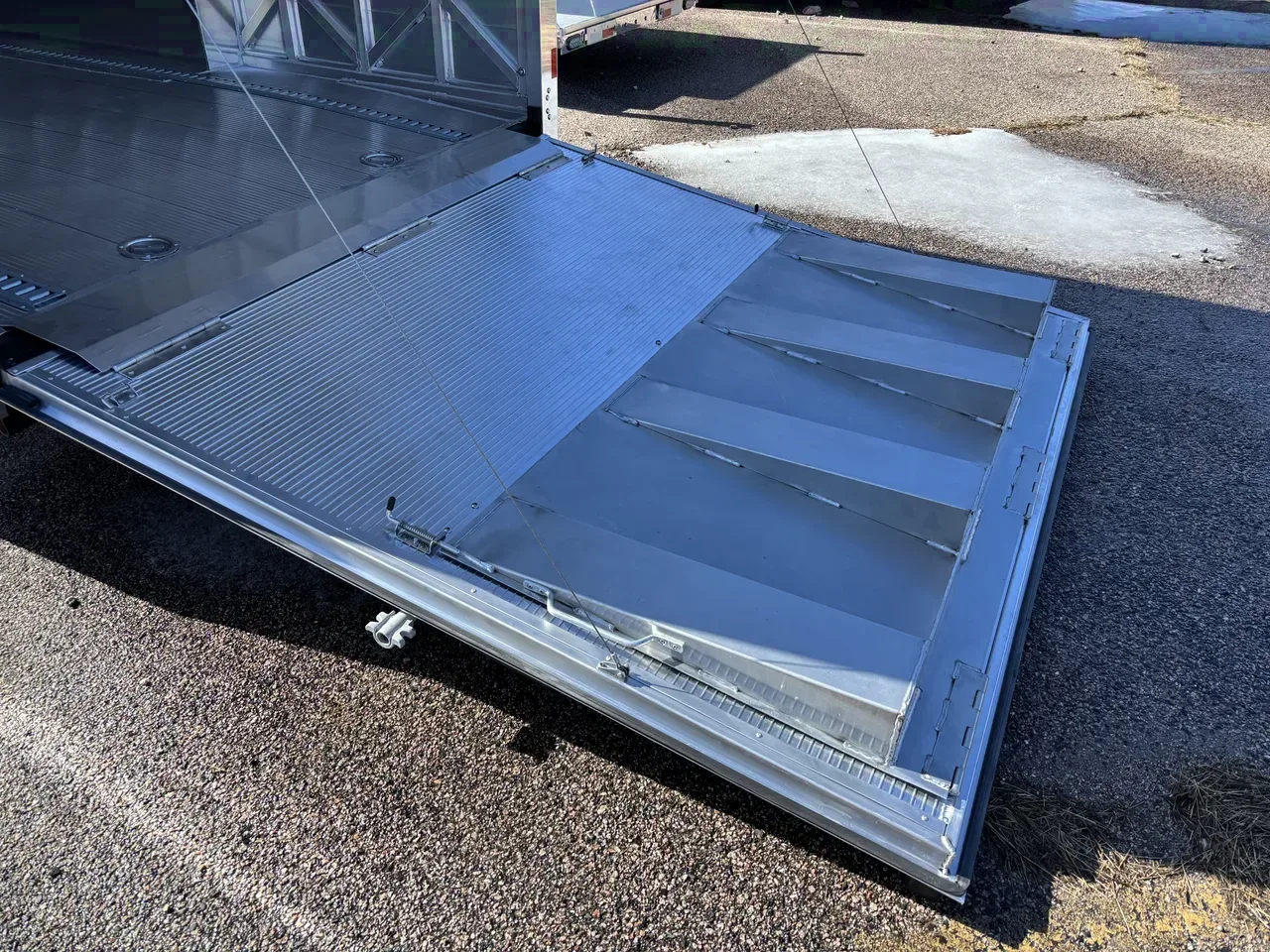

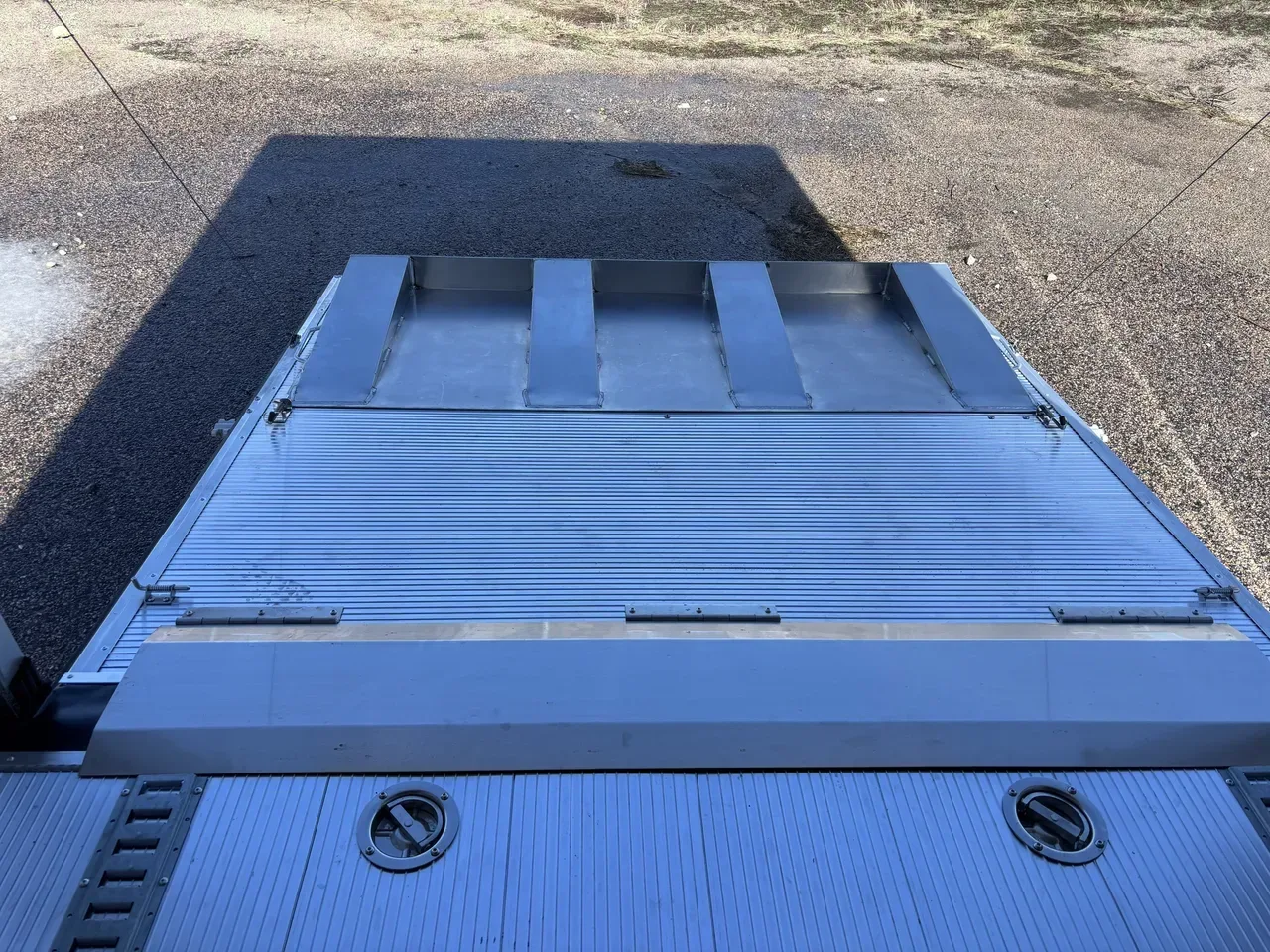

FLIP-OUT RAMP EXTENSION

HD 3' FLIP-OUT RAMP EXTENSION

STEEL ANTI-RACK CAM LATCH

EXTRUDED LOWER ON RAMP TO MATCH SIDES

ROOF RAIL SPOILER w/3 SURFACE MOUNT LIGHTS

ADDITIONAL 12" LED LIGHTS IN CARGO: (7) TOTAL INTERIOR LIGHTS. (3) ON STREET SIDE, AND (4) ON CURB SIDE, STAGGERED.

(1) CLEARANCE LIGHT ON EACH SIDE, MOUNTED ON SIDE WALL, 6" ABOVE FLOOR, SHINING TOWARDS CENTER TIE DOWNS.

(6) CLEARANCE LIGHTS PER SIDE, EVENLY SPACED.

ADD TURN SIGNALS ON FENDERS

BRACE UP UNDER DOUBLE SIDE DOORS

EXTRUDED NOSE BAND ON NOSE

UPGRADE TO DEXTER AXLES

Standard Features:

2-5/16" Gooseneck Hitch

Width: 8' 6"

Construction: All Aluminum

Trim: Polish package & stainless nose

Floor: All aluminum with aluminum I-beam crossmembers

Wall: Tube frame wall with integrated roof rail

Tie Downs: Heavy duty recessed floor ties

Dovetail: Dovetail floor at rear

Exterior: Full length extruded aluminum sides 24" lower half, prepainted aluminum skin upper half

Roof: .040 One piece aluminum roof, aluminum roof bows

Safety Lights: LED marker and tail lights

Axles/Brakes: Torsion ride spread axles

All wheel electric brakes

Wheels: Aluminum wheels

Tires: Radial tires

Access Door: 48" Side access door

Rear Door: Rear ramp with cable assist

Interior Light: LED dome lights

Landing Gear: Top-wind jack

**Dimensions:** 8.5' x 48' (102" x 576")
