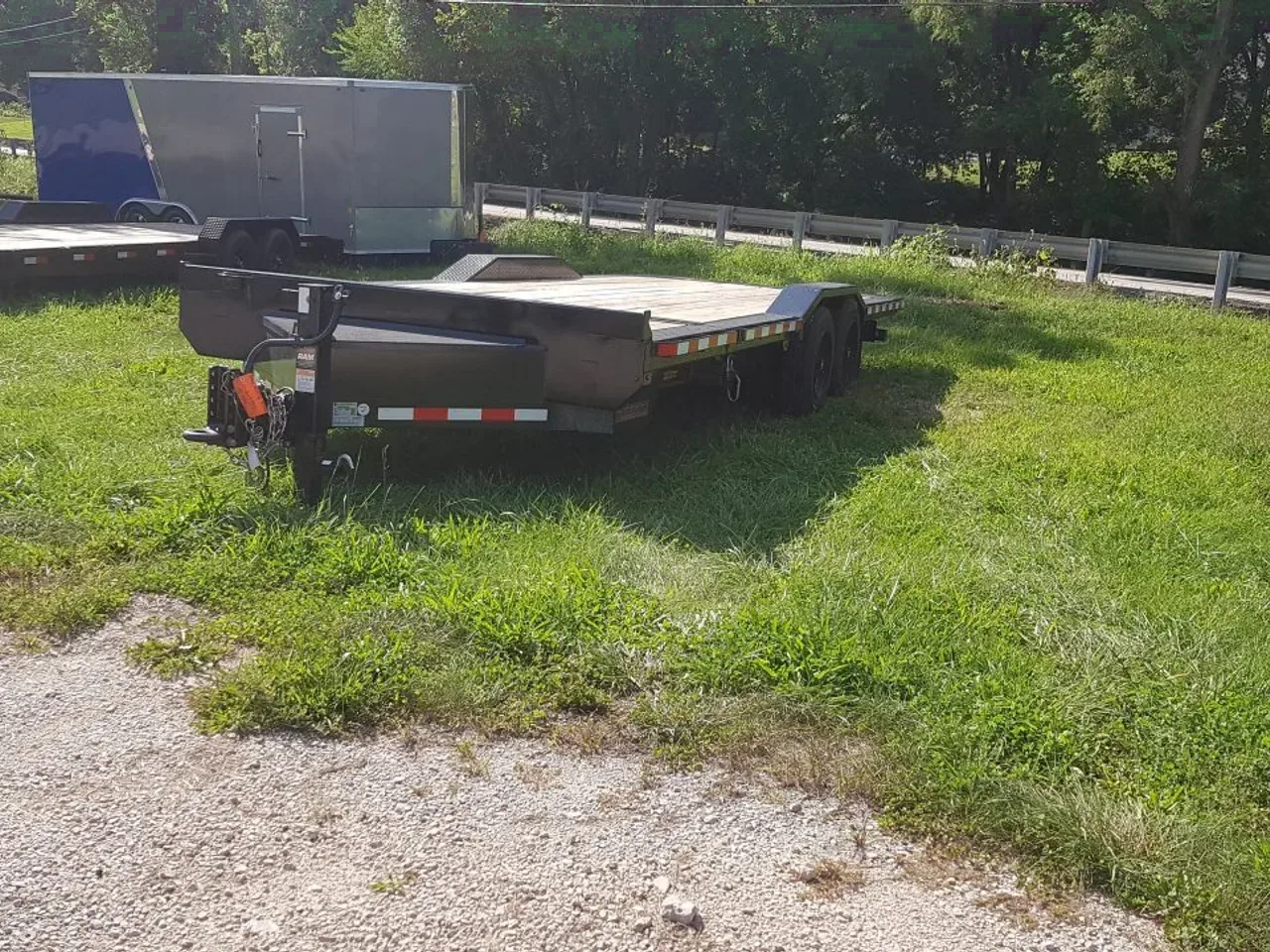

Used 2026 Midsota N-TBWB22-176 Wide Body Tilt Equipment Trailer

This lightly used 2026 Midsota TBWB Series Wide Body Tilt Trailer is an excellent opportunity to step into a premium heavy-duty equipment trailer without paying new-trailer pricing.

The trailer has seen very limited use, functions as it should, and remains in excellent, like-new condition.

Built for equipment, vehicles, skid steers, tractors, construction machinery, and other demanding loads, the Midsota TBWB combines a full 102" wide-body deck, drive-over fenders, and a 22' working deck with the convenience of an 18' tilt section.

Trailer Configuration

• Manufacturer: Midsota
• Model: N-TBWB22-176
• Series: TBWB Wide Body Tilt
• Year: 2026
• Condition: Used - Lightly Used / Like New
• Trailer Type: Equipment / Tilt Trailer
• Pull Type: Bumper Pull
• Construction: Steel
• Deck Length: 22'
• Deck Width: 102"
• Tilt Deck: 18'
• Stationary Deck: 4'
• Overall Width: 102"
• Width Between Drive-Over Fenders: 82"
• Deck Height: Approximately 28"

Extra Features

• Gravity Lock-Out Valve
• A-Frame Toolbox
• 12K Drop-Leg Jack
• Knife-Edge Approach Angle

Why the TBWB Wide Body Matters

Unlike a conventional equipment trailer where the fenders can limit usable loading width, the TBWB uses drive-over fenders to provide access to the trailer's full 102" deck width.

That makes this trailer particularly useful for:

• Skid steers
• Compact tractors
• Construction equipment
• Wide-track equipment
• Cars and trucks
• Utility vehicles
• Landscaping equipment
• Farm equipment
• Machines that are difficult to load between conventional fenders

The result is a trailer that provides the loading convenience of a tilt bed without giving up the usable width of a full-width equipment deck.

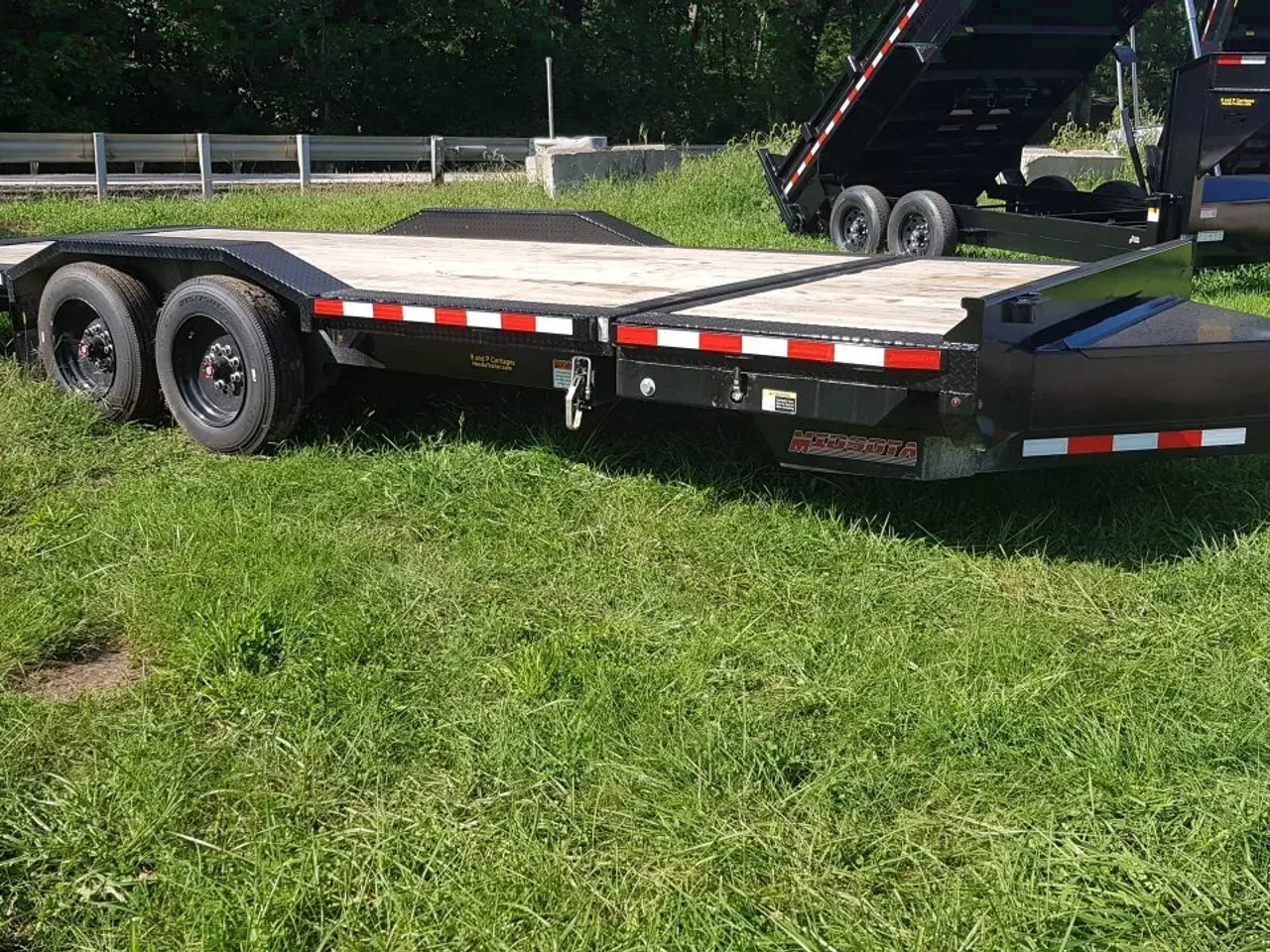

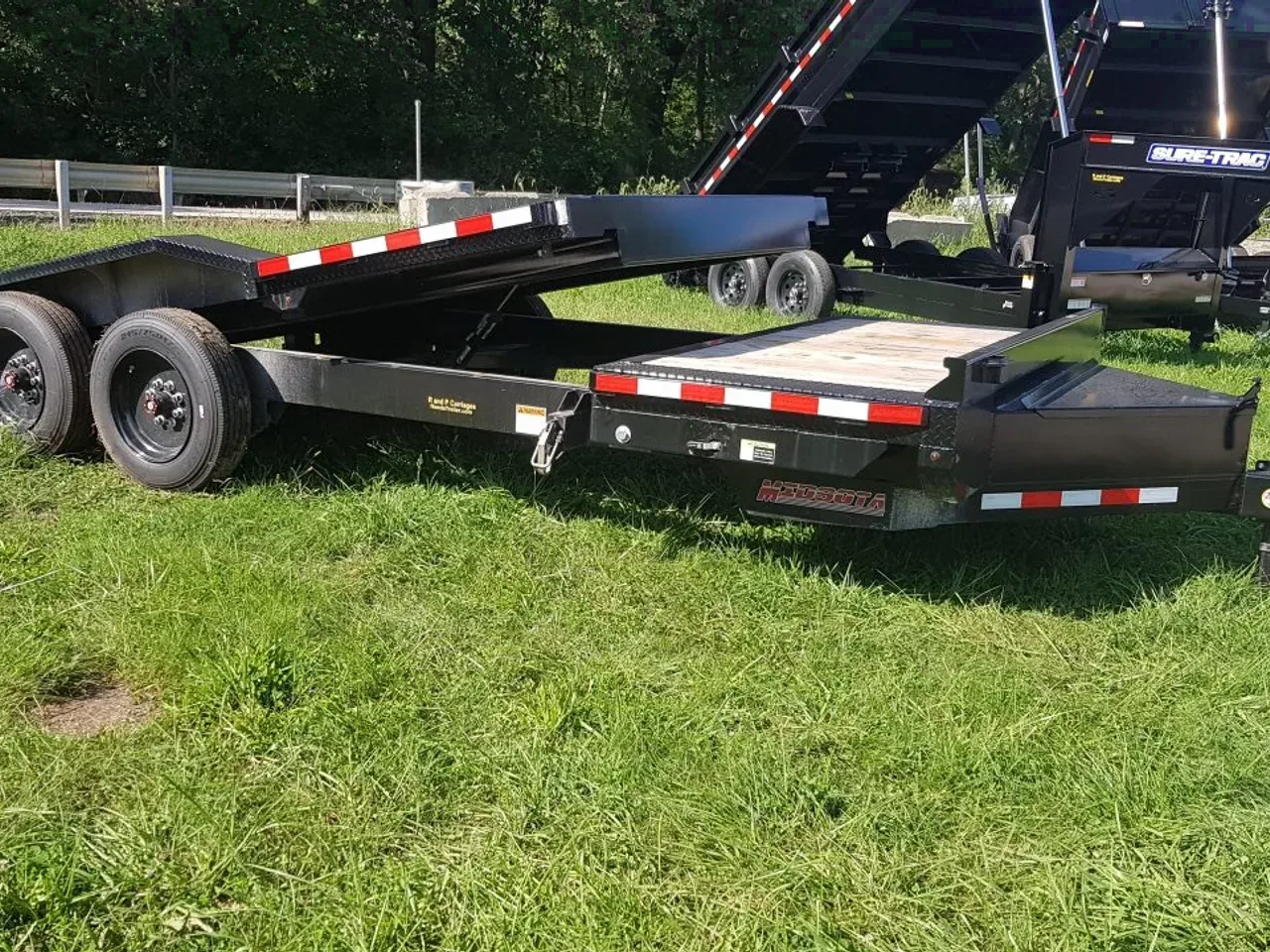

18' Tilt Deck

The primary 18' deck section tilts, eliminating the need to handle traditional equipment ramps for most loading situations.

Simply tilt the deck, load the equipment, return the deck to transport position, secure the load, and go.

The additional 4' stationary front deck provides useful fixed deck space while maintaining a total 22' deck length.

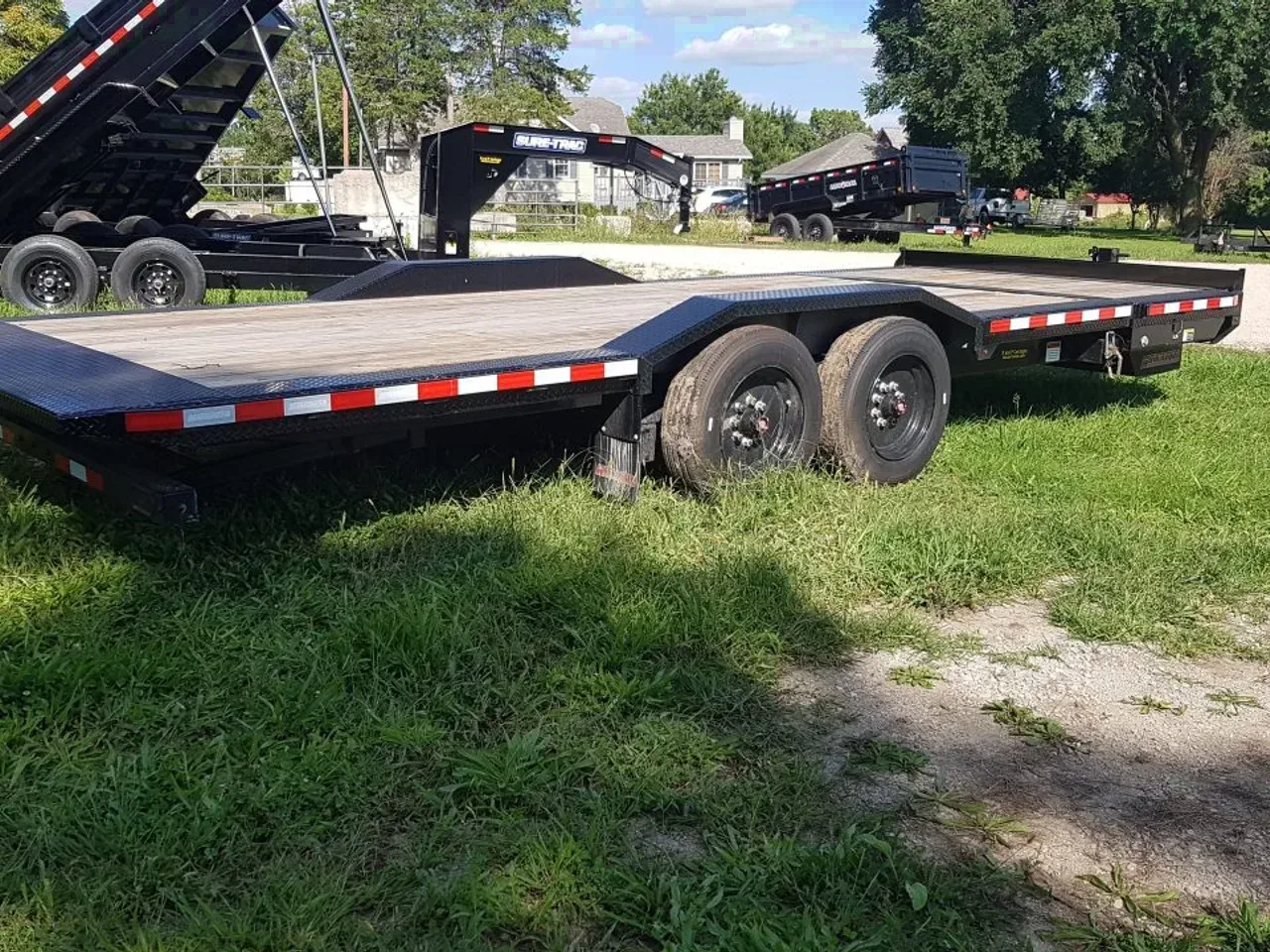

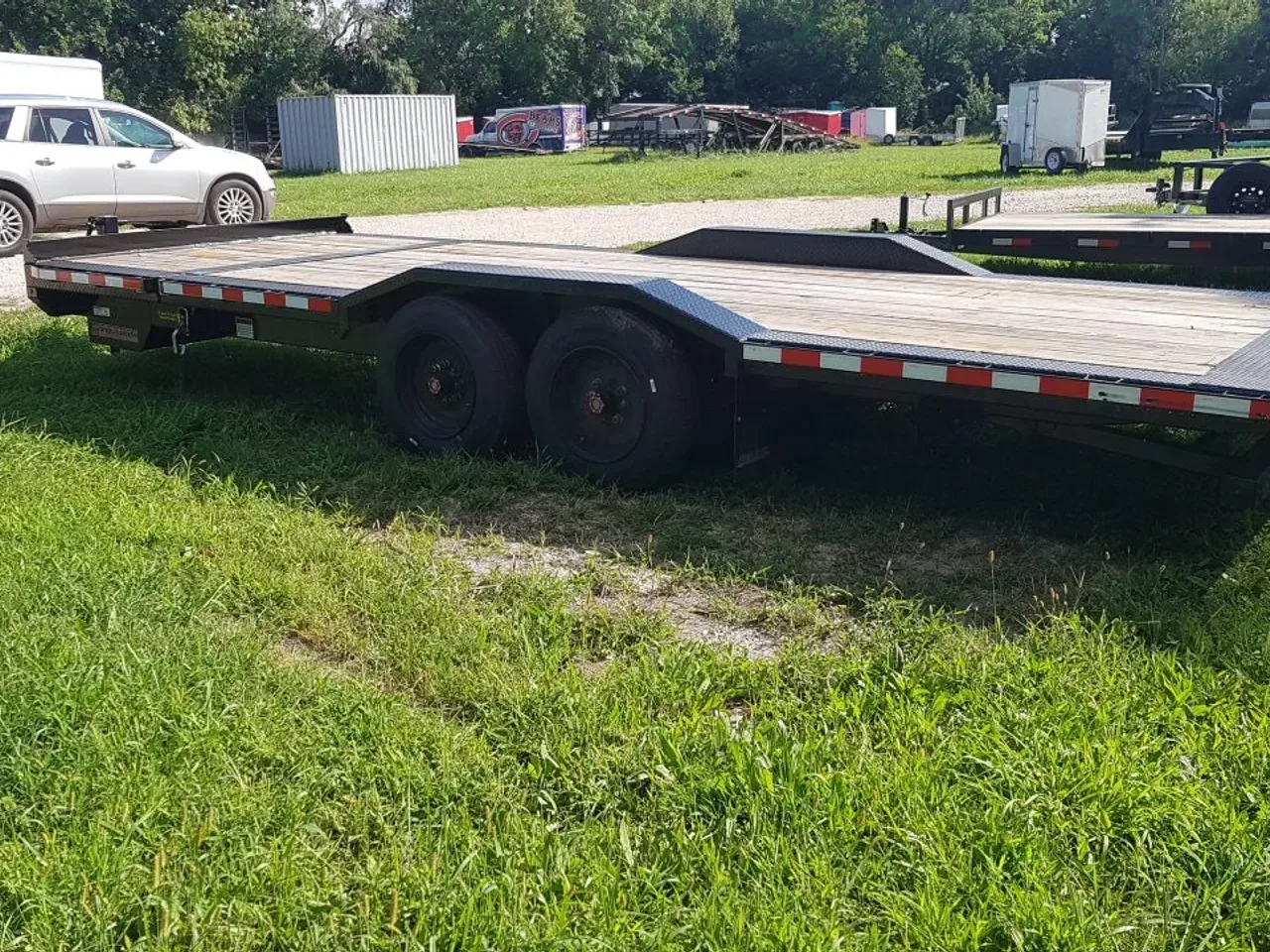

Drive-Over Fenders

The TBWB's drive-over fenders allow wider equipment to use more of the trailer's full deck width instead of forcing everything to fit between conventional wheel wells.

• Overall Deck Width: 102"
• Width Between Drive-Over Fenders: Approximately 82"

This design makes the trailer especially useful when hauling equipment with wider tires, tracks, or axle configurations.

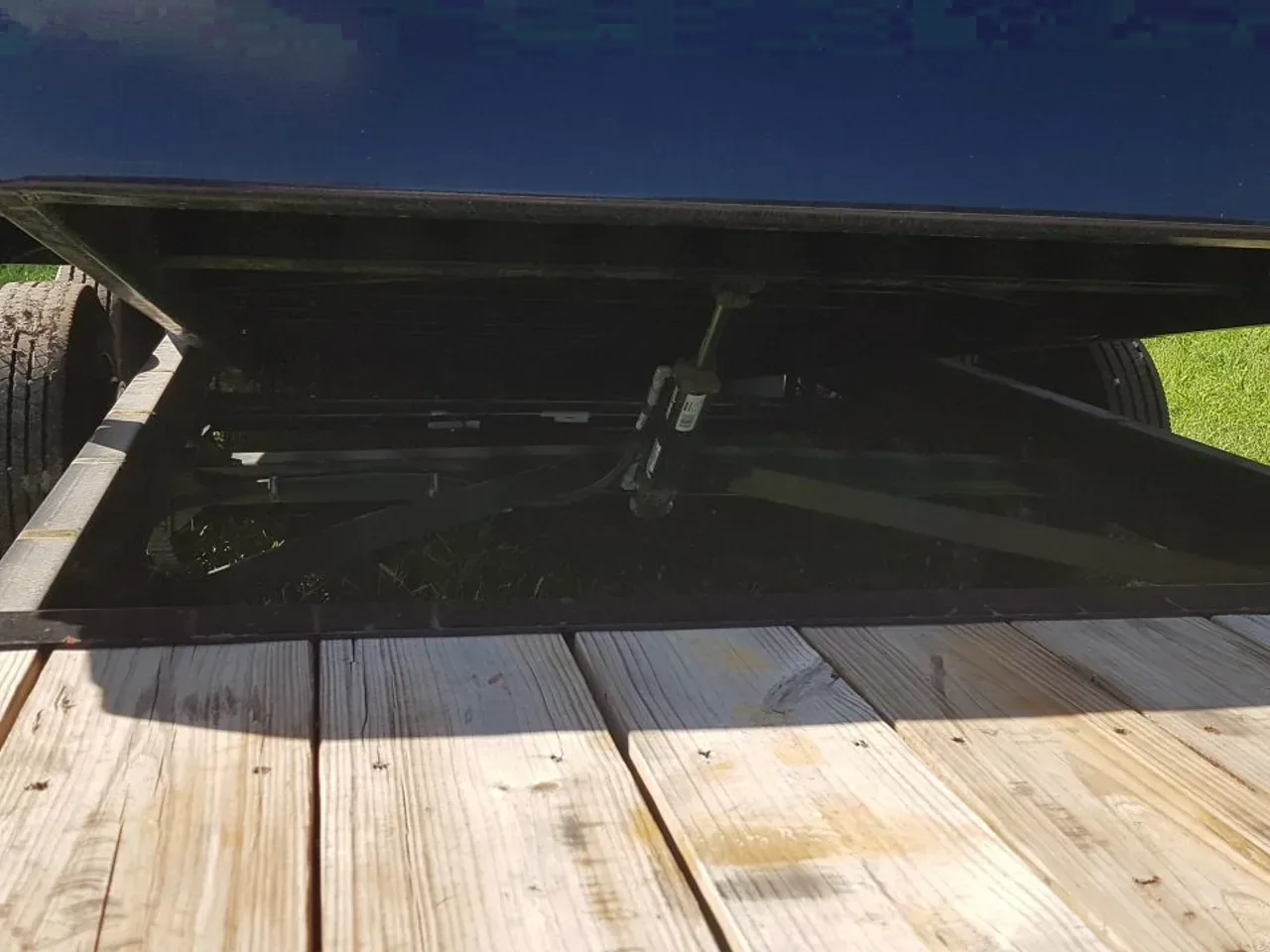

Gravity Lock-Out Valve

The tilt system includes a gravity lock-out valve, giving the operator additional control over deck operation during loading and unloading.

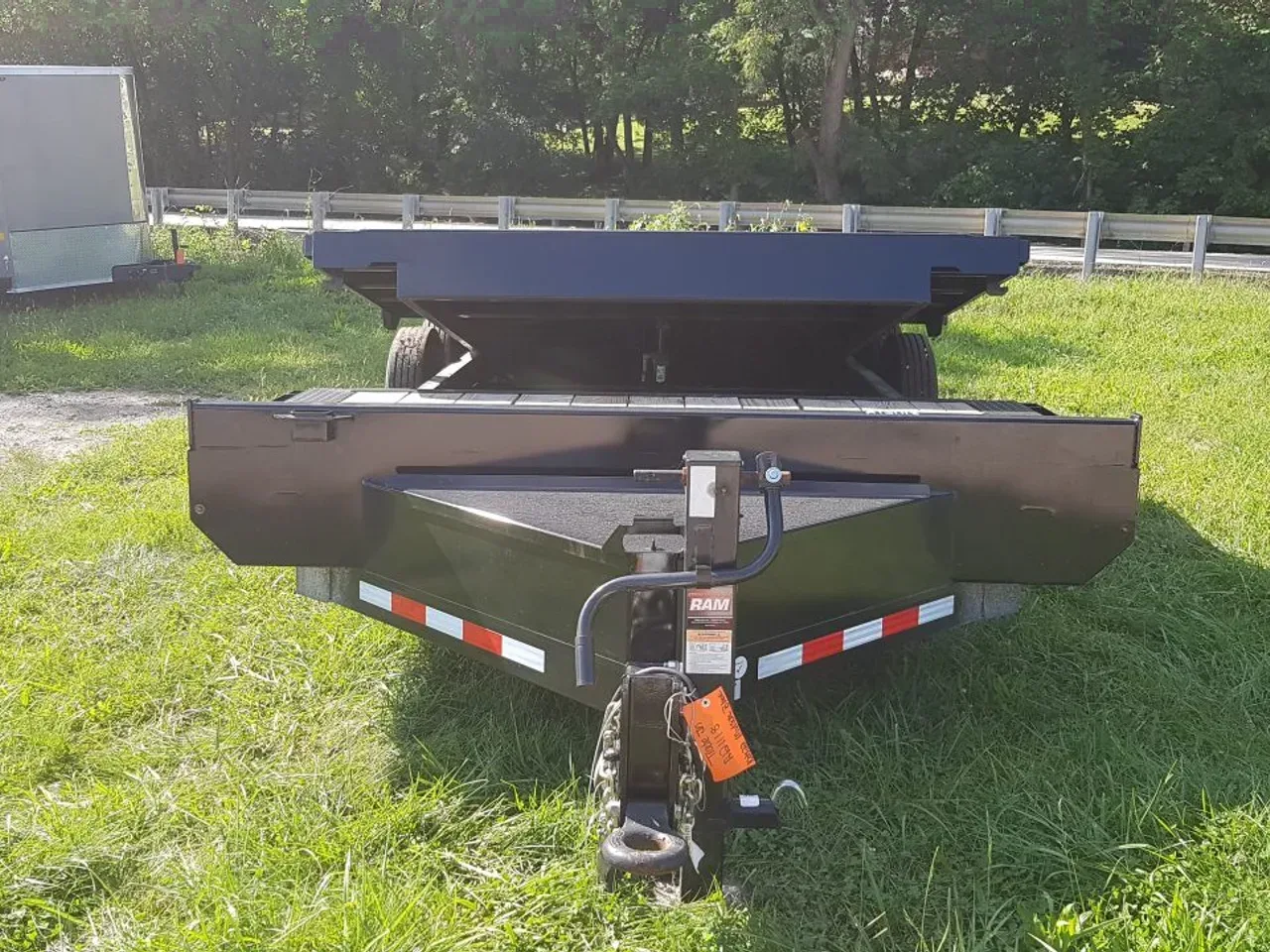

A-Frame Toolbox

The integrated A-frame toolbox provides convenient onboard storage for:

• Tie-down straps
• Chains
• Binders
• Tools
• Hitch accessories
• Other hauling equipment

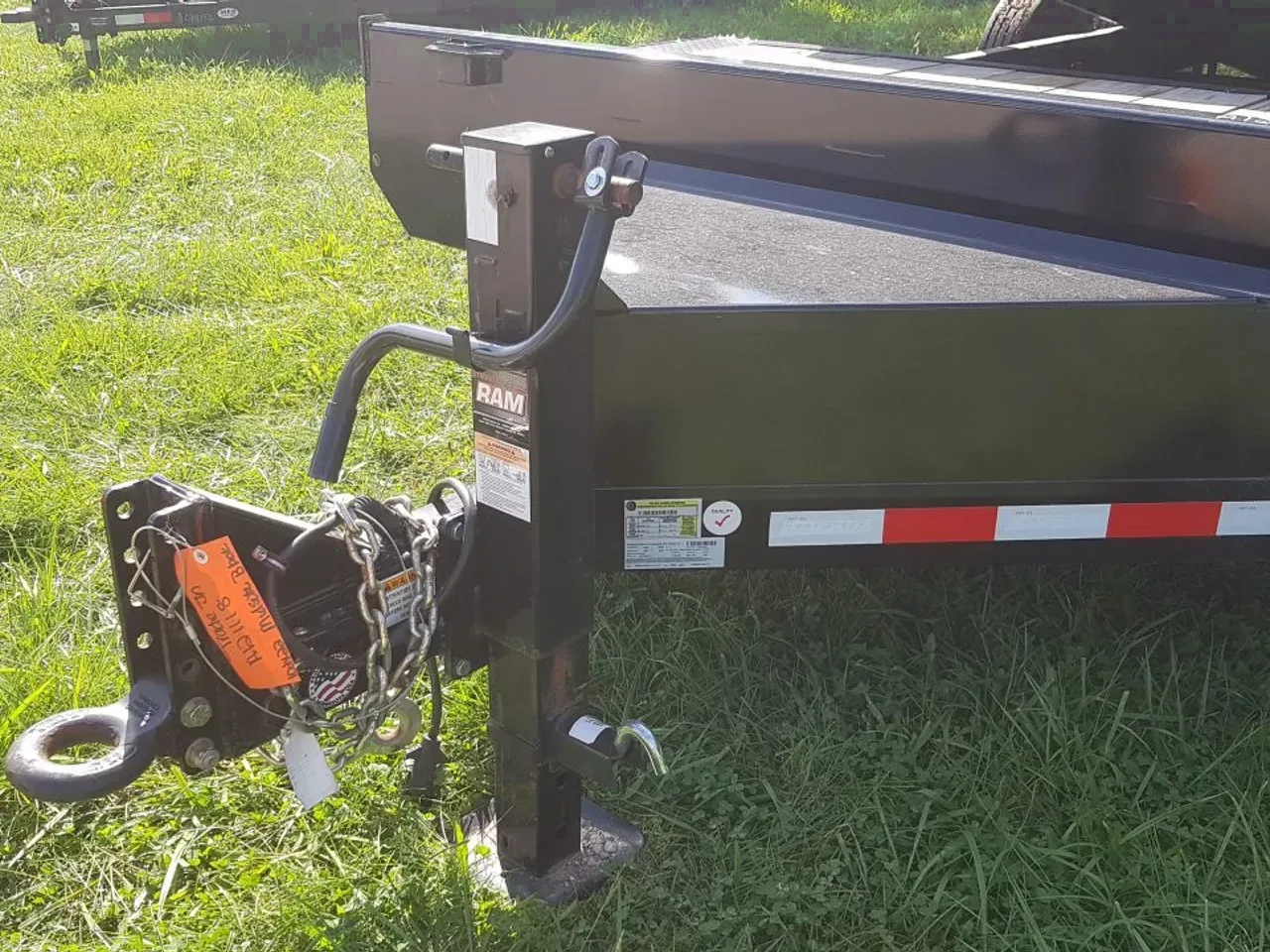

12K Drop-Leg Jack

The heavy-duty 12,000 lb drop-leg jack makes coupling, uncoupling, and trailer setup easier, particularly when working with heavier equipment loads.

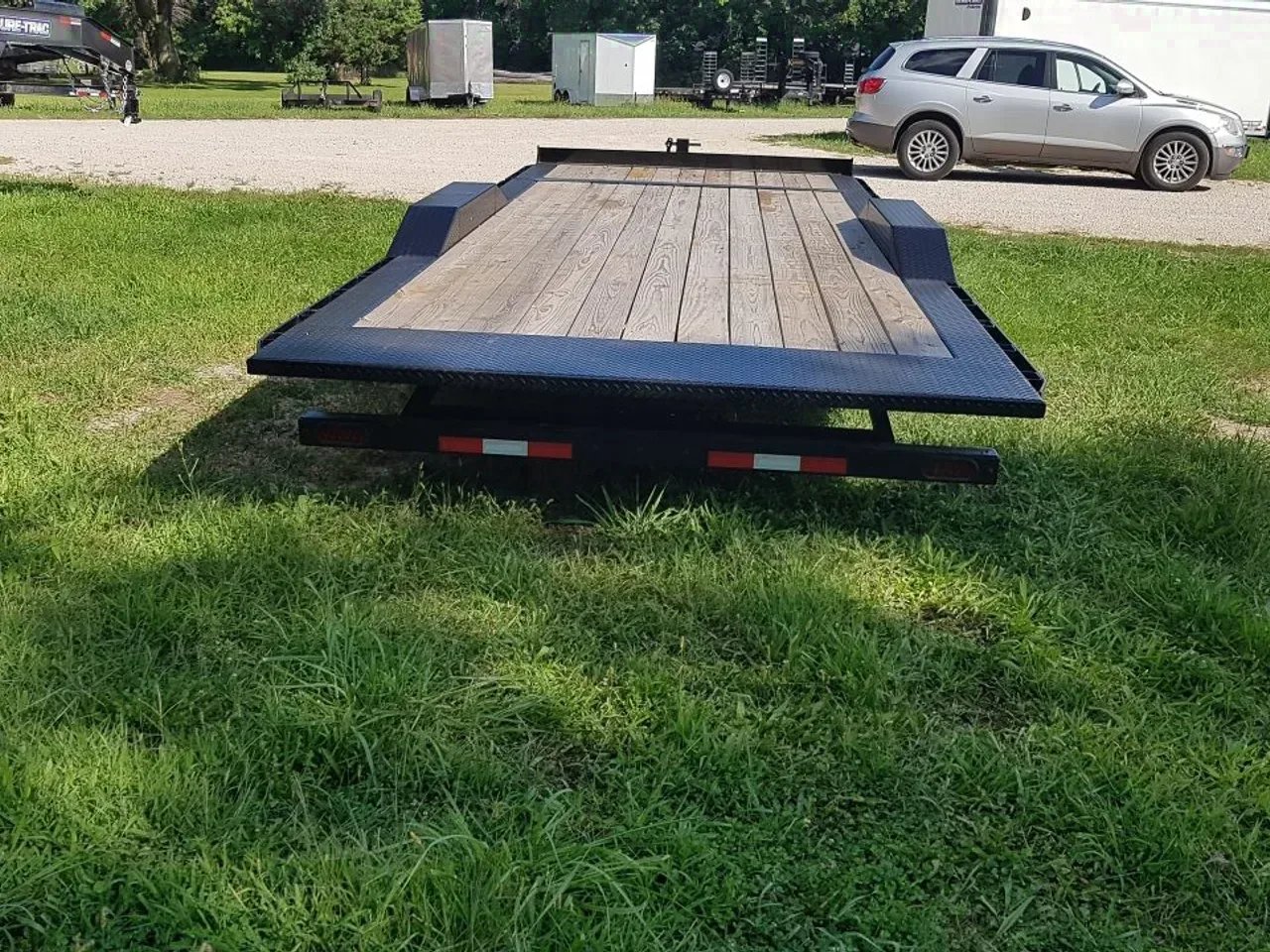

Knife-Edge Approach Angle

The rear of the tilt deck incorporates a knife-edge approach, creating a smoother transition from the ground onto the trailer.

This is particularly useful when loading equipment with:

• Low ground clearance
• Small tires
• Low-mounted attachments
• Long wheelbases
• Limited breakover clearance

Heavy-Duty Structural Construction

The Midsota TBWB is built for demanding equipment hauling rather than light utility use.

Grade 50 Channel Crossmembers

The deck is supported by Grade 50 3" channel crossmembers spaced approximately 16" on center.

This construction provides substantial support beneath the wood deck and helps distribute concentrated equipment loads throughout the trailer structure.

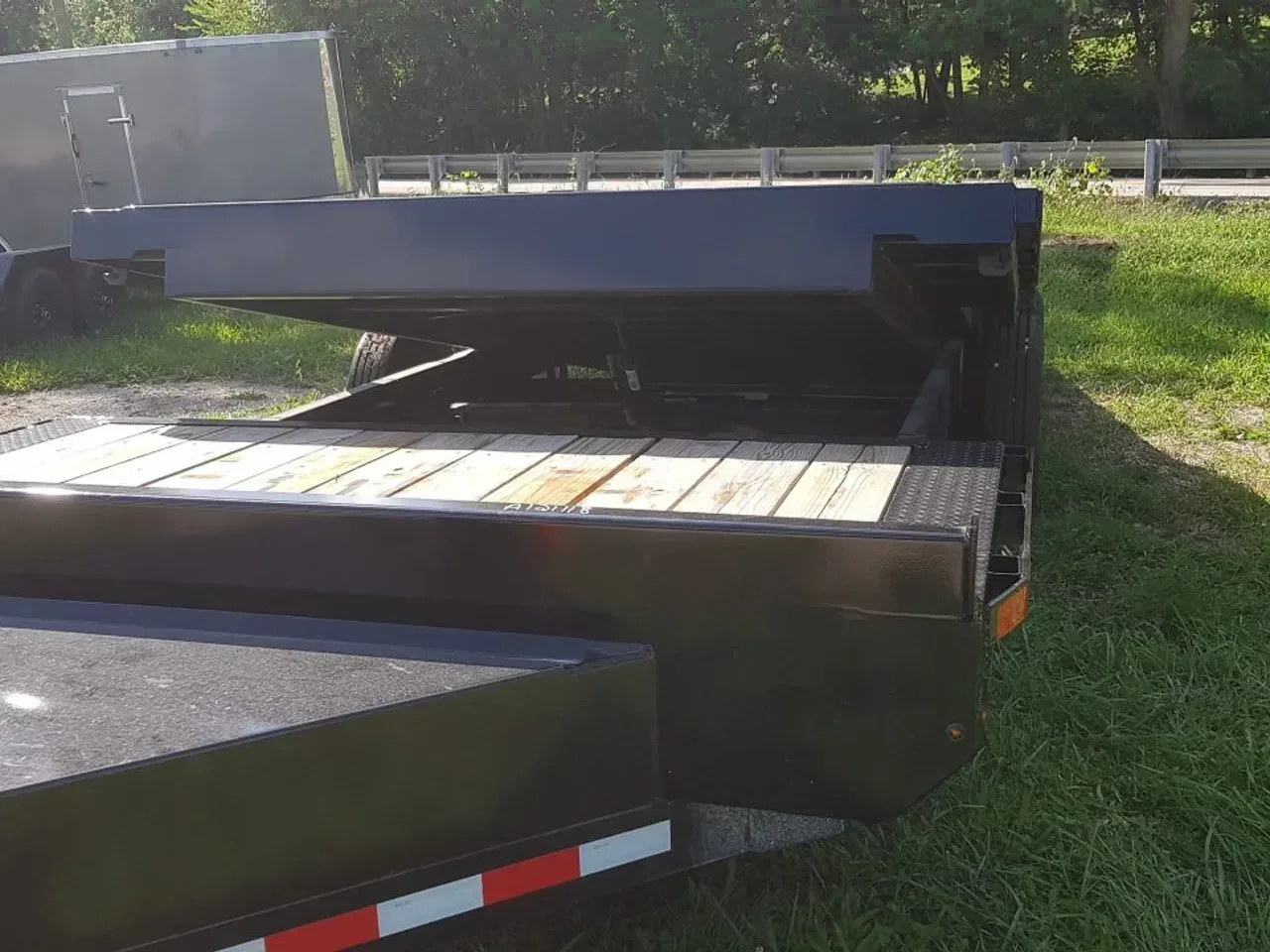

Treated 2x8 Wood Decking

Heavy-duty treated 2x8 lumber provides a durable hauling surface with the traction and serviceability equipment haulers expect from a commercial-grade wood deck.

Industrial-Grade Polymer Finish

Midsota's industrial-grade polymer finish is designed to provide durable protection against:

• Corrosion
• Moisture
• Road debris
• Salt and grime
• Weather exposure
• Everyday jobsite wear

Dimensions

• Overall Length: Approximately 346" / 28' 10"
• Overall Width: 102" / 8' 6"
• Deck Height: Approximately 28"
• Total Deck Length: 264" / 22'
• Tilt Deck Length: 216" / 18'
• Stationary Deck Length: 48" / 4'
• Deck Width: 102" / 8' 6"
• Width Between Drive-Over Fenders: Approximately 82"

Built for Real Equipment

The Midsota TBWB is a strong choice when a standard equipment trailer starts becoming the limiting factor.

The combination of a 22' deck, 18' tilt section, full-width drive-over design, heavy structural construction, and knife-edge approach gives the operator a flexible loading platform for a wide range of equipment.

Because this particular trailer is lightly used and remains in excellent, like-new condition, it offers an opportunity to get into a premium Midsota wide-body tilt trailer without buying brand new.

Available at R&P Carriages

Come see this trailer in person, inspect its condition, and make sure the dimensions and configuration fit your equipment.

R&P Carriages

270 E. Jackson St.

Seneca, IL 61360

Call or text: 815-357-3292

Contact R&P Carriages to confirm current availability.
