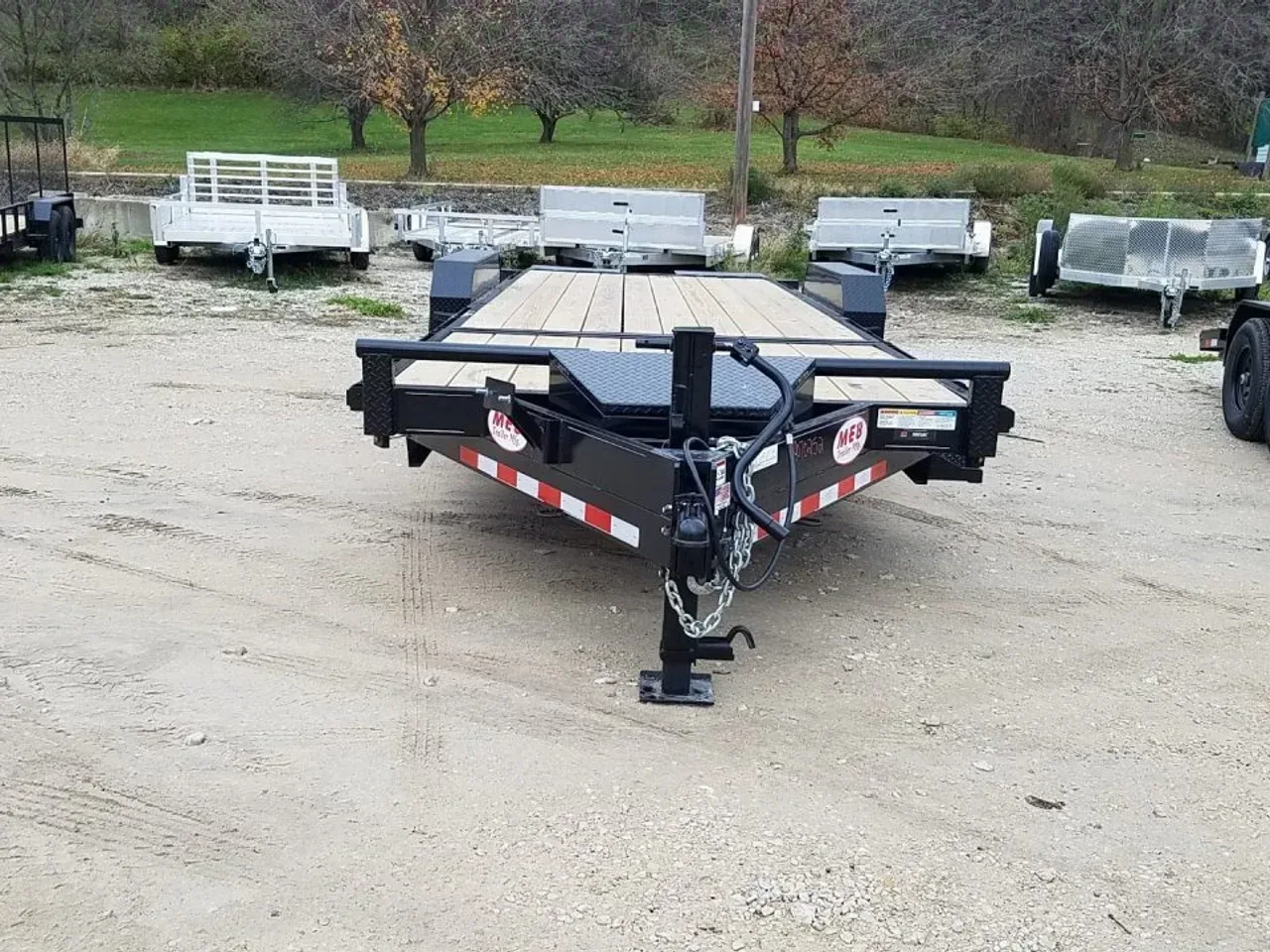

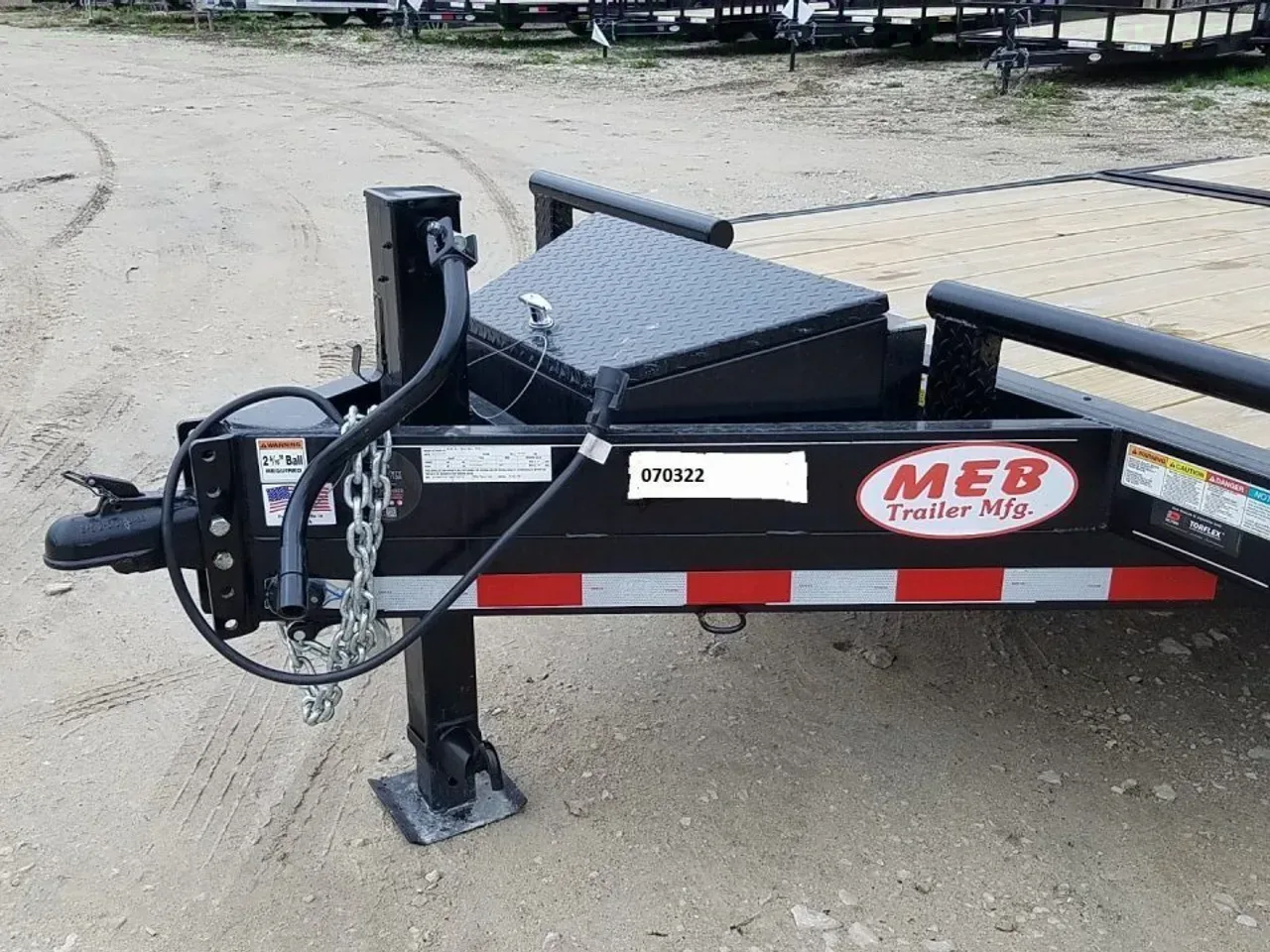

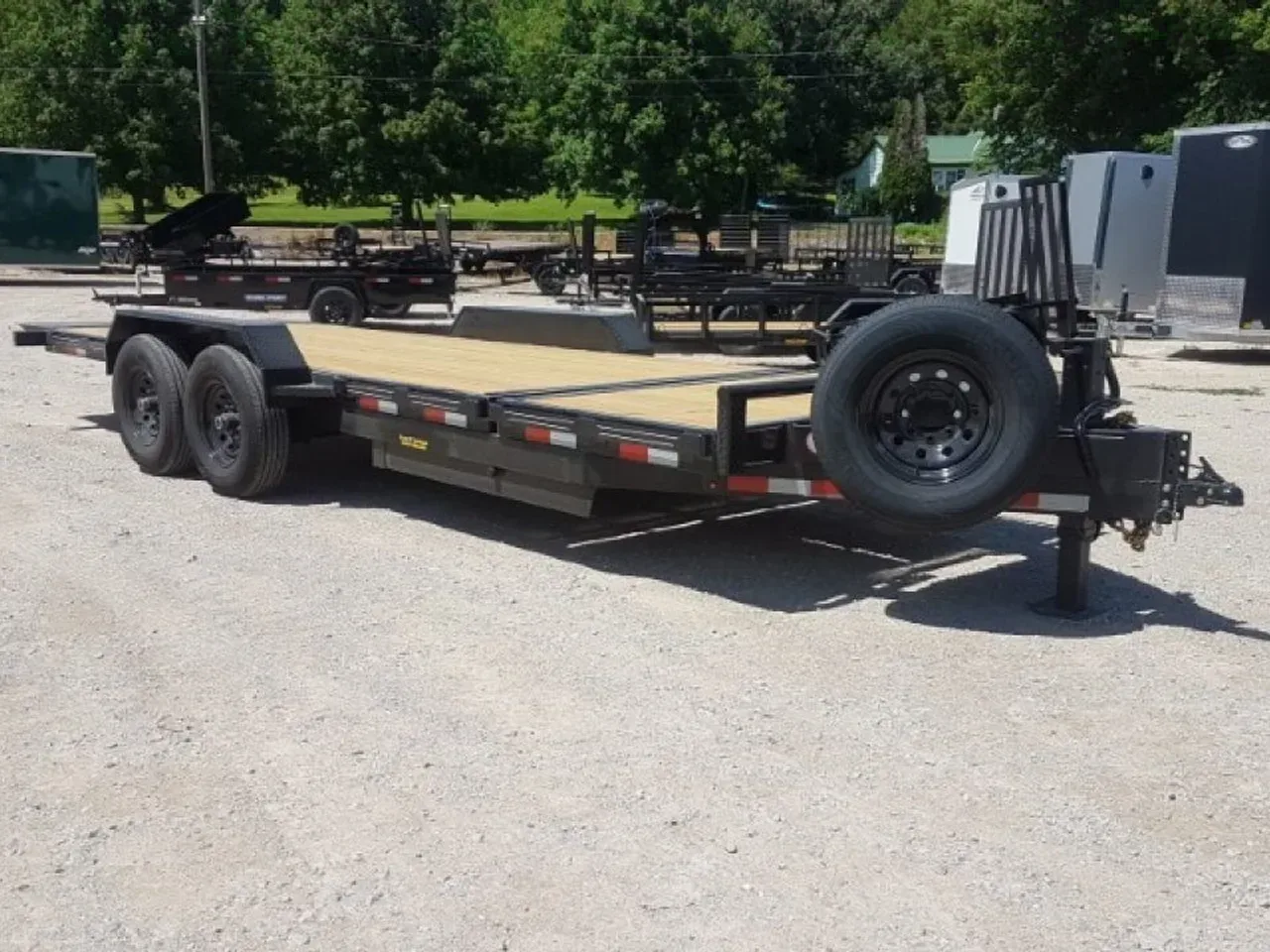

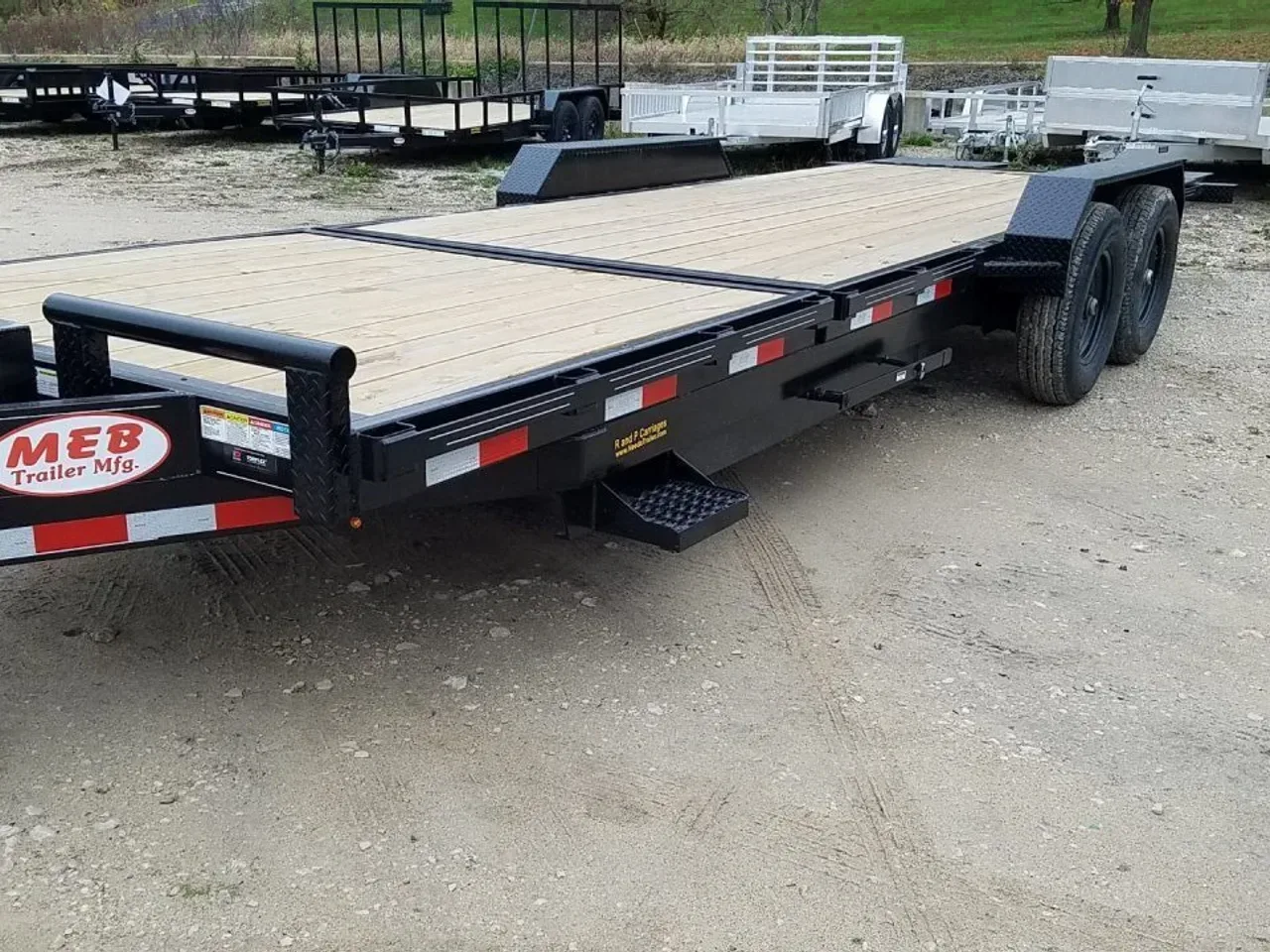

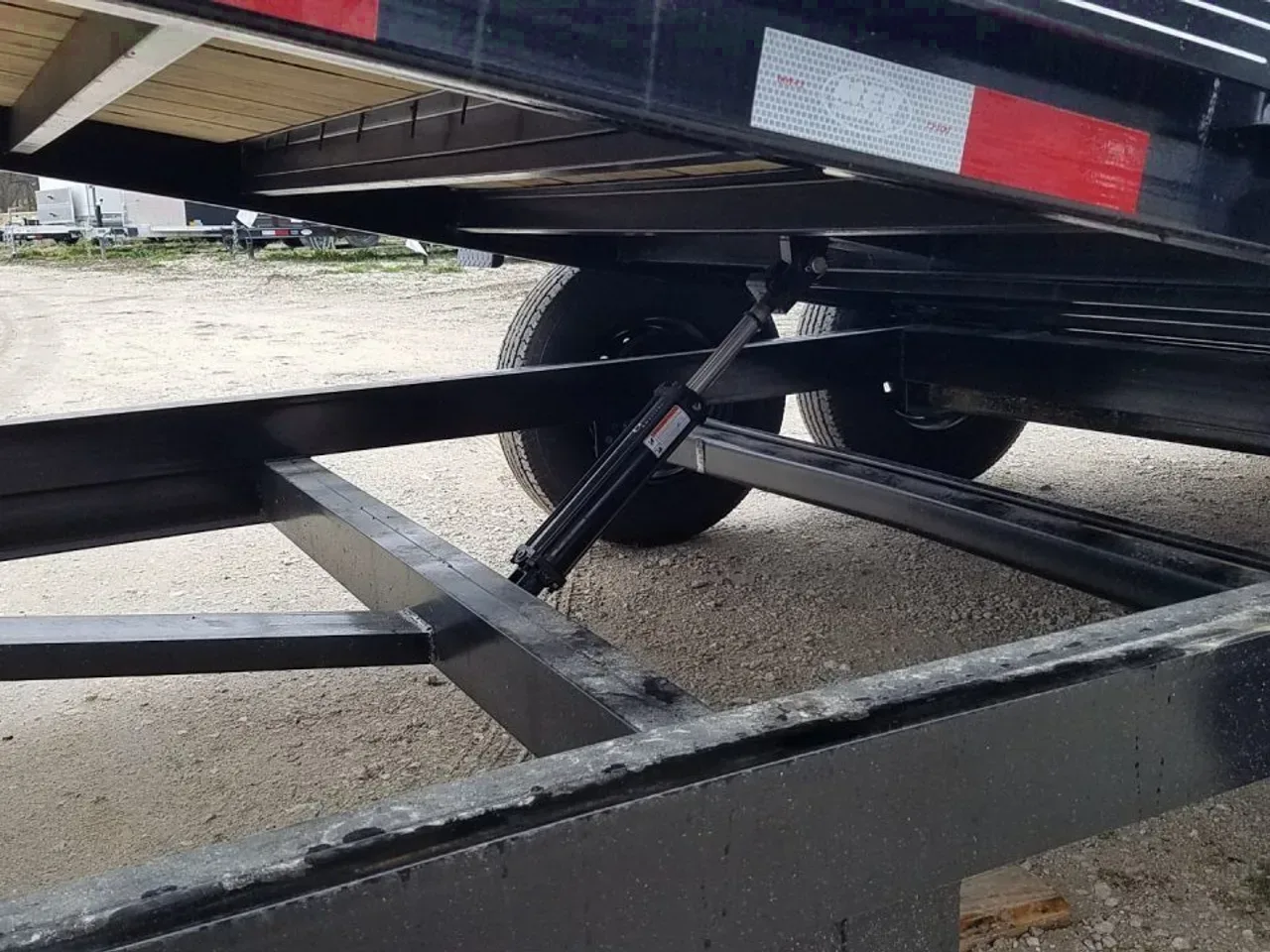

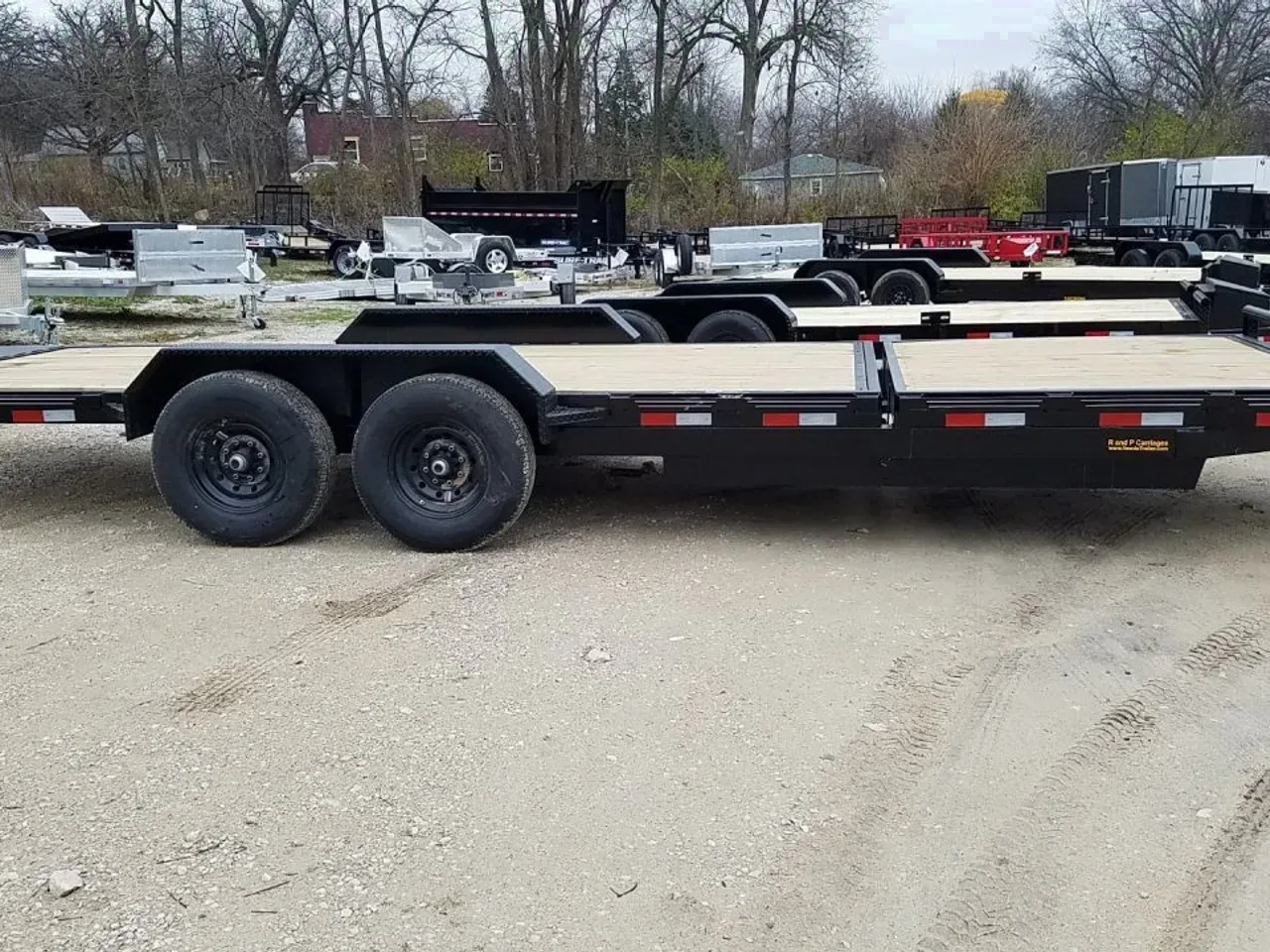

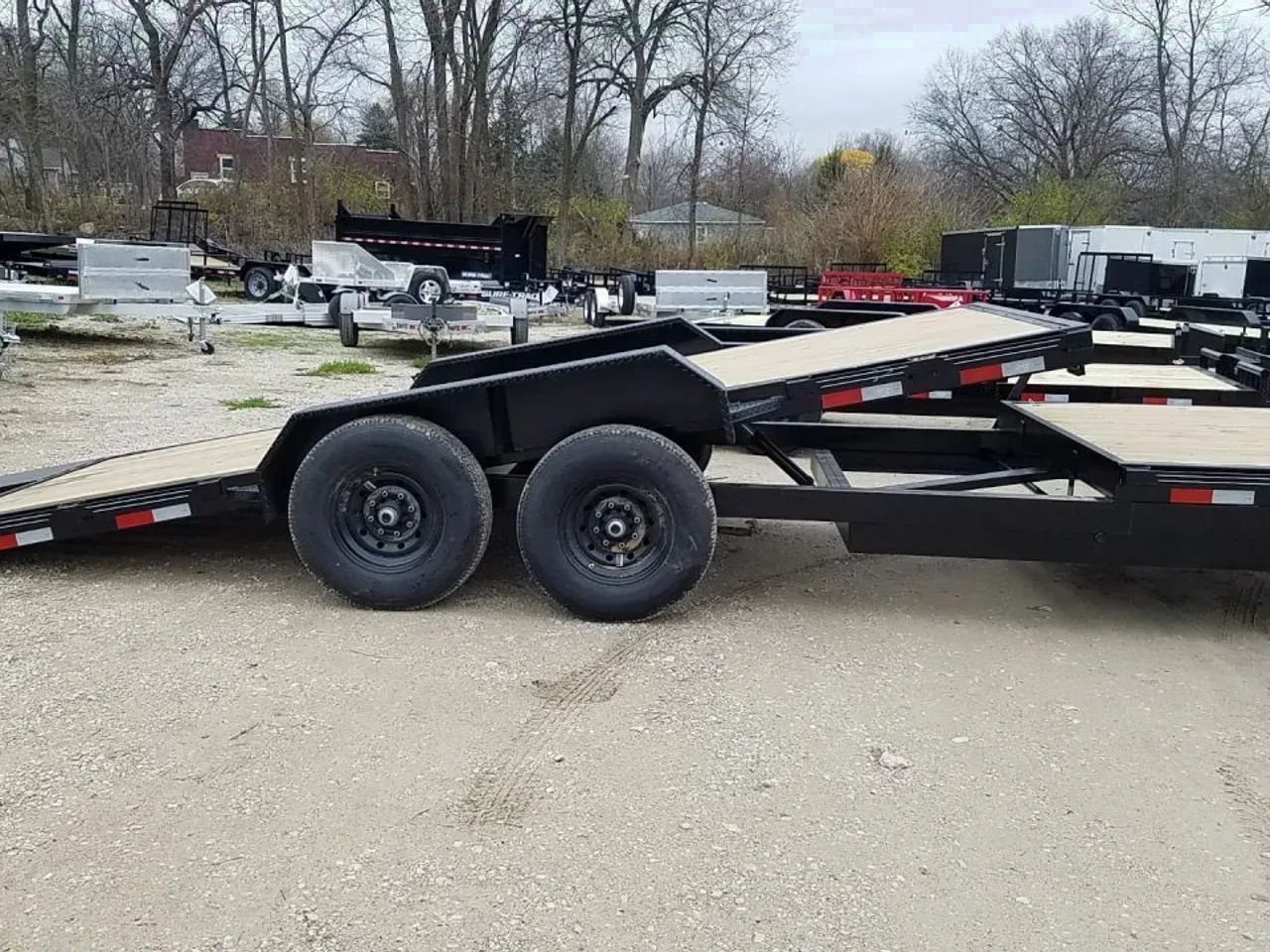

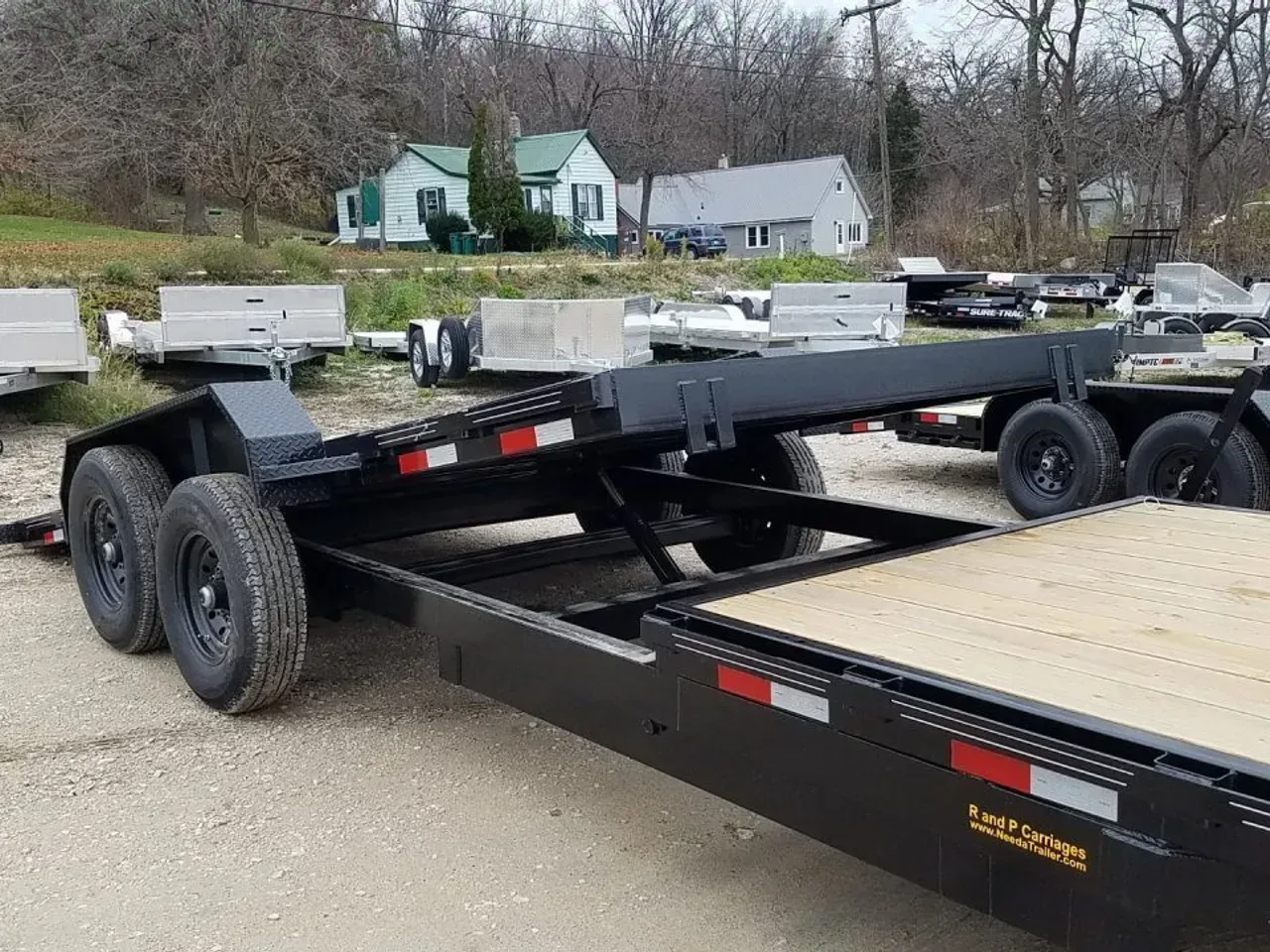

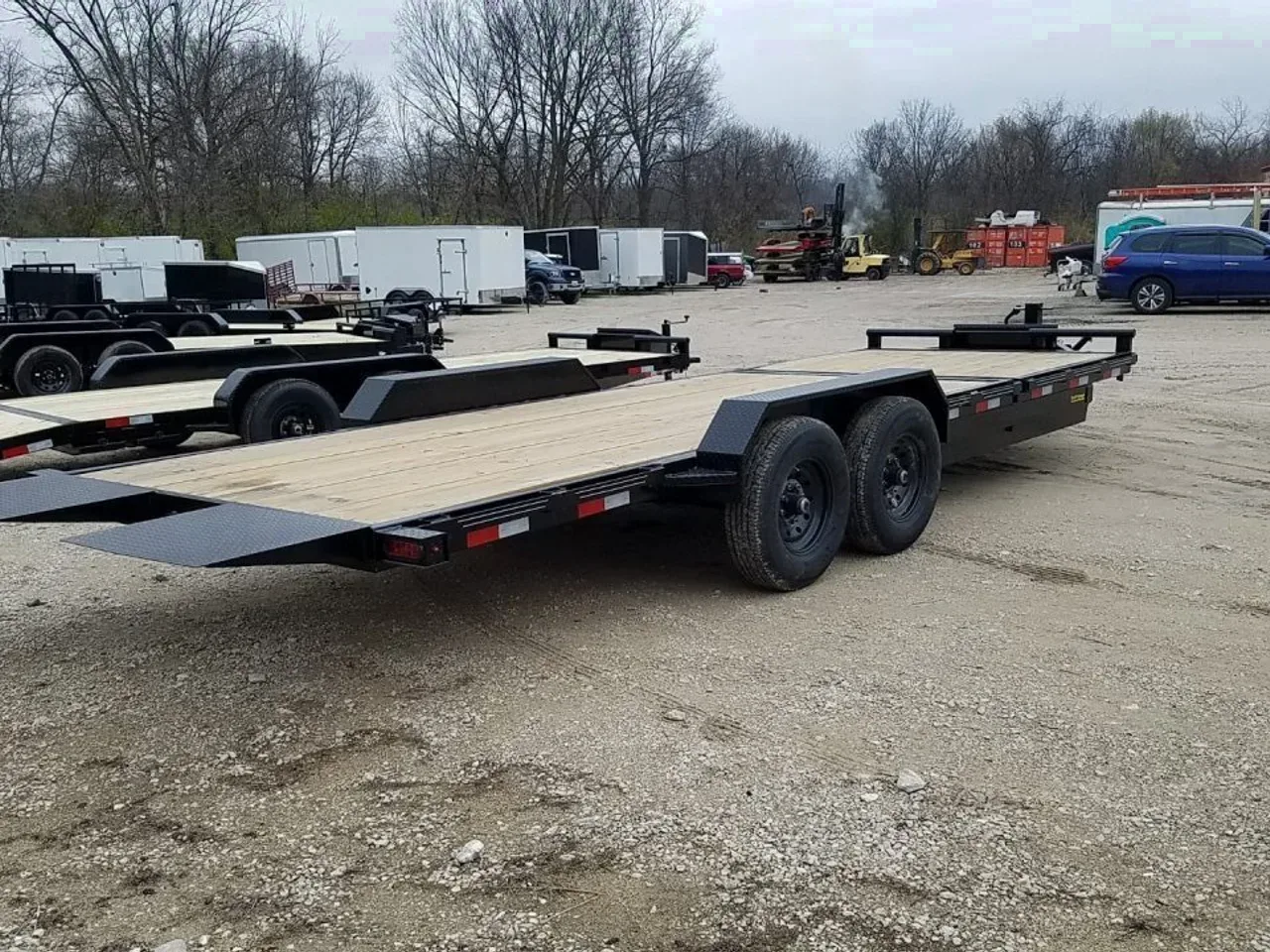

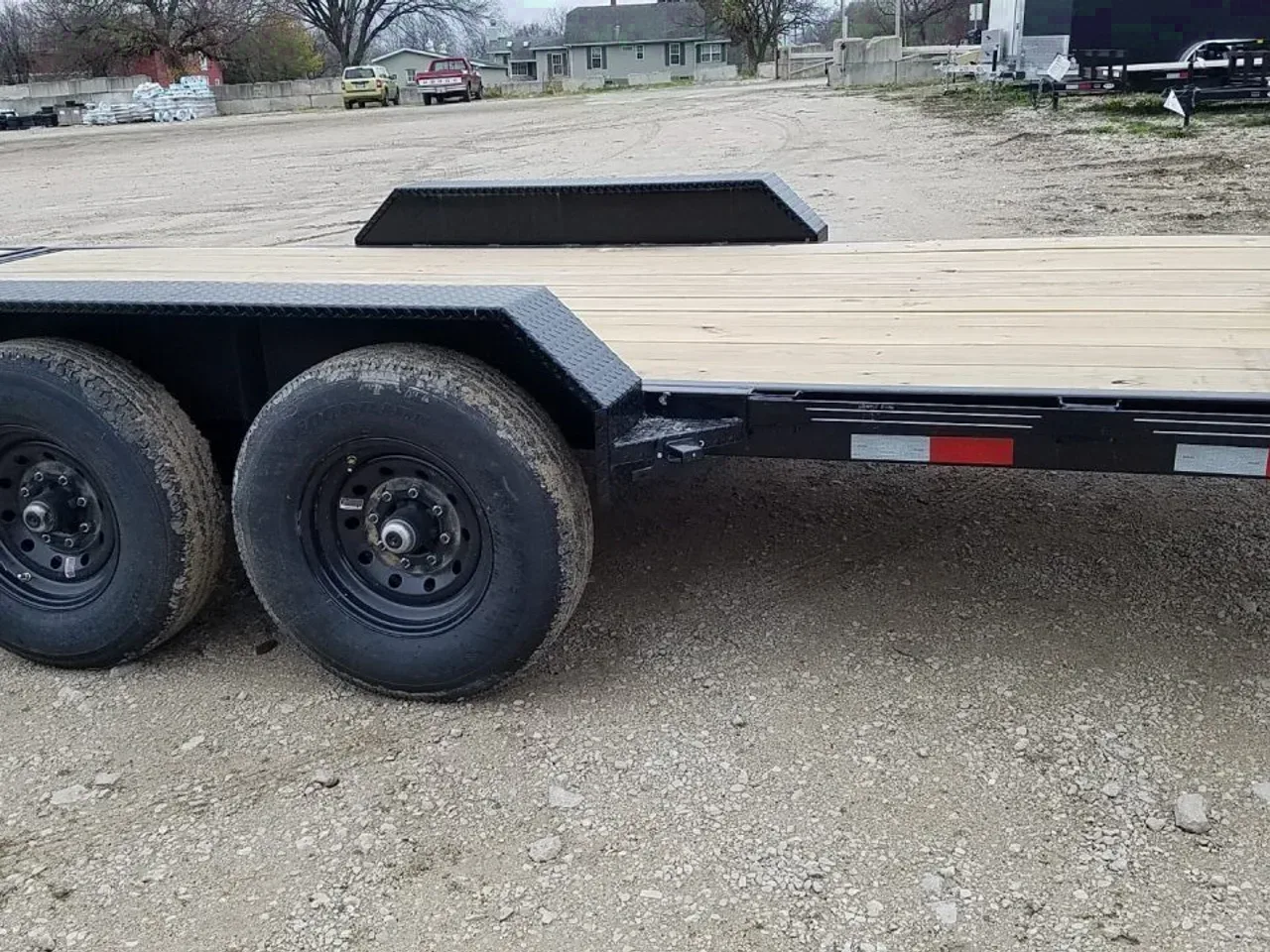

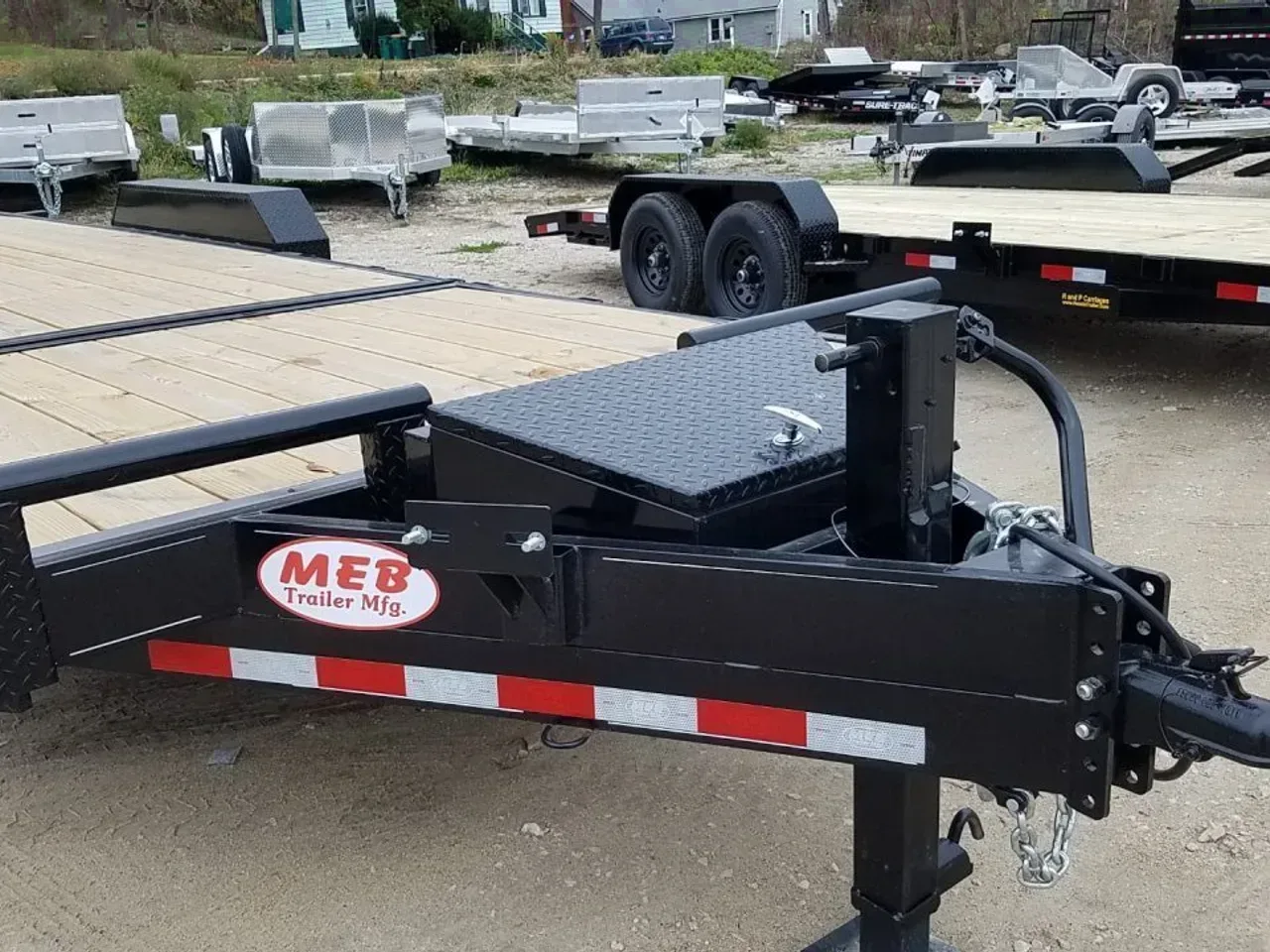

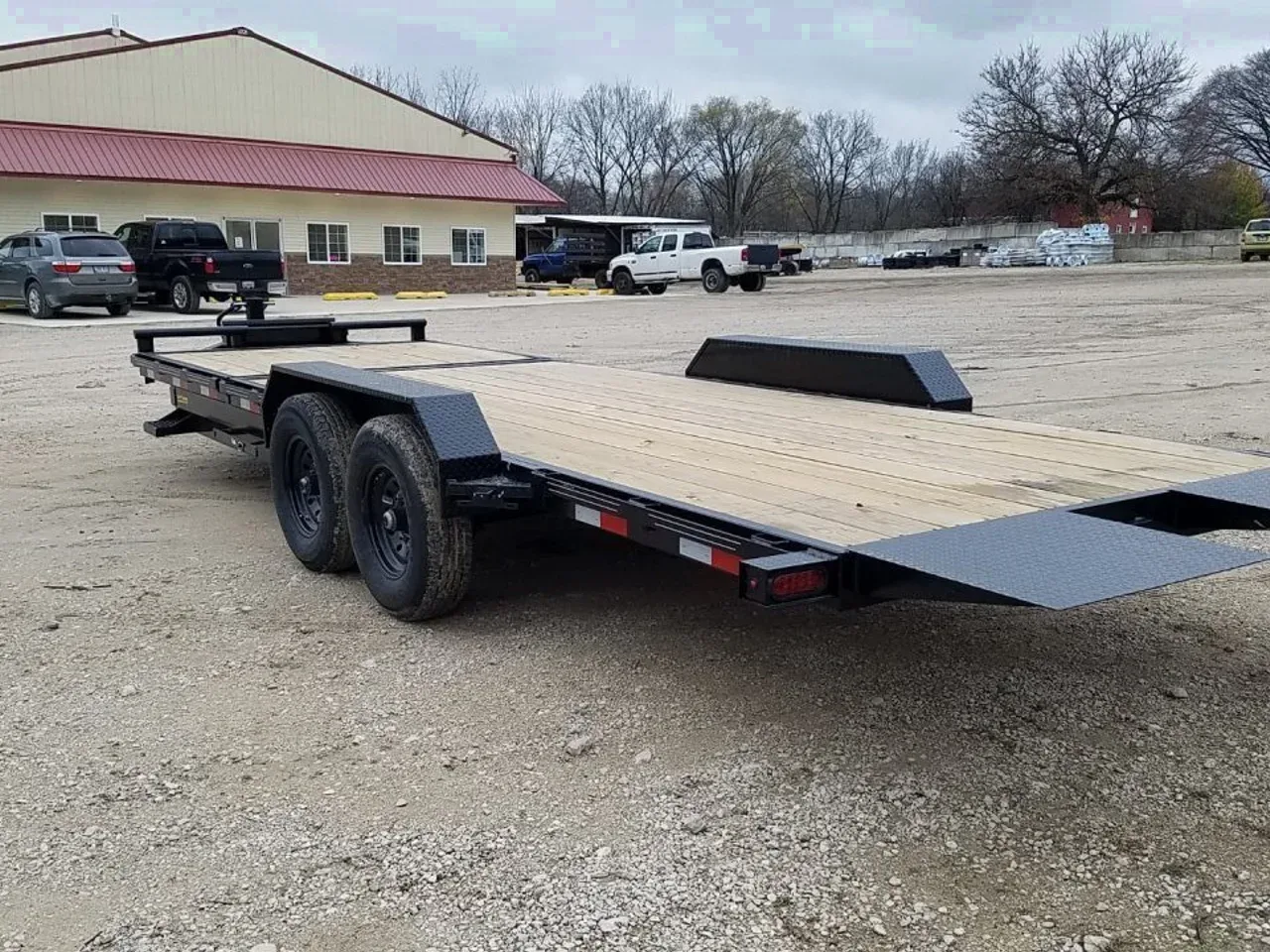

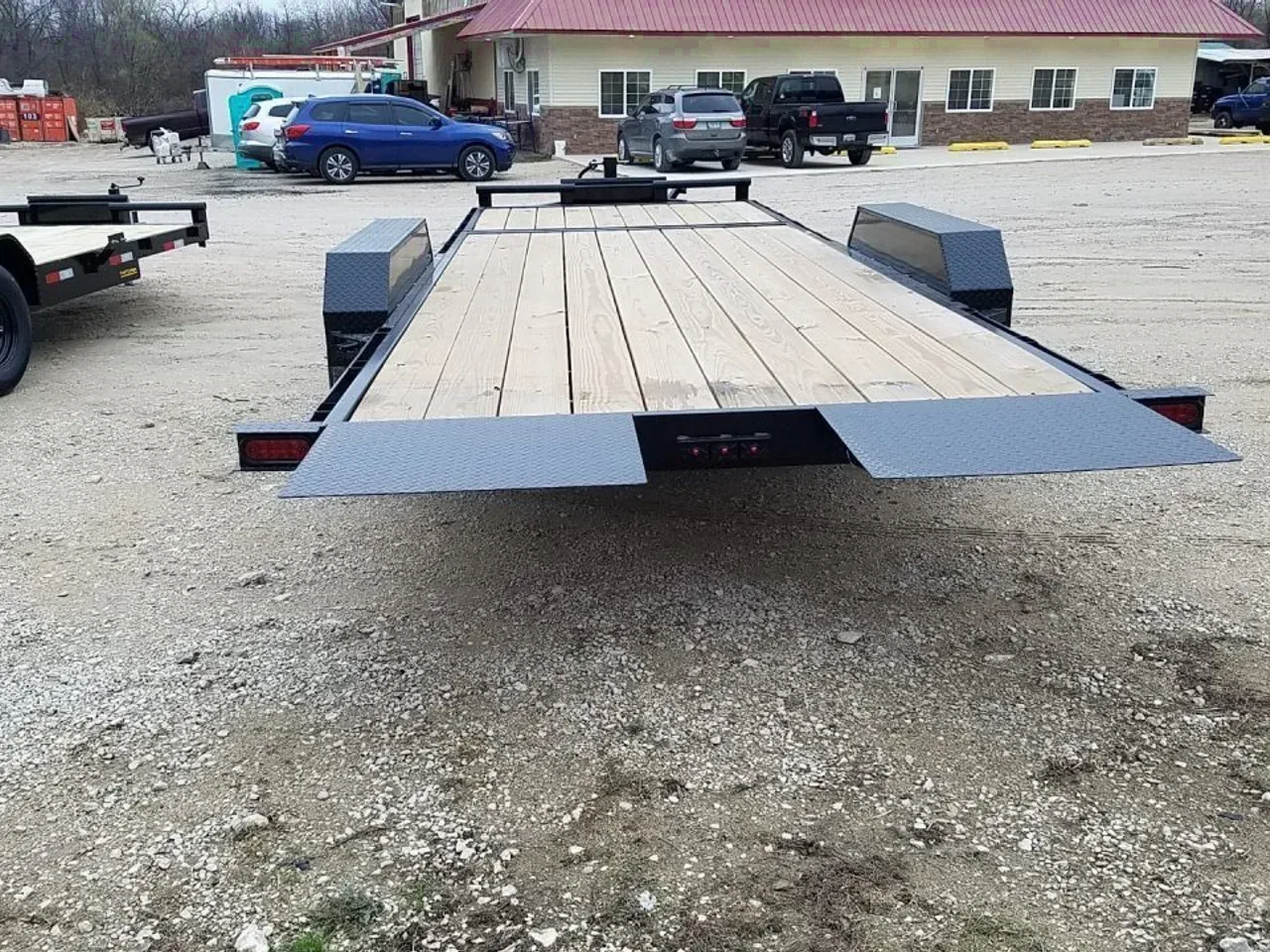

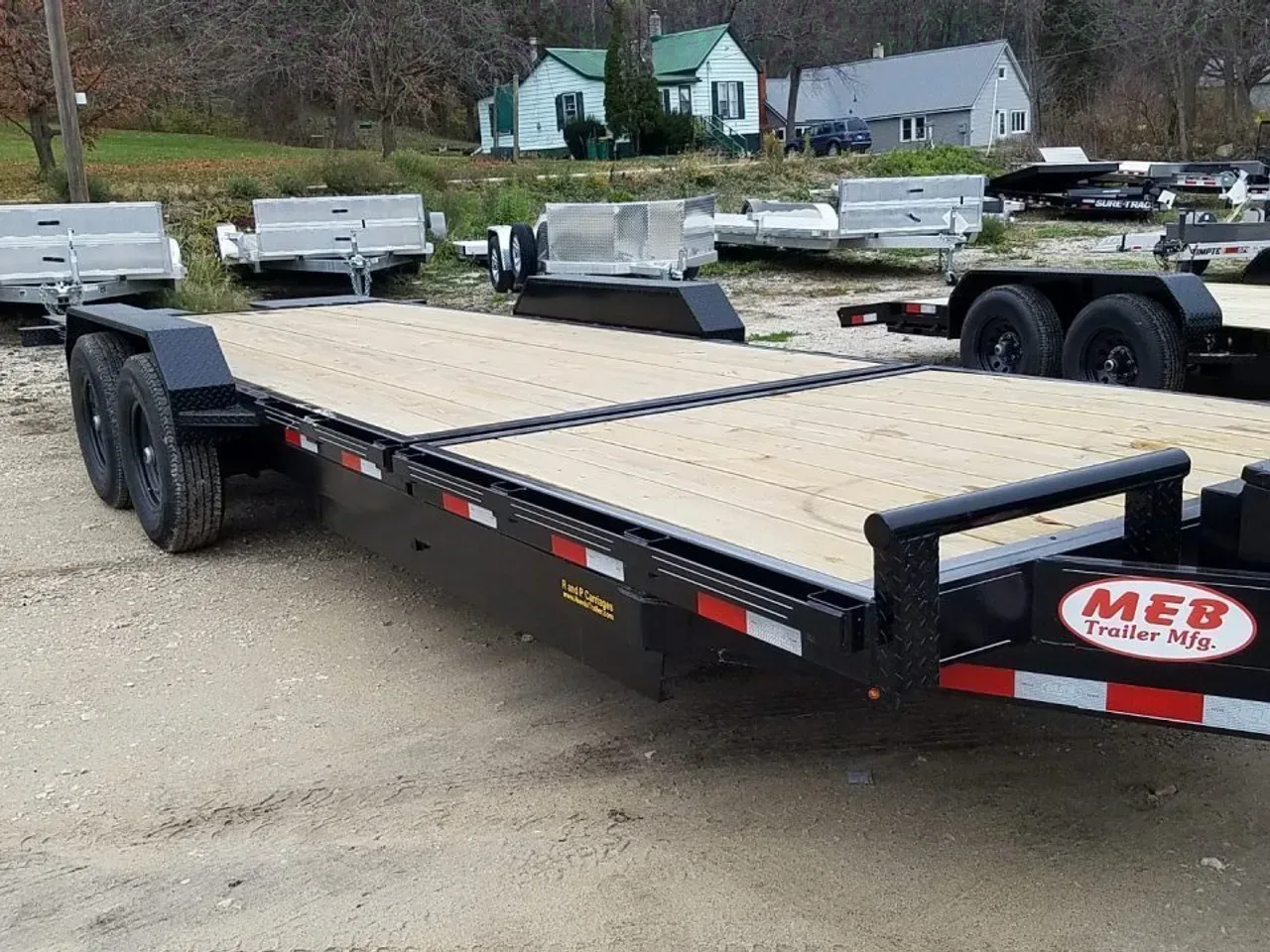

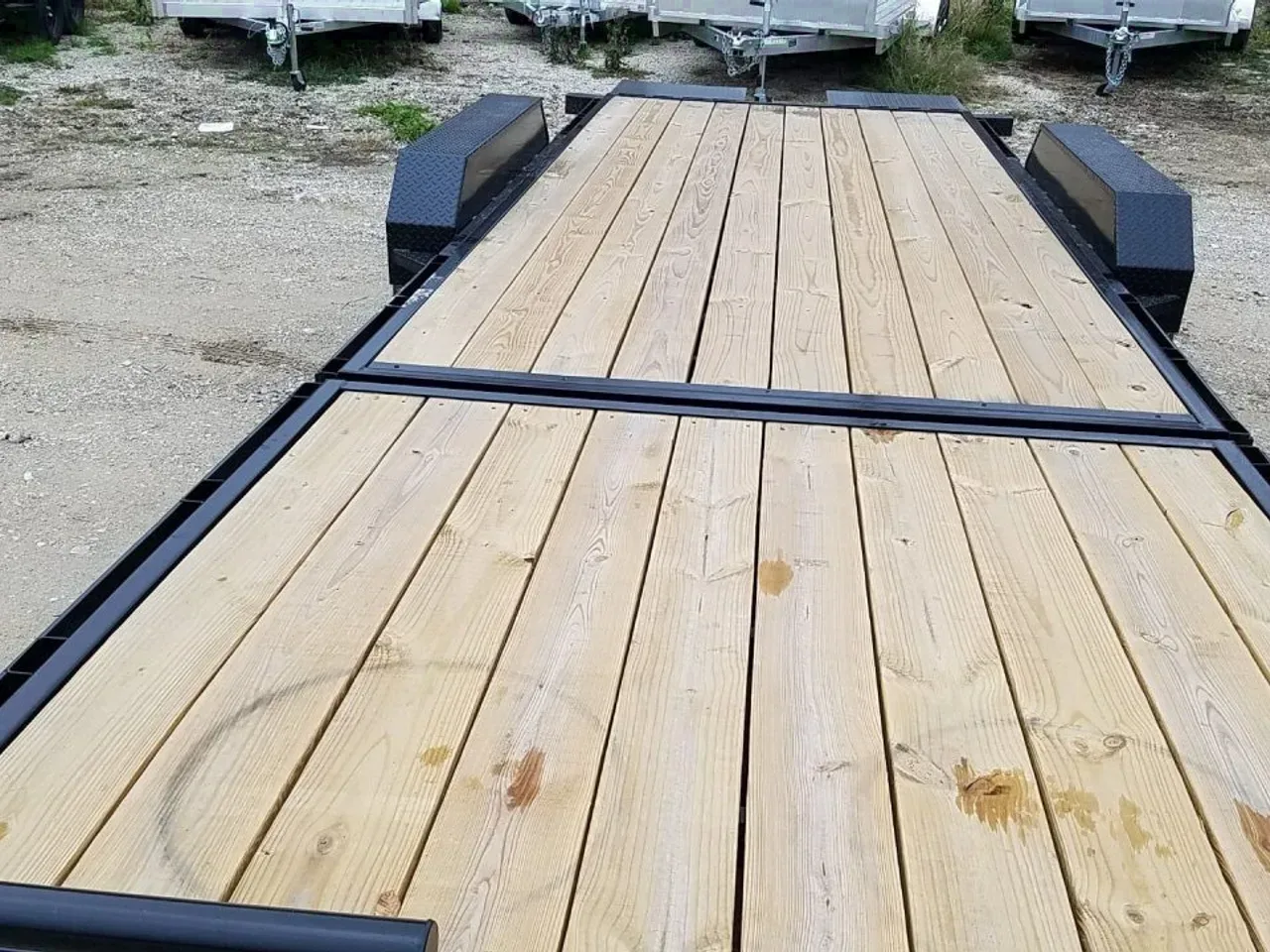

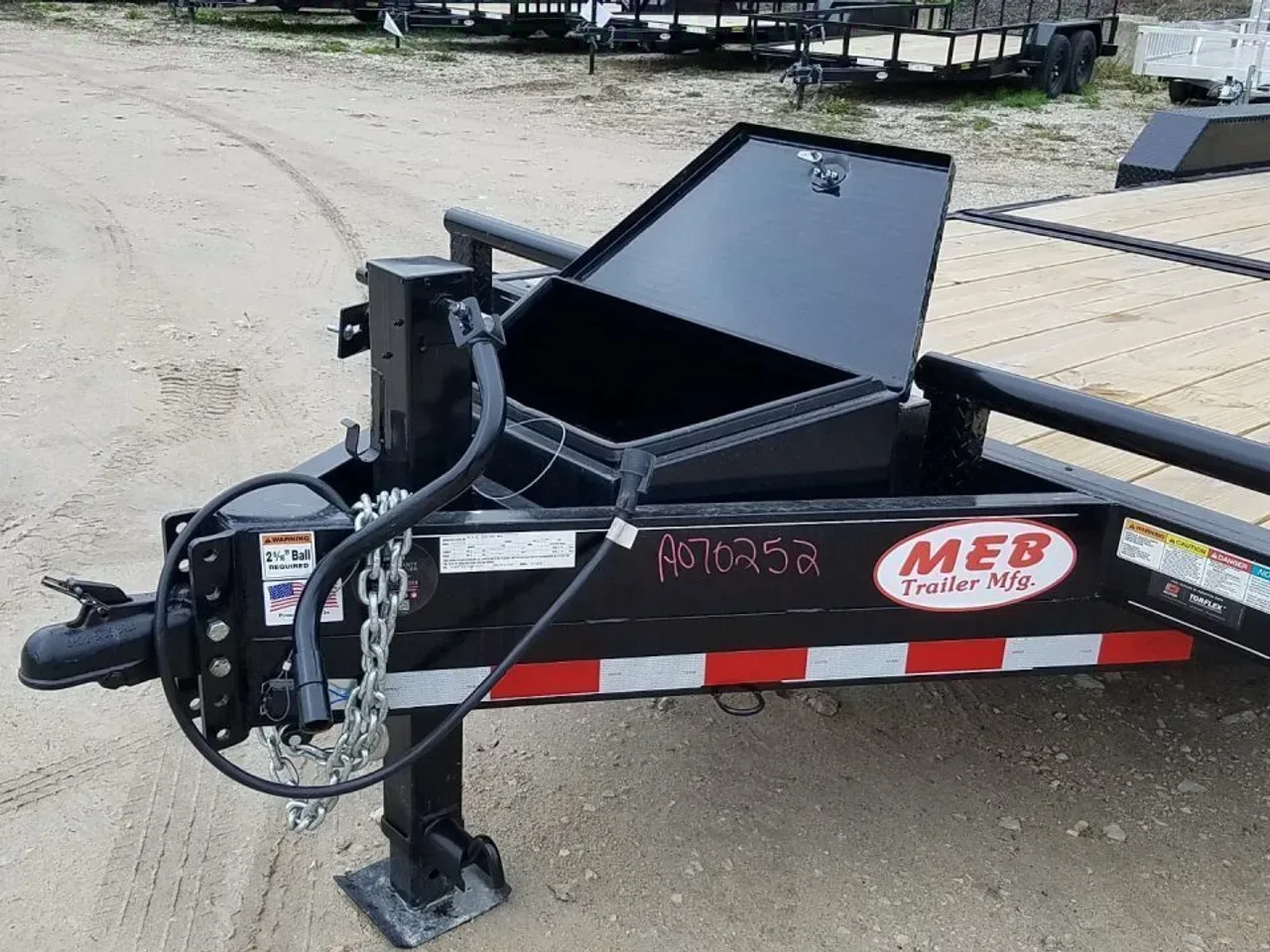

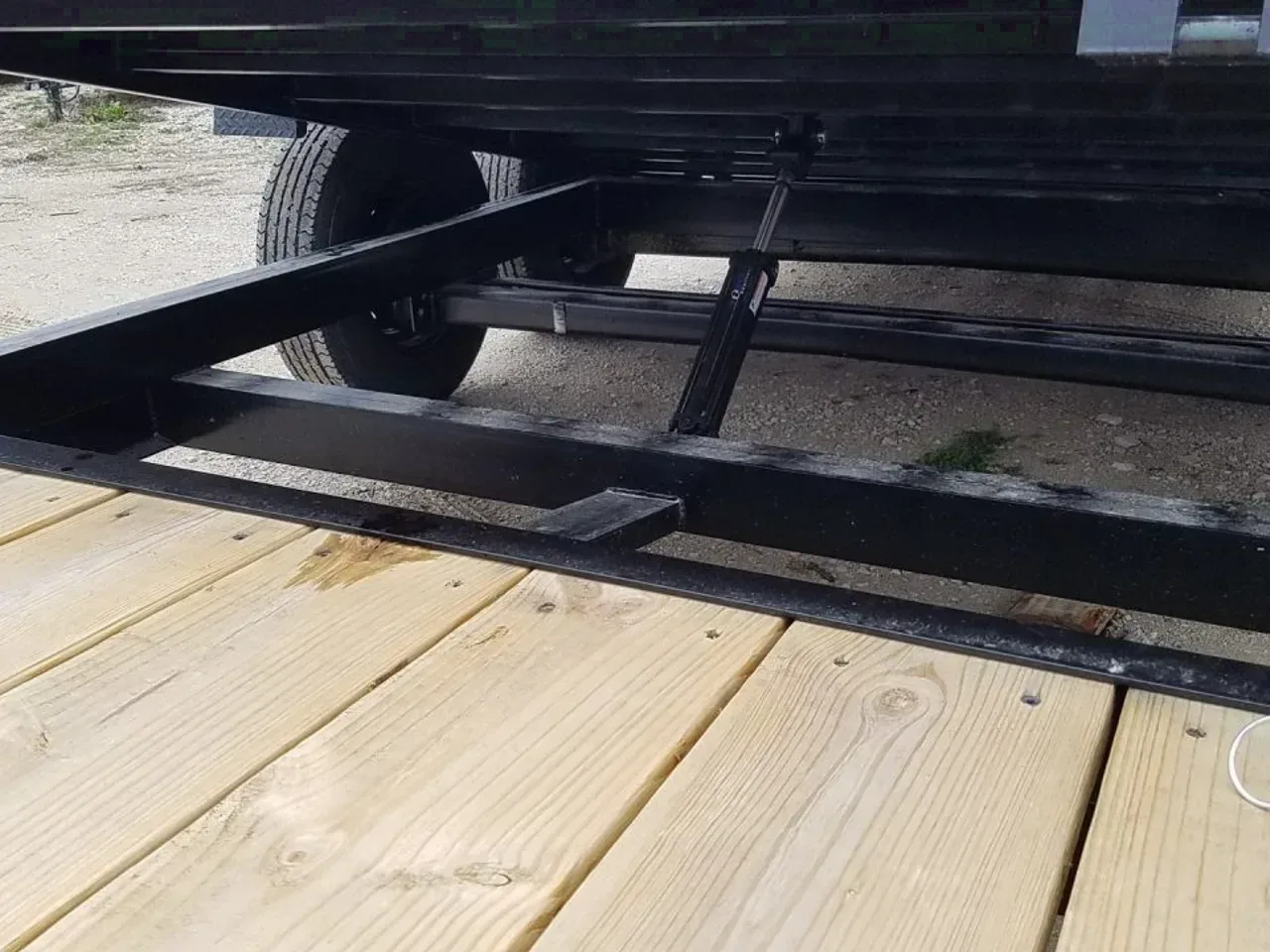

New 2026 MEB 18+4 Tilt Bed Equipment Trailer 14K This new 2026 MEB 18+4 Tilt Bed Equipment Trailer gives you a straightforward, heavy-duty equipment hauler with the convenience of a tilt deck and a full 22' of usable bed space. Rated at 14,000 lb GVWR, this tandem-axle MEB is built for skid steers, compact tractors, construction equipment, vehicles, landscaping equipment, farm machinery, and other demanding loads. The layout combines an 18' tilting deck with a 4' stationary front deck, giving you plenty of usable length without relying on conventional loading ramps. A damper cylinder beneath the tilt bed helps control deck movement as it lowers, while the adjustable coupler, heavy-duty drop-leg jack, and lockable tongue toolbox make the trailer practical for regular work. Trailer Configuration - Year: 2026 - Manufacturer: MEB - Model: 18+4 Tilt Bed Equipment - Trailer Type: Equipment Trailer - Pull Type: Bumper Pull - Construction: Steel - GVWR: 14,000 lbs - Axles: Tandem - Axle Capacity: 7,000 lbs each - Approximate Empty Weight: 3,500 lbs - Approximate Payload Capacity: 10,500 lbs - Total Bed Length: 22' - Tilt Deck Length: 18' - Stationary Deck Length: 4' - Bed Width: 83" - Deck Height: Approximately 20" - Color: Black - Stock #: 72545 - Location: Seneca, IL - Price: $7,875 Key Features - 14,000 lb GVWR - 18' Tilt Bed - 4' Stationary Front Deck - 22' Total Usable Bed Length - Tandem 7K Axles - 5-Position Adjustable Coupler - 2-5/16" Ball Coupler - 12K Drop-Leg Jack - Lockable Tongue Toolbox - Damper Cylinder Under Tilt Bed - Low 20" Deck Height - 7-Round Electrical Plug 18' Tilt Deck The main 18' deck section tilts toward the ground, allowing equipment to be driven directly onto the trailer without handling conventional removable ramps. That makes loading and unloading faster and simpler, particularly when you're moving equipment several times throughout the workday. Tilt trailers are especially useful for: - Skid steers - Compact tractors - Mini excavators - Landscaping equipment - Utility vehicles - Small construction machines - Cars and light vehicles - Equipment with low ground clearance 4' Stationary Front Deck Ahead of the tilt section is a 4' stationary deck. That gives you a fixed section of trailer floor that remains level while the rear deck tilts. The stationary section can be especially useful for: - Attachments - Buckets - Implements - Toolboxes - Material - Equipment that benefits from a fixed front loading area Combined with the 18' tilt section, you get a full 22' of usable bed length. Controlled Tilt With Damper Cylinder A damper cylinder beneath the tilt deck helps cushion and control the movement of the bed as it lowers. Instead of allowing the deck to move completely uncontrolled under gravity, the damper helps provide a smoother transition during loading and unloading. That gives the operator better control and reduces abrupt deck movement. Low 20" Deck Height At approximately 20" high, this MEB sits relatively low for a 14K equipment trailer. A lower deck helps reduce the loading angle when the trailer tilts, making it easier to load equipment with: - Limited ground clearance - Small tires - Long wheelbases - Low-mounted attachments - Limited approach or breakover clearance The combination of the low deck and tilt-bed design is one of this trailer's biggest practical advantages. Tandem 7K Axles The trailer uses two 7,000 lb axles for a combined 14,000 lb GVWR. That puts this MEB squarely into serious equipment-hauling territory while keeping it in a bumper-pull configuration. Based on R&P's published specifications for this configuration: - GVWR: 14,000 lbs - Approximate Trailer Weight: 3,500 lbs - Approximate Payload Capacity: 10,500 lbs Actual available payload should always be confirmed against the trailer's VIN/data plate and loaded tongue weight. 5-Position Adjustable Coupler The front of the trailer uses a 5-position adjustable coupler with a 2-5/16" ball connection. The adjustable mounting positions let you better match the trailer to different properly equipped tow vehicles and hitch heights. Correct trailer attitude helps improve: - Weight distribution - Towing stability - Suspension loading - Ground clearance - Overall towing behavior 12K Drop-Leg Jack A heavy-duty 12,000 lb drop-leg jack provides the support expected on a 14K equipment trailer. The drop-leg design allows for quick coarse height adjustment before using the jack mechanism for final positioning. That can save time when coupling and uncoupling on jobsites or uneven ground. Lockable Tongue Toolbox The integrated lockable tongue toolbox gives you dedicated onboard storage for common hauling equipment. It's a convenient place to keep: - Tie-down straps - Chains - Binders - Hitch accessories - Gloves - Tools - Wheel chocks - Other towing supplies Keeping this equipment with the trailer means it's where you need it when the trailer goes to work. Bumper-Pull Convenience Even with a 14,000 lb GVWR and 22' bed, this trailer remains a bumper-pull design. It uses a 2-5/16" ball coupler and standard 7-round electrical connection, making it a practical heavy-equipment option for properly equipped trucks without requiring a gooseneck hitch in the bed. Trailer Dimensions - Overall Length: Approximately 333" / 27' 9" - Overall Width: 102" / 8' 6" - Usable Bed Width: Approximately 83" / 6' 11" - Total Bed Length: 264" / 22' - Tilt Deck Length: 216" / 18' - Stationary Deck Length: 48" / 4' - Deck Height: Approximately 20" Built for Everyday Equipment Work This MEB combines the features equipment operators actually use: - 14K GVWR - Approximately 10,500 lbs of payload capacity - 18' tilt deck - 4' stationary deck - Low 20" deck height - Controlled tilt action - Heavy-duty 12K jack - Adjustable coupler - Lockable onboard storage - Bumper-pull convenience There is very little wasted complexity here. It's a practical equipment trailer designed to make loading, transporting, and unloading machinery easier day after day. Listing Details - Year: 2026 - Manufacturer: MEB - Model: 18+4 Tilt Bed Equipment - Type: Tilt Bed Equipment Trailer - GVWR: 14,000 lbs - Pull Type: Bumper Pull - Construction: Steel - Color: Black - Stock #: 72545 - Location: Seneca, Illinois - Status: Available - Price: $7,875 Available at R&P Carriages This trailer is available at R&P Carriages in Seneca, Illinois. Come see the trailer in person, inspect the tilt system, and make sure its deck dimensions and capacity are right for your equipment. R&P Carriages 270 E. Jackson St. Seneca, IL 61360 Call or text: 815-357-3292 Stock #: 72545 Contact R&P Carriages to confirm current availability. **Dimensions:** 22' (264")
