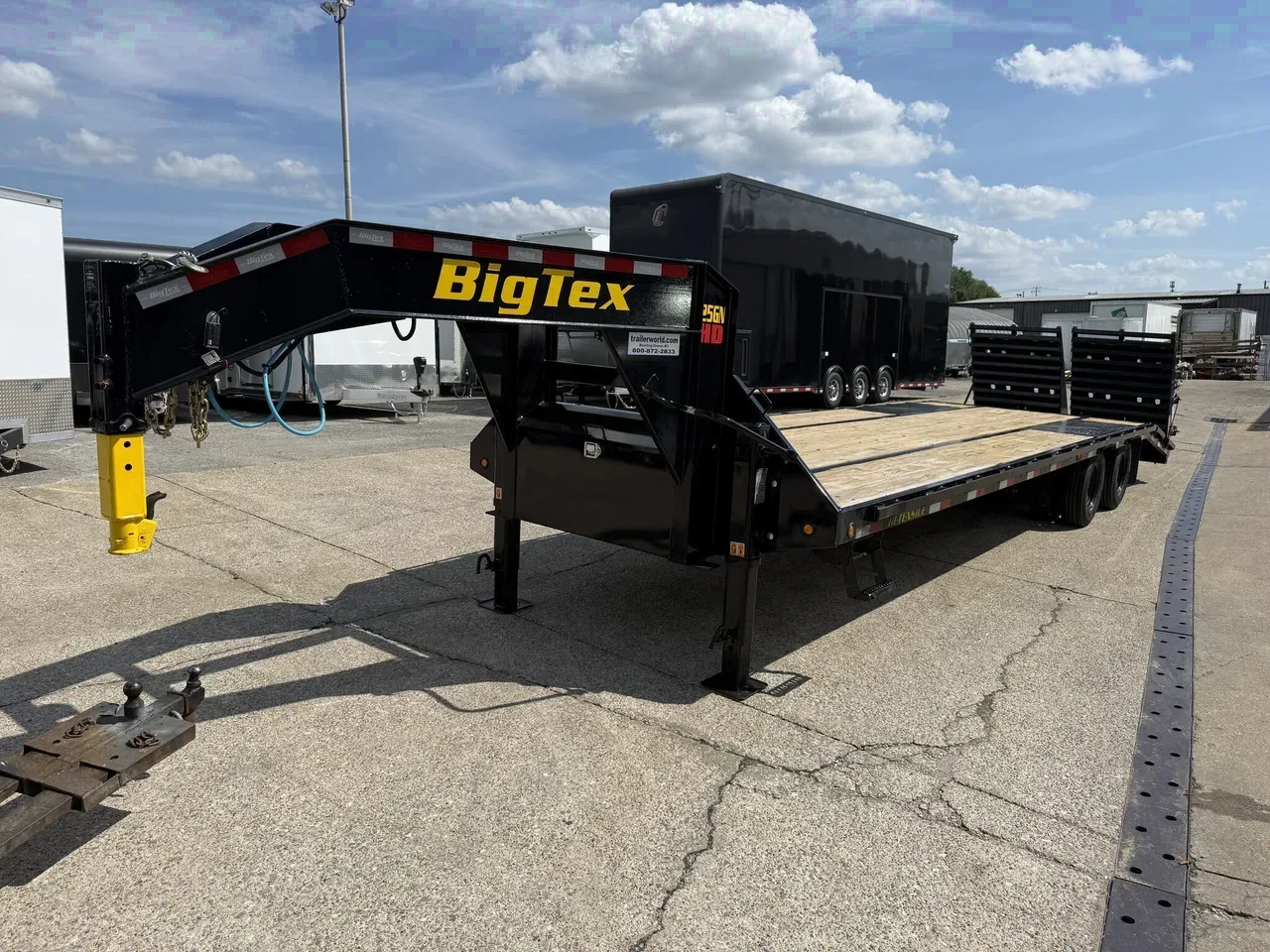

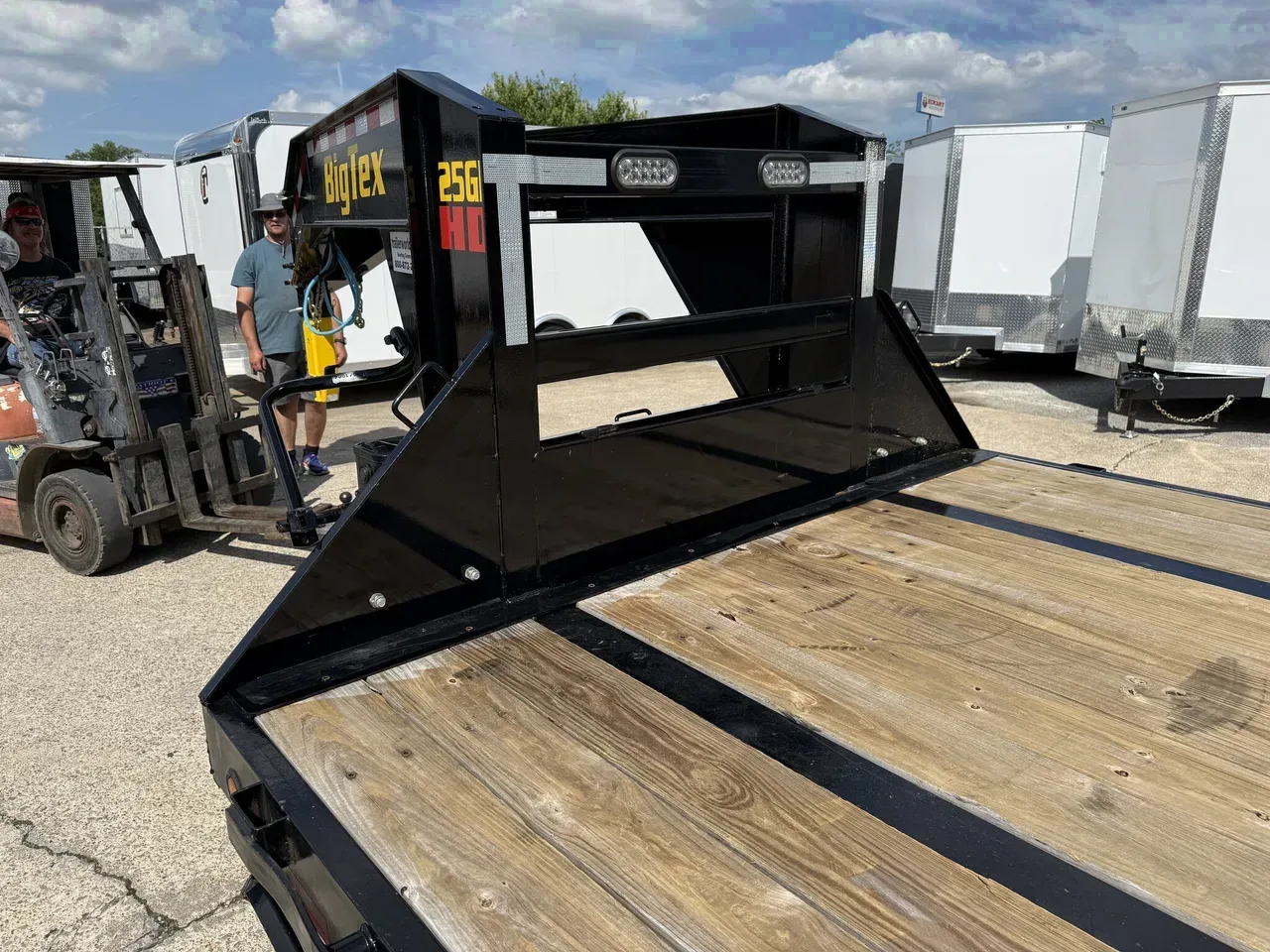

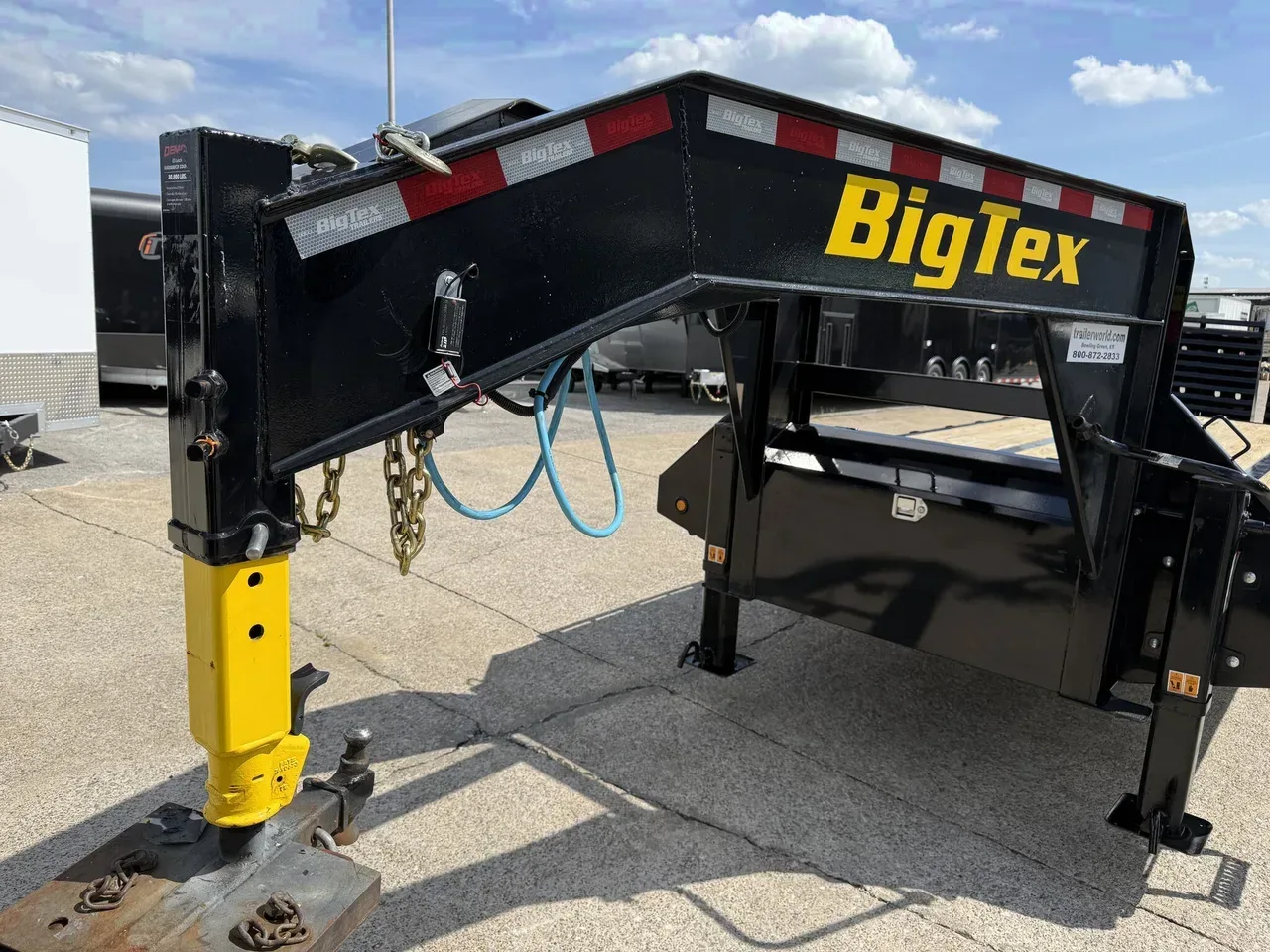

Featuring 12K heavy-duty axles and standard equipped with a heavy-duty adjustable suspension, the 25GN Heavy Duty Tandem Dual Gooseneck Trailer is built from the ground up to handle the heaviest of loads in construction and hotshotting—day-and-night, 24/7. This robust and durable gooseneck trailer comes outfitted with all the features you demand: from a low-profile pierced-beam frame, LED lights, and adjustable dual jacks to a chain box and crank-style adjustable coupler. It’s heavy-duty. It’s hardworking. It’s built to last. The 25GN is here to help you get the job done.

Key Specifications

Dimensions & Capacities

Length: 30'

Deck Width: 102"

Dovetail: 5' Cleated Dovetail

GVWR: 25,900 lbs

Color: Black

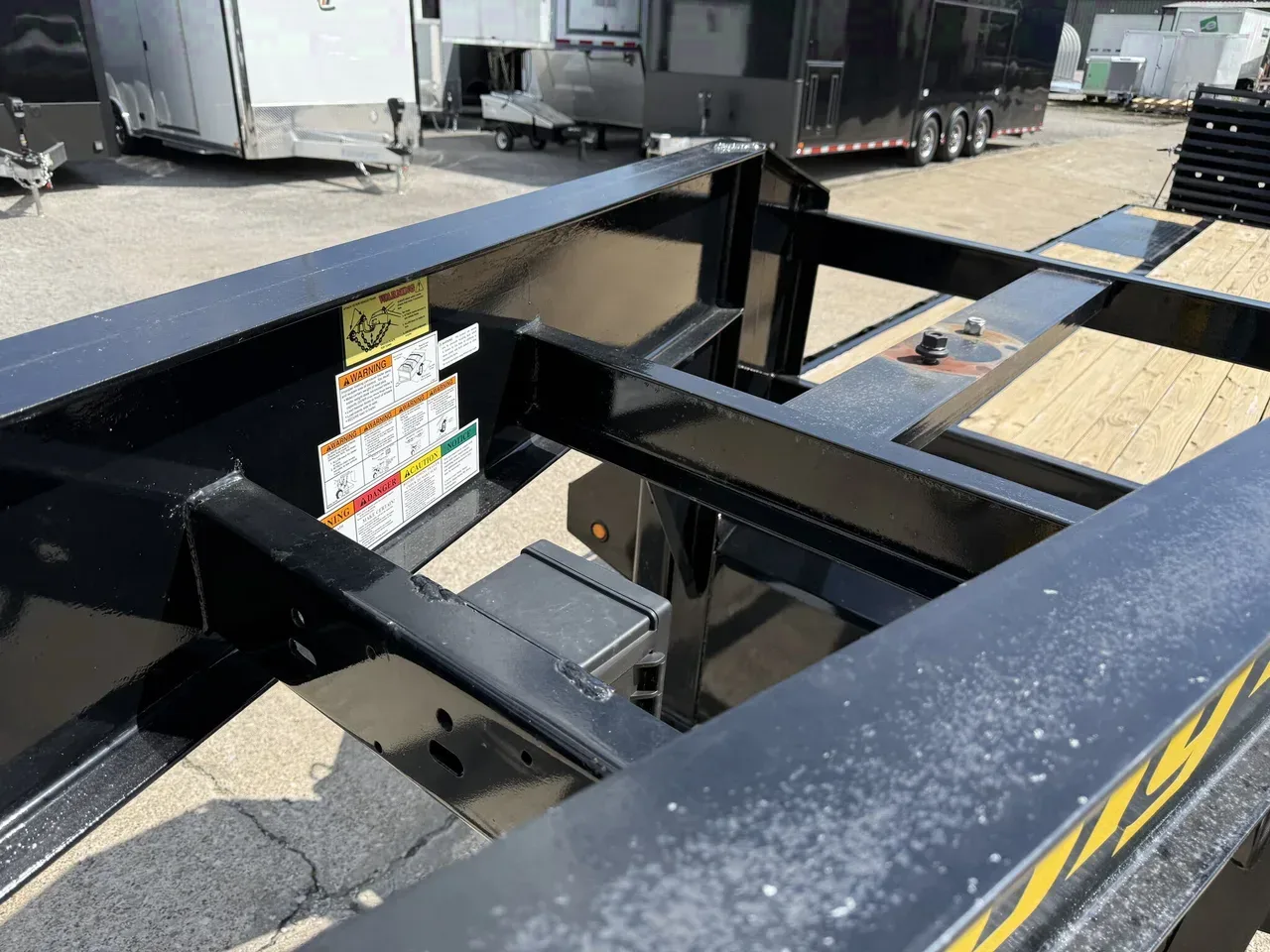

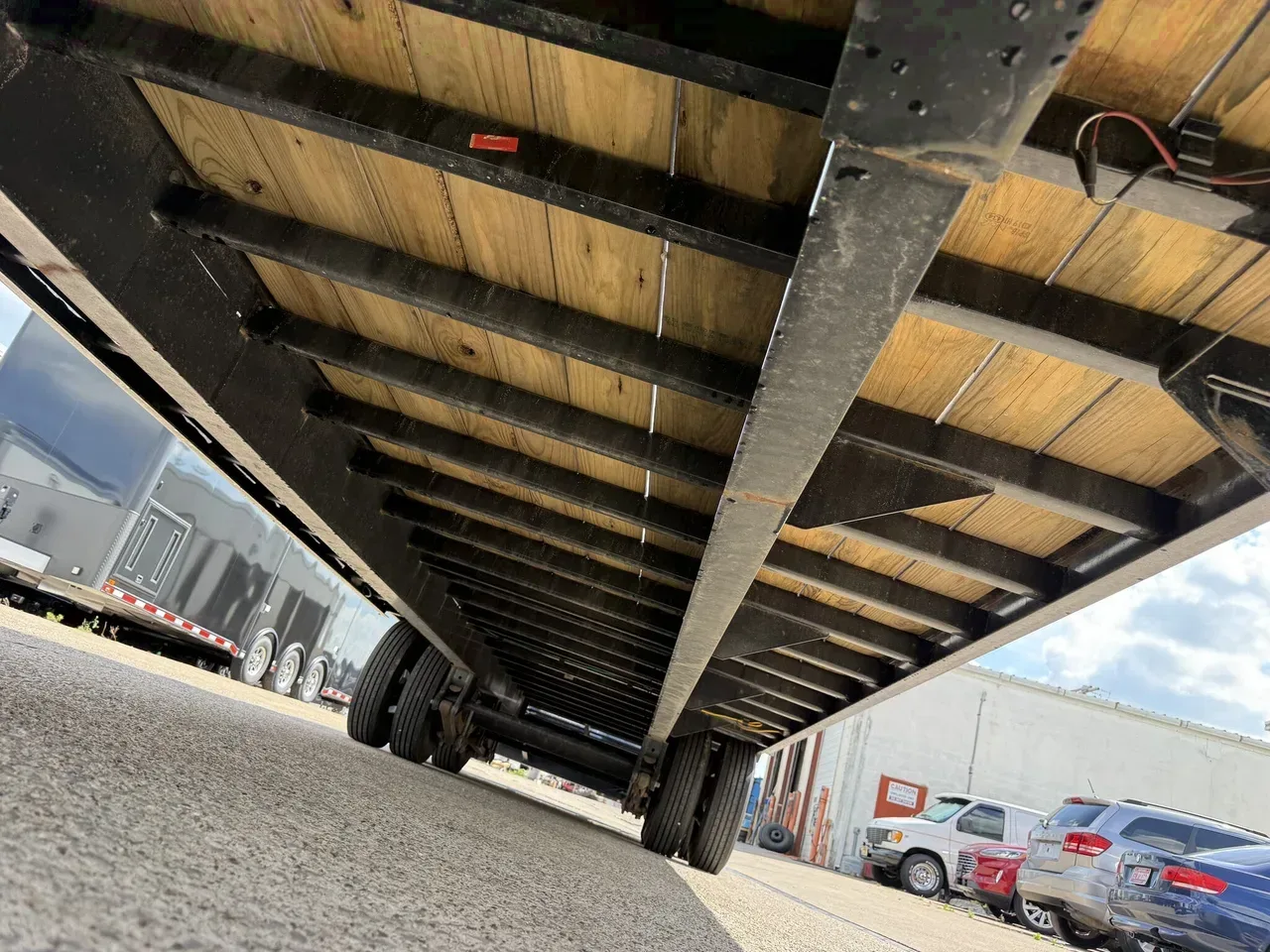

Frame & Construction

Frame: 12" I-Beam, 16# I-Beam

Cross-Members: 3" Channel

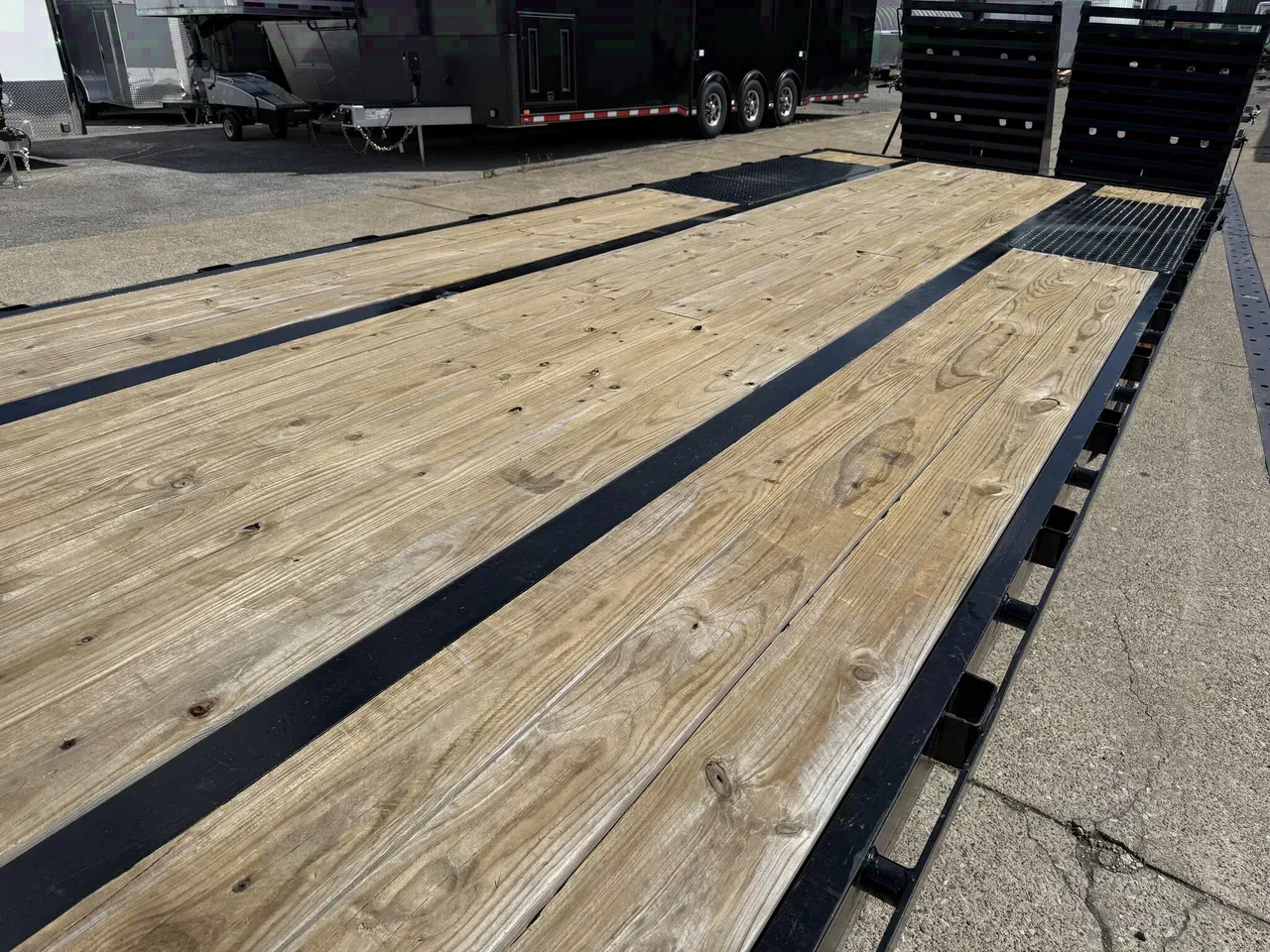

Floor: Treated Wood Floor

Rubrail: 3/8” Heavy Duty Rub Rail on Both Sides

Stake Pockets: Stake Pockets Along Both Sides, 24" O.C.

Pipe Chain Spools: 1-1/4” Pipe Chain Spools Between Stake Pockets

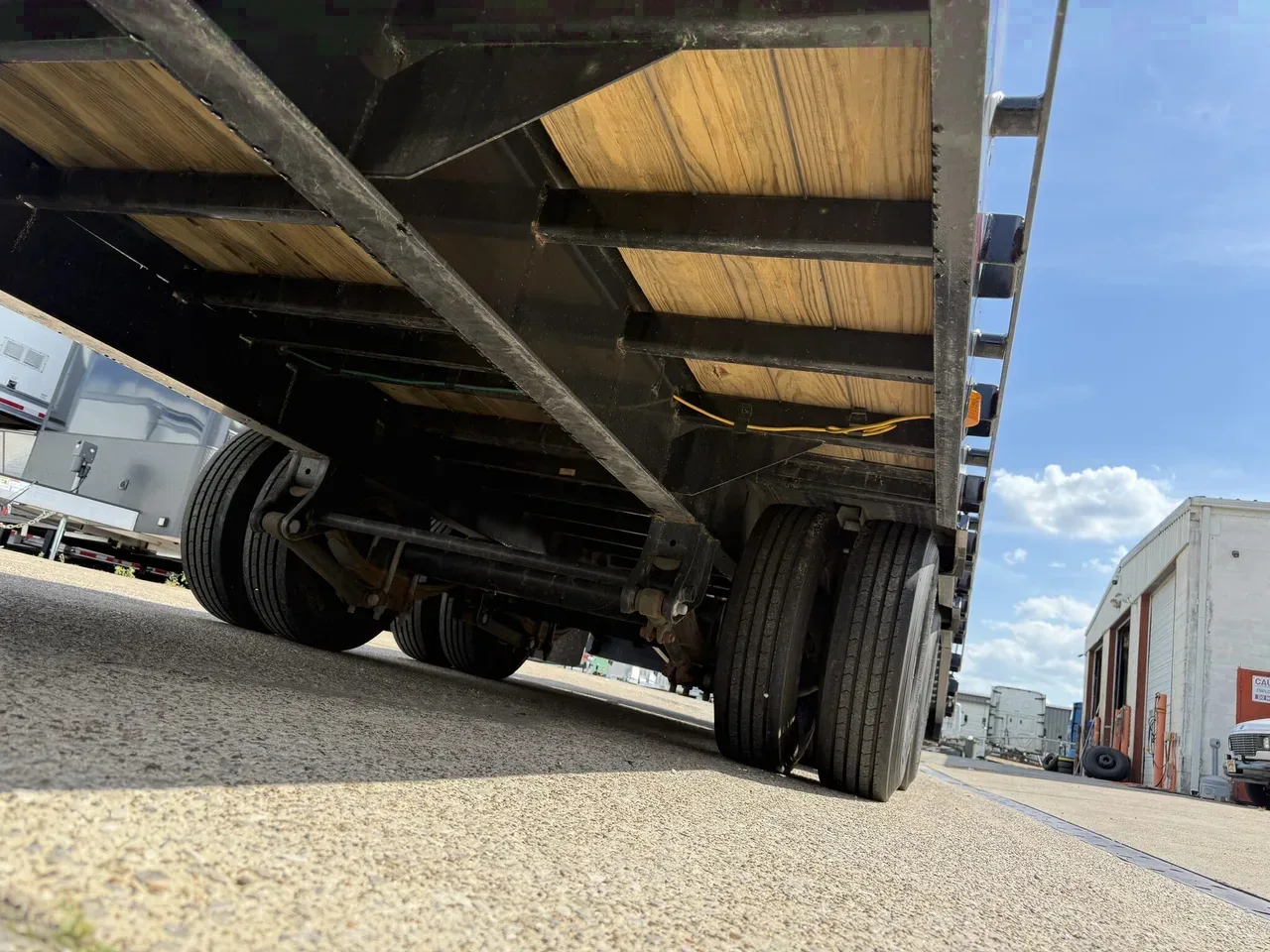

Axles, Suspension & Wheels

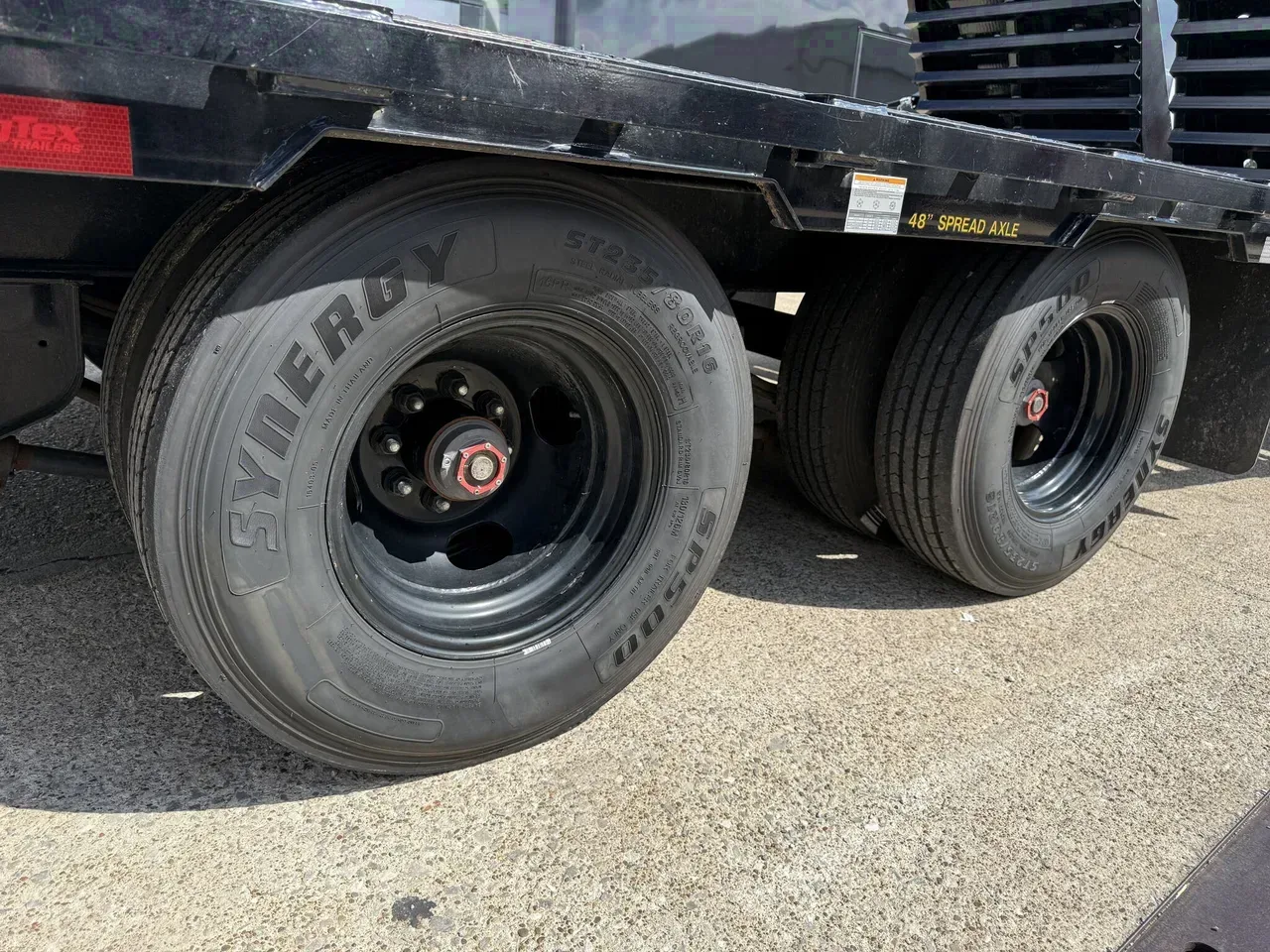

Axles: 2 - 12,000# DEXTER Axles - Dual Wheel with Oil Bath & Valcrum Caps

Bolt Pattern: 8-Bolt

Suspension: Heavy-Duty 30,000# Adjustable

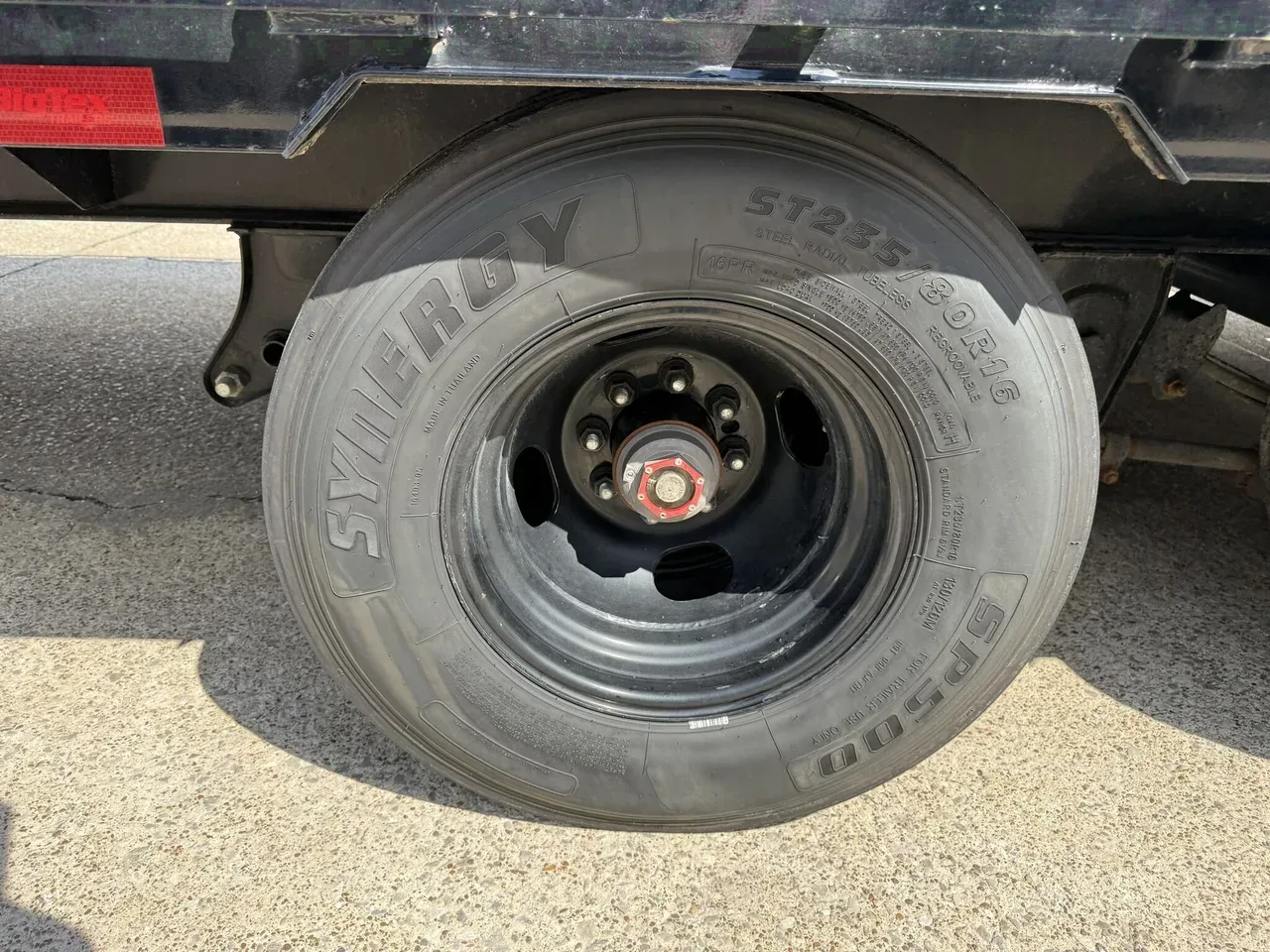

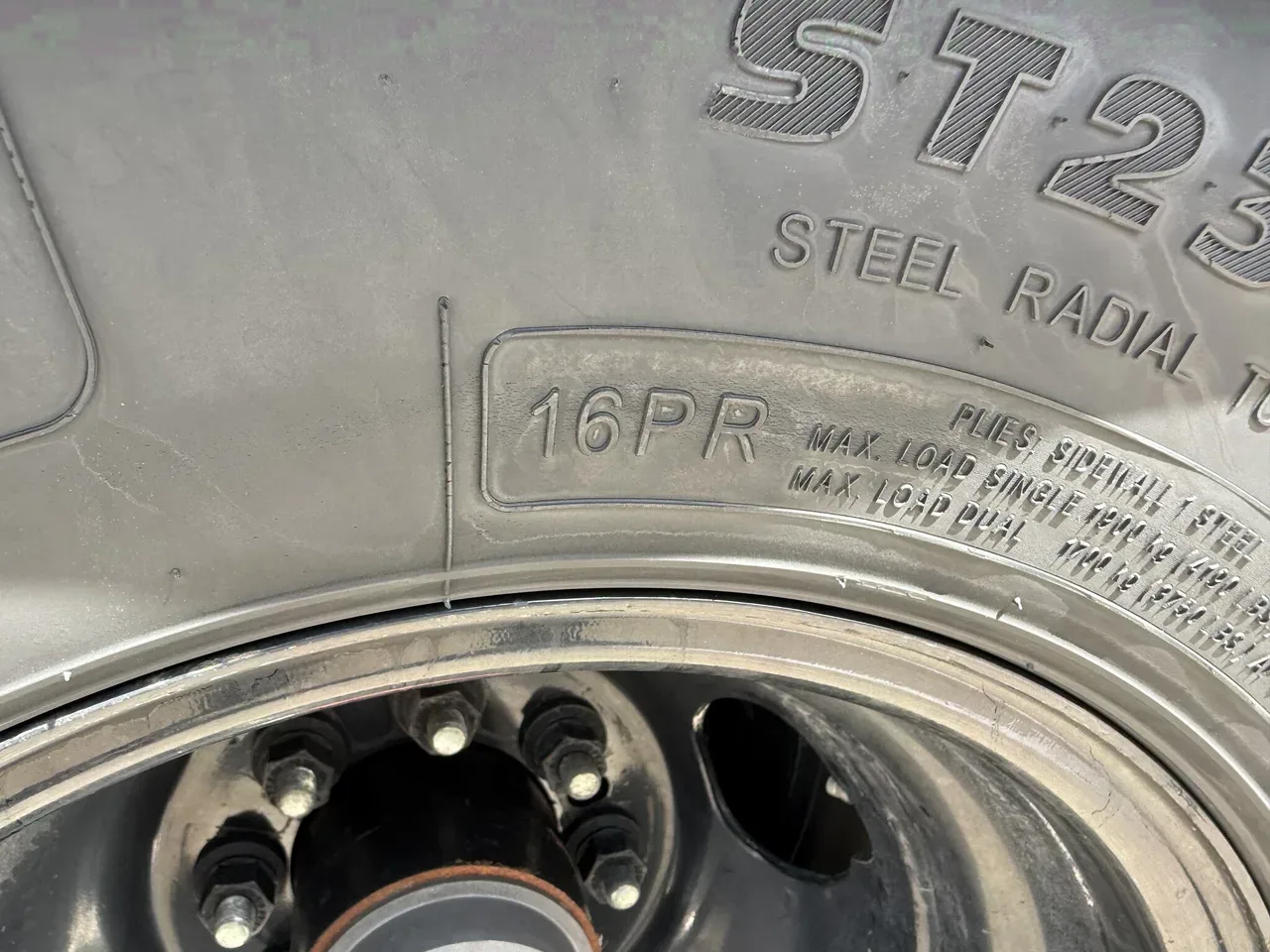

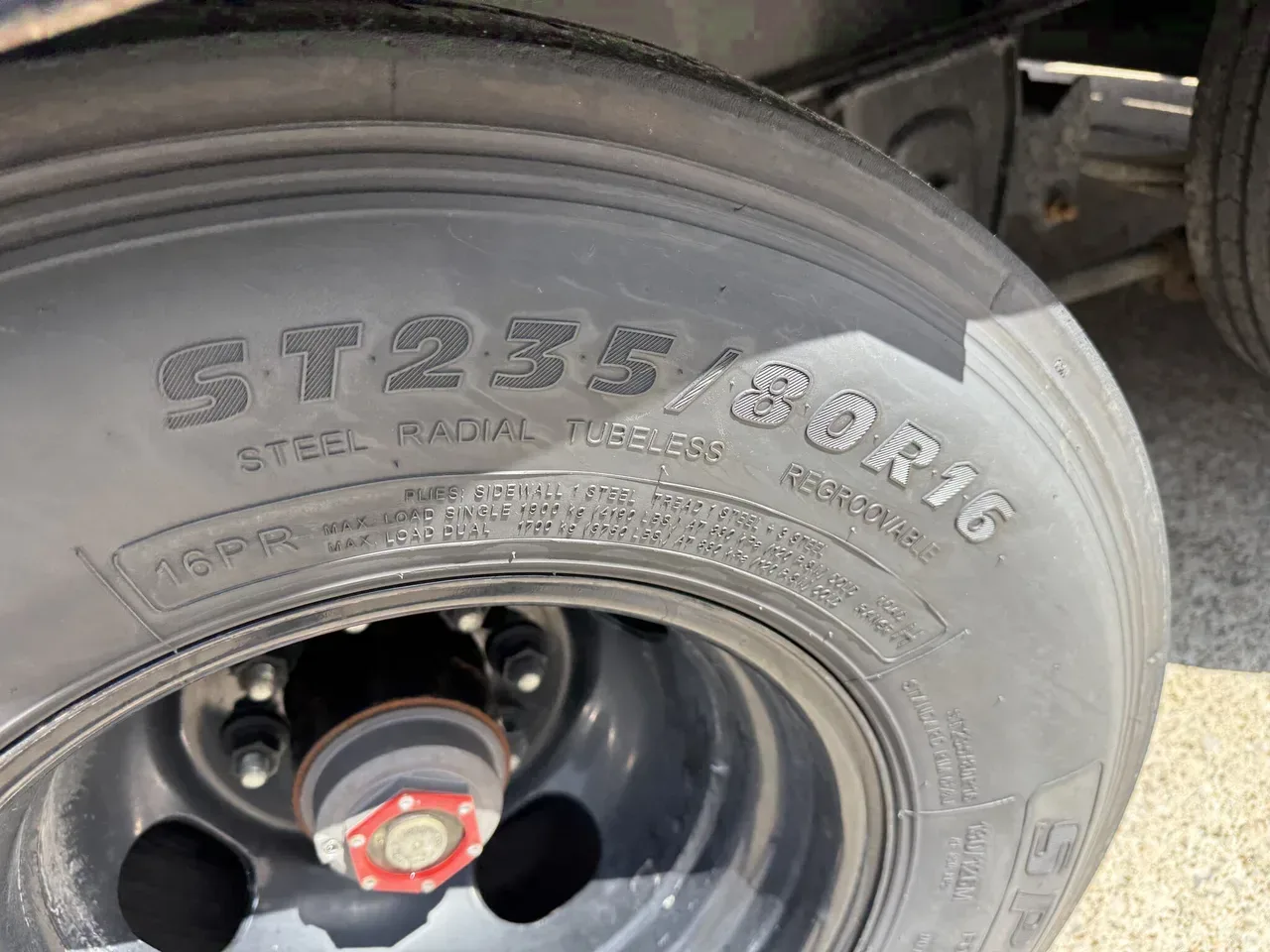

Tires: ST235/80 R-16 Load Range H 16 P.R. (Dual)

Brakes & Safety

Brakes: Forward Self-Adjusting Electric Brakes on Both Axles

Break-Away Kit: Complete Breakaway System with Breakaway Cable and Charger

Hitch & Loading

Coupler: 2-5/16” Demco EZ Latch Gooseneck Coupler

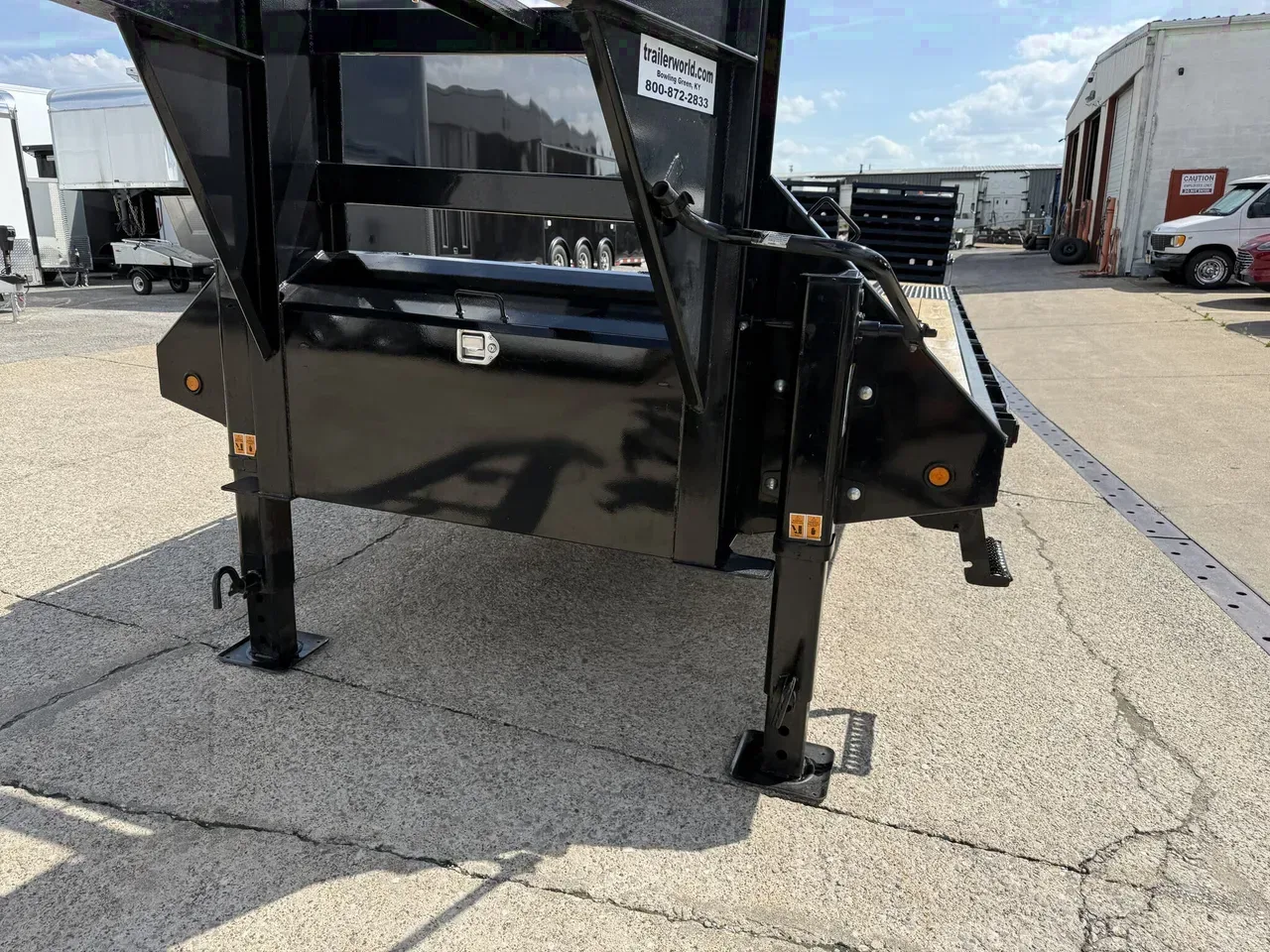

Jack: Dual Landing Gear - 50K lbs. Capacity (Bolted On)

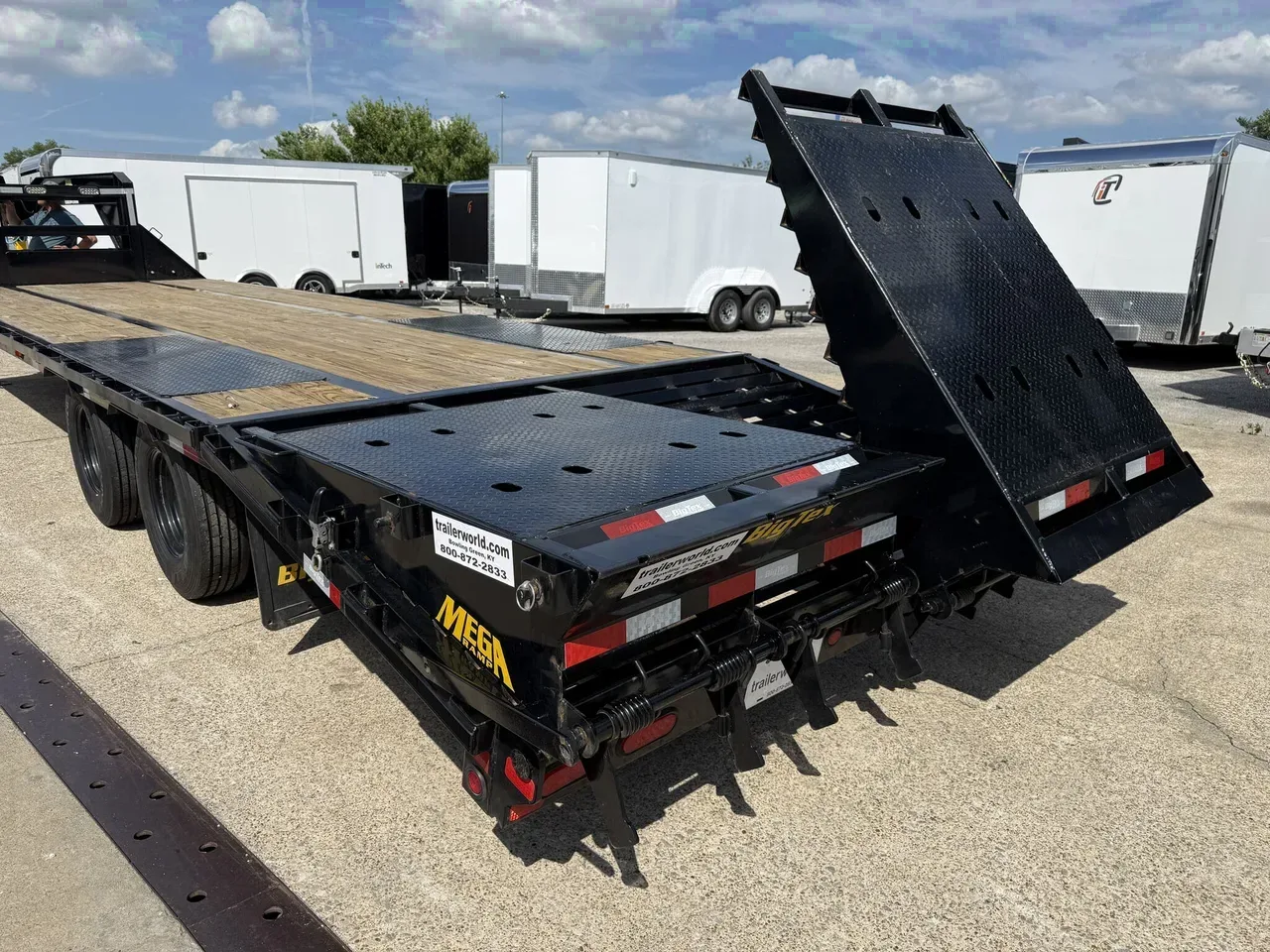

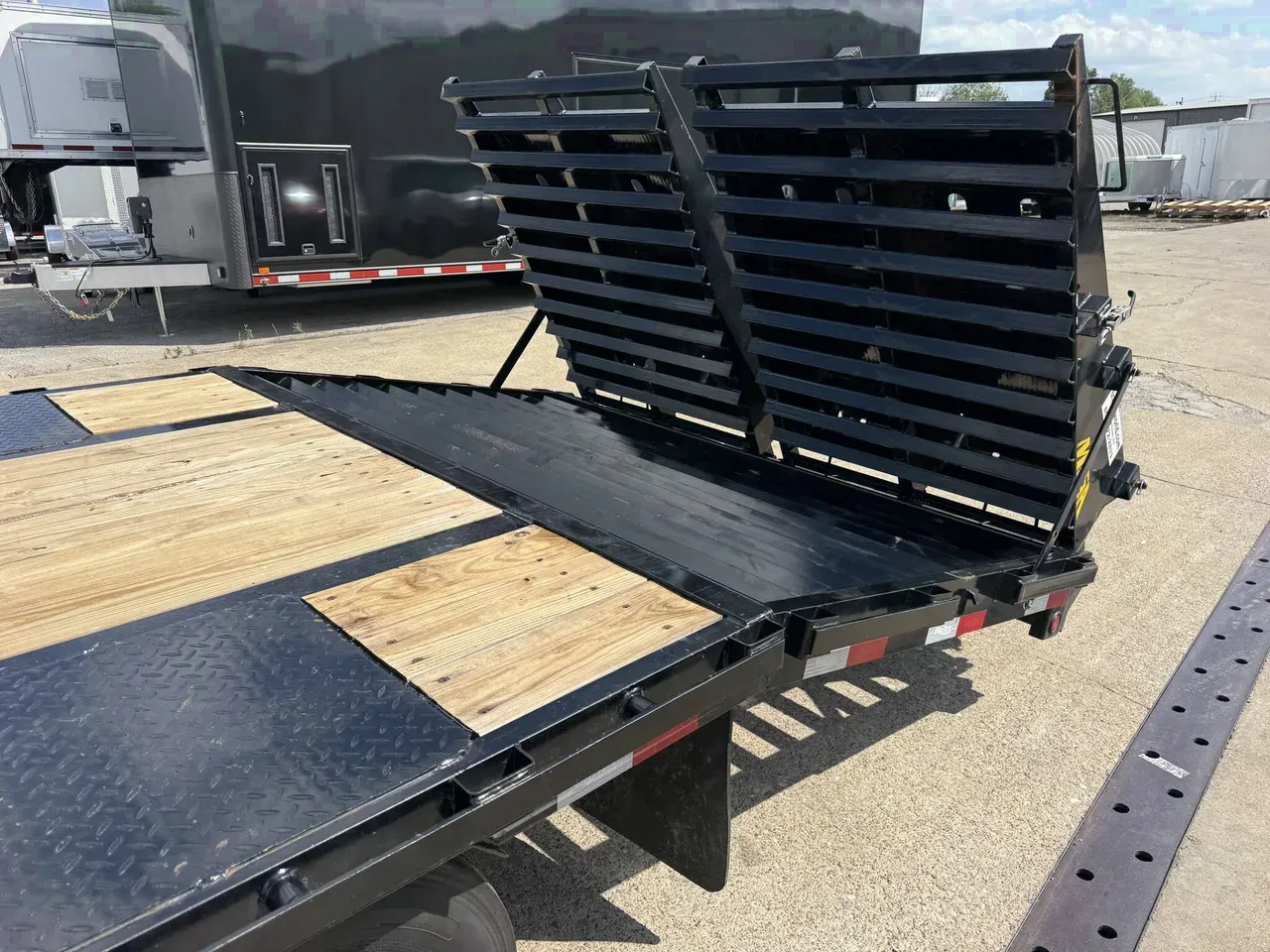

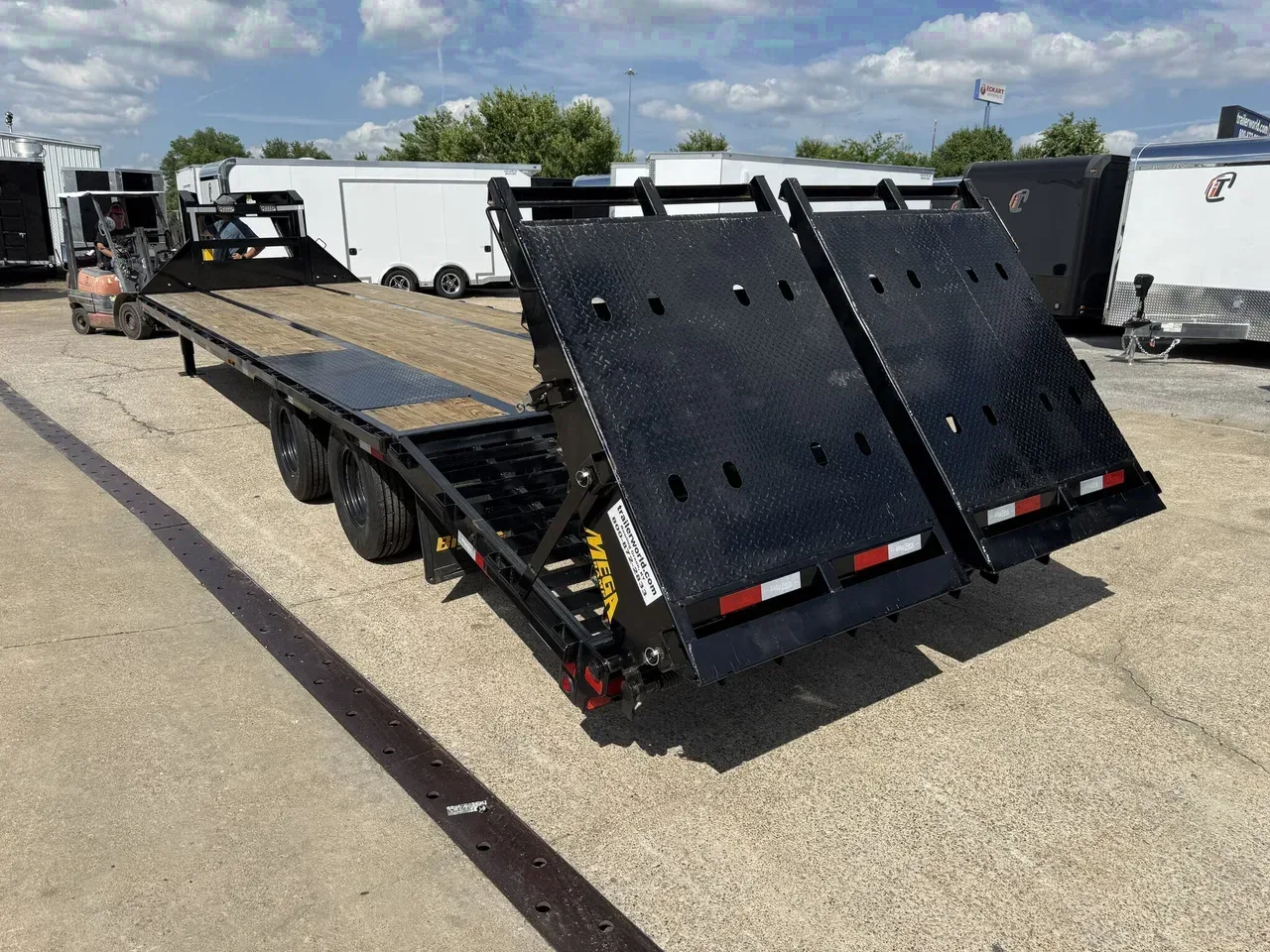

Ramps: 5’ Double Hinged Spring Assist Flip-Over Ramps (STA Models Do Not Include Ramps)

Spare Mount: Top of Neck Spare Tire Mount

Electrical & Lighting

Lights: Recessed, Grommet-Mounted L.E.D. Lighting

Trailer Plug: 7-Way RV

Wiring: Sealed, Modular Cold-Weather Wiring Harness

Work Light: Deck Work Light Package with Step Illumination

Convenience Features

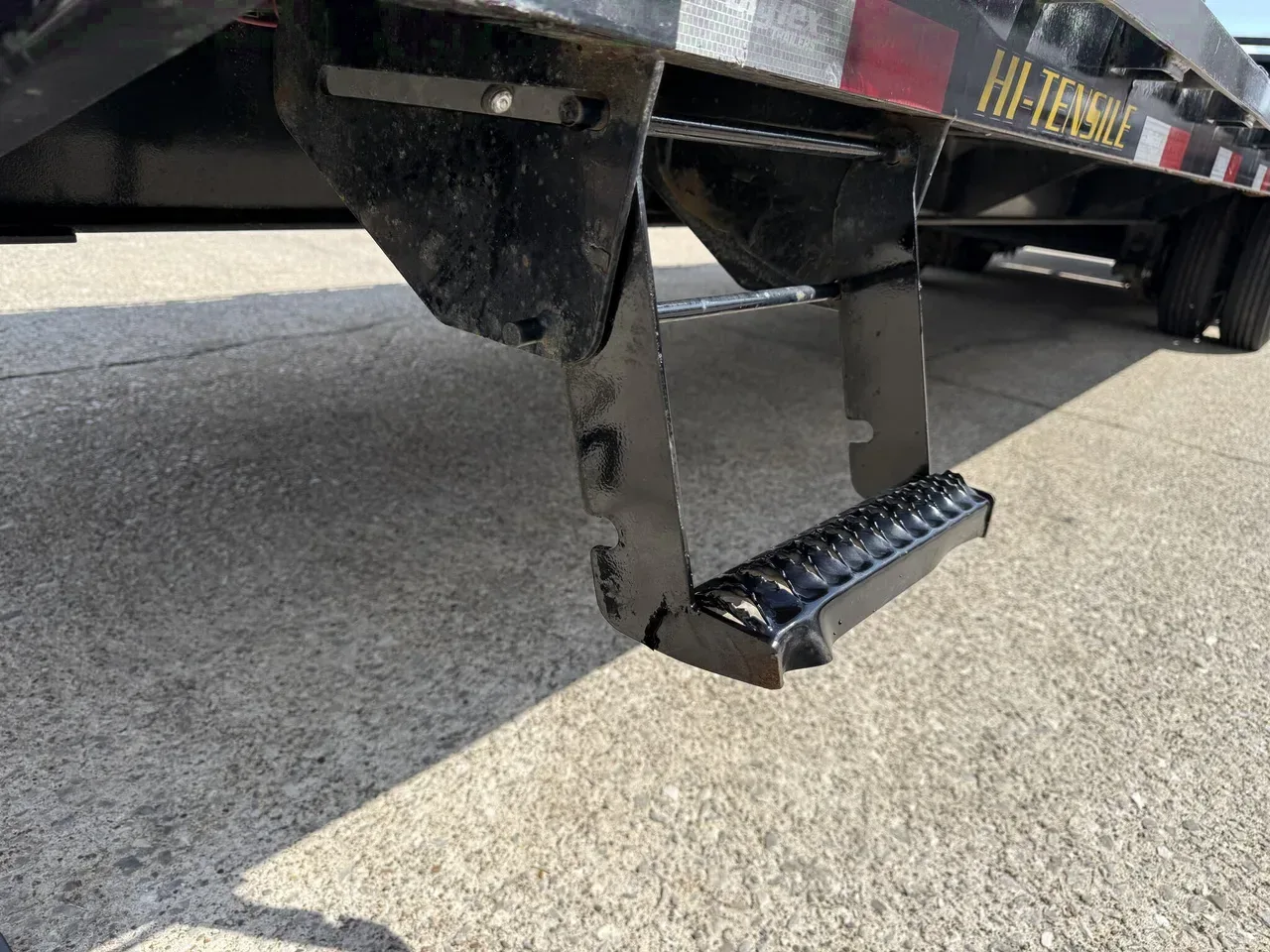

Steps & Handles: (2) Retractable Side Bed Steps + Handles

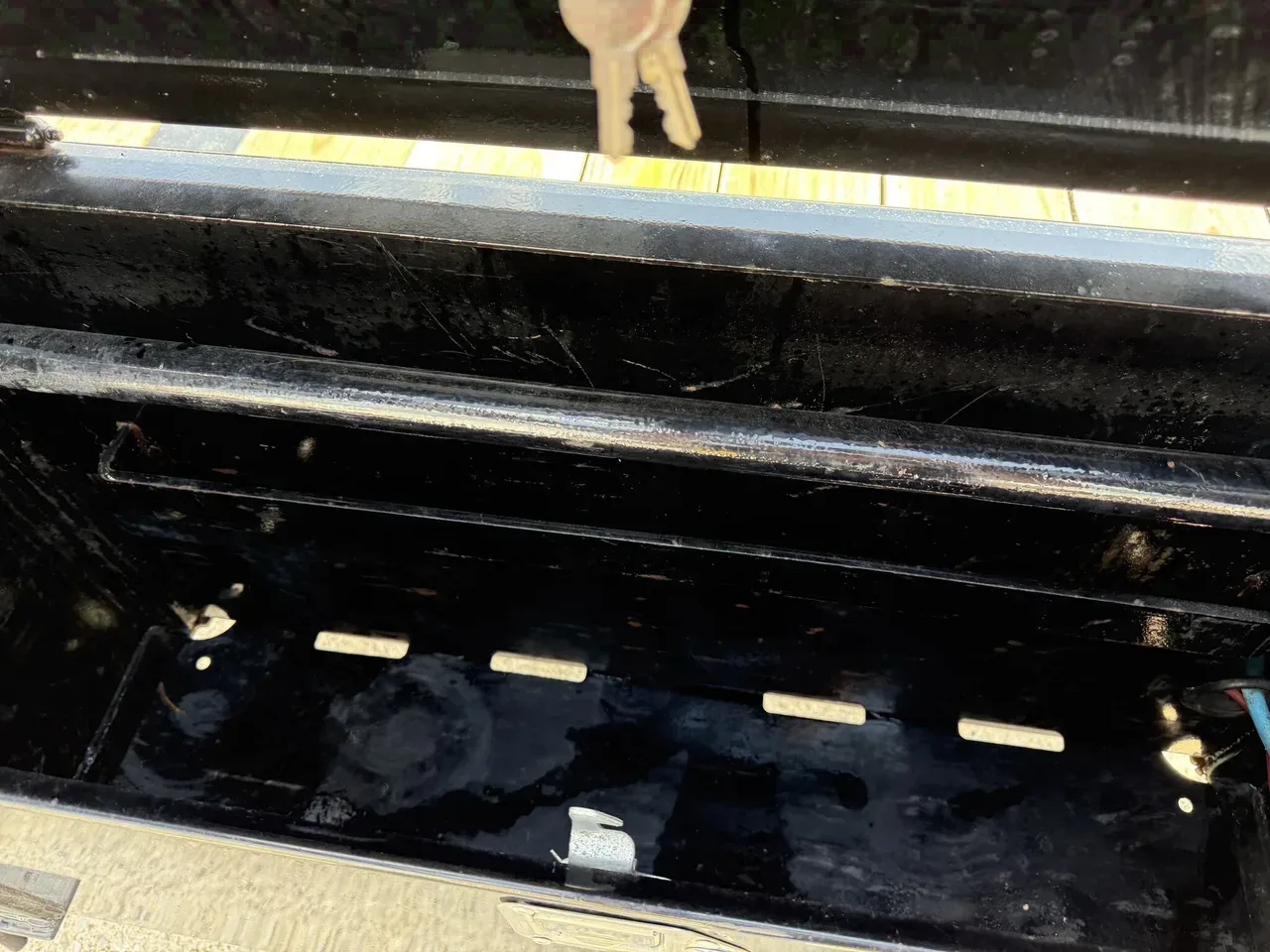

Storage: Front Lockable Toolbox Uprights with Chain Holder

Mudflaps: Standard

Paint: Professional Finish with Primer Standard

**Dimensions:** 8.5' x 30' (102" x 360")
