***THIS TRAILER HAS BEEN SOLD***THIS TRAILER HAS BEEN SOLD*

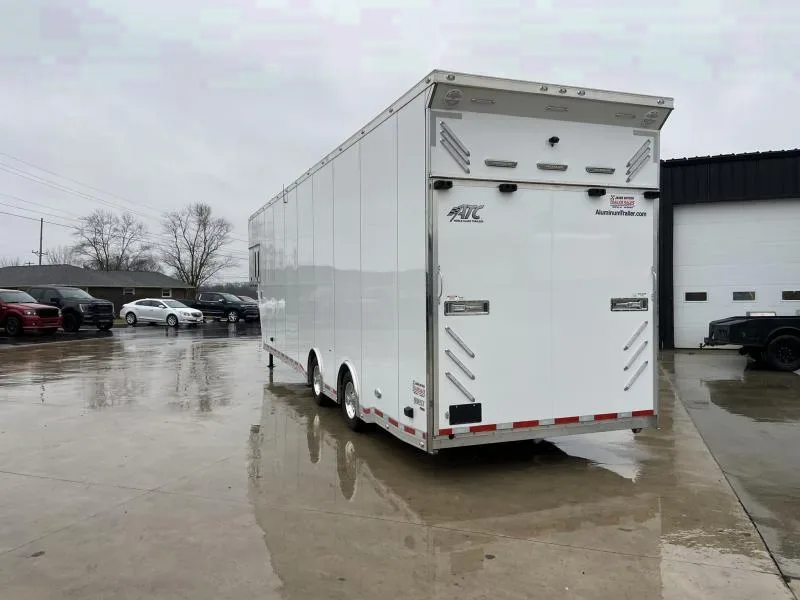

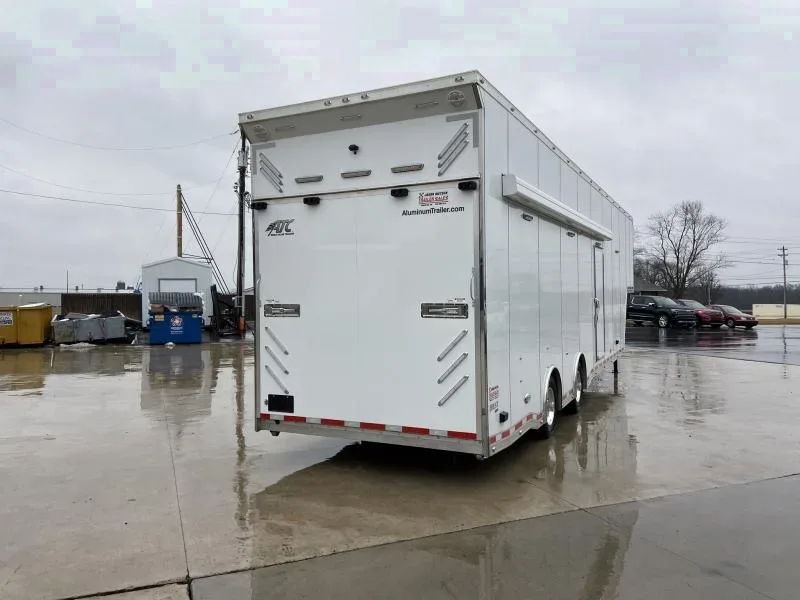

2021 ATC Quest Aluminum 8.5X40 Late Model Ramp Over Trailer

Model: QSTAG8540+0-2T10.0K

PACKAGE: CAR HAULER CH 405

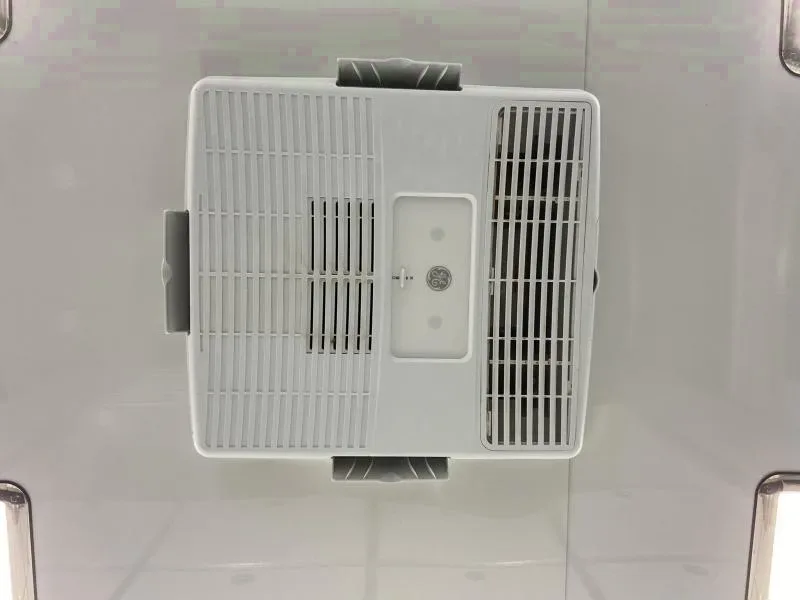

(2) A/C W/ HEAT PUMP 15000 BTU BLACK INCLUDES SINGLE ZONE BLACK THERMOSTAT

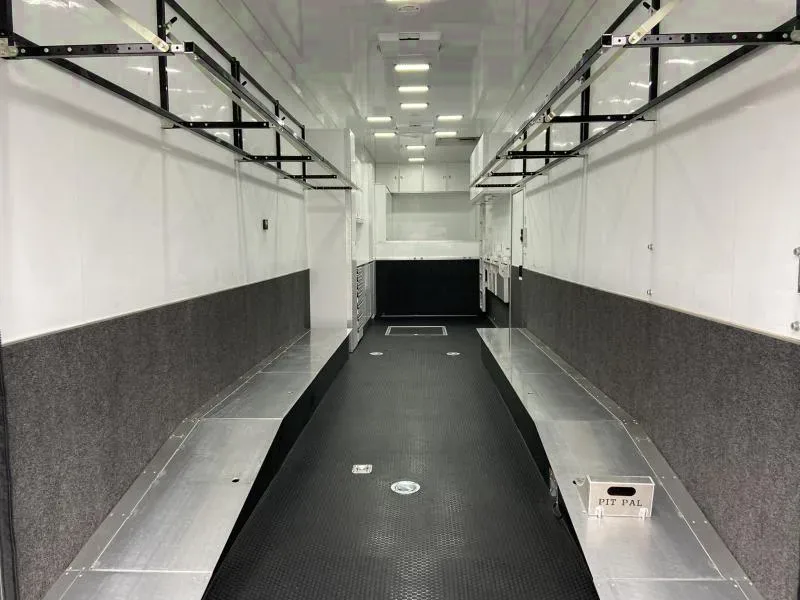

RAMP OVER FLOOR RUNNERS 20IN W X 13.25IN H X 18FT LONG

.250 MILL FINISH ALUMINUM TOP

TOP IS HINGED AT WALL AND SPLIT INTO MULTIPLE SECTIONS FOR ACCESS TO BELOW

1.5IN DIAMETER HOLES DRILLED IN LIDS FOR FINGER PULLS

BLACK SKINNED FRONT AND SIDES

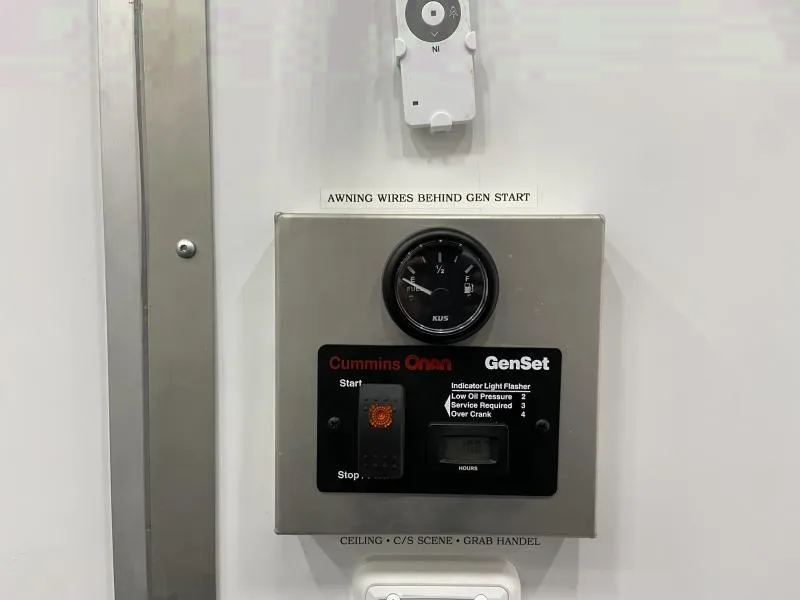

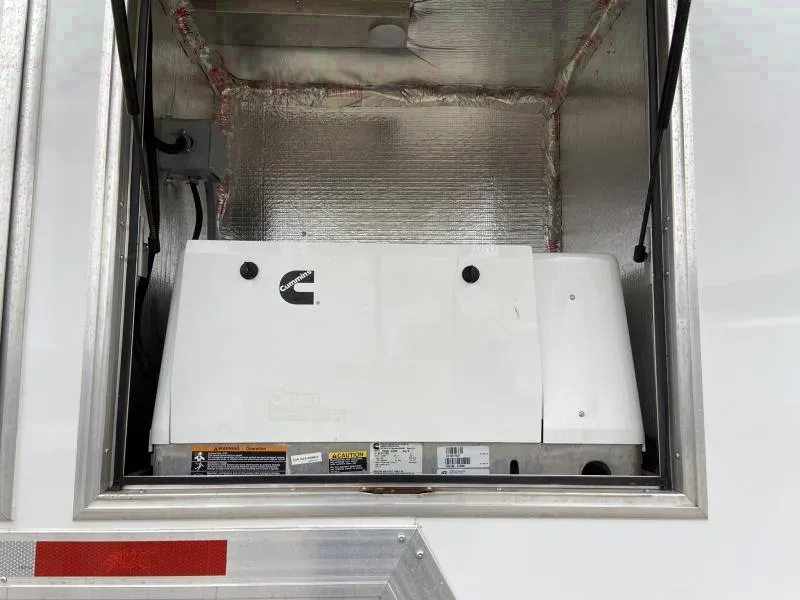

GENERATOR COMMERCIAL 7.0 KW ONAN GAS (120V/240V)

REMOTE START

FUEL GAUGE

FUEL TANK GAS 24 GALLON TOP FILL IN FRAME

TRANSFER SWITCH AUTO 50A

AIR COMPRESSOR 4HP PEAK 20 GALLON W/ 1 INLET 3 OUTLETS AIRLINE RATED AT 100PSI

AIR COMPRESSOR RECEPTACLE INTERIOR 120V 20A DEDICATED

AIR HOSE REEL HOSE 3/8IN X 50FT RETRACTABLE SIDE MOUNT

AIRLINE TRACK RECESSED FLOOR

AIRLINE TRACK SURFACE MOUNT WALL

AIR COMPRESSOR DRAIN THROUGH FLOOR

AIR DRYER IN-LINE W/BLEED

GENERATOR/AIR COMPRESSOR/STORAGE COMPARTMENT ALUMINUM TUBE FRAMED INTERIOR 102.81IN W X 40IN H X 28IN D

REEL CRAFT CORD REEL 13 AMP 50FT TRIPLE OUTLET INCLUDES 120V 15AMP DEDICATED RECEPTACLE

RAMP EXTENSION ALUMINUM 36IN W X 60IN L INCLUDES (4) 3IN RUBBER BUMPERS

TIRE RACK FOLD UP 8FT

(2) WORKBENCHS FLIP UP 40IN REMOVABLE INTERIOR MOUNTING LOCATION

WORKBENCH EXTERIOR FLIP UP 48"W REMOVABLE

CO DETECTOR

BASIC FIRST AID KIT

WINCH 5000LB W/50FT SYNTHETIC ROPE AND WIRELESS REMOTE

BACK-UP CAMERA SYSTEM 1 CAMERA VOYAGER WIRED

5.6IN LCD COLOR WIRELESS MONITOR INCLUDES NIGHT VISION CAPABILITY

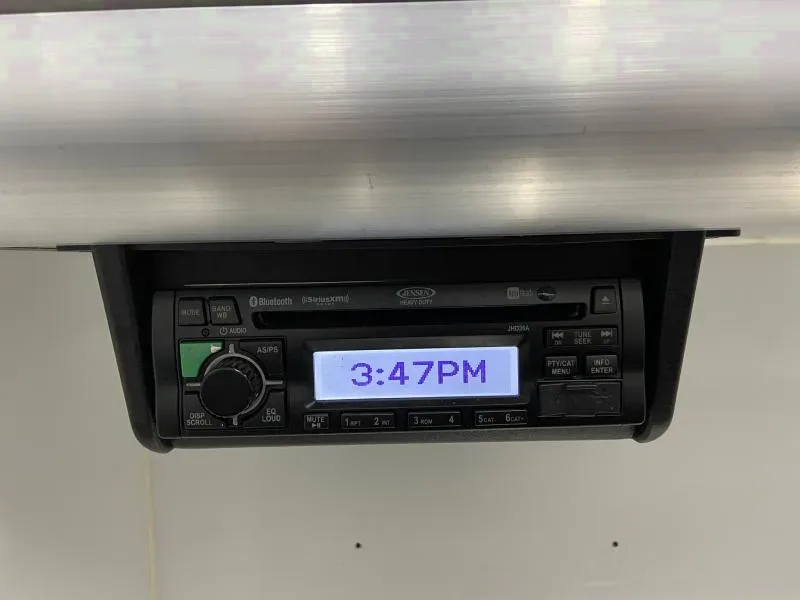

STEREO -AM/FM/CD/ BLUETOOTH W/ (4 CEILING RECESSED SPEAKERS) (1 PAIR EXTERIORSPEAKERS)

10000LB TORSION AXLES

AXLE SPACING SUPER SPREAD

GREASE HUBS

ELECTRIC BRAKES

245/70R17.5/LRH GOODTEAR RADIAL TIRES

ALCOA ALUMINUM WHEELS W/STAINLESS STEEL LUGNUTS-

SPARE TIRE AND WHEEL

ALL ALUMINUM TUBE CONSTRUCTION

FRAME 8IN ALUMINUM

STRUCTURE 16IN O/C

FRAME PROTECTION REAR BOGEY WHEELS

FRONT DESIGN FLAT

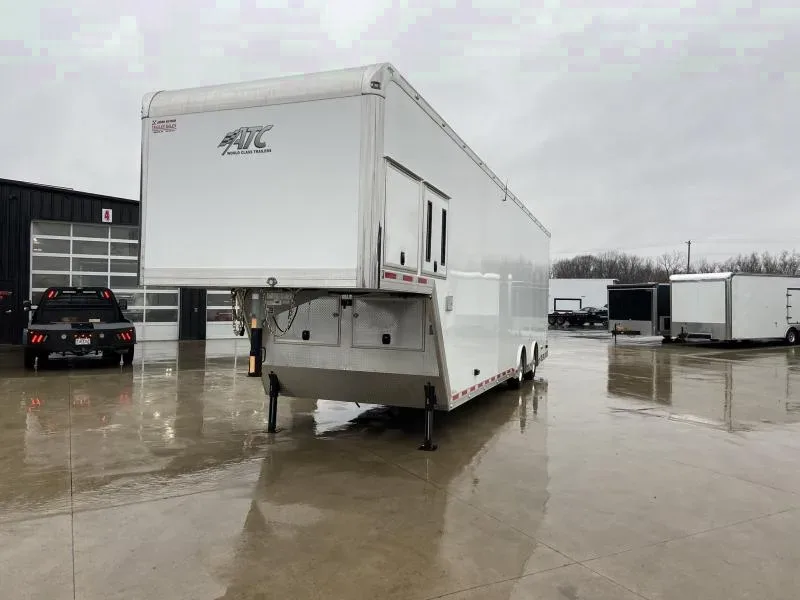

COUPLER GOOSENECK 2 5/16 25000LB

TRUCK PLUG 7 WAY GOOSENECK

JACK GOOSENECK HYDRAULIC TWO POST 16000LB

EXTERIOR ALUMINUM THICKNESS .050

EXTERIOR FASTENER SCREWLESS

ROOF ONE PIECE ALUMINUM

ROOF WALK ON PLYWOOD 3/8IN 175 LBF NOT TO EXCEED 2000# FOR ENTIRE ROOF

AWNING PREP

VERTICALS REAR STAINLESS STEEL

RUB RAIL LOWER ALUMINUM 7IN

RUB RAIL UPPER ALUMINUM 4IN

FENDERETTES ALUMINUM POLISHED

VERTICALS FRONT AND TOP RADIUS STAINLESS STEEL W/ CAST CORNERS POLISHED

SPOILER REAR COLOR MATCHED W/ 3 LED LIGHTS

DOT TAPE

WHEEL BOX SMOOTH ALUMINUM

FLOOR DESIGN BEAVERTAIL

PERIMETER SKIRTING W/ REVERSE BEAVERTAIL

INCLUDES: CUSTOM WHEEL WELL SKIRT, FULL PERIMETER SKIRTING, SINGLE FENDERETTE OVER EACH WHEEL

INTERIOR HEIGHT 10FT

INTERIOR WALLS POLAR WHITE SCREWLESS ALUMINUM

INSULATION WALLS R3

INTERIOR WALLS BEDRUG 40IN HIGH

INSULATION CEILING R3

COVE COLOR POLAR WHITE

CEILING COLOR POLAR WHITE (STANDARD)

SPRING BOX COLOR POLAR WHITE

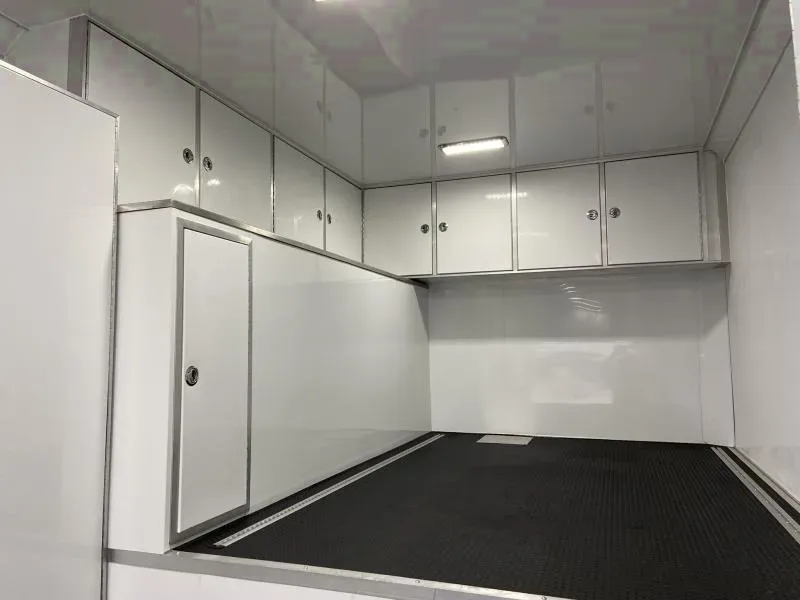

FLOORING BUNK AREA TPO BLACK COIN

D-RINGS SWIVEL 6000LB RECESSED (5)

SPARE TIRE COMPARTMENT IN FLOOR

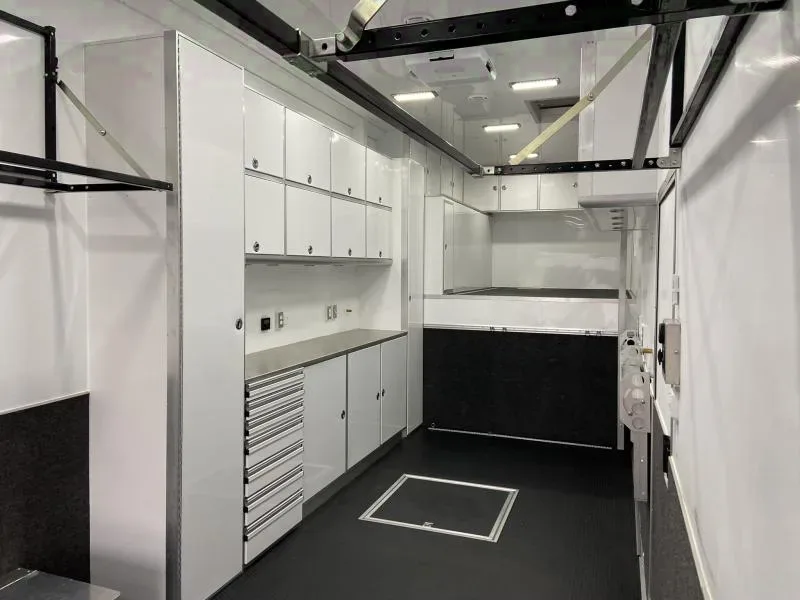

ALL ALUMINUM CABINETS

CABINET 24IN W 7 DRAWER C TECH WHITE

CABINET LOWER STRAIGHT 104'IN W X 40IN H X 20IN D 3 DOORS

ALUMINUM COUNTERTOP

STAND ALONE CABINET 20IN W X 104IN H X 20IN D

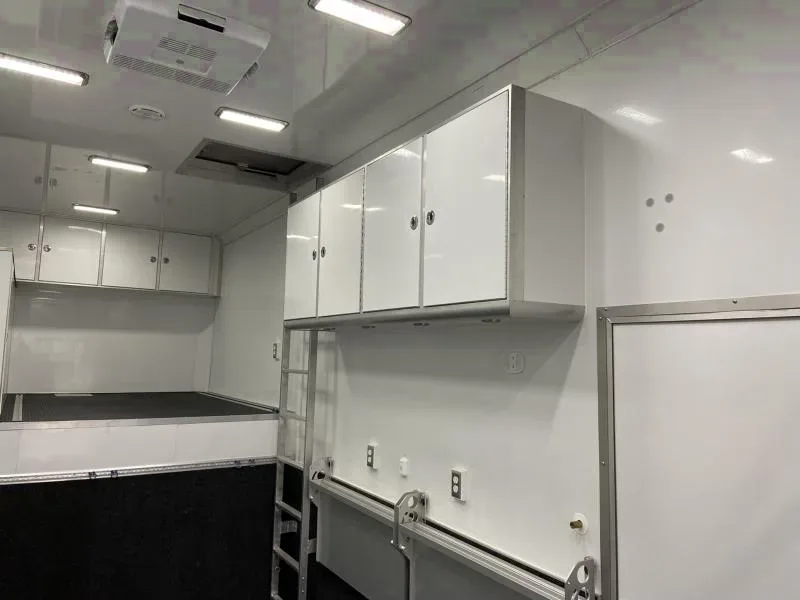

CABINET UPPER STRAIGHT 102.81IN W X 26IN H X 14IN D 4 DOORS

CABINET UPPER STRAIGHT 104IN W X 38IN H X 14IN D 8 DOORS

CABINET UPPER STRAIGHT 84'IN W X 30IN H X 14IN D 4 DOORS

CABINET UPPER TUBE FRAMED 99.63'IN W X 28.75IN H X 12IND TOP HINGED 405 SERIES DOOR W/ GAS SHOCKS TO ENCLOSE ELECTRIC REEL AND AIR HOSE

CABINET WARDROBE 20IN W X 104IN H X 20IN D

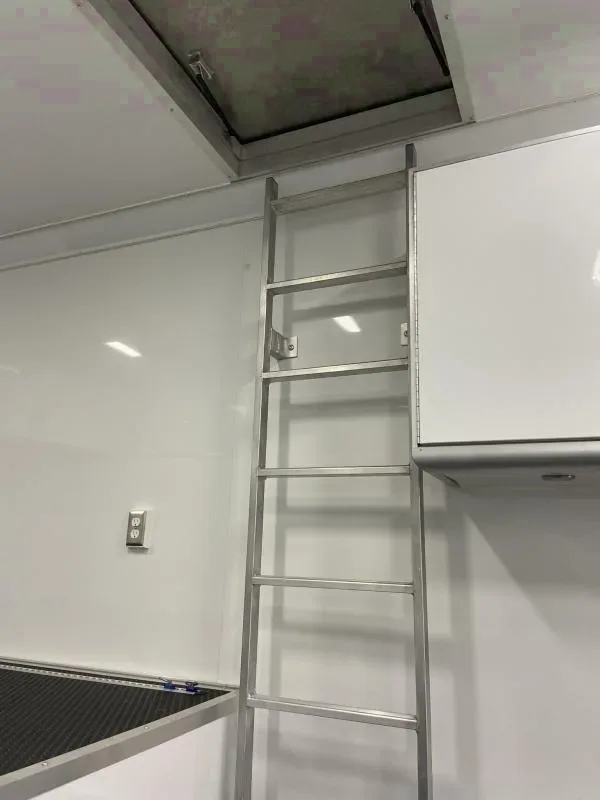

LADDER INTERIOR W/ PREMIUM 30IN X 30IN ALUMINUM HATCH TO ROOF

ENTRANCE DOOR 405 SERIES 36X78 RIGHT HINGE

GRAB HANDLE 12V LIGHTED W/WALL SWITCH

STEP SLIDE IN/OUT ALUMINUM 36IN

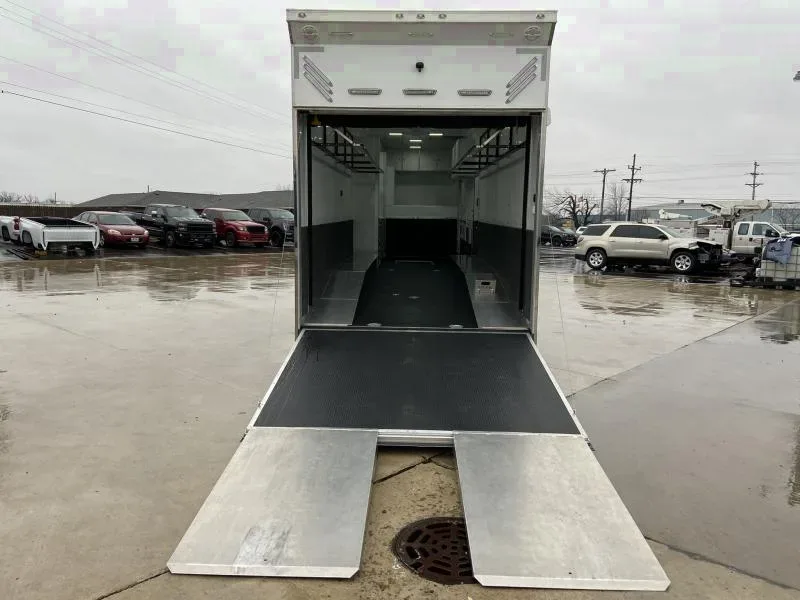

REAR RAMP DOOR PREMIUM CONTINUOUS ALUMINUM HINGE 2400LB RATED MAX LOAD 4000LB VEHICLE LOAD

RAMP DOOR OPENING HEIGHT 90IN

RAMP DOOR FLOORING BLACK COIN

RAMP DOOR LATCH RECESSED STAINLESS STEEL

DOOR ACCESS 405 SERIES 36X24 TOP HINGE IN RISER INCLUDES ATP GRAVEL GUARD

DOOR ACCESS 405 SERIES 36X36 TOP HINGE LOCATED IN BUNK

FUEL DOOR CAST ALUMINUM LOCKABLE

GENERATOR DOOR 405 SERIES 36X36

DOOR ACCESS INTERIOR 205 SERIES 14X36 SIDE HINGE

BREAKER BOX 50 AMP 120V ONLY

60 AMP CONVERTER 12V FUSE PANEL INTELI-POWER UNIT

POWER INLET MOTORBASE 50A W/ SHORE CORD 25FT

BATTERY 12V AGM (930 CA 775 CCA)

POWER CUT-OFF SWITCH MANUAL 12V

INTERIOR RECEPTACLES 120V 15A (5)

EXTERIOR RECEPTACLES 120V 15A- GFI PROTECTED (3)

(3) BATTERIES 12V AGM (930 CA 775 CCA)

(12) RECTANGULAR LED 14IN 12V SURFACE MOUNT W/3WAY SWITCHES

(9) PUCK LIGHTS LED 2.75IN 12V NON-RECESSED LOCATION UNDER UPPER CABINET

(7) SCENE LIGHTS LED HIGH OUTPUT 12V NON-RECESSED 14IN X 2.5IN W/CHROME BEZEL

(1 PAIR) DOCKING LIGHTS LED STAINLESS STEEL 12V

(16) CLEARANCE LIGHTS LED 12V AMBER LOWER

(20) CLEARANCE LIGHTS LED 12V AMBER UPPER

TAILLIGHT SLIMLINE DIAGONAL LED 12V RED INSTALLATION IN RAMP DOOR

BACKUP LIGHTS SLIMLINE LED 12V
